Associated Numbers
UD10060A ASPL AEC2042 AUTOELECTRO CAL35263AS CASCO CAL35263GS EAA222249 EAA 276592 ELSTOCK CA2042IR HC PARTS 302042 KUHNER LRA03482 LUCAS ZJ3818300 MAZDA A002TG1391ZD MITSUBISHIList A2TG1391 20137362BN REAL 2035263 SANDO 11578N WAI / TRANSPO UNIT BOM 2035281 Arrowhead MAT0271 Lester 11578 Mazda Mitsubishi PIC Picture ID Remy Light Duty 11142 References: J N 40048275 0986082430 Bosch ruil 12060970 EuroTec 145557090 PSH Elstock 57403 EAI 6493SP Spidan 930639 EDR A002TG1391 ALT3060 Unipoint ALT5195sa Electrolog DRA0639 F042303122 HCA2042IR Lucas TNA057 TWA mxa2048 6566412 ANJ568 anj568GQ 27-6592 EAA-222249 203-5281 A2TG1381 A2TG1381A 14-778Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | M10x1.25 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.25 mm |
| Grooves | 6 qty |
| Length (L.1) | 163 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 55 mm |
| Plug Code | PL_3403 |
| Product Line | +Plus Line Pro |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 16 mm |
| Pulley Type | CLUTCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 2 1.3 | [ZJ-VE] | 10.2007- |
| MAZDA | 2 1.5 | [ZY-DE] | 10.2007- |
| MAZDA | 2 1.5 | [ZY-VE] | 10.2007- |
| MAZDA | 3 1.6 MZR | 06.2009- |
Alternatives >>>
A5255 - Brand new unit ** WITH 2 PIN PLUG** A5255R Remanufactured USE ATP5001 Wiring plug if you want to use the above options
A5069 Without Clutch Pulley
Reference Information
A2TG1381A A2TG1381
< Critical Notes >

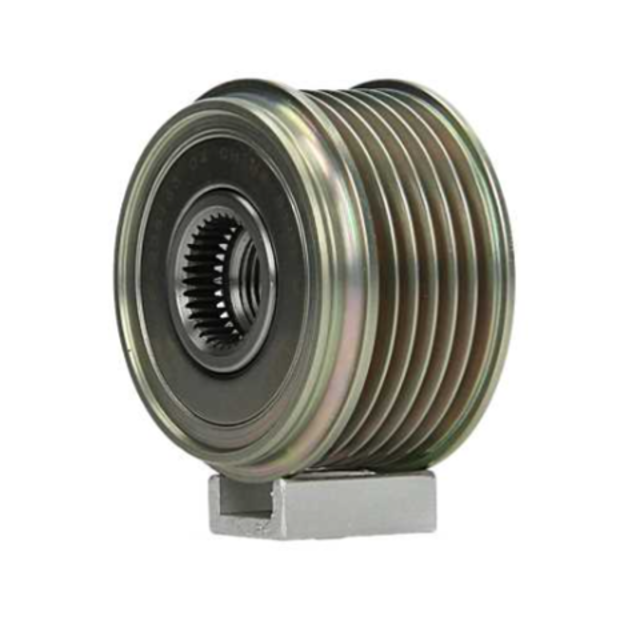

THIS UNIT DOES COME WITH A CLUTCH PULLEY
This unit is a 3 pin Plug You can use this in place of the 2 But you will need to purchase ATP6001 wiring plug change plug.
