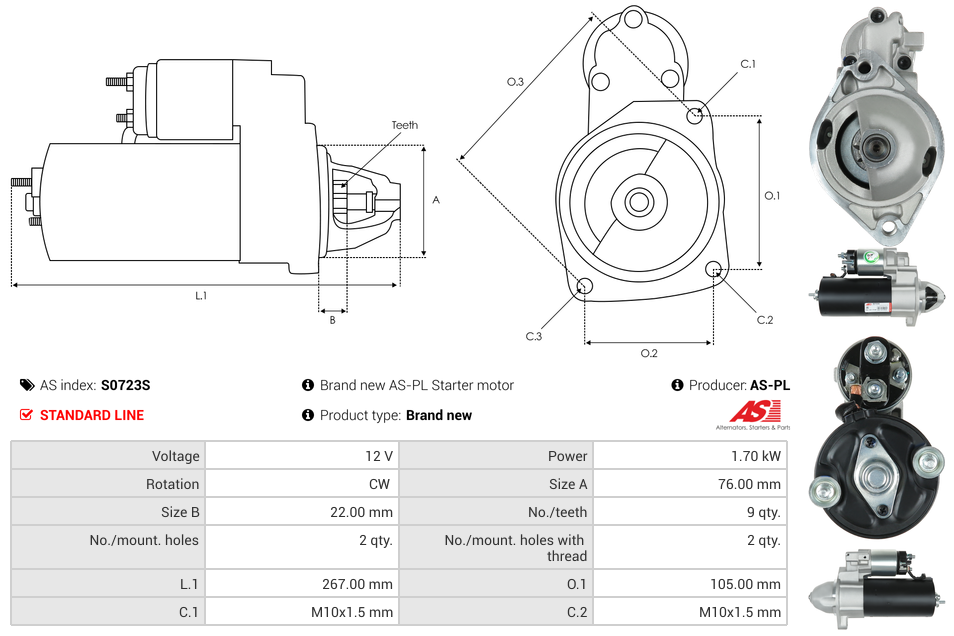

S0723S - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	267 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
Pinion at Rest (B)	22 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BMW	530 3.0 i	(E34)[M60B30(308S1)]	09.1992-07.1996
BMW	530 3.0 i V8	(E34)[M60B30(308S1)]	09.1992-12.1995
BMW	535 3.5 i	(E39)[M62B35(358S1)]	06.1996-08.1998
BMW	535 3.5 i	(E39)[M62B35(358S2)]	09.1998-06.2003
BMW	540 4.0 i	(E34)[M60B40(408S1)]	09.1993-07.1996
BMW	540 4.0 i V8	(E34)[M60B40(408S1)]	09.1992-12.1995
BMW	540 4.4 i	(E39)[M62B44(448S1)]	03.1996-06.2003
BMW	540 4.4 i	(E39)[M62B44(448S1)]	04.1997-12.2003
BMW	540 4.4 i	(E39)[M62B44(448S2)]	03.1996-06.2003
BMW	540 4.4 i	(E39)[M62B44(448S2)]	04.1997-12.2003
BMW	730 3.0 i	(E38)[M60B30(308S1)]	03.1994-02.1996
BMW	730 3.0 i	(E38)[M60B30(308S1)]	10.1994-11.2001
BMW	730 3.0 iL	(E38)[M60B30(308S1)]	03.1994-02.1996
BMW	730 3.0 iL	(E38)[M60B30(308S1)]	10.1994-11.2001
BMW	730 3.0 iL V8	(E32)[M60B30(308S1)]	04.1992-09.1994
BMW	730 3.0 i V8	(E32)[M60B30(308S1)]	04.1992-09.1994
BMW	735 3.5 i	(E38)[M62B35(358S1)]	03.1996-08.1998
BMW	735 3.5 i	(E38)[M62B35(358S2)]	09.1998-07.2001
BMW	735 3.5 iL	(E38)[M62B35(358S1)]	03.1996-08.1998
BMW	735 3.5 iL	(E38)[M62B35(358S2)]	09.1998-07.2001
BMW	740 4.0 i	(E38)[M60B40(408S1)]	03.1994-02.1996
BMW	740 4.0 iL	(E38)[M60B40(408S1)]	03.1994-02.1996
BMW	740 4.0 iL V8	(E32)[M60B40(408S1)]	05.1992-03.1994
BMW	740 4.0 i V8	(E32)[M60B40(408S1)]	05.1992-03.1994
BMW	740 4.4 i	(E38)[M62B44(448S1)]	02.1996-07.2001
BMW	740 4.4 i	(E38)[M62B44(448S2)]	02.1996-07.2001
BMW	740 4.4 iL	(E38)[M62B44(448S1)]	02.1996-07.2001
BMW	740 4.4 iL	(E38)[M62B44(448S2)]	02.1996-07.2001
BMW	840 4.0 i	(E31)[M60B40(408S1)]	03.1993-02.1996
BMW	840 4.4 Ci	(E31)[M62B44(448S1)]	03.1996-06.1999
BMW	M5 5.0	(E39)[S62B50(508S1)]	10.1998-06.2003

Reference Information

12411736922 STRF116 CST10500AS 000986017170 20401005 210.529.092 LRT00227 12411736921 CST10500ES 220332 UD20349S CST10500RS STB0793 10792 458473 DRS3685 1110071 DS4795 17497N ANM15905X 12411729981 330416 CST10500 STR1165 986017170 AES2227 BOS0001110071 10793B 31234R 12411729982 26-3040 CST10500OS 0001110071 88212704 EAA-121769 CST10500GS 6010500 S1050B STR50341

Video/Publications

0001110071 0986017170 10792 10793B 12411729982 12411736922 17497N 20401005 210.529.092 26-3040 31234R 458473 6010500 88212704 AES2227 BOS0001110071 CST10500 CST10500AS CST10500ES CST10500GS CST10500OS CST10500RS DRS3685 DS4795 EAA-121769 LRT00227 S1050B STB0793 STR50341 STRF116 UD20349S 220332
