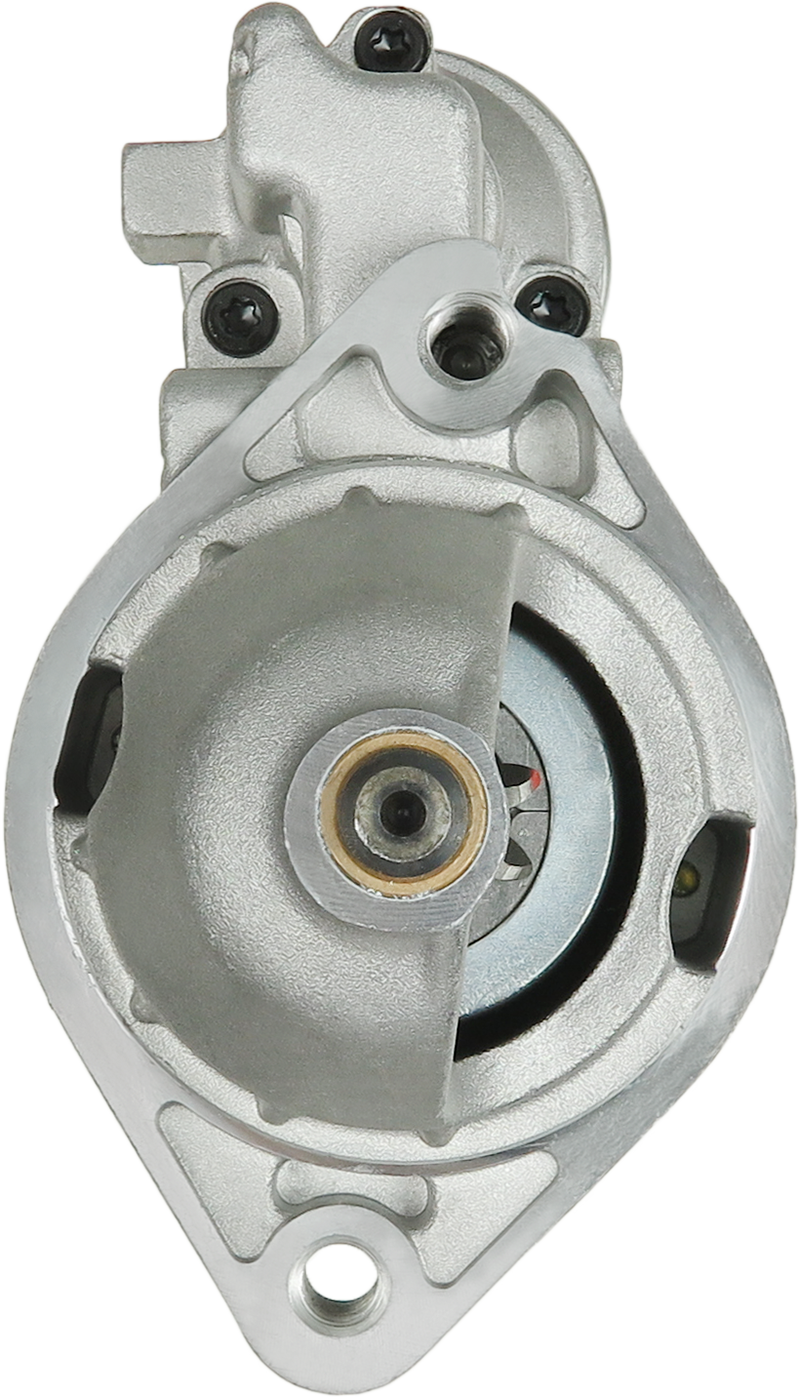

S0394 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	269 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
ALPINA	Roadster 4.8 V8	(Z8)[F5]	06.2002-
BMW	530 3.0 i	[M60]	01.1994-01.1995
BMW	530 3.0 iT	[M60]	01.1994-01.1995
BMW	530 3.0 i V8	(E34)[M60B30]	09.1992-01.1997
BMW	530 3.0 i V8	(E34)[M60B30]	09.1992-09.1995
BMW	535 3.5 i	(E39)[M62B35]	01.1996-06.2003
BMW	535 3.5 i	(E39)[M62B35]	04.1996-03.1999
BMW	540 4.0 i	(E34)[M60B40]	09.1993-01.1997
BMW	540 4.0 i	[M60]	01.1994-01.1995
BMW	540 4.0 i V8	(E34)[M60B40]	09.1992-09.1995
BMW	540 4.4 i	(E39)[M62B44]	01.1997-05.2004
BMW	540 4.4 i	(E39)[M62B44]	04.1996-06.2003
BMW	540 4.4 i	[M62]	01.1997-
BMW	540 4.4 i	[M62]	01.1998-01.2002
BMW	540 4.4 i Sport	[M62]	01.2001-01.2002
BMW	540 4.4 iT	[M62]	01.1999-01.2000
BMW	730 3.0 i	(E38)[M60B30]	10.1994-11.2001
BMW	730 3.0 i V8	(E32)[M60B30]	04.1992-09.1994
BMW	730 3.0 Li V8	(E32)[M60B30]	04.1992-09.1994
BMW	735 3.5 i	(E38)[M62B358S1]	01.1996-11.2001
BMW	740 4.0 i	(E38)[M60B40]	10.1994-11.2001
BMW	740 4.0 i	[M60]	01.1993-01.1994
BMW	740 4.0 i	[M60]	01.1995-
BMW	740 4.0 iL	[M60]	01.1993-01.1995
BMW	740 4.0 i V8	(E32)[M60B40]	04.1992-09.1994
BMW	740 4.0 Li V8	(E32)[M60B40]	04.1992-09.1994
BMW	740 4.4 i	(E38)[M62B44]	01.1996-11.2001
BMW	740 4.4 i	[M62]	01.1997-01.1998
BMW	740 4.4 i	[M62]	01.1999-01.2001
BMW	740 4.4 iL	[M62]	01.1996-01.1998
BMW	740 4.4 iL	[M62]	01.1999-01.2001
BMW	840 4.0 Ci	[M60]	01.1994-01.1995
BMW	840 4.0 i	(E31)[M60B40]	02.1993-02.1996
BMW	840 4.4 Ci	(E31)[M62B44]	01.1996-12.1999
BMW	840 4.4 Ci	[M62]	01.1996-01.1997
BMW	M5 4.9	(E39)[S38B49]	03.2000-06.2003
BMW	M5 5.0	(E39)	09.1998-06.2003
BMW	M5 5.0	[S62]	01.2000-01.2003
BMW	X5 4.4	[M62]	01.2000-01.2003
BMW	X5 4.4 i	(E53)[M62B44]	05.2000-
BMW	X5 4.6 iS	(E53)[M62B46]	02.2002-
BMW	X5 4.6 iS	[M62]	01.2003-01.2003
BMW	Z8 4.9	(E52)[S38B49]	06.2000-06.2003
BMW	Z8 5.0	[S62]	01.2001-01.2003

Reference Information

LRT00228 STR79681 EAA-121392 5010432 12411736921 STR1357 330944 220332 SS336 11823 22.0792M 25-2254 10792 6010411 S0394 CST10411AS 1110072 17497N 88213241 12411729981 1729981 CST10411GS 15 22.0792 112553 AZE2210 MS 42016920 AES2228 S12BH0427A2 8213241 8016920 31234R 12411468622 12411729982 000986016920 20401114BN CS792 0001110072 STR50426 986016920 MAV4820 11.139.447 3669 S1050B STRS967

Video/Publications

0001110072 0986016920 10792 11.139.447 112553 11823 12411729981 12411736921 17497N 20401114BN 22.0792 22.0792M 25-2254 31234R 3669 42016920 6010411 8016920 8213241 88213241 AES2228 AZE2210 CS792 CST10411AS CST10411GS EAA-121392 LRT00228 MAV4820 MS 15 S0394 S1050B SS336 STR50426 STRS967 220332
