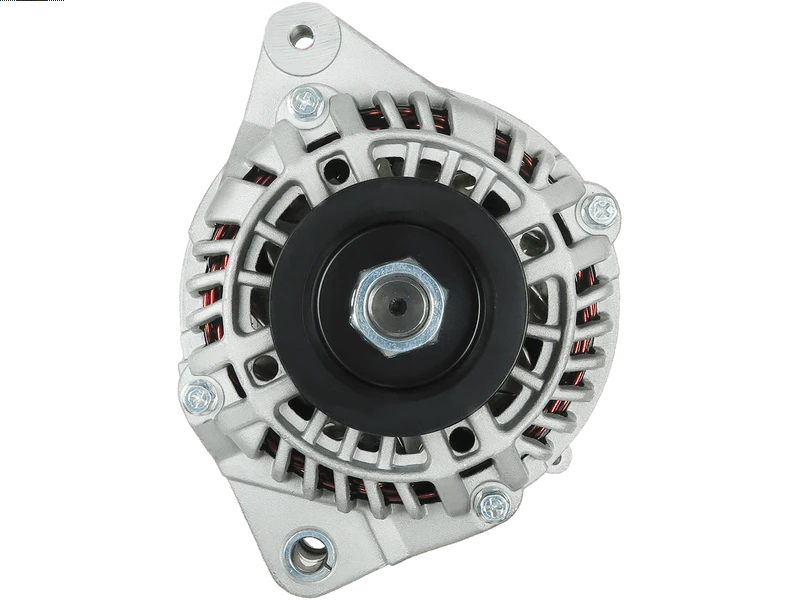

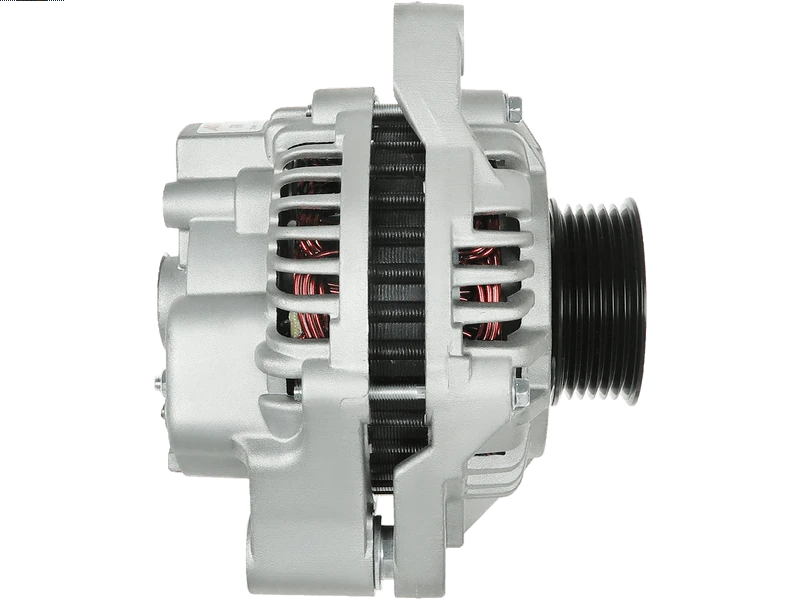

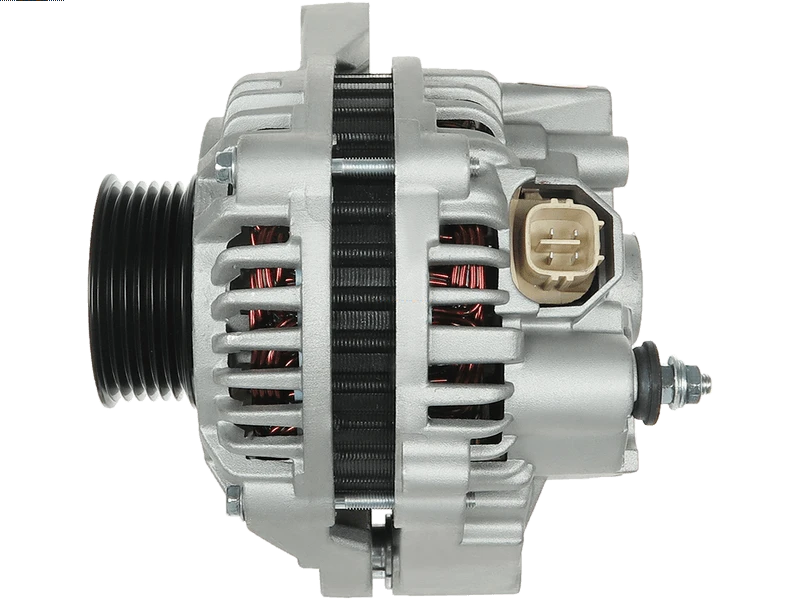

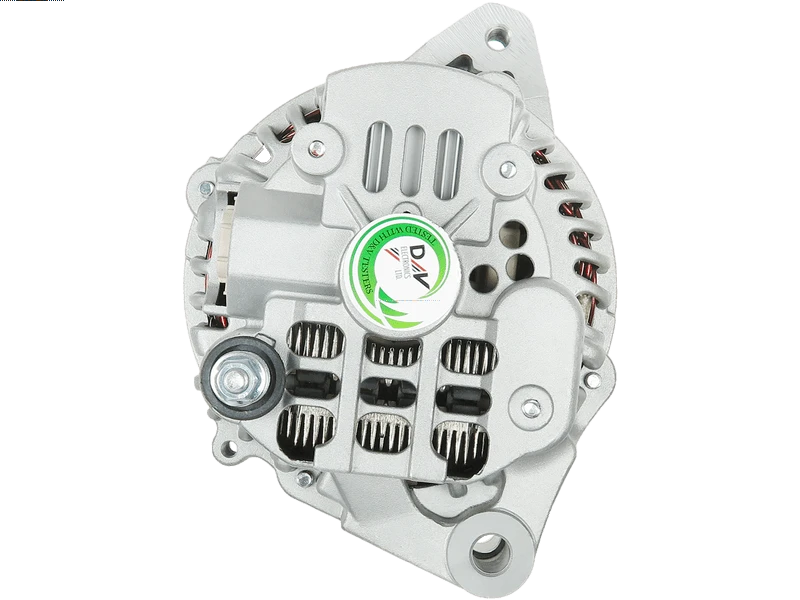

A5076 - Brand new AS-PL Alternator

Associated Numbers

11.1727 11.1727M 113954 125.518.060 13893N 13893R 20137991BN 20137991OE 2035199 28-4768 31100-PLM-A01 31100-PLM-A02 31100-RJH-004 401727RI 57179 8EL738150-001 9090348 9212395 9377 A005TA7091 A005TA7091ZC A005TA7091ZE A005TA7191ZC A5TA6991 A5TA6991A A5TA7091 A5TA7091ZC A5TA7091ZE A5TA7191 A5TA7191ZC AEB1727 AHGA50 AHGA51 AHGA64 ALT31065 CAL35199 CAL35199AS CAL35199ES CAL35199GS CAL35199OS CAL35199RS DRA0017 EAA-221183 JA1727IR LRA02287 SA843 UD01899A 14-876 027091 Andre Niermann 030383 Da Silva 06311PLM505RM Honda 063731727010 Magneti Marelli 0986080240 Bosch Exchange 0986CR0852 0986UR0852 1002116173 Denso 10443172 Alanko 112111 Spidan Cargo 12060831 EuroTec 125518070 PSH WAI 203413 PIC Sando 20837029 Real 209008 Messmer 222141652 DRI 284768 Elstock 31100PLMA01 31100PLMA012 31100PLMA012M 31100PLMA02 31100PLMA020M2 31100PLMA02RM 31100PLMC012 31100PLMC012M 31100RJH004 40048035 JN 401600412 Euro Car Parts DAS 440552 Valeo 443172 446776 Logistik EAI 6213SP 63731727 89212395 PowerMax 8EL012426441 Hella 8EL738150001 90273268 Wilson Friesen 9090348F 930017 EDR CEVAM A005TA6991 Mitsubishi A005TA6991A A005TA7091AM A005TA7091KD A005TA7191 A129812 Short code A149638 A157501 A5076 AS-PL A5TA7091AM A5TA7091KD A5TA7091SEL +line A8850 Dixie AA5374 Auto Charge AAL1374 Apec Electro AHA415 ATK AHA427 AL02380 TMI AL1295X (USA) ALT10014 Wood ALT309 Rolling Components ALT3710 Unipoint ALT5022sa Electrolog AME1102 Everkraft AMI1119 Quasar Casco CGB17091 Ainde DMS8532 DriveTec Remy F042303090 HJA1727IR HC-Parts IR6958 Protech J5114037 Herth Buss JA1727 KTR251036120 KTR L82150 ATL Lucas LRA2287 MITA5TA7091 NAL1374 Napa (UK) OAN10464 Optimum RAA11128 RNLA5TA7091 RNL Sovereign SP6213 TRA332 TWA UNIALT3710 VLN801727 ADI WOOALT10014 WOOALT31065

Specifications

Some Honda Applications may need the ALM6001 Light module

Amp	70 A
Bottom Mounting Foot Width (B)	59 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10.5 mm
Length (L.1)	161 mm
OEM Product	No
Plug Code	PL_4001
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	63 mm
Pulley to Mount Distance (A)	94.5 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HONDA	Civic 1.4	[D14Z5]	12.2000-09.2005
HONDA	Civic 1.4 i	[D14Z6]	02.2001-09.2005
HONDA	Civic 1.4 i S S	[D14Z5]	02.2001-09.2005
HONDA	Civic 1.4 i S S	[D14Z6]	02.2001-09.2005
HONDA	Civic 1.6	[D16V1]	02.2001-09.2005
HONDA	Civic 1.6	[R16A1]	09.2005-
HONDA	Civic 1.6	[R16A1]	09.2005-09.2005
HONDA	Civic 1.6 i	[D16V1]	02.2001-09.2005
HONDA	Civic 1.6 i	[D16V1]	02.2001-12.2005
HONDA	Civic 1.7	[D17A6]	02.2001-09.2005
HONDA	Civic 1.7 i	[D17A8]	05.2001-12.2005
HONDA	Civic 1.7 i	[D17A9]	05.2001-12.2005
HONDA	Civic 1.8	[R18A1]	09.2005-02.2012
HONDA	FR-V 1.7	[D17A2]	02.2005-

Reference Information

11.1727M JA1727IR ALT371990 31100-PLM-A02 31100-PLM-A01 31100PLMC012 9212395 20137991OE A5TA7191ZC CAL35199RS RNLA5TA7091 209008 A005TA7091 ALT309 A005TA7091KD UD01899A A5TA7091ZC SA843 20137991BN STX100098 A5TA7091AM AHGA50 A5TA7091ZE AHGA51 CAL35199GS DRA0017 A5TA7191 ALT31065 CAL35199OS 9090348 A5TA6991A 28-4768 2035199 A005TA6991A 11.1727 ALTL754 ANM32237X AHGA64 31100PLMA012M A005TA6991 STX100098R A005TA7091AM A005TA7091ZE A005TA7091ZC A5TA6991 LRA2287 A5TA7091KD 31100PLMA012 113954 A005TA7191 446776 A12MH0210A2 A5076 13893N 5535959 31100-RJH-004 31100PLMC012M 9377 CAL35199ES 13893R 8EL738150-001 AEB1727 A5TA7091 LRA02287 125.518.060 A005TA7191ZC 57179 ALT5022 401727RI CAL35199 CAL35199AS CGB-17091 31100PLMA020M2

Video/Publications

A5076

Related Items
