Associated Numbers
255384 Elstock 4380001510 Denso 4380001511 4380001512 4380801512 450550113 PSH DENDSN1417 Wood Auto DRS1224 Remy DSN1417 FPLA11001BA Land Rover FPLA11001BB LR061894 LR080292 LRS04222 Lucas S6511S AS-PLList UD101242S AS-PL DELCO 438000-1510 DENSOList 438000-1511 DENSO 438000-1512 FPLA-11001-BA FORD FPLA-11001-BB LAND ROVER CST40471GS CASCO 3764 CEVAM 25-5384 ELSTOCK 221087A ERA 256293D KUHNER 335978 LOGISTIK LUCAS LRS4222 88214255 POWERMAX 450.550.113.260 20432174 OEREAL 6040471.1 SANDO MAV424710 SIOM 30522N WAI / TRANSPO WOODAUTO 438000-151 Industry 30522 LR0 61894 80292 Lester PIC 190-6517 190-6517A 190-6517B Europe Romaine Electric Voltux V1-30522 256293 DAS 314072112 DRI Logistik 438061 Alanko Power Max AEX1388 Electro CST40471 Airframe S145118 Short code S166783 S166784 SDE1415 Everkraft SND1271 Quasar
|
30522N |
WAI |
|---|---|
|
4380001510 |
Denso |
|
4380001511 |
Denso |
|
4380001512 |
Denso |
|
4380801512 |
Denso |
|
450550113 |
PSH |
|
DENDSN1417 |
Wood Auto |
|
DRS1224 |
Delco Remy |
|
DSN1417 |
Denso |
|
FPLA11001BA |
Land Rover |
|
FPLA11001BB |
Land Rover |
|
LR061894 |
Land Rover |
|
LR080292 |
Land Rover |
|
LRS04222 |
Lucas |
|
LRS4222 |
Lucas |
|
WURT5B700676 |
Würtemberg |

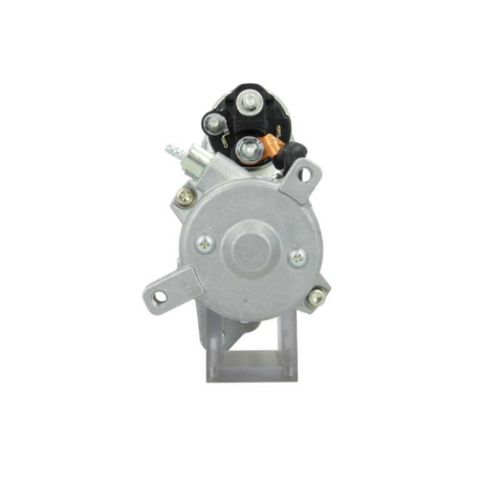

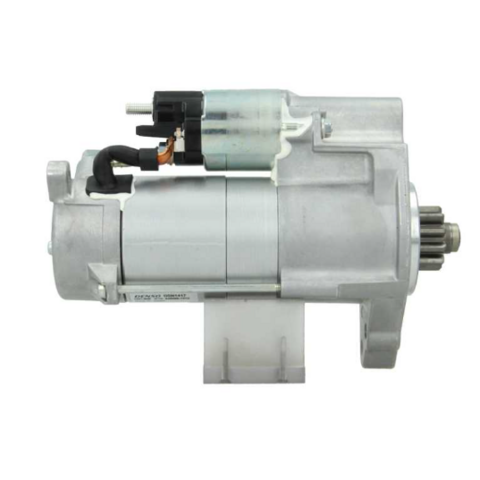

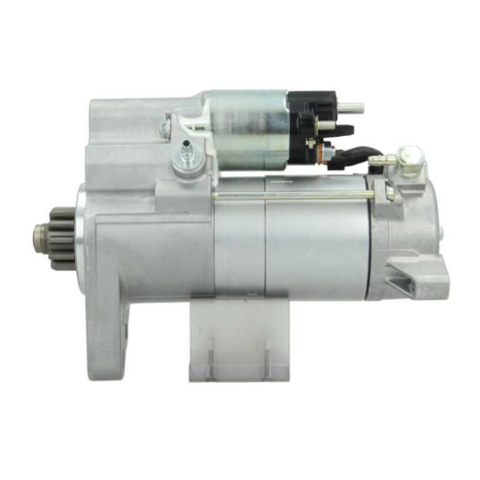

Specifications
| Kilowatt | 1.9 kW |
| Length (L.1) | 247 mm |
| Mount Hole Center - Center (O.1) | 147 mm |
| Mount Hole Center - Center (O.2) | 26 mm |
| Mount Hole Center - Center (O.3) | 130 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 25 mm |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAND ROVER | Discovery 3.0 D 4x4 | [306DT] | 09.2016- |
| LAND ROVER | Discovery 3.0 TD6 4x4 | [306DT] | 09.2016- |
| LAND ROVER | Range Rover 3.0 SDV6 4x4 | [306DT] | 08.2012- |
| LAND ROVER | Range Rover 3.0 TDV6 4x4 | [306DT] | 08.2012- |
| LAND ROVER | Range Rover 3.0 TDV6 4x4 | [306DT] | 10.2013- |
| LAND ROVER | Range Rover Sport 3.0 SDV6 4x4 | [306DT] | 04.2013-12.2016 |
| LAND ROVER | Range Rover Sport 3.0 SDV6 4x4 | [306DT] | 09.2014- |
| LAND ROVER | Range Rover Sport 3.0 SDV6 4x4 | [306DT] | 10.2013- |
| LAND ROVER | Range Rover Sport 3.0 TDV6 4x4 | [306DT] | 04.2013- |
| LAND ROVER | Range Rover Sport 3.0 TDV6 4x4 | [306DT] | 04.2013-12.2018 |
Reference Information
438000-1510 438000-1511 438000-1512
