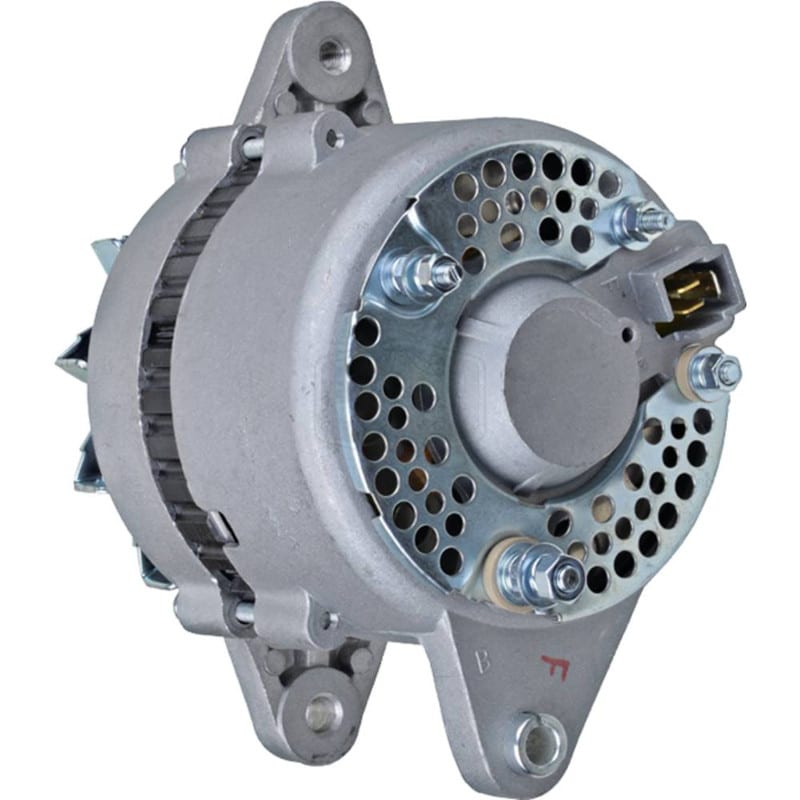

Brand new ASG-NZ Alternator
STANDARD LINE
ASG-NZ
DENSO
Price:
NZ$ 278.97 including GST
NZ$ 242.58 excluding GST
or four payments of $69.74
with
Learn More
UOM:
each
Product Code:
AAM-S1311
2
Associated Numbers
0210008660 Denso 111195 HC-Cargo 12055N WAI 1210000600 1210000980 1525364010 Kubota 1525364012 1532164010 1541164011 1562164010 1562164011 1576364011 1576364012 695002035 PSH ALT30060 Wood Auto ALT7305 ALT7307 F032111195 LRA02577 Lucas LRA2577 WOOALT30060 9702109-866 Wilson 90-29-5097 References: Atlantic Quality Parts 1900-0500 021000-8660 121000-0600 15253-64010 15253-64011 15253-64012 15621-64010 15621-64011 Lester 12055 PIC Picture ID 290-143 400-52231 9712109-098 J&N 400-52244 021000-7390 121000-0980 9712109-060 15763-64010 15763-64011 15763-64012 12068 290-140A 021000-866 121000-060 IAT A12055 Industry Remy 50906
- Arrowhead ND021000-8660, ND121000-0600, ND9702109-866
- Denso 021000-6861, 021000-7390, 021000-8660, 121000-0600, 121000-0980, 9702109-866, 9712109-060, 9712109-098
- Gehl 121962
- Kubota 15253-64010, 15253-64011, 15253-64012, 15621-64010, 15621-64011, 15763-64010, 15763-64011, 15763-64012
- Lester 12055, 12068
- Lucas Electric LRA02577
Specifications
EXTERNAL REGULATOR
| Amp | 35 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 166 mm |
| Mount Inside Length or Pad Mount C-C (C) | 68 mm |
| OEM Product | No |
| Plug Code | PL_3601 . |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 51 mm |
| Pulley Outside Diameter (O.D.2) | 72 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE/INTERNATIONAL HARVESTER | 1825 | ||
| CLARK | 784 | V1902 | |
| CUSHMAN | Fairway King | ||
| CUSHMAN | Front Line Mower | D950 | |
| CUSHMAN | Runabout | ||
| FORD/NEW HOLLAND | 1110 | ||
| FORD/NEW HOLLAND | 1120 | ||
| FORD/NEW HOLLAND | 1210 | ||
| FORD/NEW HOLLAND | 1215 | 19784 | |
| GEHL | 4625DX | V2203B | |
| GEHL | SL4625 | V2203 | |
| ISUZU | 2AB1 | 1982 | |
| ISUZU | 3AB1 | 1985 | |
| ISUZU | Misc. Industrial Equipment | 2AB1 | |
| ISUZU | Misc. Industrial Equipment | 3AB1 | |
| JACOBSEN | T-422D | D950 | |
| KUBOTA | B5100DT | Z500-B | |
| KUBOTA | B5100E | Z500-B | |
| KUBOTA | B6000DT | ||
| KUBOTA | B6000DTC | L6 ZL600 | |
| KUBOTA | B6000E | L6 ZL600 | |
| KUBOTA | B6100D | D650B | |
| KUBOTA | B6100DT | D650B | |
| KUBOTA | B6100E | D650B | |
| KUBOTA | B6100HSD | D650B | |
| KUBOTA | B6100HSE | D650B | |
| KUBOTA | B6100HST | D650B | |
| KUBOTA | B6100HST-E | D650B | |
| KUBOTA | B6100T | D650B | |
| KUBOTA | B7100DT | D750B | |
| KUBOTA | B7100E | D750B | |
| KUBOTA | B7100HSD | D750B | |
| KUBOTA | B7100HSE | D750B | |
| KUBOTA | B7100HST | D750B | |
| KUBOTA | B7100HST-E | D750B | |
| KUBOTA | B7200DT | ||
| KUBOTA | B7200E | ||
| KUBOTA | B7200EGP | ||
| KUBOTA | B7200HSD | ||
| KUBOTA | B7200HSD-T | ||
| KUBOTA | B7200HSE | ||
| KUBOTA | B9200HSD | V12 V1200-A | |
| KUBOTA | F2302 | ||
| KUBOTA | GV3190QSW | V2203 | |
| KUBOTA | GV3240-SW | S2800B | |
| KUBOTA | GV3250Q-SW | F2803B | |
| KUBOTA | KH10 | D1101 | |
| KUBOTA | KH11H | D1302 | |
| KUBOTA | KH12FD | D1402 | |
| KUBOTA | KH14 | D1301 | |
| KUBOTA | KH151 | V1902BH | |
| KUBOTA | KH170L | 48HP DIESEL | 1985 |
| KUBOTA | KH170L | ||
| KUBOTA | KH18 | S2200 | |
| KUBOTA | KH191 | S2800D | |
| KUBOTA | KH20 | V1902 | |
| KUBOTA | KH28 | 48HP DIESEL | 1984 |
| KUBOTA | KH28 | S2600 | |
| KUBOTA | KH28L | ||
| KUBOTA | KH60 | D1302 | |
| KUBOTA | KH90 | ||
| KUBOTA | KH91 | D1402BH | |
| KUBOTA | KX101 | ||
| KUBOTA | KX151 | V1902BH | |
| KUBOTA | L175F | Z750A | |
| KUBOTA | L185 | Z751A | |
| KUBOTA | L185DT | Z751A | |
| KUBOTA | L185F | Z751A | |
| KUBOTA | L200 | ||
| KUBOTA | L2050DT | D1102AE | |
| KUBOTA | L2050F | D1102AE | |
| KUBOTA | L210 | ||
| KUBOTA | L225 | ||
| KUBOTA | L2250 | ||
| KUBOTA | L2250DT | 26HP DIESEL | 1985 - 1990 |
| KUBOTA | L2250DT | ||
| KUBOTA | L2250F | 26HP DIESEL | 1985 - 1990 |
| KUBOTA | L2250F | ||
| KUBOTA | L225DT | ||
| KUBOTA | L225F | D1100A | |
| KUBOTA | L2350DT | D1102AE | |
| KUBOTA | L2350F | D1102AE | |
| KUBOTA | L235DT | D1102A | |
| KUBOTA | L235F | D1102A | |
| KUBOTA | L245 | ||
| KUBOTA | L245DT | ||
| KUBOTA | L245HC | ||
| KUBOTA | L2550 | ||
| KUBOTA | L2550DT | 29HP DIESEL | 1985 - 1990 |
| KUBOTA | L2550DT | ||
| KUBOTA | L2550DTG-ST | ||
| KUBOTA | L2550DTGST | 29HP DIESEL | 1985 - 1987 |
| KUBOTA | L2550F | 29HP DIESEL | 1985 - 1990 |
| KUBOTA | L2550F | ||
| KUBOTA | L2550GST | 29HP DIESEL | 1986 - 1990 |
| KUBOTA | L2550GST | D1402DIA | |
| KUBOTA | L260F | Z1300 | |
| KUBOTA | L275DT | D1302A | |
| KUBOTA | L275F | D1302A | |
| KUBOTA | L2850 | ||
| KUBOTA | L2850DT | ||
| KUBOTA | L2850DTG-ST | V1702DIA | |
| KUBOTA | L2850F | ||
| KUBOTA | L2850GST | V1702DIA | |
| KUBOTA | L285DT | V1500A | |
| KUBOTA | L285F | V1500A | |
| KUBOTA | L285HF | V1500A | |
| KUBOTA | L295DT | D1301A | |
| KUBOTA | L295F | D1301A | |
| KUBOTA | L305DT | D1301DA | |
| KUBOTA | L305F | D1301DA | |
| KUBOTA | L3250 | ||
| KUBOTA | L3250DT | V1902DIA | |
| KUBOTA | L3250F | V1902DIA | |
| KUBOTA | L3350DT | ||
| KUBOTA | L3350HDT | ||
| KUBOTA | L3350MDT | ||
| KUBOTA | L345DT | V1501DA | |
| KUBOTA | L345F | V1501DA | |
| KUBOTA | L345FW | V1501DA | |
| KUBOTA | L355DTS-S | V1702A | |
| KUBOTA | L355SS | V1702A | |
| KUBOTA | L3750DT | ||
| KUBOTA | L3750HDT | F2302DIL | |
| KUBOTA | L3750HF | F2302DIL | |
| KUBOTA | L3750MDT | F2302DIL | |
| KUBOTA | L3750MF | F2302DIL | |
| KUBOTA | L4150DT | ||
| KUBOTA | L4150DTN | F2302DI | |
| KUBOTA | L4150F | ||
| KUBOTA | L4150HDT | F2302DI | |
| KUBOTA | L4150HF | F2302DI | |
| KUBOTA | L4150MDT | F2302DI | |
| KUBOTA | L4150MF | F2302DI | |
| KUBOTA | L4850 | ||
| KUBOTA | L5450DT | ||
| KUBOTA | M4000 | S2200A | |
| KUBOTA | M4030 | S2602DIA | |
| KUBOTA | M4030DT | S2602DIA | |
| KUBOTA | M4030F | S2602DIA | |
| KUBOTA | M4030MDT | S2602DIA | |
| KUBOTA | M4030MF | S2602DIA | |
| KUBOTA | M4030SU | Diesel | |
| KUBOTA | M4030TF | S2602DIA | |
| KUBOTA | M4050 | S2600 | |
| KUBOTA | M4050DT | S2600 | |
| KUBOTA | M4050F | S2600 | |
| KUBOTA | M4050T | S2600 | |
| KUBOTA | M4500DC | S2600 | |
| KUBOTA | M4500DT | S2600 | |
| KUBOTA | M4500F | S2600 | |
| KUBOTA | M4950DT | 55HP DIESEL | 1983 - 1993 |
| KUBOTA | M4950DT | S2800A | |
| KUBOTA | M4950DTC | 55HP DIESEL | 1983 - 1985 |
| KUBOTA | M4950DTC | S2800A | |
| KUBOTA | M4950F | S2800A | |
| KUBOTA | M4950FC | S2800A | |
| KUBOTA | M4950S | S2800A | |
| KUBOTA | M5030DT | S2800A | |
| KUBOTA | M5030DTL | S2800A | |
| KUBOTA | M5030F | S2800A | |
| KUBOTA | M5030L | S2800A | |
| KUBOTA | M5030MDT | S2800A | |
| KUBOTA | M5030MDT-L | S2800A | |
| KUBOTA | M5030MF | S2800A | |
| KUBOTA | M5030SU | ||
| KUBOTA | M5030SUD-T | S2800A | |
| KUBOTA | M5030SUM-DT | S2800A | |
| KUBOTA | M5400 | ||
| KUBOTA | NSU25 | ||
| KUBOTA | NSU35 | S2200 | |
| KUBOTA | NX3000 | D1301 | |
| KUBOTA | R400 | V1902 | |
| KUBOTA | R410 | ||
| KUBOTA | RW25 | V1500 | |
| KUBOTA | RW30 | V1902 | |
| KUBOTA | RX3600 | V1502C | |
| KUBOTA | S2200E | ||
| KUBOTA | S2800 | 1983 | |
| KUBOTA | S2800 | ||
| KUBOTA | V1501 | ||
| KUBOTA | V1702 | ||
| KUBOTA | VT1502 | ||
| KUBOTA | Z751-AW | 1980 | |
| KUBOTA | Z751AW | ||
| SUZUKI | LJ81 | 1.0L | |
| SUZUKI | SJ410 | 1.0L | |
| THOMAS EQUIPMENT | T103 | D1402B | |
| THOMAS EQUIPMENT | T133 | V1902B | |
| THOMAS EQUIPMENT | T173 | DIESEL | 1989 - 1999 |
| THOMAS EQUIPMENT | T173 | V1902B | |
| THOMAS EQUIPMENT | T233 | S2800B | |
| TOYOTA | 2FD-10 | 4P | |
| TOYOTA | 2FD-7 | V1502 | |
| TOYOTA | 2FD-9 | V1502 | |
| TOYOTA | 2FG-7 | 3P | |
| TOYOTA | 2FG-9 | 3P | |
| TOYOTA | 2FGL-7 | 3P | |
| TOYOTA | 2FGL-9 | 3P | |
| TOYOTA | 3FD-10 | V1502 | |
| TOYOTA | 3FD-14 | V1502 | |
| TOYOTA | 3FD-15 | V1502 | |
| TOYOTA | 3FD-18 | V1502 | |
| TOYOTA | 3FDL-10 | V1502 | |
| TOYOTA | 3FDL-14 | V1502 | |
| TOYOTA | 3FDL-15 | V1502 | |
| TOYOTA | 3FDL-18 | V1502 | |
| TOYOTA | 3FDL-20 | V1502 | |
| TOYOTA | 3FDL-25 | V1502 | |
| TOYOTA | 3FG-20 | 4P | |
| TOYOTA | 3FG-20 | 5R | |
| TOYOTA | 3FG-23 | 4P | |
| TOYOTA | 3FG-25 | 4P | |
| TOYOTA | 3FG-25 | 5R | |
| TOYOTA | 3FGC-10 | 5R | |
| TOYOTA | 3FGC-13 | 5R | |
| TOYOTA | 3FGC-15 | 5R | |
| TOYOTA | 3FGL-20 | 4P | |
| TOYOTA | 3FGL-23 | 4P | |
| TOYOTA | 3FGL-25 | 4P | |
| TOYOTA | 4FDL-20 | V1502 | |
| TOYOTA | 4FDL-23 | V1502 | |
| TOYOTA | 4FDL-25 | V1502 | |
| TOYOTA | 4FG-10 | 4P | |
| TOYOTA | 4FG-10 | 5R | |
| TOYOTA | 4FG-14 | 4P | |
| TOYOTA | 4FG-14 | 5R | |
| TOYOTA | 4FG-15 | 4P | |
| TOYOTA | 4FG-15 | 5R | |
| TOYOTA | 4FG-18 | 4P | |
| TOYOTA | 4FG-18 | 5R | |
| TOYOTA | 4FG-20 | 4P | |
| TOYOTA | 4FG-20 | 5R | |
| TOYOTA | 4FG-23 | 4P | |
| TOYOTA | 4FG-23 | 5R | |
| TOYOTA | 4FG-25 | 4P | |
| TOYOTA | 4FG-25 | 5R | |
| TOYOTA | 4FGC-20 | 4P | |
| TOYOTA | 4FGC-20 | 5R | |
| TOYOTA | 4FGC-25 | 4P | |
| TOYOTA | 4FGC-25 | 5R | |
| TOYOTA | 4FGL-10 | 4P | |
| TOYOTA | 4FGL-14 | 4P | |
| TOYOTA | 4FGL-15 | 4P | |
| TOYOTA | 4FGL-18 | 4P | |
| TOYOTA | 4FGL-20 | 4P | |
| TOYOTA | 4FGL-23 | 4P | |
| TOYOTA | COROLLA | 1.1L | |
| TOYOTA | COROLLA | 1.2L | |
| TOYOTA | FD-18 | V1502 | |
| TOYOTA | FDL-18 | V1502 | |
| TOYOTA | FDL-23 | V1502 | |
| TOYOTA | FG-18 | 4P | |
| TOYOTA | FG-18 | 5R | |
| TOYOTA | FG-23 | 4P | |
| TOYOTA | FG-23 | 5R | |
| TOYOTA | FGC-18 | 4P | |
| TOYOTA | FGC-18 | 5R | |
| TOYOTA | FGC-23 | 4P | |
| TOYOTA | FGC-23 | 5R | |
| TOYOTA | FGL-18 | 4P | |
| TOYOTA | FGL-20 | 4P | |
| TOYOTA | FGL-23 | 4P | |
| TOYOTA | FGL-25 | 4P | |
| TOYOTA | PICKUP | 1.9L |
Reference Information
| 0210006840 | Denso |
| 0210008660 | Denso |
| 111195 | HC-Cargo |
| 12055N | WAI |
| 1210000600 | Denso |
| 1525364010 | Kubota |
| 1525364012 | Kubota |
| 1532164010 | Kubota |
| 1532164012 | Kubota |
| 1541164010 | Kubota |
| 1541164011 | Kubota |
| 1547164010 | Kubota |
| 1547164011 | Kubota |
| 1560664010 | Kubota |
| 1560664011 | Kubota |
| 1562164010 | Kubota |
| 1562164011 | Kubota |
| 1576364010 | Kubota |
| 1576364011 | Kubota |
| 1576364012 | Kubota |
| 695002035 | PSH |
| 9702109684 | Denso |
| ALT30060 | Wood Auto |
| ALT7305 | Wood Auto |
| ALT7307 | Wood Auto |
| F032111195 | HC-Cargo |
| LRA02577 | Lucas |
| LRA2577 | Lucas |
| WOOALT30060 | Wood Auto |
