Associated Numbers
0986035901 Bosch ruil
0986CR0017 Bosch ruil
0986CR0069 Bosch ruil
0986UN0069 Bosch ruil
0986UR0017 Bosch ruil
0986UR0069 Bosch ruil
100211144 Denso
1002111440 Denso show
1002111441 Denso
1002111442 Denso
1002111443 Denso
100211156 Denso
1002111560 Denso show
1002111561 Denso
1002111562 Denso
1002111563 Denso
1002111580 Denso show
100211160 Denso
1002111600 Denso show
1002111601 Denso show
1002111602 Denso
1002111603 Denso
1002112300 Denso show
1002112301 Denso
1002112302 Denso
1002112303 Denso
1002113541 Denso
1002113542 Denso
1002113543 Denso
1002113700 Denso
1002113820 Denso
100211417 Denso
1002114170 Denso show
1002114171 Denso
1002114172 Denso
1002114173 Denso
100211428 Denso
1002114280 Denso show
1002114281 Denso
1002114282 Denso
1002114283 Denso
1002114290 Denso show
1002114291 Denso
1002114292 Denso
1002114293 Denso
1002114400 Denso show
1002116860 Denso show
1002116861 Denso
1012112050 Denso
110628 Cargo
195504045 PSH
20100688 Prestolite
2702021011 Toyota show
2702040060 Toyota show
2702040061 Toyota show
2702040063 Toyota
2702040064 Toyota show
2702040065 Toyota
2702044021 Toyota
2702044030 Toyota show
2702044031 Toyota
2702044042 Toyota show
2703054161 Toyota
2706010030 Toyota
2706010050 Toyota
2706010051 Toyota
2706010070 Toyota
2706010070R Toyota
2706010071 Toyota
2706010080 Toyota
2706010100 Toyota
2706011000 Toyota
2706011080 Toyota
2706011230 Toyota
2706018030 Toyota
27060350E9 Toyota
2706087502 Toyota
280934 Elstock
436538 Valeo
5100211810 Denso
561043 Valeo
561080 Valeo
90295076 Wilson
90295147 Wilson
90295186 Wilson
A8243 Dixie
AIA115 ATK
AL327X Bosch (USA)
AL363N Bosch (USA)
AL363X Bosch (USA)
ALT30029 Wood Auto
ALTH006 Unipoint
ATA414 ATK
DRA3056 Remy
F042A0H006 Bosch
HJA141IR HC
JA141IR HC
LRA00330 Lucas
LRA00688 Lucas
LRA330 Lucas
LRA688 Lucas
MAR6032 Magneti Marelli
RNL1002111560 RNL
WOOALT30029 Wood Auto
321-1347
DENSO 100211-1560, 100211-1561, 100211-4170, 100211-4171, 100211-6860, 100211-6861
LESTER 14843
321-1286, 334-1739
Bosch Newman AL363N
Bosch Reman AL363X
Bosch Service Europe 0-986-UN0-069, 0-986-UR0-069
DENSO 100211-144, 100211-1440, 100211-1441, 100211-156, 100211-1560, 100211-417, 100211-4170, 100211-4171, 100211-429, 100211-4290
DENSO Auto Parts 210-0338
HC Parts JA141
IAT A14843
Lester 14843
Lucas Reman A8736
NAPA 13-8582, 13-8583, 213-8582, 213-8583
PIC 290-227
Remy 14685
Remy Europe DRA3056
Toyota 27060-10030, 27060-10070, 27060-10070-84, 27060-10071, 27060-10071-84, 27060-10080, 27060-10080-84, 27060-10100
Specifications
| Amp | 45 A |
| Bottom Mounting Foot Width (B) | 58.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Grooves | 4 qty |
| Length (L.1) | 143 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 52 mm |

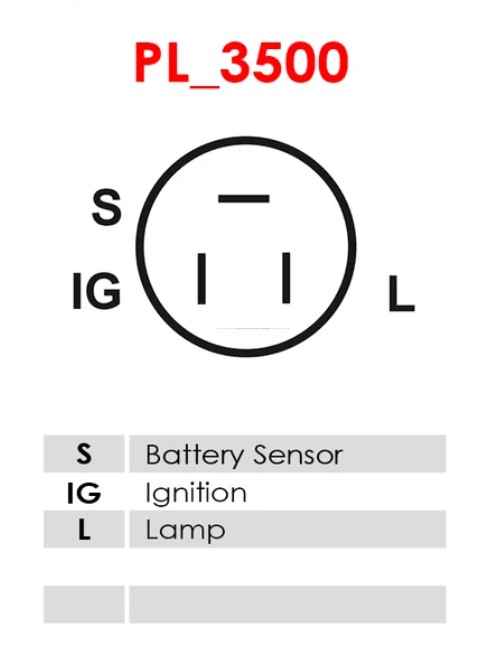

| Plug Code | PL_3500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Corolla 1.3 | [2E] | 05.1987-04.1992 |
| TOYOTA | Corolla 1.3 | [2E] | 06.1989-06.1992 |
| TOYOTA | Corolla 1.3 | [2E] | 07.1987-04.1992 |
| TOYOTA | Corolla 1.3 | [2E] | 08.1987-04.1992 |
| TOYOTA | Corolla 1.3 | [2E-E] | 08.1987-04.1992 |
| TOYOTA | Corolla 1.3 | [2E-L] | 01.1985-08.1987 |
| TOYOTA | Corolla 1.3 | [2E-L] | 10.1984-08.1987 |
| TOYOTA | Corolla 1.3 | [2E-LC] | 01.1985-08.1987 |
| TOYOTA | Corolla 1.3 | [2E-LC] | 10.1984-08.1987 |
| TOYOTA | Corolla 1.3 i | [2E] | 08.1987-04.1992 |
| TOYOTA | Corolla 1.3 i | [2E] | 08.1989-04.1992 |
| TOYOTA | Corolla 1.3 i | [2E-E] | 08.1987-04.1992 |
| TOYOTA | Corolla 1.3 i | [2E-E] | 08.1989-04.1992 |
| TOYOTA | Corolla FX 1.3 | [2E-L] | 09.1985-08.1987 |
| TOYOTA | Corolla FX 1.3 | [2E-LC] | 09.1985-08.1987 |
| TOYOTA | Starlet 1.0 | [1E-L] | 10.1984-12.1989 |
| TOYOTA | Starlet 1.3 | [2E-L] | 10.1984-12.1989 |
| TOYOTA | Starlet 1.3 | [2E-LC] | 10.1984-12.1989 |
| TOYOTA | Starlet 1.3 12V | [2E] | 12.1989-12.1992 |
| TOYOTA | Starlet 1.3 12V | [2E-E] | 12.1989-03.1996 |
| TOYOTA | Starlet 1.3 12V | [2E-E] | 12.1989-12.1992 |
Reference Information
986035901 27060-10050 27060-10051 445190 CAL40288AS 2706010070R LRA688 110628 0986035901 2706011230 2702040061 2702040060 31100-PD1-014 CGB-80934 27060-11230 LRA00688 2706018030 27060-10100 ANM35276 100211-1340 27060-18030 31100-PD1-024 UD101661A 2702044030 8EL012426-901 2706011050 27060-10030 27060-11080 28-0934 27060-10070 27020-44042 27060-10071 436538 20132882BN A12DE0482A2 J5112050 27060-11000 ALT30029 9.43346E+11 90-29-5076 2702044042 0986CR0976 40141RI 8EL726288-001 2706087502 ALTW205 27060-10080 27060-11050 F042A0H006 00986CR0976 2040288 100211-1560 100211-1440 195.504.045.050 ALN2141Add Your Number
