Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 372.19 including GST
NZ$ 323.64 excluding GST
or four payments of $93.05
with
Learn More
Product Code:
S9512S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

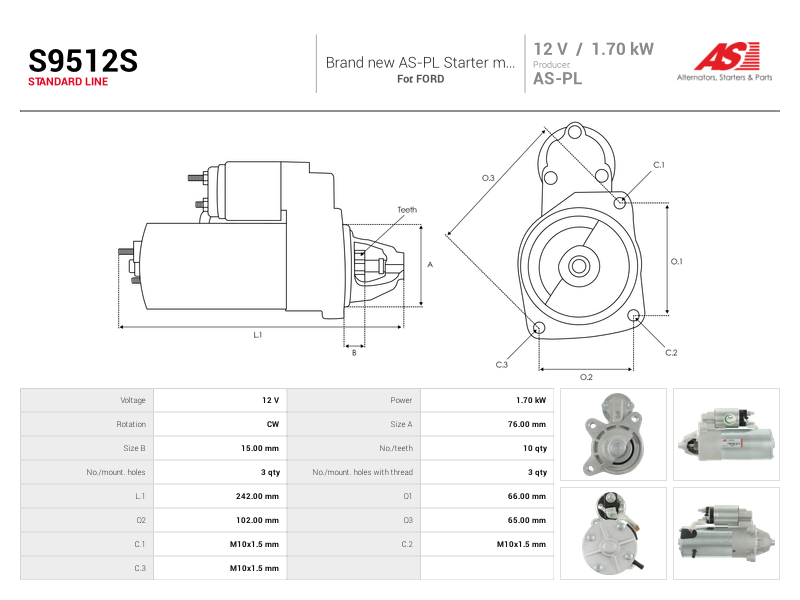

Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 242.00 mm |
| Mount Hole Center - Center (O.1) | 66.00 mm |
| Mount Hole Center - Center (O.2) | 102.00 mm |
| Mount Hole Center - Center (O.3) | 65.00 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 15.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 76.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | TOURNEO CONNECT 1.8 TDCi | HCPA | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | HCPB | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | HCPC | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | HCPD | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | P9PA | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | P9PB | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | P9PC | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | P9PD | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | R3PA | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | RWPA | 08.2006-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | RWPB | 08.2006-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | RWPC | 08.2006-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | RWPD | 08.2006-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | RWPE | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi | RWPF | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi /TDDi /DI | BHPA | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi /TDDi /DI | P7PA | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi /TDDi /DI | P7PB | 06.2002-12.2013 |
| FORD | TOURNEO CONNECT 1.8 TDCi /TDDi /DI | R2PA | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 Di | BHPA | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 Di | P7PA | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 Di | P7PB | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 Di | R2PA | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | HCPA | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | HCPB | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | HCPC | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | HCPD | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | P9PA | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | P9PB | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | P9PC | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | P9PD | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | R3PA | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | RWPA | 08.2006-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | RWPB | 08.2006-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | RWPC | 08.2006-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | RWPD | 08.2006-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | RWPE | 06.2002-12.2013 |
| FORD | TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi | RWPF | 06.2002-12.2013 |
