Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 608.72 including GST
NZ$ 529.32 excluding GST
or four payments of $152.18
with
Learn More
Product Code:
S9457S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

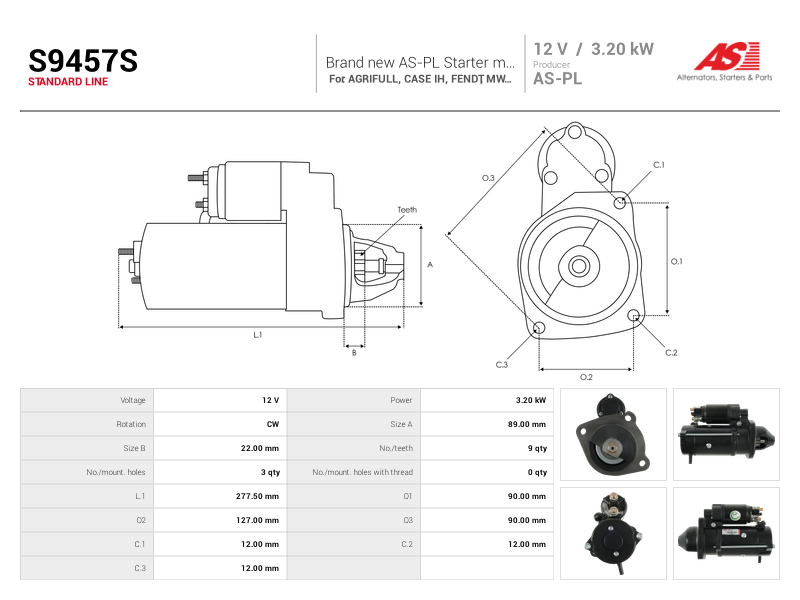

Specifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 277.50 mm |
| Mount Hole Center - Center (O.1) | 90.00 mm |
| Mount Hole Center - Center (O.2) | 127.00 mm |
| Mount Hole Center - Center (O.3) | 90.00 mm |
| Mount Hole Diameter (C.1) | 12.00 mm |
| Mount Hole Diameter (C.2) | 12.00 mm |
| Mount Hole Diameter (C.3) | 12.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 22.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AGRIFULL | 80.66 3.4 | D225.4 | 04.1982-06.1983 |
| AGRIFULL | 80.66DT 3.4 | D225.4 | 04.1982-06.1983 |
| AGRIFULL | 80.76 3.8 | D227.4 | 04.1982-06.1983 |
| AGRIFULL | 80.76DT 3.8 | D227.4 | 04.1982-06.1983 |
| CASE IH | CS 68 | 01.2001-12.2004 | |
| CASE IH | CS 68, 68A, 75, 75A | 01.2001-12.2004 | |
| FENDT | Farmer 102, 102 S | D325-3 | 01.1972- |
| FENDT | Farmer 102 S | D226-3 | 01.1972- |
| FENDT | Farmer 103 S | D225-3 | 01.1972- |
| FENDT | Farmer 103 S | D226-3 | 01.1972- |
| FENDT | Farmer 103 SA | D225-3 | 01.1972- |
| FENDT | Farmer 104 S | D226-3 | 01.1976- |
| FENDT | Farmer 104 SA | D226-3 | 01.1976- |
| FENDT | Farmer 105 S | D225-4 | 01.1972- |
| FENDT | Farmer 105 S | D226-4 | 01.1975- |
| FENDT | Farmer 106 S | D225-4 | 01.1972- |
| FENDT | Farmer 106 S | D226-4 | 01.1975- |
| FENDT | Farmer 106 SA | D225-4 | 01.1972- |
| FENDT | Farmer 108 S | D226-4 | 01.1975- |
| FENDT | Farmer 108 SA | D226-4 | 01.1975- |
| FENDT | Farmer 1 D | D325-3 | 01.1971- |
| FENDT | Farmer 303 LS | D226-3 | 01.1982- |
| FENDT | Farmer 303 LSA | D226-3 | 01.1982- |
| FENDT | Farmer 304 LSA | TD226B-3 | 01.1985- |
| FENDT | Farmer 304 S, 304 LS | TD226B-3 | 01.1985- |
| FENDT | Farmer 305 LS | D226B-4 | 01.1987-12.1993 |
| FENDT | Farmer 305 LS | D227-4 | 01.1980- |
| FENDT | Farmer 305 LSA | D226B-4 | 01.1987-12.1993 |
| FENDT | Farmer 305 LSA | D227-4 | 01.1980- |
| FENDT | Farmer 306 LS | D226B-4 | 01.1987-12.1993 |
| FENDT | Farmer 306 LSA | D226B-4 | 01.1987-12.1993 |
| FENDT | Farmer 307 A | TD226B-3 | 01.1993-12.1998 |
| FENDT | Farmer 307 LS | D226-4 | 01.1990- |
| FENDT | Farmer 307 LS, 307 LSE | TD226B-3 | 01.1985- |
| FENDT | Farmer 307 LSA | D226-4 | 01.1990- |
| FENDT | Farmer 307 LSA | TD226B-3 | 01.1985- |
| FENDT | Farmer 308 | TD226B-4 | 01.1993-12.2001 |
| FENDT | Farmer 308 LS, 308 LSE | TD226B-4 | 01.1990- |
| FENDT | Farmer 308 LSA | TD226B-4 | 01.1990- |
| FENDT | Farmer 309 | TD226B-4 | 01.1993-12.2001 |
| FENDT | Farmer 309 LS | TD226B-4 | 01.1981-12.1991 |
| FENDT | Farmer 309 LSA | TD226B-4 | 01.1981-12.1998 |
| FENDT | Farmer 310 | TD226B-4 | 01.1993-12.2001 |
| FENDT | Farmer 310 LSA | D226B-4 | 01.1990- |
| FENDT | Farmer 310 LSA | TD226-4 | 01.1985- |
| FENDT | Farmer 310 LSE | D226B-4 | 01.1990- |
| FENDT | Farmer 311 | TD226B-6 | 01.1993-12.2001 |
| FENDT | Farmer 311 LSA | D226B-6 | 01.1991- |
| FENDT | Farmer 311 LSE | D226B-6 | 01.1991- |
| FENDT | Farmer 312 LSA | D226B-6 | 01.1991- |
| FENDT | Favorit 10 S | D225-6 | 01.1970- |
| FENDT | Favorit 11 S | D225-6 | 01.1970- |
| FENDT | Favorit 12 SA | D226-6 | 01.1970- |
| FENDT | Favorit 3 S | D208-4 | 01.1963- |
| FENDT | Favorit 3 S | D225-4 | 01.1967- |
| FENDT | Favorit 4 S | D225-6 | 01.1970- |
| FENDT | Favorit 509 CA | TD226B-4 | 01.1994-12.1999 |
| FENDT | Favorit 510 CA | TD226B-4 | 01.1993-12.1999 |
| FENDT | Favorit 511 CA | D226B-6 | 01.1994-12.1999 |
| FENDT | Favorit 512 CA | TD226B-6 | 01.1993-12.1999 |
| FENDT | Favorit 514 CA | TD226B-6 | 01.1993-12.1999 |
| FENDT | Favorit 515 CA | TD226B-6 | 01.1993-12.1999 |
| FENDT | Favorit 600 LS | D227-6 | 01.1976- |
| FENDT | Favorit 610 LS | D226-6 | 01.1984- |
| FENDT | Favorit 610 LS | D227-6 | 01.1979-12.1984 |
| FENDT | Favorit 610 LSA | D226-6 | 01.1984- |
| FENDT | Favorit 610 LSA | D227-6 | 01.1979-12.1984 |
| FENDT | Favorit 610 SL | D226-6 | 01.1976-12.1978 |
| FENDT | Favorit 611 LSA | D226-6 | 01.1985-12.1993 |
| FENDT | Favorit 611 SA | D226-6 | 01.1972-12.1976 |
| FENDT | Favorit 611 SL | D226-6 | 01.1976-12.1978 |
| FENDT | Favorit 611 SL | D226-6 | 01.1976-12.1978 |
| FENDT | Favorit 612 LS | D226-6 | 01.1983-12.1987 |
| FENDT | Favorit 612 LSA | D226-6 | 01.1988-12.1993 |
| FENDT | Favorit 612 SL | D226-6 | 01.1976-12.1984 |
| FENDT | Favorit 614 LSA | D226-6 | 01.1983-12.1993 |
| FENDT | Favorit 614 SL | D226-6 | 01.1976-12.1977 |
| FENDT | Favorit 615 LS, 615 SL | TD226-6 | 01.1976-12.1984 |
| FENDT | Favorit 615 LSA | TD226-6 | 01.1976-12.1984 |
| FENDT | GT 231 GT | D325-3 | 01.1987- |
| FENDT | GT 231 GT | D327-3 | 01.1987- |
| MWM | Engine | D229-3 | 09.1983- |
| MWM | Engine | D229-4 | 09.1983- |
| MWM | Engine | TD229-4 | 09.1983- |
| MWM | Engine | TD229-6 | 09.1983- |
| MWM | Engine 3.4 | D225-4 | 01.1973-12.1976 |
| MWM | Engine 3.4 | D325-4 | 01.1973-12.1974 |
| MWM | Engine 3.8 | D327-4 | 01.1973-06.1994 |
| MWM | Engine 4.2 | D226-4 | 01.1973- |
| MWM | Engine 4.2 | D226-4 | 01.1986- |
| MWM | Engine 5.1 | D225-6 | 01.1973-12.1977 |
| MWM | Engine 5.1 | D325-6 | 01.1973-12.1977 |
| MWM | Engine 5.7 | D227-6 | 02.1978-08.1982 |
| MWM | Engine 5.7 | D327-6 | 01.1973-06.1994 |
| MWM | Engine 6.2 | D226-6 | 01.1973- |
| MWM | Engine 6.2 | D226-6 | 01.1986- |
| MWM | Engine 6.2 | TD226-6 | 01.1986- |
| MWM | Engine 6.2 | TD226-6 | 10.1972-06.1994 |
| RENAULT AGRICULTURE | 103-14 | TD226.4 | - |
| RENAULT AGRICULTURE | 103-52 | TD226.4 | - |
| RENAULT AGRICULTURE | 103-54 | TD226.4 | - |
| RENAULT AGRICULTURE | 106-14 | D227.6 | - |
| RENAULT AGRICULTURE | 106-54 | D226B6 | - |
| RENAULT AGRICULTURE | 110-14 | D226.6 | - |
| RENAULT AGRICULTURE | 110-54 | D226.6 | - |
| RENAULT AGRICULTURE | 113-12 | D227.6 | - |
| RENAULT AGRICULTURE | 113-14 | D227.6 | - |
| RENAULT AGRICULTURE | 1151 4x4 | D226.6 | - |
| RENAULT AGRICULTURE | 1181 4x4 | D226.6 | - |
| RENAULT AGRICULTURE | 1181S 4x4 | D226.6 | - |
| RENAULT AGRICULTURE | 120-14 | D226.6 | - |
| RENAULT AGRICULTURE | 120-54 | D226.6 | - |
| RENAULT AGRICULTURE | 133-12 | D226.6 | - |
| RENAULT AGRICULTURE | 133-14 | D226.6 | - |
| RENAULT AGRICULTURE | 133-54 | D226.6 | - |
| RENAULT AGRICULTURE | 145-14 | TD228.6 | - |
| RENAULT AGRICULTURE | 145-54 | TD228.6 | - |
| RENAULT AGRICULTURE | 155-54 | TD226B6 | - |
| RENAULT AGRICULTURE | 160-94 | TD226B6 | - |
| RENAULT AGRICULTURE | 175-74 | TD226B6 | - |
| RENAULT AGRICULTURE | 180-94 | TD226B6 | - |
| RENAULT AGRICULTURE | 301 | D327.2 | - |
| RENAULT AGRICULTURE | 32-50 | D327.3 | - |
| RENAULT AGRICULTURE | 32-60 | D327.3 | - |
| RENAULT AGRICULTURE | 34-60 | D327.3 | - |
| RENAULT AGRICULTURE | 351M | D327.2 | - |
| RENAULT AGRICULTURE | 361 | D325.3 | - |
| RENAULT AGRICULTURE | 421 | D327.3 | - |
| RENAULT AGRICULTURE | 421M | D325.3 | - |
| RENAULT AGRICULTURE | 42-70 | D327.4 | - |
| RENAULT AGRICULTURE | 44-70 | D327.4 | - |
| RENAULT AGRICULTURE | 456 4x4 | D325.3 | - |
| RENAULT AGRICULTURE | 460 4x4 | D325.3 | - |
| RENAULT AGRICULTURE | 460S 4x4 | D325.3 | - |
| RENAULT AGRICULTURE | 461 | D327.3 | - |
| RENAULT AGRICULTURE | 461M | D327.3 | - |
| RENAULT AGRICULTURE | 461S | D327.3 | - |
| RENAULT AGRICULTURE | 462 | D327.3 | - |
| RENAULT AGRICULTURE | 466S | D327.3 | - |
| RENAULT AGRICULTURE | 480S 4x4 | D327.3 | - |
| RENAULT AGRICULTURE | 486 4x4 | D325.3 | - |
| RENAULT AGRICULTURE | 489 4x4 | D226.3 | - |
| RENAULT AGRICULTURE | 490S 4x4 | D327.4 | - |
| RENAULT AGRICULTURE | 496 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 498 4x4 | D325.6 | - |
| RENAULT AGRICULTURE | 50 | D325.2 | - |
| RENAULT AGRICULTURE | 50S | D327.2 | - |
| RENAULT AGRICULTURE | 51 | D325.3 | - |
| RENAULT AGRICULTURE | 521S | D327.3 | - |
| RENAULT AGRICULTURE | 53 | D325.2 | - |
| RENAULT AGRICULTURE | 551 4x4 | D226.3 | - |
| RENAULT AGRICULTURE | 551S 4x4 | D226.3 | - |
| RENAULT AGRICULTURE | 556 | D226.3 | - |
| RENAULT AGRICULTURE | 556S | D226.3 | - |
| RENAULT AGRICULTURE | 56 4x4 | D325.3 | - |
| RENAULT AGRICULTURE | 58-12 LS | D226.3 | - |
| RENAULT AGRICULTURE | 58-14 LS | D226.3 | - |
| RENAULT AGRICULTURE | 58-32 | D226.3 | - |
| RENAULT AGRICULTURE | 58-34 | D226.3 | - |
| RENAULT AGRICULTURE | 600M | D226.3 | - |
| RENAULT AGRICULTURE | 60 4x4 | D325.3 | - |
| RENAULT AGRICULTURE | 60S 4x4 | D325.3 | - |
| RENAULT AGRICULTURE | 61 | D325.3 | - |
| RENAULT AGRICULTURE | 61-14 | D226.3 | - |
| RENAULT AGRICULTURE | 650MI | D226.3 | - |
| RENAULT AGRICULTURE | 65-12 LS | D226.3 | - |
| RENAULT AGRICULTURE | 65-14 LS | D226.3 | - |
| RENAULT AGRICULTURE | 651 4x4 | D227.4 | - |
| RENAULT AGRICULTURE | 651S 4x4 | D227.4 | - |
| RENAULT AGRICULTURE | 652 | D227.4 | - |
| RENAULT AGRICULTURE | 65-32 | D226.3 | - |
| RENAULT AGRICULTURE | 65-34 | D226.3 | - |
| RENAULT AGRICULTURE | 656 | D227.4 | - |
| RENAULT AGRICULTURE | 656S | D227.4 | - |
| RENAULT AGRICULTURE | 68-12 | D227.4 | - |
| RENAULT AGRICULTURE | 68-14 | D227.4 | - |
| RENAULT AGRICULTURE | 681 4x4 | D227.4 | - |
| RENAULT AGRICULTURE | 681S 4x4 | D227.4 | - |
| RENAULT AGRICULTURE | 70 | D325.3 | - |
| RENAULT AGRICULTURE | 700 | TD327.3 | - |
| RENAULT AGRICULTURE | 704 | TD327.3 | - |
| RENAULT AGRICULTURE | 70S | D325.3 | - |
| RENAULT AGRICULTURE | 720 | TD327.3 | - |
| RENAULT AGRICULTURE | 724 | TD327.3 | - |
| RENAULT AGRICULTURE | 750MI 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 75-12 | D226.4 | - |
| RENAULT AGRICULTURE | 75-14 | D226.4 | - |
| RENAULT AGRICULTURE | 751 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 751S 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 752 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 75-32 | D226.4 | - |
| RENAULT AGRICULTURE | 75-34 | D226.4 | - |
| RENAULT AGRICULTURE | 754MI 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 77-12 TS | D226.4 | - |
| RENAULT AGRICULTURE | 77-14 TS | D226.4 | - |
| RENAULT AGRICULTURE | 781 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 781S 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 782 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 80 | D325.3 | - |
| RENAULT AGRICULTURE | 800M 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 80-12 TX | D226.4 | - |
| RENAULT AGRICULTURE | 80-14 TX | D226.4 | - |
| RENAULT AGRICULTURE | 804M 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 80S 4x4 | D327.3 | - |
| RENAULT AGRICULTURE | 82 | D325.3 | - |
| RENAULT AGRICULTURE | 850MI 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 85-12 | D226.4 | - |
| RENAULT AGRICULTURE | 85-14 | D226.4 | - |
| RENAULT AGRICULTURE | 851 4x4 | TD226.4 | - |
| RENAULT AGRICULTURE | 851S 4x4 | TD226.4 | - |
| RENAULT AGRICULTURE | 85-32 | D226.4 | - |
| RENAULT AGRICULTURE | 85-34 | D226.4 | - |
| RENAULT AGRICULTURE | 854 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 854MI 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 86 4x4 | D325.3 | - |
| RENAULT AGRICULTURE | 891 4x4 | D227.6 | - |
| RENAULT AGRICULTURE | 891S 4x4 | D227.6 | - |
| RENAULT AGRICULTURE | 89 4x4 | D226.3 | - |
| RENAULT AGRICULTURE | 900MI 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 90-32 | D226.4 | - |
| RENAULT AGRICULTURE | 90-34 | D226.4 | - |
| RENAULT AGRICULTURE | 904 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 90S 4x4 | D327.4 | - |
| RENAULT AGRICULTURE | 91 | D325.4 | - |
| RENAULT AGRICULTURE | 92 | D226.3 | - |
| RENAULT AGRICULTURE | 921 4x4 | D227.6 | - |
| RENAULT AGRICULTURE | 921S 4x4 | D227.6 | - |
| RENAULT AGRICULTURE | 94 | D325.4 | - |
| RENAULT AGRICULTURE | 950MI 4x4 | TD226.4 | - |
| RENAULT AGRICULTURE | 95-12 | D226.4 | - |
| RENAULT AGRICULTURE | 95-14 | D226.4 | - |
| RENAULT AGRICULTURE | 951 4x4 | D227.6 | - |
| RENAULT AGRICULTURE | 952 | D227.6 | - |
| RENAULT AGRICULTURE | 954MI 4x4 | TD226.4 | - |
| RENAULT AGRICULTURE | 96 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | 981 4x4 | D227.6 | - |
| RENAULT AGRICULTURE | 981S 4x4 | D227.6 | - |
| RENAULT AGRICULTURE | 98 4x4 | D325.6 | - |
| RENAULT AGRICULTURE | Ceres 65 4x4 | D226.3 | - |
| RENAULT AGRICULTURE | Ceres 70 4x4 | D226.3 | - |
| RENAULT AGRICULTURE | Ceres 70X 4x4 | D226.3 | - |
| RENAULT AGRICULTURE | Ceres 85 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | Ceres 85X 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | Ceres 95 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | Ceres 95X 4x4 | D226.4 | - |
| RENAULT AGRICULTURE | K9K734] | D226.3 | - |
| VOLVO BM | T430 | - |
View your shopping basket or Browse other items in Starter Motors.
