Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 257.58 including GST
NZ$ 223.98 excluding GST
or four payments of $64.40
with
Learn More
Product Code:
S5635S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

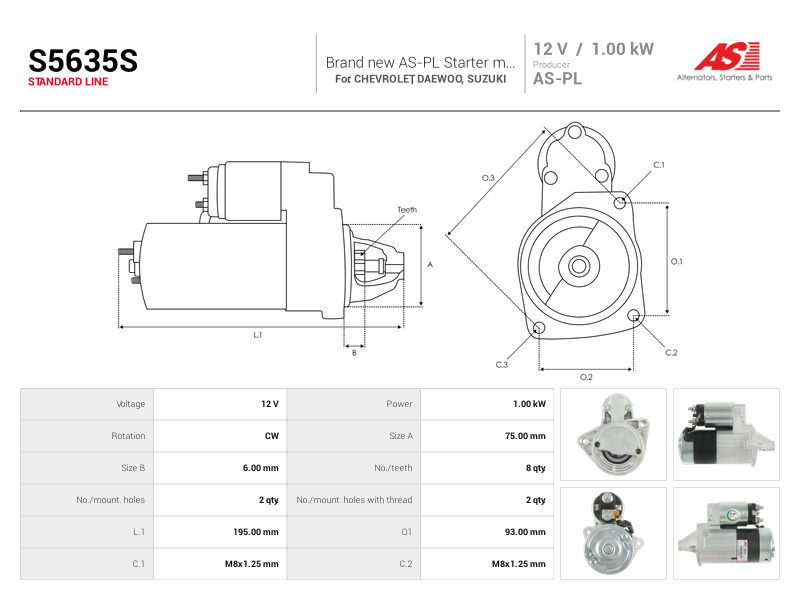

Specifications
| Kilowatt | 1.00 kW |
| Length (L.1) | 195.00 mm |
| Mount Hole Center - Center (O.1) | 93.00 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| Pinion at Rest (B) | 6.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 75.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | MATIZ (M200, M250) 0.8 | LBF(49CUL3) | 03.2005-12.2013 |
| CHEVROLET | MATIZ (M200, M250) 0.8 | LQ2(49CUL3) | 03.2005-12.2013 |
| CHEVROLET | MATIZ (M200, M250) 0.8 LPG | LBF(49CUL3) | 03.2005-12.2007 |
| CHEVROLET | MATIZ (M200, M250) 0.8 LPG | LQ2(49CUL3) | 03.2005-12.2007 |
| CHEVROLET | MATIZ (M200, M250) 1.0 | LQ4(61CUL4) | 03.2005- |
| CHEVROLET | MATIZ (M200, M250) 1.0 | LQ4(61CUL4) | 03.2005-12.2007 |
| CHEVROLET | SPARK 0.8 | LBF(49CUL3) | 05.2005-02.2010 |
| CHEVROLET | SPARK 0.8 | LQ2(49CUL3) | 05.2005-02.2010 |
| CHEVROLET | SPARK (M150) 0.8 | F8CV | 09.2000-12.2006 |
| CHEVROLET | SPARK (M300) 1.0 | B10D1 | 03.2010- |
| CHEVROLET | SPARK (M300) 1.0 | LMT | 03.2010- |
| CHEVROLET | SPARK (M300) 1.0 LPG | LMT | 03.2010- |
| CHEVROLET | SPARK (M300) 1.0 LPG | LMT | 07.2010- |
| DAEWOO | MATIZ Hatchback Van (KLA4) 0.8 | F8CV | 08.1998-08.2002 |
| DAEWOO | MATIZ (M100, M150) 0.8 | F8CV | 09.1998- |
| DAEWOO | MATIZ (M100, M150) 1.0 | B10S | 01.2003- |
| DAEWOO | MATIZ (M100, M150) 1.0 | B10S | 04.2003-12.2004 |
| DAEWOO | MATIZ (M200, M250) 0.8 | F8CV | 01.2005-06.2010 |
| DAEWOO | TICO (KLY3) 0.8 | F8C | 02.1995-12.2000 |
| DAEWOO | TICO (KLY3) 0.8 | F8CV | 01.1996-12.2000 |
| SUZUKI | WAGON R+ Hatchback (EM) 1.0 (RC410, SR410, SR412) | K10A | 02.1998-05.2000 |
| SUZUKI | WAGON R+ Hatchback (EM) 1.2 4WD (SR412) | K12A | 02.1998-05.2000 |
| SUZUKI | WAGON R+ Hatchback (EM) 1.2 (SR412) | K12A | 02.1998-05.2000 |
| SUZUKI | WAGON R+ (MA) 1.3 4WD (RB413) | G13BB | 10.2001- |
| SUZUKI | WAGON R+ (MA) 1.3 (RB413) | G13BB | 05.2000-12.2004 |
| SUZUKI | WAGON R+ (MA) 1.3 (RB413) | M13A | 09.2003-08.2006 |
