Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 336.65 including GST
NZ$ 292.74 excluding GST
or four payments of $84.16
with
Learn More
Product Code:
S01095S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

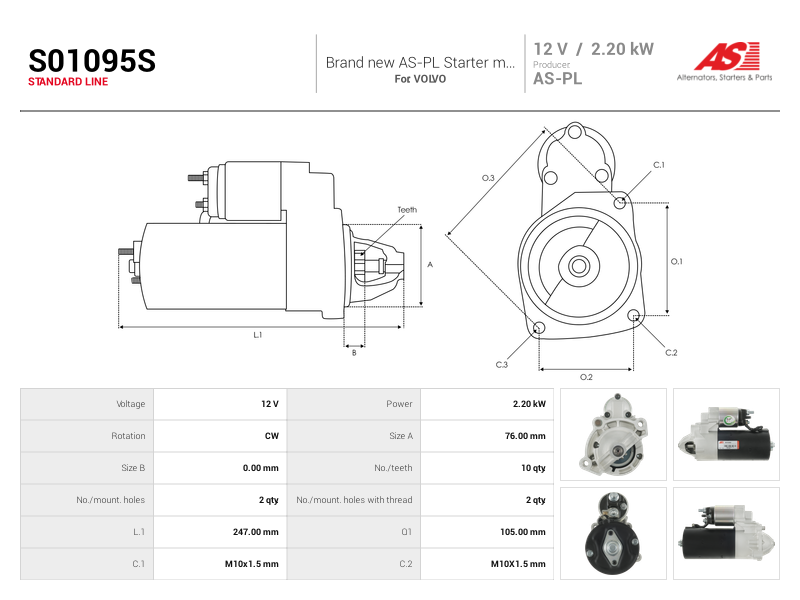

Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 247.00 mm |
| Mount Hole Center - Center (O.1) | 105.00 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10X1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 0.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 76.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | XC90 I (275) D3 / D5 | D5244T5 | 04.2009-12.2014 |
| VOLVO | XC90 I (275) D5 AWD | D5244T18 | 01.2011-12.2014 |
| VOLVO | XC90 I (275) D5 AWD | D5244T18 | 11.2013-09.2014 |
| VOLVO | XC90 I (275) D5 AWD | D5244T4 | 02.2005-12.2012 |
| VOLVO | XC90 I (275) D5 AWD | D5244T5 | 10.2007-12.2010 |
| VOLVO | XC90 I VAN (275) 2.4 D4 | D5244T5 | 09.2013-12.2014 |
| VOLVO | XC90 I VAN (275) 2.4 D5 AWD | D5244T18 | 09.2013-12.2014 |
