Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 1,081.30 including GST
NZ$ 940.26 excluding GST
or four payments of $270.33
with
Learn More
Product Code:
S9975S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

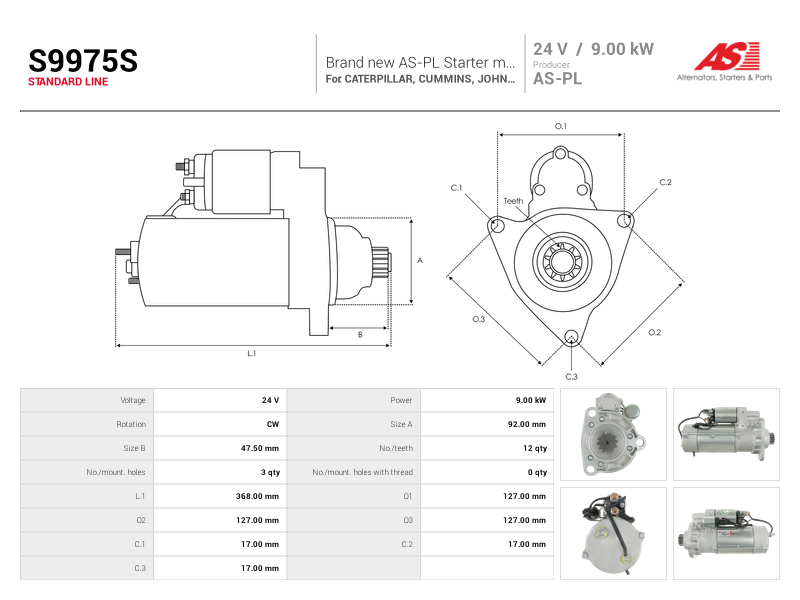

Specifications
| Kilowatt | 9.00 kW |
| Length (L.1) | 368.00 mm |
| Mount Hole Center - Center (O.1) | 127.00 mm |
| Mount Hole Center - Center (O.2) | 127.00 mm |
| Mount Hole Center - Center (O.3) | 127.00 mm |
| Mount Hole Diameter (C.1) | 17.00 mm |
| Mount Hole Diameter (C.2) | 17.00 mm |
| Mount Hole Diameter (C.3) | 17.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 47.50 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92.00 mm |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Engine 10.3 | 3176 | 01.1988-12.1995 |
| CATERPILLAR | Engine 10.5 | 3306 | 01.1970-12.2000 |
| CUMMINS | Engine V SERIES | V-555 | 01.1983-01.1985 |
| JOHN DEERE | 770A 7.6 | 6-466A | 01.1984-01.1985 |
| JOHN DEERE | 772A 7.6 | 6-466A | 01.1984-01.1985 |
| JOHN DEERE | Engine 10.1 | 6619 | 01.1972-01.1980 |
| JOHN DEERE | Engine 13.5 | 6.135 | 01.2005- |
| VOLVO | EC460 10.8 | M11C | 01.2000-12.2002 |
| VOLVO | EC460B 12.1 | D12D EAE3 | 01.2001-12.2009 |
| VOLVO | Engine 12.1 | D12C | 01.1998-12.2005 |
