Associated Numbers
120401162 PSH 255273 Elstock 256527 DAS 312005R0J01 Honda 312005R0J01RF RNL 312005R0J02 322084162 DRI 6033166AS Sando 88215044 PowerMax 9805 CEVAM AEX1365 Auto Electro CST33166 Casco CST33166AS J5214080 Herth Buss LRS04110 Lucas LRS4110 S129886 Short code S166841 S166842 SM75002 Mitsuba ST02227 TMI 16-694 SAM-C16069 70-2853-1 UD105165S AS-PL 116890 CARGO F032116890 DRS1178 DELCO 31200-5R0-J01 HONDA 31200-5R0-J02 SM750-02 MITSUBA 445618 VALEO AZMT-53-010-1546 A.Z. MEISTERTEILE 25-5273CT AINDE CGB-21178 ANM100132 ANDEL S106345 BTS TURBO CASCO CST33166RS 041307 DA SILVA 12602 EAI STR5915 ELECTROLOG 25-5273 ELSTOCK 109172 FARCOM 8080831 FRIESEN 3127958 HENKEL PARTS 10033166AV ITAB AUTOMOTIVE 10033166RV STU1533 KRAUF KUHNER LUCAS 4726014 NK POWERMAX 20467661BN REAL 20467661RC 6033166.0 SANDO 6033166.2 MAV351660 SIOM MAV351660A HO9051 SNRA STX210441R STARDAX 602ST21 STARTCAR 830540007 TRISCAN 120.401.162.190 WAI 120.401.162.440 31269N
SAM-C16069

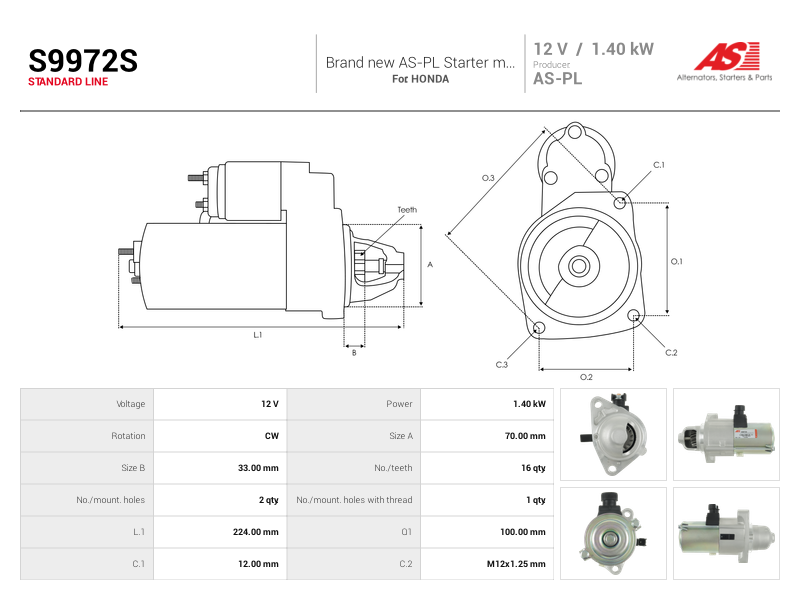

Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 224.00 mm |
| Mount Hole Center - Center (O.1) | 100.00 mm |
| Mount Hole Diameter (C.1) | 12.00 mm |
| Mount Hole Diameter (C.2) | M12x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 16 qty |
| Pinion at Rest (B) | 33.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 70.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | HR-V (RU) 1.5 (RU1) | L15B4 | 08.2015- |
| HONDA | JAZZ IV (GK_) 1.3 | L13B | 09.2015- |
| HONDA | JAZZ IV (GK_) 1.3 | L13B2 | 09.2015- |
| HONDA | JAZZ IV (GK_) 1.5 | L15B3 | 09.2017- |
