Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 387.23 including GST
NZ$ 336.72 excluding GST
or four payments of $96.81
with
Learn More
Product Code:
S9986S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

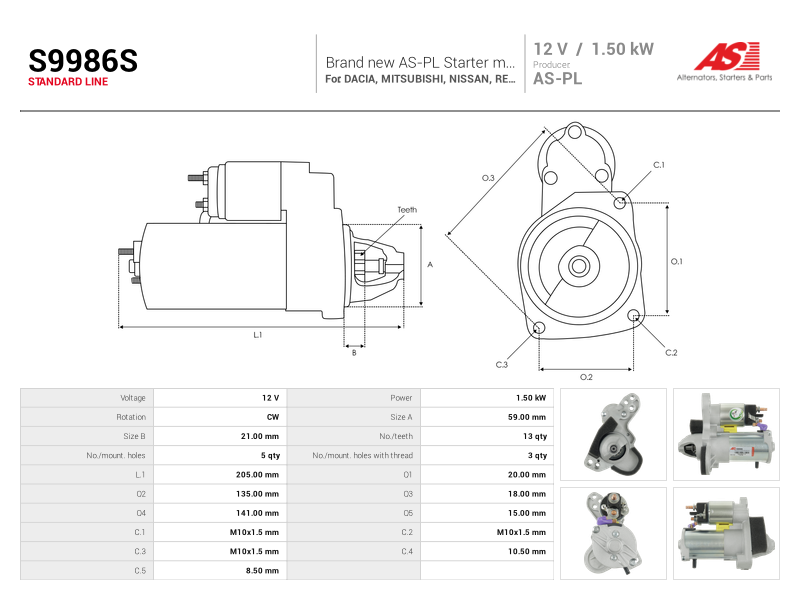

Specifications
| Kilowatt | 1.50 kW |
| Length (L.1) | 205.00 mm |
| Mount Hole Center - Center (O.1) | 20.00 mm |
| Mount Hole Center - Center (O.2) | 135.00 mm |
| Mount Hole Center - Center (O.3) | 18.00 mm |
| Mount Hole Center - Center (O.4) | 141.00 mm |
| Mount Hole Center - Center (O.5) | 15.00 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| Mount Hole Diameter (C.4) | 10.50 mm |
| Mount Hole Diameter (C.5) | 8.50 mm |
| No./Mount holes | 5 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 13 qty |
| Pinion at Rest (B) | 21.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 59.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DACIA | JOGGER (RK_) 1.0 TCe 100 ECO-G (RKMT) | H4D480 | 09.2021- |
| DACIA | JOGGER (RK_) 1.0 TCe 90 ECO-G (RKMT) | H4D480 | 09.2021- |
| DACIA | LOGAN III (3K_) 1.0 TCe 100 ECO-G | H4D480 | 05.2021- |
| DACIA | LOGAN III (3K_) 1.0 TCe 90 (3KM6) | H4D470 | 05.2021- |
| DACIA | SANDERO III 1.0 SCe 65 | B4D419 | 01.2021- |
| DACIA | SANDERO III 1.0 TCe 100 | H4D480 | 01.2021- |
| DACIA | SANDERO III 1.0 TCe 100 ECO-G | H4D480 | 01.2021- |
| DACIA | SANDERO III 1.0 TCe 110 | 07.2022- | |
| DACIA | SANDERO III 1.0 TCe 90 | H4D470 | 01.2021- |
| DACIA | SANDERO III 1.0 TCe 90 ECO-G | H4D470 | 01.2021- |
| MITSUBISHI | ASX (VSX_, VSE_) 1.0 LPG (VSXG0) | H4D470 | 01.2024- |
| MITSUBISHI | ASX (VSX_, VSE_) 1.0 (VSXG0) | H4D470 | 01.2023- |
| MITSUBISHI | COLT VII Hatchback (VB_) 1.0 MPi (VBXG0) | H4D470 | 09.2023- |
| NISSAN | MICRA V (K14) 1.0 DIG-T 117 | HR10DDT | 02.2019- |
| NISSAN | MICRA V (K14) 1.0 IG-T | HR10DET | 01.2021- |
| NISSAN | MICRA V (K14) 1.0 IG-T 100 | HR10DET | 12.2018- |
| RENAULT | CAPTUR II (HF_) TCe 90 (HFM6) | H4D470 | 09.2020- |
| RENAULT | CLIO V (B7_) 1.0 LPG (B7MT) | H4D450 | 06.2019- |
| RENAULT | CLIO V (B7_) 1.0 LPG (B7MT) | H4D452 | 06.2019- |
| RENAULT | CLIO V (B7_) 1.0 LPG (B7MT) | H4D460 | 06.2019- |
| RENAULT | CLIO V (B7_) 1.0 LPG (B7MT) | H4D470 | 06.2019- |
| RENAULT | CLIO V (B7_) 1.0 LPG (B7MT) | H4D480 | 06.2019- |
| RENAULT | CLIO V (B7_) 1.0 TCe 100 (B7MT) | H4D450 | 06.2019- |
| RENAULT | CLIO V (B7_) 1.0 TCe 100 (B7MT) | H4D452 | 06.2019- |
| RENAULT | CLIO V (B7_) 1.0 TCe 100 (B7MT) | H4D460 | 06.2019- |
| RENAULT | CLIO V (B7_) 1.0 TCe 100 (B7MT) | H4D480 | 06.2019- |
| RENAULT | MEGANE IV Hatchback (B9A/M/N_) 1.0 TCe 115 (B9MD, B9MW) | H5D490 | 10.2020- |
