Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 432.22 including GST
NZ$ 375.84 excluding GST
or four payments of $108.06
with
Learn More
UOM:
each
Product Code:
S6810S
1

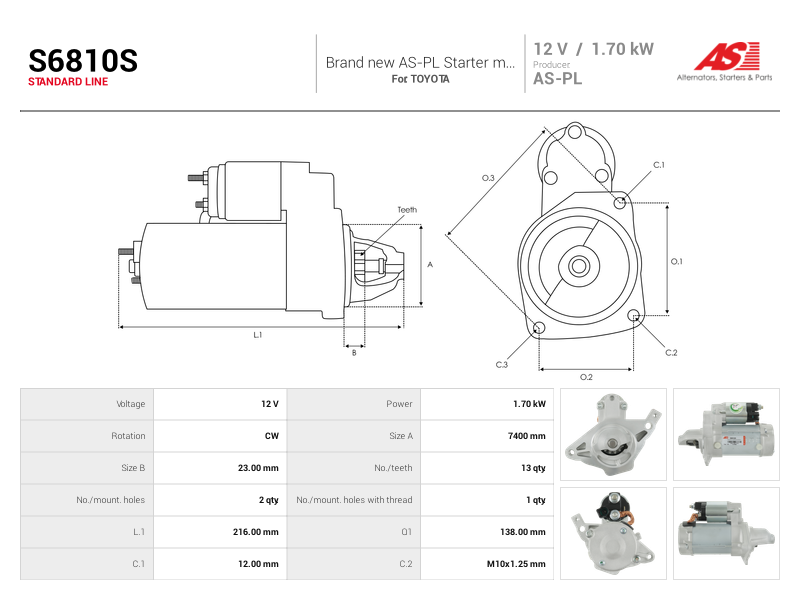

Associated Numbers
28100-0Y330 28100-47250 438000-3700 438000-2420 UD104825S AS-PL DENSO 438000-3701 TOYOTA 28100-0Y331Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 216.00 mm |
| Mount Hole Center - Center (O.1) | 138.00 mm |
| Mount Hole Diameter (C.1) | 12.00 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 13 qty |
| Pinion at Rest (B) | 23.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 7400 mm |
| Voltage | 12 V |
