Brand new AS-PL Alternator
PREMIUM LINE
AS-PL
MITSUBISHI
Price:
NZ$ 512.74 including GST
NZ$ 445.86 excluding GST
or four payments of $128.19
with
Learn More
Product Code:
S5045PR
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

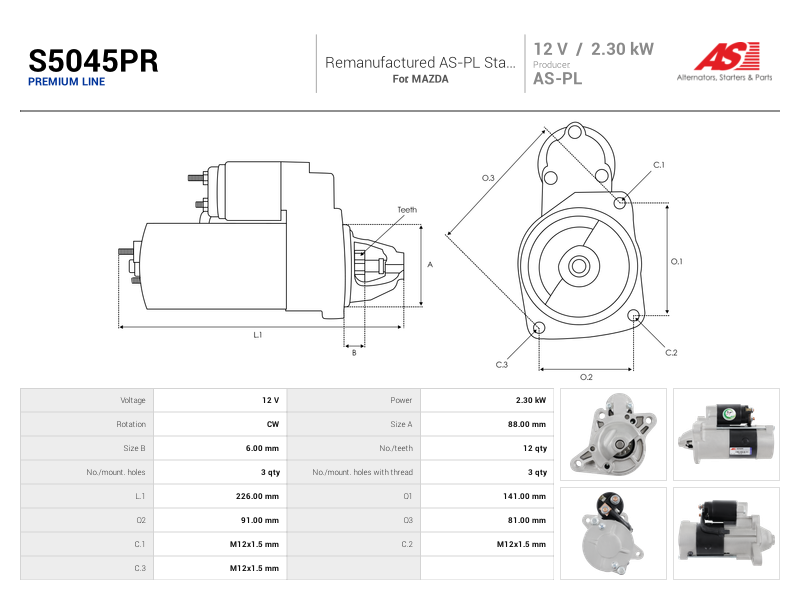

Specifications
| Kilowatt | 2.30 kW |
| Length (L.1) | 226.00 mm |
| Mount Hole Center - Center (O.1) | 141.00 mm |
| Mount Hole Center - Center (O.2) | 91.00 mm |
| Mount Hole Center - Center (O.3) | 81.00 mm |
| Mount Hole Diameter (C.1) | M12x1.5 mm |
| Mount Hole Diameter (C.2) | M12x1.5 mm |
| Mount Hole Diameter (C.3) | M12x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 6.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 88.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 3 (BK) 2.0 MZR-CD (BK14) | RF7J | 07.2006-06.2009 |
| MAZDA | 3 (BK) 2.0 MZR-CD (BK14) | RF8G | 07.2006-06.2009 |
| MAZDA | 3 Saloon (BK) 2.0 MZR-CD (BK12) | RF7J | 12.2006-06.2009 |
| MAZDA | 3 Saloon (BK) 2.0 MZR-CD (BK12) | RF8G | 12.2006-06.2009 |
| MAZDA | 5 (CR) 2.0 CD (CR19) | RF7J | 02.2005-05.2010 |
| MAZDA | 5 (CR) 2.0 CD (CR19) | RF7J | 02.2005-05.2010 |
| MAZDA | 6 Estate (GH) 2.0 MZR-CD (GH14) | RF7J | 12.2007-12.2010 |
| MAZDA | 6 Hatchback (GG) 2.0 DI (GG14) | RF5C | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.0 DI (GG14) | RF5C | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.0 DI (GG14) | RF7J | 06.2005-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.0 DI (GG14) | RF7J | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GH) 2.0 MZR-CD (GH14) | RF7J | 08.2007-10.2009 |
| MAZDA | 6 Saloon (GG) 2.0 DI (GG14) | RF5C | 06.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 2.0 DI (GG14) | RF5C | 08.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 2.0 DI (GG14) | RF7J | 06.2005-08.2007 |
| MAZDA | 6 Saloon (GG) 2.0 DI (GG14) | RF7J | 08.2002-08.2007 |
| MAZDA | 6 Saloon (GH) 2.0 MZR-CD (GH14) | RF7J | 08.2007-10.2010 |
| MAZDA | 6 Station Wagon (GY) 2.0 DI (GY19) | RF5C | 08.2002-02.2005 |
| MAZDA | 6 Station Wagon (GY) 2.0 DI (GY19) | RF5C | 08.2002-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 DI (GY19) | RF7J | 06.2005-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 DI (GY19) | RF7J | 08.2002-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 (GYEW) | LFF7 | 03.2005-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 (GYEW) | LF-VE | 03.2005-08.2007 |
| MAZDA | MPV II (LW) 2.0 DI | RF5C | 07.2002-02.2006 |
