Brand new AS-PL Alternator
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 654.40 including GST
NZ$ 569.04 excluding GST
or four payments of $163.60
with
Learn More
Product Code:
S4089S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

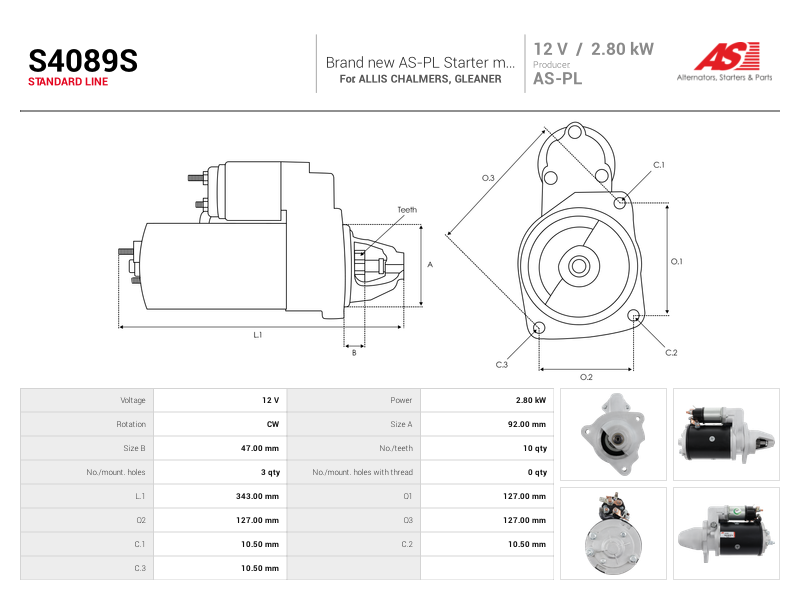

Specifications
| Kilowatt | 2.80 kW |
| Length (L.1) | 343.00 mm |
| Mount Hole Center - Center (O.1) | 127.00 mm |
| Mount Hole Center - Center (O.2) | 127.00 mm |
| Mount Hole Center - Center (O.3) | 127.00 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 47.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALLIS CHALMERS | 180 4.9 | 6-301 | 01.1968-12.1973 |
| ALLIS CHALMERS | 185 4.9 | 6-301 | 01.1970-12.1981 |
| ALLIS CHALMERS | 200 4.9 | 6-301 | 01.1972-12.1975 |
| ALLIS CHALMERS | 6060 3.3 | 4-200 | 01.1980-12.1984 |
| ALLIS CHALMERS | 6070 3.3 | 4-200 | 01.1984-12.1985 |
| ALLIS CHALMERS | 6080 3.3 | 4-200 | 01.1980-12.1986 |
| ALLIS CHALMERS | 8010 4.9 | 6-301 | 01.1982-12.1985 |
| GLEANER | F3 3.3 | A-C433 | 01.1983-12.1987 |
| GLEANER | M3 4.9 | A-C301 | 01.1983-12.1986 |
