Brand new AS-PL Alternator
PREMIUM LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 282.49 including GST
NZ$ 245.64 excluding GST
or four payments of $70.62
with
Learn More
Product Code:
S4086PR
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

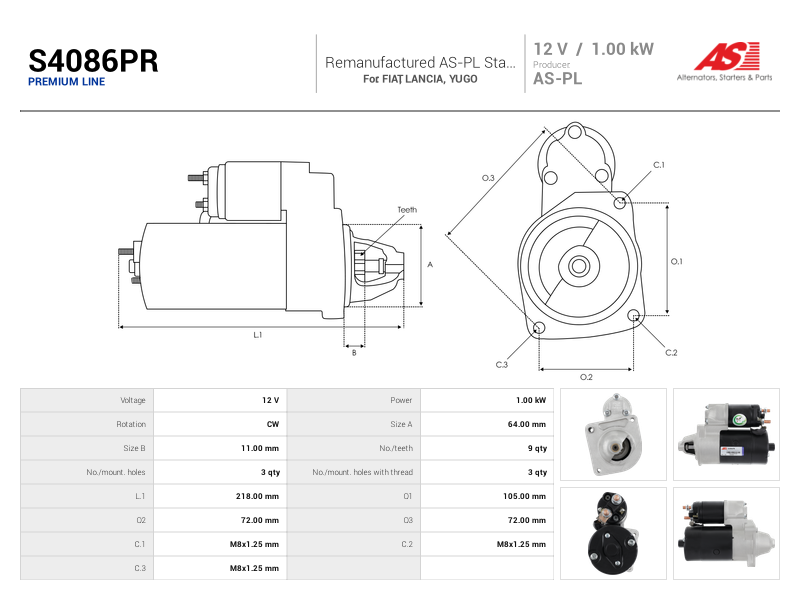

Specifications
| Kilowatt | 1.00 kW |
| Length (L.1) | 218.00 mm |
| Mount Hole Center - Center (O.1) | 105.00 mm |
| Mount Hole Center - Center (O.2) | 72.00 mm |
| Mount Hole Center - Center (O.3) | 72.00 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 11.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 64.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | TEMPRA (159_) 1.4 i.e. (159.AA) | 159A2.000 | 03.1991-08.1996 |
| FIAT | TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX) | 159A2.000 | 04.1990-08.1996 |
| FIAT | TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX) | 160A1.046 | 04.1990-08.1996 |
| FIAT | TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX) | 836A4.000 | 04.1990-08.1996 |
| FIAT | TEMPRA (159_) 1.6 (159.AD) | 159A3.000 | 03.1990-04.1994 |
| FIAT | TEMPRA (159_) 1.6 (159.AD) | 159B9.000 | 03.1990-04.1994 |
| FIAT | TEMPRA (159_) 1.6 (159AS, 159AT) | 159A3.048 | 04.1990-07.1996 |
| FIAT | TEMPRA (159_) 1.6 i.e. (159.AE) | 159A3.046 | 06.1990-07.1992 |
| FIAT | TEMPRA (159_) 1.6 i.e. (159.AJ) | 159B9.000 | 06.1994-08.1996 |
| FIAT | TEMPRA (159_) 1.6 i.e. (159.AS, 159.AT) | 159A3.048 | 06.1992-08.1996 |
| FIAT | TEMPRA (159_) 1.6 i.e. (159.AS, 159.AT) | 835C1.000 | 06.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.4 i.e. (159.AC) | 159A2.000 | 03.1991-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.4 i.e. (159.AC, 159.AX) | 159A2.000 | 10.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.4 i.e. (159.AC, 159.AX) | 160A1.046 | 10.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.4 i.e. (159.AC, 159.AX) | 836A4.000 | 10.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.6 | 159A3.000 | 12.1990-04.1993 |
| FIAT | TEMPRA S.W. (159_) 1.6 | 159A3.048 | 07.1993-07.1996 |
| FIAT | TEMPRA S.W. (159_) 1.6 (159AE) | 159A3.046 | 04.1991-06.1993 |
| FIAT | TEMPRA S.W. (159_) 1.6 i.e. (159.AE) | 159A3.046 | 10.1990-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.6 i.e. (159.AE) | 835C1.000 | 10.1990-08.1996 |
| FIAT | TIPO (160_) 1.4 (160.AC) | 160A1.000 | 07.1987-12.1989 |
| FIAT | TIPO (160_) 1.4 (160.AC) | 160A1.048 | 07.1987-12.1989 |
| FIAT | TIPO (160_) 1.4 i.e. | 159A2.000 | 05.1989-04.1995 |
| FIAT | TIPO (160_) 1.6 (160.AE) | 160A2.000 | 01.1988-10.1991 |
| FIAT | TIPO (160_) 1.6 i.e. | 149C2.046 | 02.1988-05.1991 |
| FIAT | UNO (146_, 158_) 70 i.e. 1.4 | 146C1.000 | 09.1989-12.1993 |
| LANCIA | DEDRA (835_) 1.6 i.e. (835AA) | 835A1.000 | 08.1989-06.1994 |
| LANCIA | DEDRA (835_) 1.6 i.e. (835AB) | 835A1.046 | 08.1989-03.1993 |
| YUGO | FLORIDA (VX65) 1.4 | 160A1.000 | 10.1991-06.1995 |
| YUGO | FLORIDA (VX65) 1.4 Cat | 160A1.000 | 10.1988-11.2008 |
| YUGO | FLORIDA (VX65) 1.6 | 149A.000 | 08.1989-06.1995 |
