Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 586.14 including GST
NZ$ 509.69 excluding GST
or four payments of $146.54
with
Learn More
UOM:
each
Product Code:
A61006S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
A61006S AS-PL
104211-2710 DENSO
27060-0L280 TOYOTA
G101828BTS TURBO
14-995 PANAKL

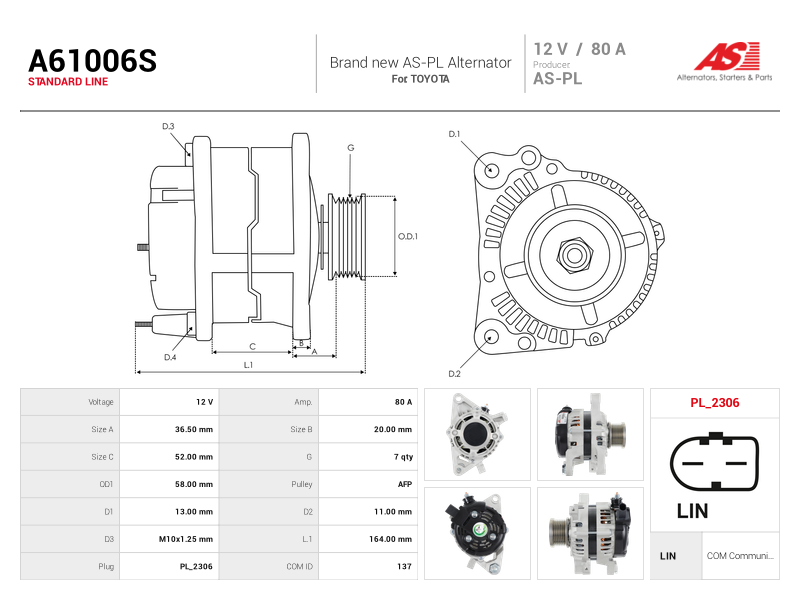

Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 20.00 mm |
| Diameter (D.1) | 13.00 mm |
| Diameter (D.2) | 11.00 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 164.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 52.00 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.2) | 58.00 mm |
| Pulley to Mount Distance (A) | 36.50 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | HILUX VIII Pickup (_N1_) 2.4 D 4WD (GUN125_) | 2GD-FTV | 05.2015- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.4 D 4WD (GUN125_, GUN125R) | 2GD-FTV | 05.2015- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.4 D (GUN112_, GUN122_, GUN135_) | 2GD-FTV | 05.2015- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... | 2GD-FTV | 05.2015- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.8 D-4D 4WD (GUN126_, GUN126R) | 1GD-FTV | 05.2015- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.8 D-4D (GUN123_, GUN136_, GUN123) | 1GD-FTV | 07.2015- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.8 D 4WD (GUN126_) | 1GD-FTV | 05.2015- |
| TOYOTA | HILUX VIII Platform/Chassis (_N1_) 2.4 D 4WD (GUN125_, GUN125R) | 2GD-FTV | 07.2015- |
| TOYOTA | HILUX VIII Platform/Chassis (_N1_) 2.4 D (GUN112_, GUN122_, GUN135_) | 2GD-FTV | 07.2015- |
| TOYOTA | HILUX VIII Platform/Chassis (_N1_) 2.8 D-4D 4WD (GUN126_, GUN126R) | 1GD-FTV | 07.2015- |
| TOYOTA | HILUX VIII Platform/Chassis (_N1_) 2.8 D-4D (GUN123_, GUN123, GUN123R) | 1GD-FTV | 07.2015- |
| TOYOTA | INNOVA II (_N14_) 2.4 (GUN142) | 2GD-FTV | 11.2015- |
Reference Information
| 031970 | DA SILVA |
| 104211-2710 | DENSO |
| 195.340.080.050 | WAI |
| 27060-0L280 | TOYOTA |
| A131.475 | WAI |
| G101828 | BTS TURBO |
| UD30569A | AS-PL |
