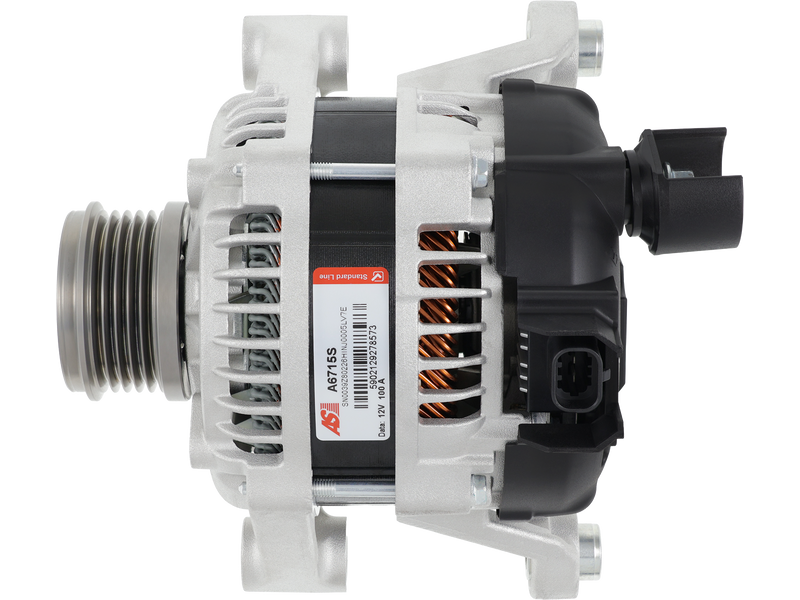

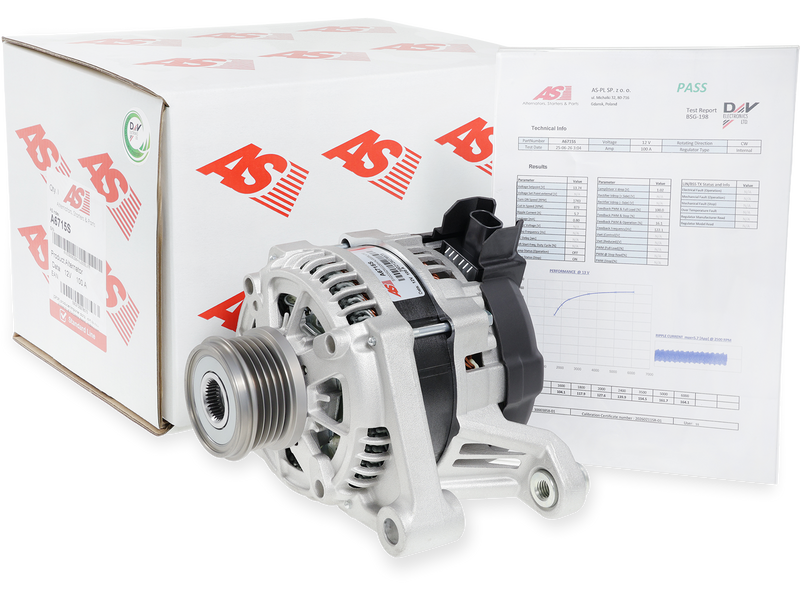

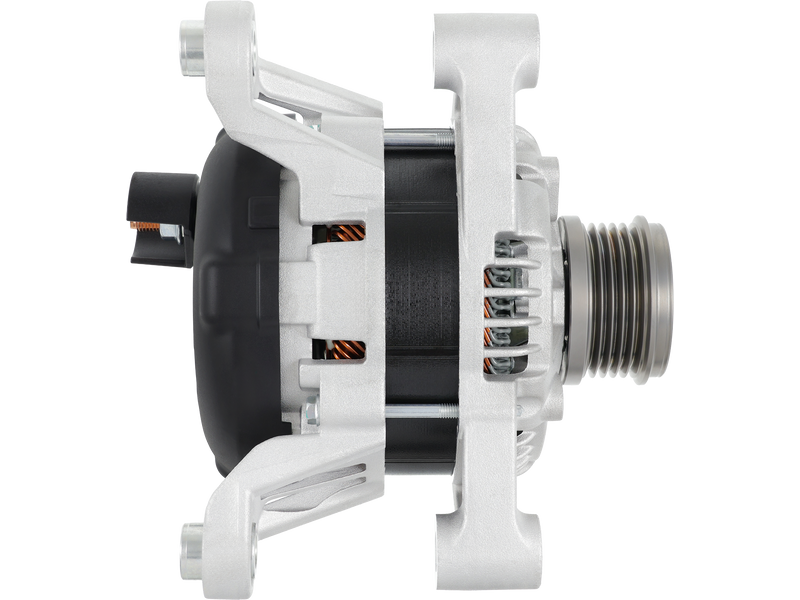

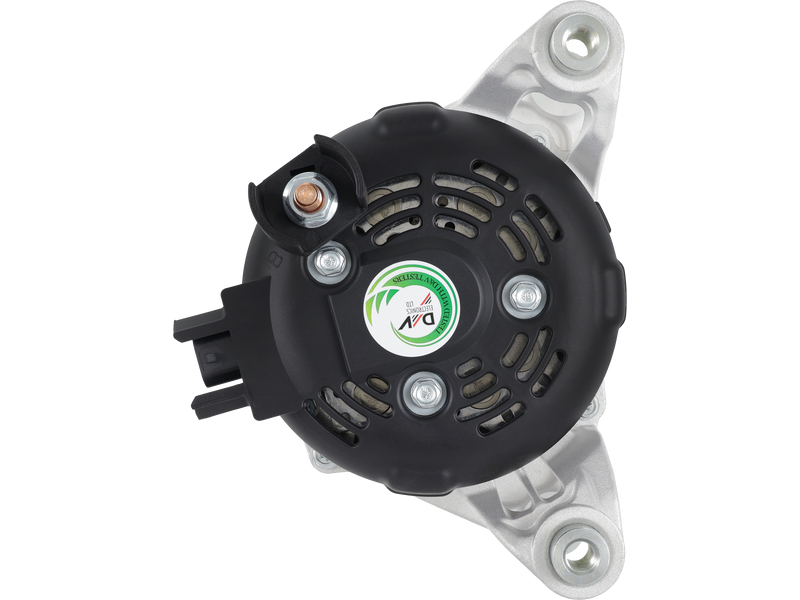

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 698.13 including GST
NZ$ 607.07 excluding GST
or four payments of $174.53
with
Learn More
UOM:
each
Product Code:
A6715S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 33.00 mm |
| Diameter (D.1) | 11.00 mm |
| Diameter (D.2) | 11.00 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 190.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57.50 mm |
| Plug Code | PL_2200 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 54.00 mm |
| Pulley to Mount Distance (A) | 54.50 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | CORSA E Hatchback Van (X15) 1.2 (08) | B12XEL | 01.2015- |
| OPEL | CORSA E Hatchback Van (X15) 1.4 (08) | B14XEJ | 09.2014- |
| OPEL | CORSA E Hatchback Van (X15) 1.4 (08) | B14XEL | 09.2014- |
| OPEL | CORSA E (X15) 1.2 (08, 68) | B12XEL | 09.2014- |
| OPEL | CORSA E (X15) 1.2 (08, 68) | D12XEL | 09.2014- |
| OPEL | CORSA E (X15) 1.4 (08, 68) | B14XEJ | 09.2014- |
| OPEL | CORSA E (X15) 1.4 (08, 68) | B14XEL | 09.2014- |
| OPEL | CORSA E (X15) 1.4 (08, 68) | D14XEJ | 09.2014- |
| OPEL | CORSA E (X15) 1.4 (08, 68) | D14XEL | 09.2014- |
| OPEL | CORSA E (X15) 1.4 LPG (08, 68) | B14XEL | 03.2015- |
| OPEL | CORSA E (X15) 1.4 LPG (08, 68) | B14XEL | 11.2015- |
| OPEL | CORSA E (X15) 1.4 Turbo (08, 68) | B14NEH | 03.2015- |
| OPEL | CORSA E (X15) 1.4 Turbo (08, 68) | B14NEJ | 09.2014-06.2019 |
| OPEL | CORSA E (X15) 1.4 Turbo (08, 68) | D14NEH | 03.2015- |
| OPEL | CORSA E (X15) 1.4 Turbo (08, 68) | D14NEJ | 09.2014-06.2019 |
Reference Information
| 011629 | DA SILVA |
| 021080-2340 | DENSO |
| 063731508010 | MAGNETI MARELLI |
| 104211-3590 | DENSO |
| 115381 | FARCOM |
| 116696 | CARGO |
| 1202373 | OPEL |
| 1202472 | OPEL |
| 12090845 | EUROTEC |
| 13520812 | OPEL |
| 135.526.100.050 | WAI |
| 135.526.100.260 | WAI |
| 135.526.100.340 | WAI |
| 135.526.100.440 | WAI |
| 135.526.100.460 | WAI |
| 13585664 | OPEL |
| 13585664B | OPEL |
| 20040478OV | ITAB AUTOMOTIVE |
| 20132874BN | REAL |
| 20132874OE | REAL |
| 20-3068 | AIRSTAL |
| 2040478.0 | SANDO |
| 2040478.1 | SANDO |
| 209114 | ERA |
| 21218N | WAI |
| 2283101002 | DRI |
| 28-7687 | ELSTOCK |
| 3111086 | HENKEL PARTS |
| 32004002 | HERTH+BUSS |
| 442661 | LOGISTIK |
| 4852013 | NK |
| 554734RI | KUHNER |
| 554734RID | KUHNER |
| 57662 | EAI |
| 662ST75 | STARTCAR |
| 831024022 | TRISCAN |
| 89216674 | POWERMAX |
| 8EL015659-231 | HELLA |
| 9016 | CEVAM |
| 9090990 | FRIESEN |
| 943315081010 | MAGNETI MARELLI |
| 95519907 | OPEL |
| A129.719 | WAI |
| A147.049 | WAI |
| ADN478 | AUTOTEAM |
| AL03620 | TMI |
| ALN3590 | KRAUF |
| ALT2516CP | ROLLCO |
| ALT424780 | SIOM |
| ALT424780A | SIOM |
| ALT60038 | ELECTROLOG |
| ALTJ066 | 3EFFE |
| ANM98812 | ANDEL |
| BREF032116696 | CARWOOD GROUP |
| CAL40478AS | CASCO |
| CAL40478GS | CASCO |
| CGB-87687 | AINDE |
| DAN1322 | DENSO |
| DENDAN1322 | WOODAUTO |
| DRA1812 | DELCO |
| F032116696 | CARGO |
| G101841 | BTS TURBO |
| G103671 | BTS TURBO |
| L52490 | ATL AUTOTECHNIK |
| LRA04078 | LUCAS |
| LRA4078 | LUCAS |
| OP8140 | SNRA |
| PRAJ066 | 3EFFE |
| STX110385 | STARDAX |
| UD104313A | AS-PL |
| UD105019A | AS-PL |
| WAL00872 | WALKER |
| WG1916821 | WILMINK GROUP |
