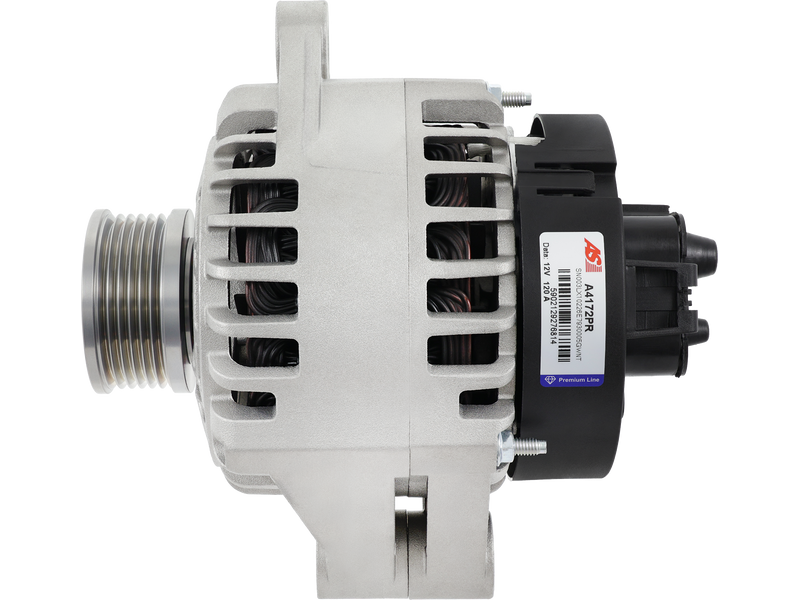

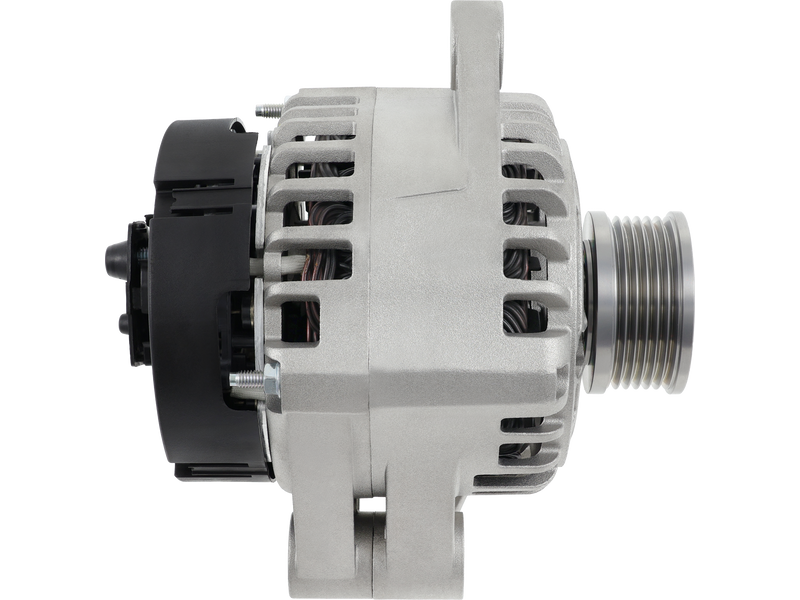

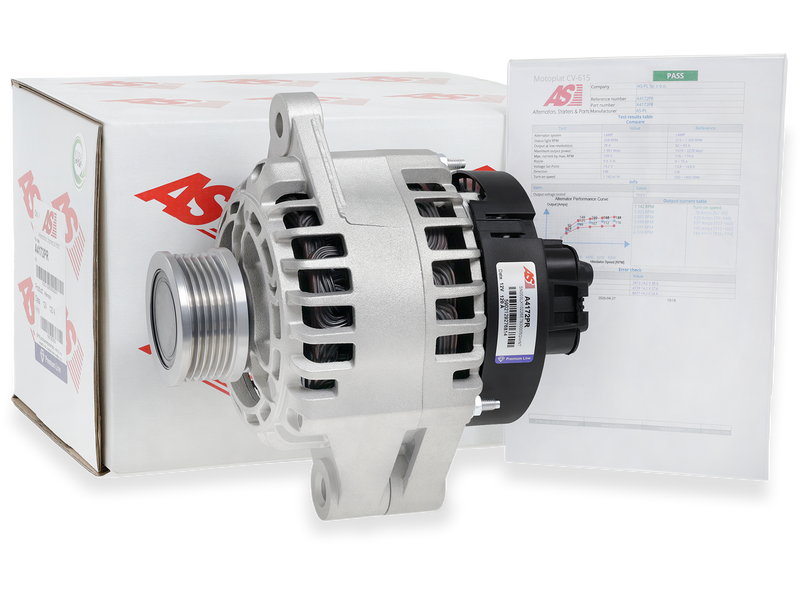

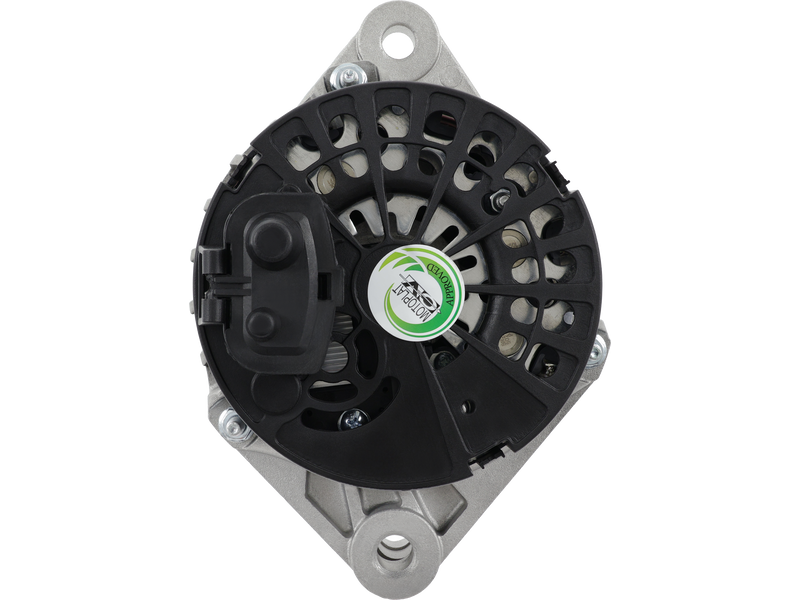

Brand new AS-PL Alternator

PREMIUM LINE

Manufacturer:

AS-PL

Replacement For:

MAGNETI MARELLI

Price:

NZ$ 453.04 including GST

NZ$ 393.95 excluding GST

or four payments of $113.26 with
Learn More

UOM:

each

Product Code:

A4172PR

Quantity In Stock Nationally

No stock in NZ currently

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Specifications
Vehicle Applications
Reference Information

Amp	120 A
Bottom Mounting Foot Width (B)	61.00 mm
Diameter (D.1)	12.00 mm
Diameter (D.2)	12.00 mm
Length (L.1)	202.50 mm
Plug Code	PL_9104
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.2)	61.50 mm
Pulley to Mount Distance (A)	112.50 mm
Pulley Type	Clutch
Voltage	12 V

Make	Model	Type	Year
ALFA ROMEO	159 (939_) 1.9 JTDM 16V (939AXC1B, 939AXC12)	939A2.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 16V (939AXF1B, 939AXC1B)	937A8.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 16V (939AXF1B, 939AXC1B)	939A8.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 8V (939AXE1B)	939A1.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 8V (939AXE1B, 939BXE1B, 939BXH1B)	937A7.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 8V (939AXE1B, 939BXE1B, 939BXH1B)	939A7.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 2.0 JTDM (939AXP1B)	939B3.000	05.2009-11.2011
ALFA ROMEO	159 (939_) 2.0 JTDM (939AXQ1B)	844A2.000	05.2009-11.2011
ALFA ROMEO	159 (939_) 2.0 JTDM (939AXR1B)	939B4.000	06.2010-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 16V (939BXC1B)	937A8.000	03.2006-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 16V (939BXC1B)	939A8.000	03.2006-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 16V (939BXC1B, 939BXC12)	939A2.000	03.2006-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 8V (939AXH1B, 939BXH1B)	937A7.000	03.2006-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 8V (939BXE1B)	939A1.000	03.2006-11.2011
ALFA ROMEO	159 Sportwagon (939_) 2.0 JTDM (939BXP1B)	939B3.000	07.2009-11.2011
ALFA ROMEO	159 Sportwagon (939_) 2.0 JTDM (939BXQ1B)	844A2.000	05.2009-11.2011
ALFA ROMEO	159 Sportwagon (939_) 2.0 JTDM (939BXR1B)	939B4.000	06.2010-11.2011
ALFA ROMEO	BRERA (939_) 2.0 JTDM (939DXP1B)	939B3.000	05.2009-06.2010
ALFA ROMEO	BRERA (939_) 2.0 JTDM (939DXQ1B)	844A2.000	03.2008-06.2010
ALFA ROMEO	MITO (955_) 1.4 Bifuel (955AXG1A)	198A4.000	01.2009-08.2016
ALFA ROMEO	MITO (955_) 1.6 JTDM (955AXC1B)	198A2.000	08.2008-08.2015
ALFA ROMEO	MITO (955_) 1.6 JTDM (955AXC1B)	955A3.000	08.2008-08.2015
ALFA ROMEO	MITO (955_) 1.6 JTDM (955AXE1B)	955A4.000	08.2008-08.2015
ALFA ROMEO	SPIDER (939_) 2.0 JTDM (939DXP1B, 939EXP1B)	939B3.000	05.2009-06.2010
ALFA ROMEO	SPIDER (939_) 2.0 JTDM (939DXQ1B)	844A2.000	04.2009-03.2011
FIAT	BRAVO II (198_) 1.9 D Multijet (198AXC1B)	937A5.000	04.2007-12.2014
FIAT	BRAVO II (198_) 2.0 D Multijet (198AXN1B)	198A5.000	09.2008-12.2014
FIAT	BRAVO II (198_) 2.0 D Multijet (198AXPIB)	198A8.000	09.2008-12.2014
FIAT	BRAVO II (198_) 2.0 D Multijet (198AXPIB)	844A2.000	09.2008-12.2014
FIAT	CROMA (194_) 1.9 D Multijet	939A7.000	06.2005-12.2011
FIAT	CROMA (194_) 1.9 D Multijet	939A8.000	12.2005-10.2007
FIAT	CROMA (194_) 1.9 D Multijet (194AXB1B)	939A1.000	06.2005-12.2011
FIAT	CROMA (194_) 1.9 D Multijet (194AXC1B, 194AXC12)	939A2.000	06.2005-12.2011
FIAT	DOBLO Bus (263_) 1.6 D Multijet (263AXD1B, 263AXX1B)	198A3.000	01.2010-
FIAT	DOBLO Bus (263_) 1.6 D Multijet (263AXD1B, 263AXX1B)	263A8.000	01.2010-
FIAT	DOBLO Bus (263_) 1.6 D Multijet (263AXD1B, 263AXX1B)	55280444	01.2010-
FIAT	DOBLO Bus (263_) 1.6 D Multijet (263AXH1A, 263AXL11, 263AXH1B)	263A4.000	02.2010-
FIAT	DOBLO Bus (263_) 1.6 D Multijet (263AXH1A, 263AXL11, 263AXH1B)	263A5.000	02.2010-
FIAT	DOBLO Bus (263_) 1.6 D Multijet (263AXN1B, 263AXV1B)	55280444	03.2015-
FIAT	DOBLO Bus (263_) 1.6 D Multijet (263AXN1B, 263AXV1B)	940C1.000	03.2015-
FIAT	DOBLO Bus (263_) 1.6 D Multijet (263AXP1B, 263AXW1B)	263A7.000	03.2015-
FIAT	DOBLO Bus (263_) 1.6 D Multijet (263AXP1B, 263AXW1B)	55280444	03.2015-
FIAT	DOBLO Bus (263_) 2.0 D Multijet (263AXF1B)	263A1.000	01.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet	263A4.000	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet	263A5.000	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet	46346020	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263WXD1B, 263WXR1B, 263WXX1B, 263ZXD1B,...	198A3.000	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263WXD1B, 263WXR1B, 263WXX1B, 263ZXD1B,...	263A8.000	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263WXD1B, 263WXR1B, 263WXX1B, 263ZXD1B,...	46346020	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263WXD1B, 263WXR1B, 263WXX1B, 263ZXD1B,...	55280444	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263WXN1B, 263ZXN1B, 263ZXV1B, 263WXV1B,...	46346020	02.2016-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263WXN1B, 263ZXN1B, 263ZXV1B, 263WXV1B,...	55280444	02.2016-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263WXN1B, 263ZXN1B, 263ZXV1B, 263WXV1B,...	940C1.000	02.2016-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263ZXE1B, 263ZXS1B, 263ZXY1B, 263WXE1B,...	263A3.000	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263ZXE1B, 263ZXS1B, 263ZXY1B, 263WXE1B,...	263A9.000	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263ZXE1B, 263ZXS1B, 263ZXY1B, 263WXE1B,...	46346020	02.2010-
FIAT	DOBLO Cargo (263_) 1.6 D Multijet (263ZXE1B, 263ZXS1B, 263ZXY1B, 263WXE1B,...	55280444	02.2010-
FIAT	DOBLO Cargo (263_) 2.0 D Multijet	263A1.000	02.2010-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet	263A4.000	02.2010-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet	263A5.000	02.2010-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet (263HXE1B, 263HXS1B, 263HXY1B, 263YXE1B,...	263A3.000	02.2011-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet (263HXE1B, 263HXS1B, 263HXY1B, 263YXE1B,...	263A9.000	02.2011-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet (263HXE1B, 263HXS1B, 263HXY1B, 263YXE1B,...	55280444	02.2011-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet (263HXN1B, 263YXN1B, 263HXV1B, 263YXV1B)	55280444	02.2016-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet (263HXN1B, 263YXN1B, 263HXV1B, 263YXV1B)	940C1.000	02.2016-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet (263YXD1B, 263XYR1B, 263YXX1B, 263HXD1B,...	198A3.000	02.2010-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet (263YXD1B, 263XYR1B, 263YXX1B, 263HXD1B,...	263A8.000	02.2010-
FIAT	DOBLO Platform/Chassis (263_) 1.6 D Multijet (263YXD1B, 263XYR1B, 263YXX1B, 263HXD1B,...	55280444	02.2010-
FIAT	DOBLO Platform/Chassis (263_) 2.0 D Multijet	263A1.000	02.2010-
FIAT	DUCATO Bus (250_) 115 Multijet 2,0 D	250A1.000	06.2011-
FIAT	DUCATO Bus (250_) 115 Multijet 2,0 D	250A2.000	06.2011-
FIAT	DUCATO Platform/Chassis (250_) 115 Multijet 2,0 D	250A1.000	06.2011-
FIAT	DUCATO Platform/Chassis (250_) 115 Multijet 2,0 D	250A2.000	06.2011-
FIAT	DUCATO Van (250_) 115 Multijet 2,0 D	250A1.000	06.2011-
FIAT	DUCATO Van (250_) 115 Multijet 2,0 D	250A2.000	06.2011-
FIAT	GRANDE PUNTO (199_) 1.9 D Multijet	199A5.000	10.2005-
FIAT	GRANDE PUNTO (199_) 1.9 D Multijet	939A1.000	10.2005-
FIAT	GRANDE PUNTO (199_) 1.9 D Multijet	939A7.000	06.2006-12.2009
FIAT	IDEA (350_) 1.6 D Multijet	350A2.000	05.2008-
FIAT	LINEA (323_, 110_) 1.6 D Multijet	198A3.000	06.2009-
FIAT	PUNTO EVO (199_) 1.6 D Multijet	955A3.000	10.2009-02.2012
FIAT	STILO (192_) 1.9 D Multijet	937A5.000	09.2005-11.2006
FIAT	STILO (192_) 1.9 JTD	192A5.000	01.2004-11.2006
FIAT	STILO (192_) 1.9 JTD	192B1.000	04.2004-11.2006
FIAT	STILO (192_) 1.9 JTD	937A4.000	09.2003-11.2006
FIAT	STILO Multi Wagon (192_) 1.9 D Multijet (192DXT1B)	937A5.000	09.2005-08.2008
FIAT	STILO Multi Wagon (192_) 1.9 JTD	192A5.000	01.2004-08.2008
FIAT	STILO Multi Wagon (192_) 1.9 JTD	192B1.000	04.2004-08.2008
FIAT	STILO Multi Wagon (192_) 1.9 JTD	937A4.000	09.2003-08.2008
FIAT	STILO VAN (192_) 1.9 JTD (192DXG1B)	192A5.000	09.2003-08.2005
FIAT	STILO VAN (192_) 1.9 JTD (192DXG1B)	192B1.000	02.2004-08.2008
FIAT	STILO VAN (192_) 1.9 JTD (192DXG1B)	937A4.000	09.2003-08.2005
FIAT	STILO VAN (192_) 1.9 JTD (192DXT1B)	937A5.000	09.2005-08.2008
LANCIA	MUSA (350_) 1.6 D Multijet (350.AXH1A)	350A2.000	07.2008-09.2012
LANCIA	MUSA (350_) 1.6 D Multijet (350.AXL1A, 350.AXH1A)	350A2.000	07.2008-09.2012
LANCIA	MUSA (350_) 1.6 D Multijet (350.AXL1A, 350.AXH1A)	350A3.000	07.2008-09.2012
OPEL	ASTRA H (A04) 1.9 CDTI 16V (L48)	Z19DTJ	04.2004-10.2010
OPEL	ASTRA H (A04) 1.9 CDTI (L48)	Z19DT	06.2004-10.2010
OPEL	ASTRA H (A04) 1.9 CDTI (L48)	Z19DTH	09.2004-10.2010
OPEL	ASTRA H (A04) 1.9 CDTI (L48)	Z19DTL	09.2005-10.2010
OPEL	ASTRA H Estate (A04) 1.9 CDTI 16V (L35)	Z19DTJ	08.2004-10.2010
OPEL	ASTRA H Estate (A04) 1.9 CDTI (L35)	Z19DT	09.2005-10.2010
OPEL	ASTRA H Estate (A04) 1.9 CDTI (L35)	Z19DTH	09.2004-10.2010
OPEL	ASTRA H Estate (A04) 1.9 CDTI (L35)	Z19DTL	09.2005-10.2010
OPEL	ASTRA H Estate Van (L70) 1.9 CDTI 16V (L70)	Z19DTJ	08.2004-10.2010
OPEL	ASTRA H Estate Van (L70) 1.9 CDTI (L70)	Z19DT	09.2005-10.2010
OPEL	ASTRA H Estate Van (L70) 1.9 CDTI (L70)	Z19DTH	09.2004-10.2010
OPEL	ASTRA H Estate Van (L70) 1.9 CDTI (L70)	Z19DTL	08.2005-12.2012
OPEL	ASTRA H GTC (A04) 1.9 CDTi 16V (L08)	Z19DTJ	03.2005-10.2010
OPEL	ASTRA H GTC (A04) 1.9 CDTi (L08)	Z19DTH	03.2005-10.2010
OPEL	ASTRA H GTC (A04) 1.9 CDTI (L08)	Z19DT	09.2005-10.2010
OPEL	ASTRA H GTC (A04) 1.9 CDTI (L08)	Z19DTL	01.2006-10.2010
OPEL	ASTRA H TwinTop (A04) 1.9 CDTi (L67)	Z19DTH	09.2005-10.2010
OPEL	SIGNUM Hatchback (Z03) 1.9 CDTI (F48)	Z19DT	04.2004-02.2008
OPEL	SIGNUM Hatchback (Z03) 1.9 CDTI (F48)	Z19DTH	04.2004-02.2008
OPEL	SIGNUM Hatchback (Z03) 1.9 CDTI (F48)	Z19DTL	08.2005-02.2008
OPEL	VECTRA C Estate (Z02) 1.9 CDTI (F35)	Z19DT	04.2004-01.2009
OPEL	VECTRA C Estate (Z02) 1.9 CDTI (F35)	Z19DTH	04.2004-08.2008
OPEL	VECTRA C Estate (Z02) 1.9 CDTI (F35)	Z19DTL	06.2005-08.2008
OPEL	VECTRA C GTS (Z02) 1.9 CDTI (F68)	Z19DT	04.2004-01.2009
OPEL	VECTRA C GTS (Z02) 1.9 CDTI (F68)	Z19DTH	04.2004-08.2008
OPEL	VECTRA C GTS (Z02) 1.9 CDTI (F68)	Z19DTL	06.2005-08.2008
OPEL	VECTRA C (Z02) 1.9 CDTI (F69)	Z19DT	04.2004-01.2009
OPEL	VECTRA C (Z02) 1.9 CDTI (F69)	Z19DTH	04.2004-08.2008
OPEL	VECTRA C (Z02) 1.9 CDTI (F69)	Z19DTL	10.2005-08.2008
OPEL	ZAFIRA B Box Body/MPV (A05) 1.9 CDTI VAN (M75)	Z19DT	07.2005-04.2015
OPEL	ZAFIRA B Box Body/MPV (A05) 1.9 CDTI VAN (M75)	Z19DTH	07.2005-04.2015
OPEL	ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75)	Z19DT	07.2005-04.2015
OPEL	ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75)	Z19DTH	07.2005-04.2015
OPEL	ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75)	Z19DTL	07.2005-12.2010
VAUXHALL	Astra MK V 1.9 CDTi	Z19DT	01.2004-11.2010
VAUXHALL	Astra MK V 1.9 CDTi	Z19DTH	01.2004-11.2010
VAUXHALL	ASTRA Mk V (H) (A04) 1.9 CDTI 16V (L48)	Z19DTJ	01.2004-05.2009
VAUXHALL	ASTRA Mk V (H) (A04) 1.9 CDTI (L48)	Z19DTH	01.2004-05.2009
VAUXHALL	ASTRA Mk V (H) Estate (A04) 1.9 CDTi 16V (L35)	Z19DTJ	08.2004-03.2009
VAUXHALL	ASTRA Mk V (H) Sport Hatch (A04) 1.9 CDTi (L08)	Z19DT	02.2005-11.2010
VAUXHALL	ASTRA Mk V (H) Sport Hatch (A04) 1.9 CDTi (L08)	Z19DTH	02.2005-11.2010
VAUXHALL	ASTRA Mk V (H) Sport Hatch (A04) 1.9 CDTi (L08)	Z19DTL	08.2005-11.2010
VAUXHALL	Signum 1.9 CDTi	Z19DT	01.2004-12.2008
VAUXHALL	SIGNUM (Z03) 1.9 CDTI	Z19DT	04.2004-03.2008
VAUXHALL	SIGNUM (Z03) 1.9 CDTI 16V	Z19DTH	04.2004-03.2008
VAUXHALL	Vectra MK II 1.9 CDTi	Z19DT	04.2002-09.2008
VAUXHALL	Vectra MK II 1.9 CDTi 16V	Z19DTH	04.2004-05.2009
VAUXHALL	VECTRA Mk II (C) Estate (Z02) 1.9 CDTI	Z19DT	04.2004-07.2008
VAUXHALL	VECTRA Mk II (C) GTS (Z02) 1.9 CDTI	Z19DT	08.2002-07.2008
VAUXHALL	VECTRA Mk II (C) GTS (Z02) 1.9 CDTI 16V	Z19DTH	04.2004-07.2008
VAUXHALL	VECTRA Mk II (C) (Z02) 1.9 CDTI 16V	Z19DTH	04.2004-08.2008
VAUXHALL	ZAFIRA Mk II (B) (A05) 1.9 CDTI	Z19DT	07.2005-11.2014
VAUXHALL	ZAFIRA Mk II (B) (A05) 1.9 CDTI	Z19DTH	07.2005-11.2014

0124425100	BOSCH
063377004010	MAGNETI MARELLI
063377032010	MAGNETI MARELLI
063377490010	MAGNETI MARELLI
063730029010	MAGNETI MARELLI
0986049530	BOSCH
101210-1890	DENSO
102211-8260	DENSO
102211-8650	DENSO
102211-8651	DENSO
102211-8652	DENSO
10443114	ALANKO
114204	CARGO
1204436	OPEL
13117341	OPEL
13117341AA	OPEL
135.534.120	WAI
135.534.120.462	WAI
20104361BN	REAL
20104361OE	REAL
2030163	SANDO
2030180	SANDO
210324	ERA
210664	ERA
210682	ERA
23112N	WAI
23112R	WAI
28-4927	ELSTOCK
301884RI	KUHNER
301884RID	KUHNER
301884RIM	KUHNER
301884RIR	KUHNER
301885RI	KUHNER
301885RID	KUHNER
301885RIM	KUHNER
301885RIR	KUHNER
32377490	HERTH+BUSS
4743	CEVAM
5530054	MEAT & DORIA
57028	EAI
6204188	OPEL
6204294	OPEL
63321939	MAGNETI MARELLI
63377004	MAGNETI MARELLI
63377032	MAGNETI MARELLI
63377490	MAGNETI MARELLI
71784513	FIAT
71784514	FIAT
89212424	POWERMAX
8EL011710-881	HELLA
8EL738211-631	HELLA
93169032	OPEL
93169033	OPEL
93169258	OPEL
93180098	OPEL
93180102	OPEL
944390902070	MAGNETI MARELLI
95520875	OPEL
9562209	OPEL
A12DE0016A2	SIDAT
A12MA1192A2	SIDAT
A130.006	WAI
A147.698	WAI
A149.393	WAI
A4073	AS-PL
AEK2809	AUTOELECTRO
AG0222	GHIBAUDI
ALE1885	KRAUF
ALN1885	KRAUF
ALT12048R	WOODAUTO
ALT321630	SIOM
ALT321800	SIOM
ALT9060	ELECTROLOG
ALTL690	3EFFE
ANM36483X	ANDEL
AX 1347	STARLINE
CA1885IR	HC PARTS
CAL30163AS	CASCO
CAL30163GS	CASCO
CAL30180AS	CASCO
CAL30180GS	CASCO
DA1399	DELCO
DA5373	DELCO
DAN506	DENSO
DENDAN506	WOODAUTO
DRA0289	DELCO
DRA4263	DELCO
F032114204	CARGO
LRA02809	LUCAS
LRA2809	LUCAS
MRA90207	MAGNETI MARELLI
R1530100	VAUXHALL
RAA15374	DELCO
SB198	SOVEREIGN
STA0056R	BOVEZ
STX100025	STARDAX
STX100025R	STARDAX
STX100056	STARDAX
STX100056R	STARDAX
STX101667	STARDAX
STX102026	STARDAX

View your shopping basket or Browse other items in Alternators.

A4172PR - Remanufactured AS-PL Alternator

Specifications

Vehicle Applications

Reference Information

AS GROUP NZ

Terms and Conditions

Payment Due:

Penalty

Stop credit:

Debt Collection:
