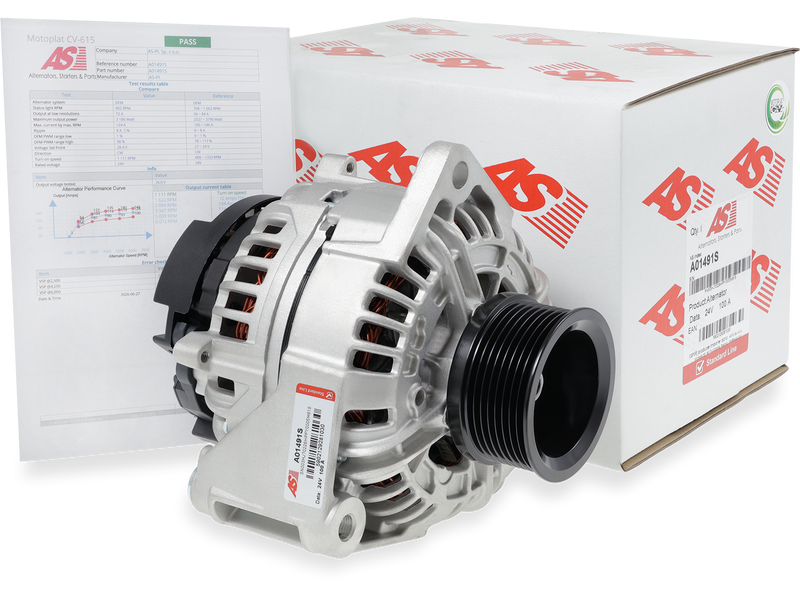

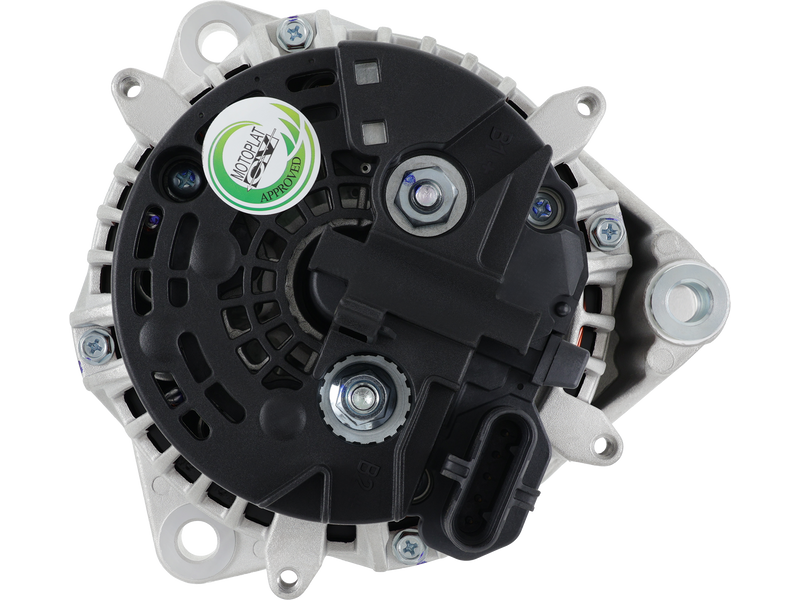

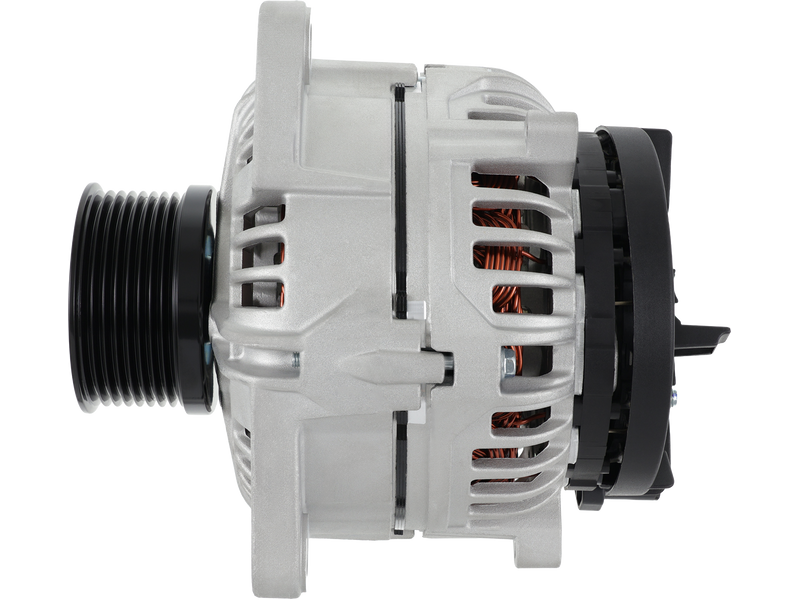

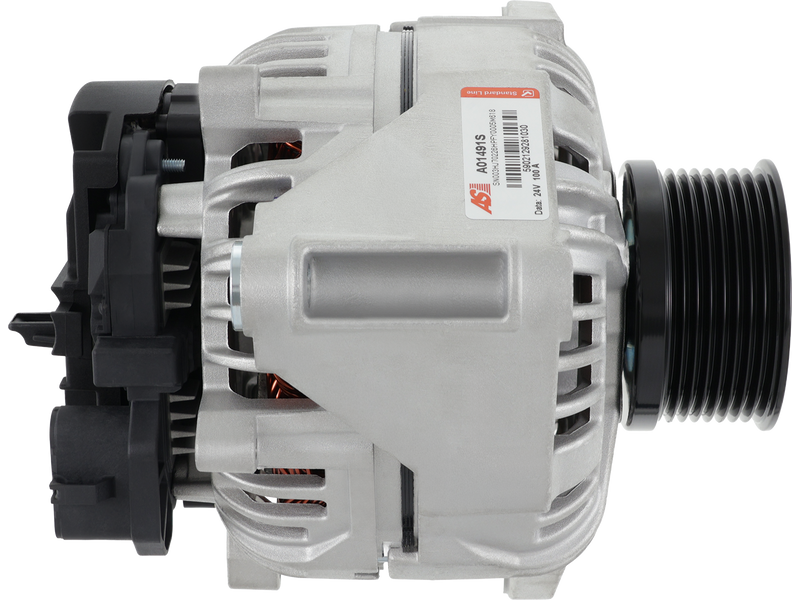

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 545.71 including GST
NZ$ 474.53 excluding GST
or four payments of $136.43
with
Learn More
UOM:
each
Product Code:
A01491S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

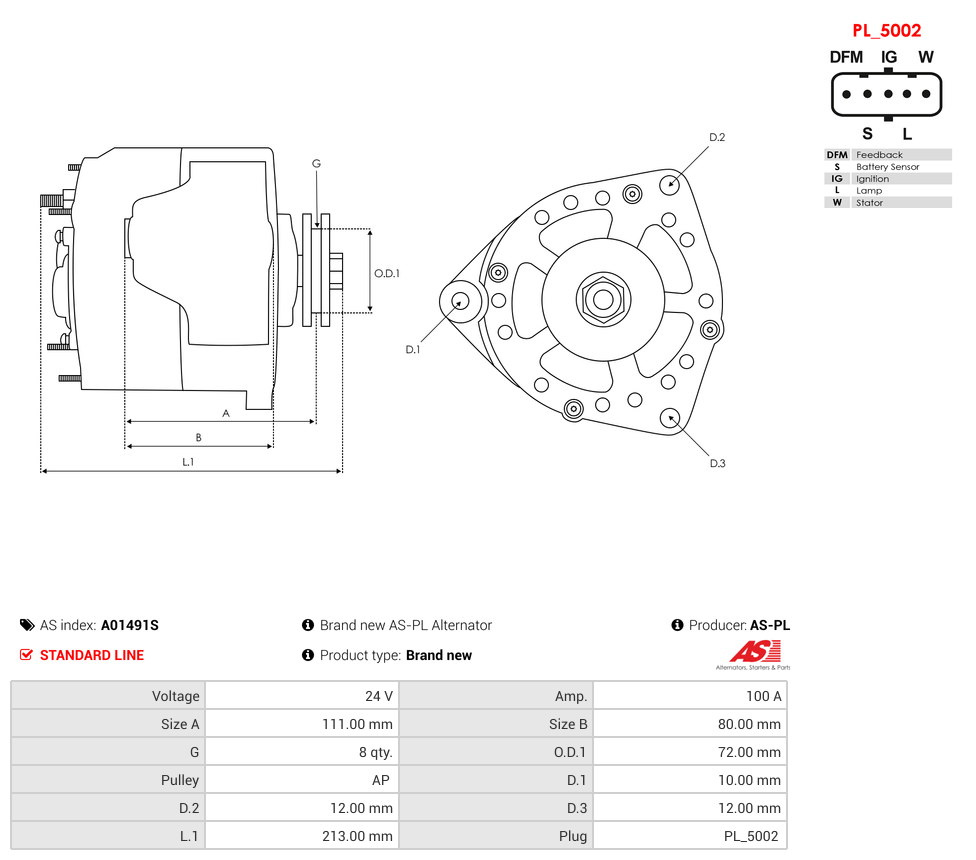

Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 80.00 mm |
| Diameter (D.1) | 10.00 mm |
| Diameter (D.2) | 12.00 mm |
| Diameter (D.3) | 12.00 mm |
| Length (L.1) | 213.00 mm |
| Plug Code | PL_5002 |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.2) | 72.00 mm |
| Pulley to Mount Distance (A) | 111.00 mm |
| Pulley Type | Solid |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES-BENZ | ACTROS 1831, 1831 L | OM541.920 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1831 AK | OM541.926 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1831 AK | OM541.941 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1831 K | OM541.920 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1831 K | OM541.940 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1831 S, 1831 LS | OM541.920 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1831 S, 1831 LS | OM541.940 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1835, 1835 L | OM541.922 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1835 AK | OM541.927 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1835 AK | OM541.943 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1835 K | OM541.922 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1835 K | OM541.942 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1835 S, 1835 LS | OM541.922 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1835 S, 1835 LS | OM541.942 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1840, 1840 L | OM541.923 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1840 AK | OM541.924 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1840 AK | OM541.945 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1840 K | OM541.923 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1840 K | OM541.944 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1840 S, 1840 LS | OM541.923 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1840 S, 1840 LS | OM541.944 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1843, 1843 L | OM541.925 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1843 AK | OM541.921 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1843 AK | OM541.947 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1843 K | OM541.925 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1843 K | OM541.946 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1843 S, 1843 LS | OM541.925 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1843 S, 1843 LS | OM541.946 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1848, 1848 L | OM542.921 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1848 AK | OM542.925 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1848 K | OM542.921 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1848 K | OM542.940 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1848 S, 1848 LS | OM542.921 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1848 S, 1848 LS | OM542.940 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1853, 1853 L | OM542.920 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1853 S, 1853 LS | OM542.920 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1853 S, 1853 LS | OM542.942 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 1857 L | OM542.922 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1857 LS | OM542.922 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 1857 LS | OM542.944 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2031 | OM541.920 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2031 A | OM541.926 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2031 AS | OM541.926 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2031 AS | OM541.941 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2031 K | OM541.920 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2031 K | OM541.940 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2031 S | OM541.920 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2031 S | OM541.940 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2035 A | OM541.927 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2035 A | OM541.943 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2040 | OM541.923 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2040 AS | OM541.924 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2040 AS | OM541.945 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2040 S | OM541.923 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2040 S | OM541.944 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2053 S | OM542.920 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2053 S | OM542.942 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2531, 2531 L | OM541.920 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2531, 2531 L | OM541.940 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2535 L | OM541.922 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2535 L | OM541.942 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2540, 2540 L | OM541.923 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2540, 2540 L | OM541.944 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2543, 2543 L | OM541.925 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2543, 2543 L | OM541.946 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2548, 2548 L | OM542.921 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2553, 2553 L | OM542.920 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2557 L | OM542.922 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2631, 2631 L | OM541.920 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2631 B | OM541.920 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2631 B | OM541.940 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2631 K | OM541.920 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2631 K | OM541.940 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2635, 2635 L | OM541.922 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2635 B | OM541.922 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2635 B | OM541.942 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2635 K, 2635 LK | OM541.922 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2635 K, 2635 LK | OM541.942 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2640, 2640 L | OM541.923 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2640 B | OM541.923 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2640 B | OM541.944 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2640 K, 2640 LK | OM541.923 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2640 K, 2640 LK | OM541.944 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2640 S, 2640 LS | OM541.923 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2640 S, 2640 LS | OM541.944 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2643, 2643 L | OM541.925 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2643 B | OM541.925 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2643 B | OM541.946 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2643 K, 2643 LK | OM541.925 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2643 K, 2643 LK | OM541.946 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2643 S, 2643 LS | OM541.925 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2643 S, 2643 LS | OM541.946 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2648, 2648 L | OM542.921 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2648 K, 2648 LK | OM542.921 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2648 K, 2648 LK | OM542.940 | 04.1997-10.2002 |
| MERCEDES-BENZ | ACTROS 2648 S, 2648 LS | OM542.921 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2648 S, 2648 LS | OM542.940 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2653, 2653 L | OM542.920 | 04.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2653 S, 2653 LS | OM542.920 | 09.1996-10.2002 |
| MERCEDES-BENZ | ACTROS 2653 S, 2653 LS | OM542.942 | 09.1996-10.2002 |
Reference Information
| 0124655002 | BOSCH |
| 11020027 | KRAFTVOLL GERMANY |
| 119888 | FARCOM |
| 12389N | WAI |
| 19070022-12B1 | DELCO |
| 20010725AV | ITAB AUTOMOTIVE |
| 20101527BN | REAL |
| 20101527IT | REAL |
| 2010725.0 | SANDO |
| 2010725.5 | SANDO |
| 202060 | VALEO |
| 220-30230 | ROBERT'S |
| 3121253 | HENKEL PARTS |
| 3121254 | HENKEL PARTS |
| 434036 | VALEO |
| 556.502.100.010 | WAI |
| 556.502.100.014 | WAI |
| A133.793 | WAI |
| A24BH0040AS | SIDAT |
| ABO725A | AUTOTEAM |
| BBA32086 | BORG & BECK |
| CAL10725AS | CASCO |
| CAL10725IS | CASCO |
| G100747 | BTS TURBO |
| G100748 | BTS TURBO |
| L42400 | ATL AUTOTECHNIK |
| SAL92056-12B1 | DELCO |
| TT12468 | TESLA TECHNICS |
| UD30570A | AS-PL |
| WG2644212 | WILMINK GROUP |
| WG2644319 | WILMINK GROUP |
