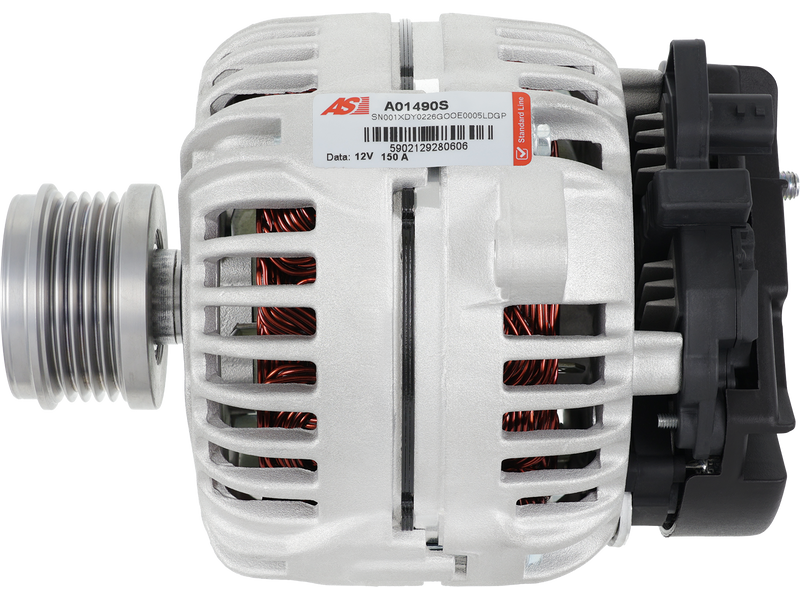

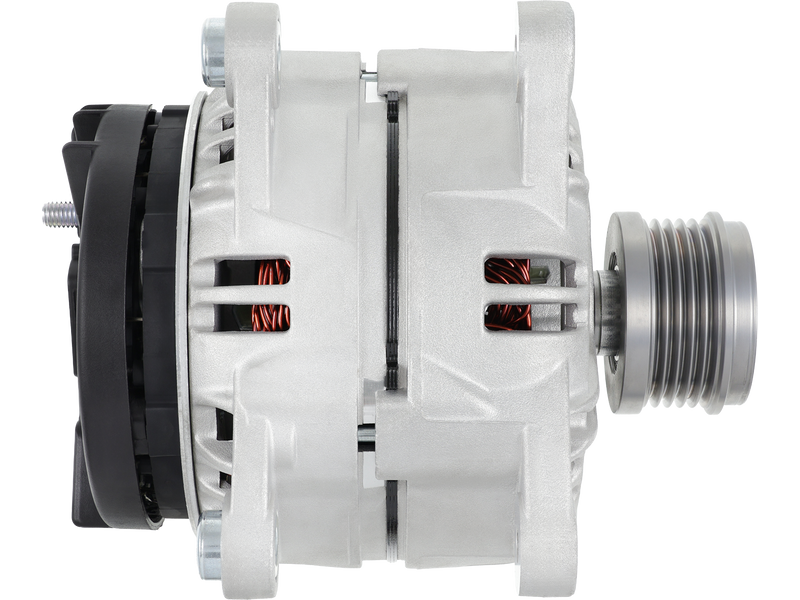

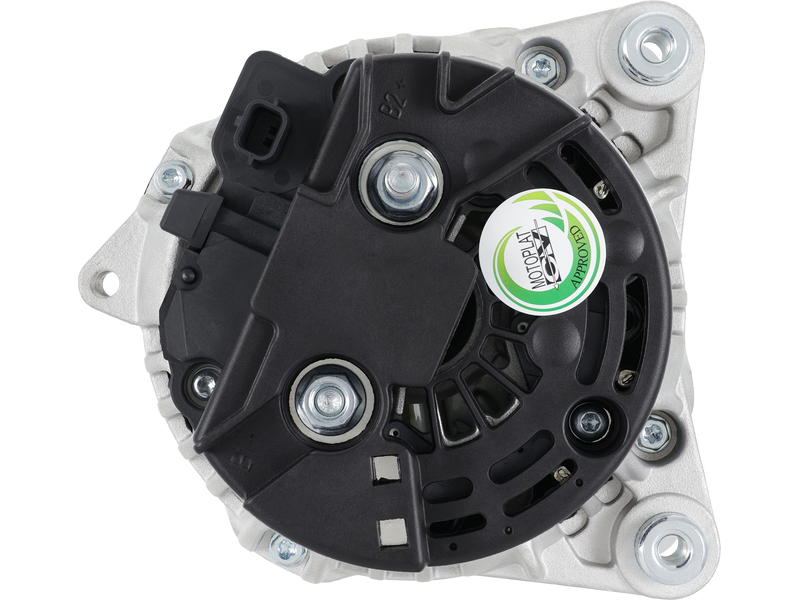

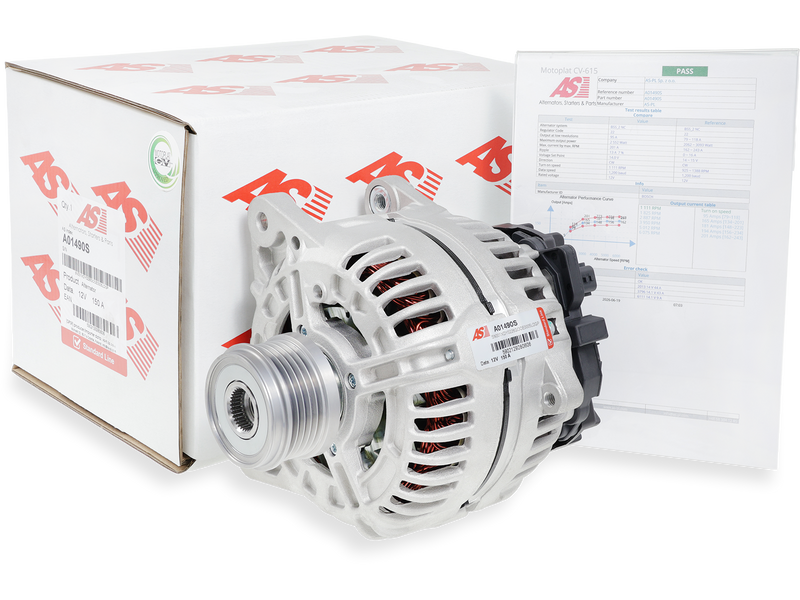

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 648.67 including GST
NZ$ 564.06 excluding GST
or four payments of $162.17
with
Learn More
UOM:
each
Product Code:
A01490S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

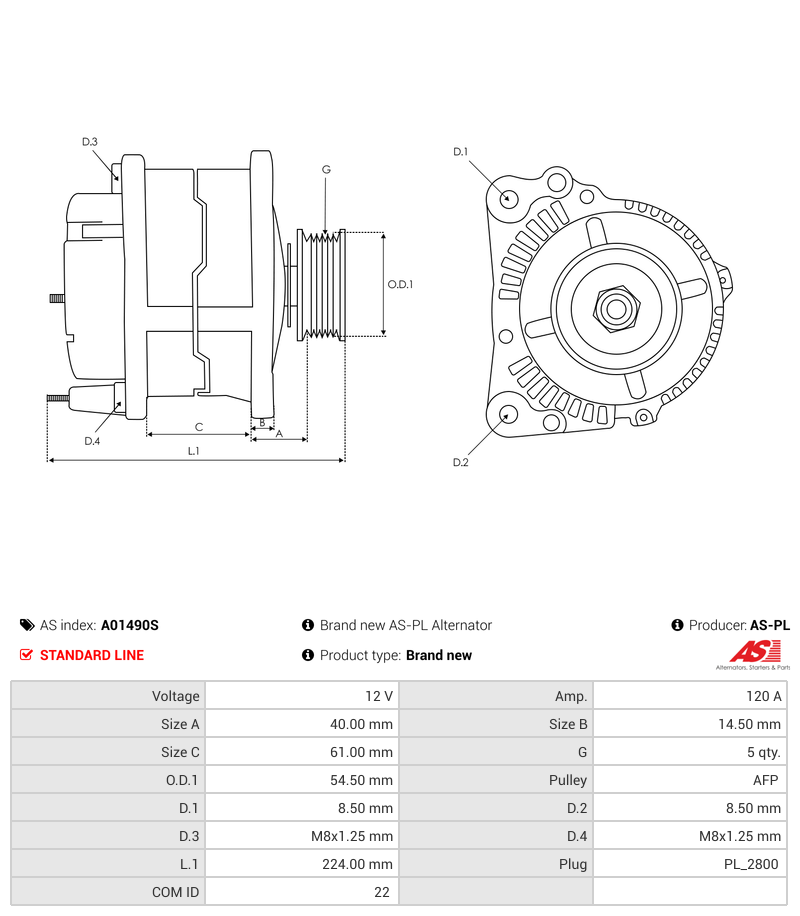

Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 14.50 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 224.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.00 mm |
| Plug Code | PL_2800 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 54.50 mm |
| Pulley to Mount Distance (A) | 40.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | CLIO III (BR0/1, CR0/1) 1.4 16V | K4J780 | 06.2005-12.2012 |
| RENAULT | CLIO III (BR0/1, CR0/1) 1.5 dCi (BR0H, CR0H, CR1S, BR1S) | K9K764 | 06.2005-12.2014 |
| RENAULT | CLIO III (BR0/1, CR0/1) 1.5 dCi (BR0H, CR0H, CR1S, BR1S) | K9K774 | 06.2005-12.2014 |
| RENAULT | CLIO III (BR0/1, CR0/1) 1.5 dCi (BR17, CR17) | K9K766 | 06.2005-12.2012 |
| RENAULT | CLIO III (BR0/1, CR0/1) 1.5 dCi (C/BR0G, C/BR1G) | K9K714 | 06.2005-12.2012 |
| RENAULT | CLIO III (BR0/1, CR0/1) 1.5 dCi (C/BR0G, C/BR1G) | K9K768 | 06.2005-12.2012 |
| RENAULT | CLIO III (BR0/1, CR0/1) 1.6 16V (BR05, BR0B, BR0Y, BR15, BR1J, BR1M, BR1Y, CR0B,... | K4M800 | 06.2005-12.2014 |
| RENAULT | CLIO III (BR0/1, CR0/1) 1.6 16V (BR05, BR0B, BR0Y, BR15, BR1J, BR1M, BR1Y, CR0B,... | K4M801 | 06.2005-12.2014 |
| RENAULT | GRAND SCÉNIC III (JZ0/1_) 2.0 dCi (JZ0Y, JZ26) | M9R615 | 02.2009-09.2016 |
| RENAULT | GRAND SCÉNIC II (JM0/1_) 1.9 dCi (JM0G, JM12, JM1G, JM2C) | F9Q812 | 04.2004-05.2006 |
| RENAULT | GRAND SCÉNIC II (JM0/1_) 1.9 dCi (JM14) | F9Q803 | 04.2004-02.2008 |
| RENAULT | GRAND SCÉNIC II (JM0/1_) 1.9 dCi (JM14) | F9Q804 | 04.2004-02.2008 |
| RENAULT | GRAND SCÉNIC II (JM0/1_) 1.9 dCi (JM14) | F9Q816 | 04.2004-02.2008 |
| RENAULT | GRAND SCÉNIC II (JM0/1_) 1.9 dCi (JM14) | F9Q818 | 04.2004-02.2008 |
| RENAULT | GRAND SCÉNIC II (JM0/1_) 2.0 dCi (JM1K) | M9R700 | 09.2005-11.2008 |
| RENAULT | GRAND SCÉNIC II (JM0/1_) 2.0 dCi (JM1K) | M9R721 | 09.2005-11.2008 |
| RENAULT | GRAND SCÉNIC II (JM0/1_) 2.0 dCi (JM1K) | M9R722 | 09.2005-11.2008 |
| RENAULT | LAGUNA II (BG0/1_) 2.0 dCi (BG14, BG1S) | M9R760 | 01.2006-08.2007 |
| RENAULT | LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG1A, KG1W, KG0G) | F9Q674 | 01.2005-12.2007 |
| RENAULT | LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG1A, KG1W, KG0G) | F9Q758 | 01.2005-12.2007 |
| RENAULT | SCÉNIC II (JM0/1_) 1.9 dCi (JM0G, JM12, JM1G, JM2C) | F9Q812 | 06.2003-05.2006 |
| RENAULT | SCÉNIC II (JM0/1_) 2.0 dCi (JM1K) | M9R700 | 09.2005-11.2008 |
| RENAULT | SCÉNIC II (JM0/1_) 2.0 dCi (JM1K) | M9R721 | 09.2005-11.2008 |
| RENAULT | SCÉNIC II (JM0/1_) 2.0 dCi (JM1K) | M9R722 | 09.2005-11.2008 |
Reference Information
| 0124525069 | BOSCH |
| 8200360481 | RENAULT |
| 9212497 | POWERMAX |
| ANM49560 | ANDEL |
| ANM49560X | ANDEL |
| UD17343A | AS-PL |
