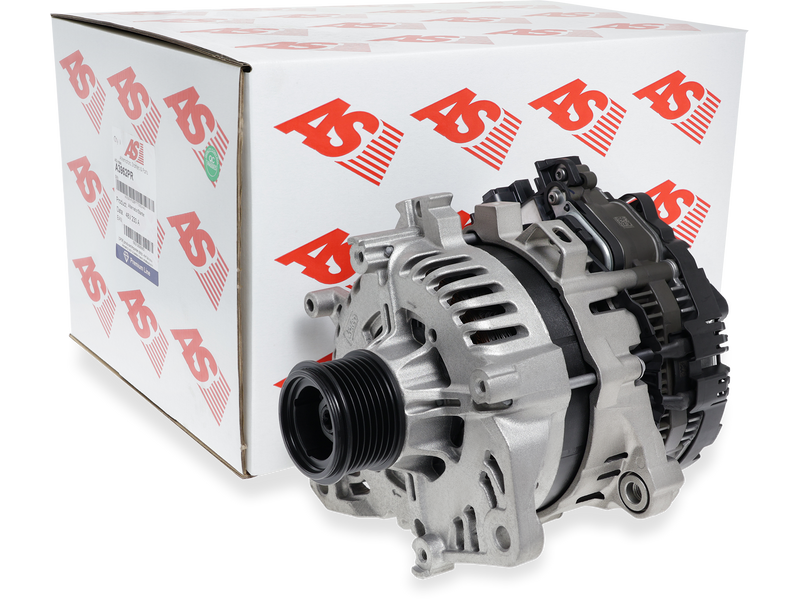

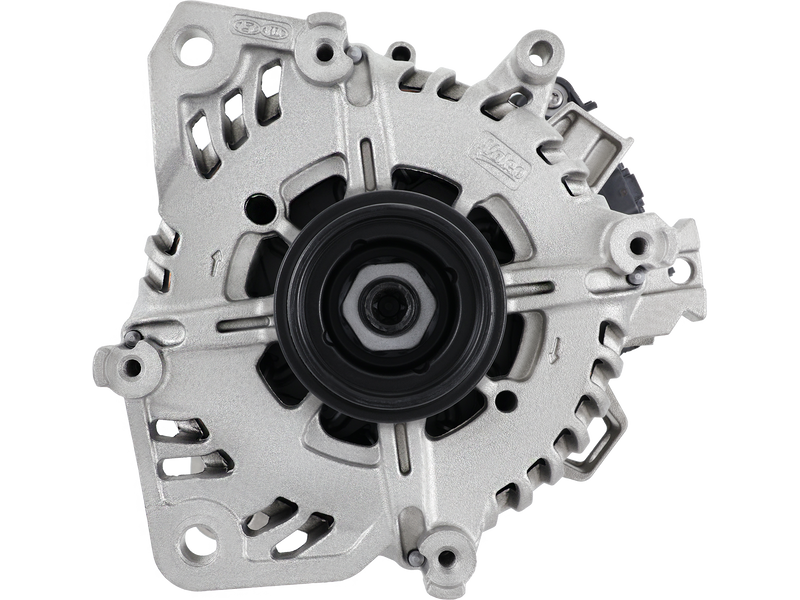

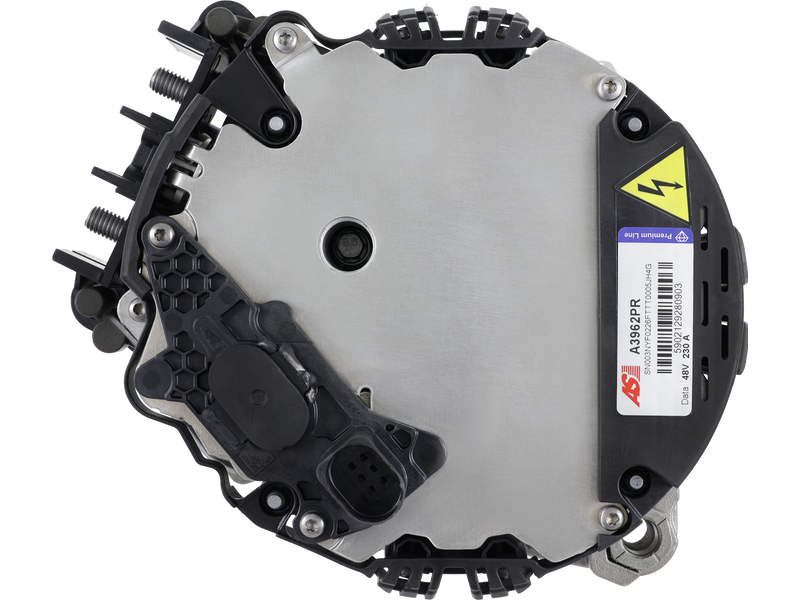

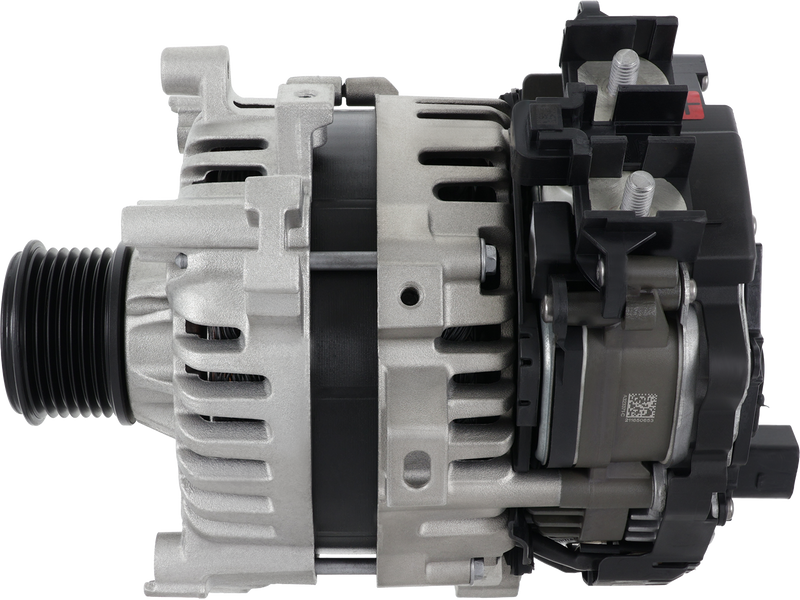

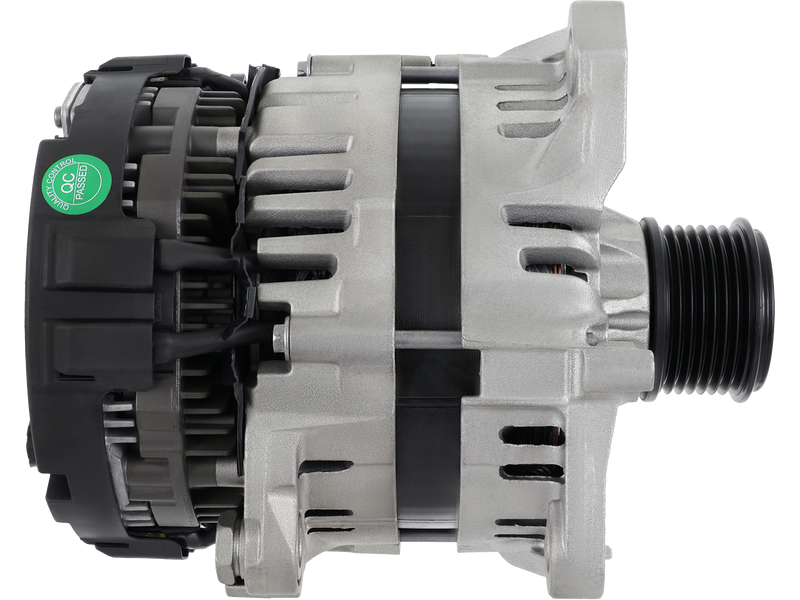

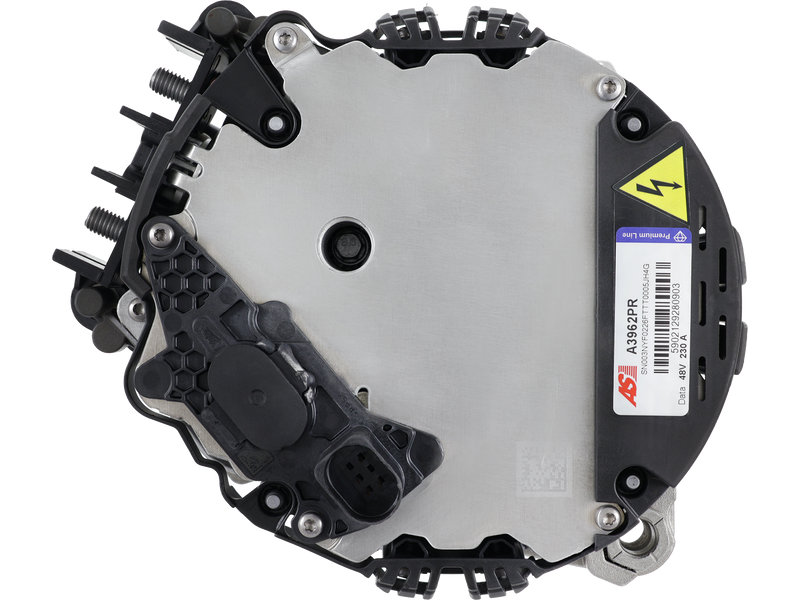

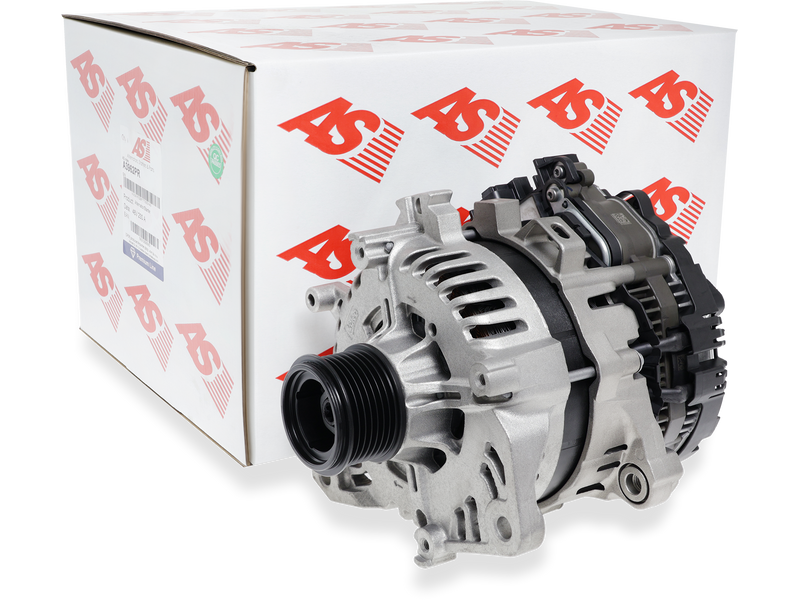

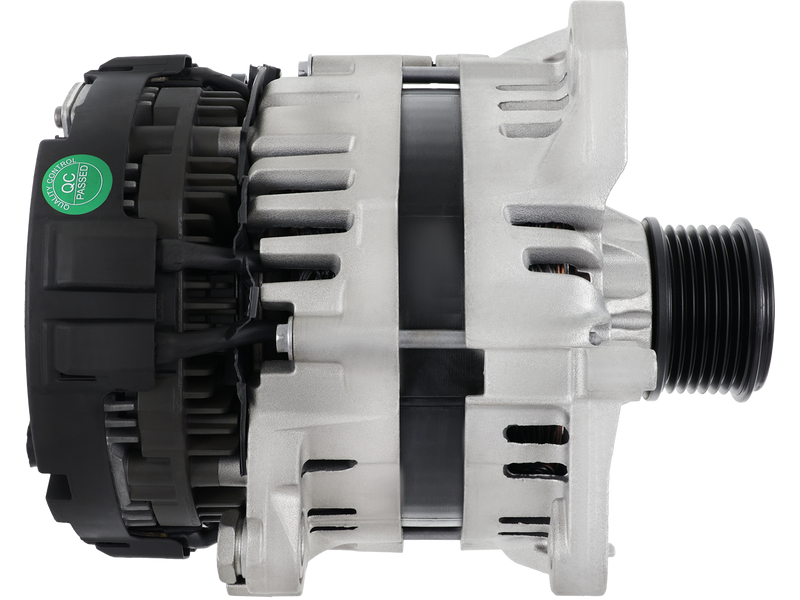

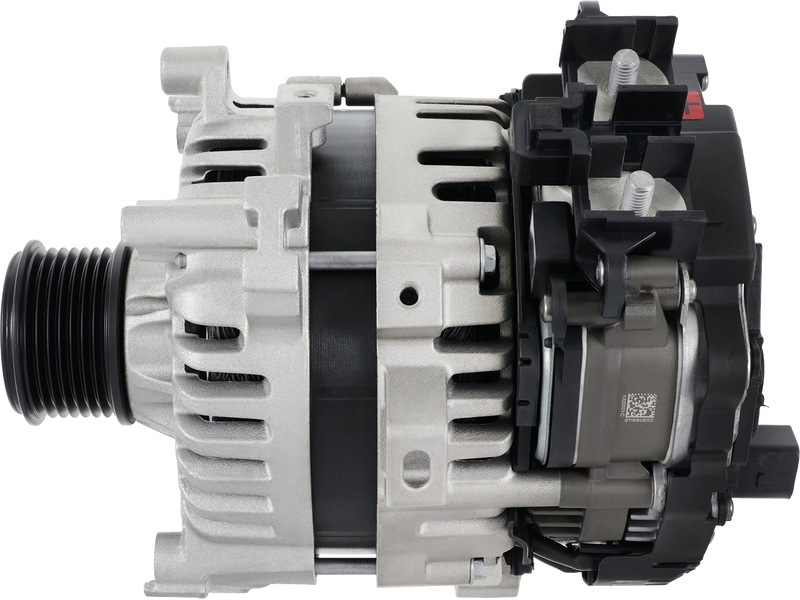

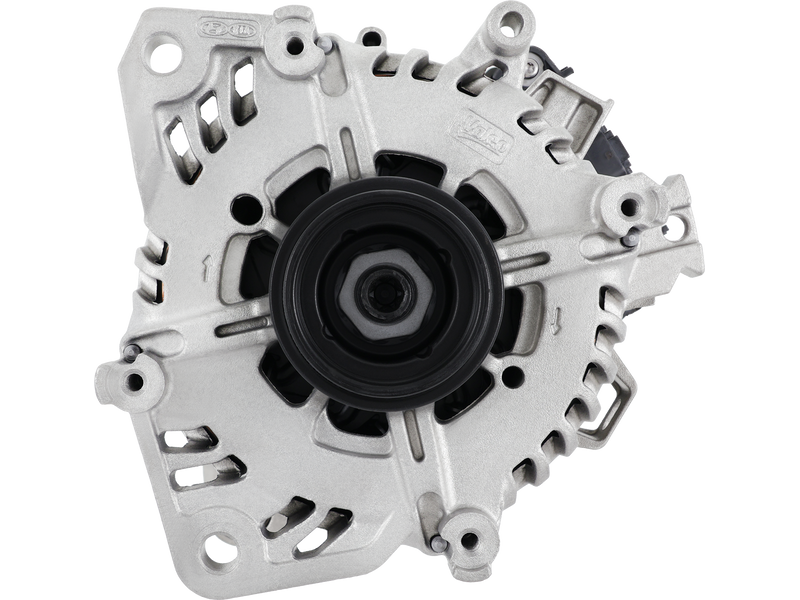

Brand new AS-PL Alternator
PREMIUM LINE
AS-PL
VALEO
Price:
NZ$ 2,978.97 including GST
NZ$ 2,590.41 excluding GST
or four payments of $744.74
with
Learn More
UOM:
each
Product Code:
A3962PR
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 230 A |
| Bottom Mounting Foot Width (B) | 15.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 248.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 71.00 mm |
| Plug Code | PL_5107 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.2) | 56.00 mm |
| Pulley to Mount Distance (A) | 41.00 mm |
| Pulley Type | Solid |
| Start/Stop | Yes |
| Voltage | 48 V |
| Yes |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | BAYON (BC3) 1.0 T-GDI 48V-Hybrid | G3LE | 05.2021- |
| HYUNDAI | BAYON (BC3) 1.0 T-GDI 48V-Hybrid | G3LE | 05.2021- |
| HYUNDAI | BAYON (BC3) 1.0 T-GDI 48V-Hybrid | G3LF | 05.2021- |
| HYUNDAI | BAYON (BC3) 1.0 T-GDI 48V-Hybrid | G3LF | 05.2021- |
| HYUNDAI | i20 III (BC3, BI3) 1.0 T-GDI hybrid 48V | G3LE | 08.2020- |
| HYUNDAI | i20 III (BC3, BI3) 1.0 T-GDI hybrid 48V | G3LE | 08.2020- |
| HYUNDAI | i20 III (BC3, BI3) 1.0 T-GDI hybrid 48V | G3LF | 08.2020- |
| HYUNDAI | i20 III (BC3, BI3) 1.0 T-GDI hybrid 48V | G3LF | 08.2020- |
| HYUNDAI | i30 Estate (PDE) 1.0 T-GDI hybrid 48V | G3LC | 03.2020- |
| HYUNDAI | i30 FASTBACK (PDE, PDEN) 1.0 T-GDI hybrid 48V | G3LC | 06.2017- |
| HYUNDAI | i30 (PDE, PD, PDEN) 1.0 T-GDI hybrid 48V | G3LC | 03.2020- |
| HYUNDAI | KONA (OS, OSE, OSI) 1.0 T-GDi Hybrid 48V | G3LE | 11.2020-04.2023 |
| HYUNDAI | KONA (OS, OSE, OSI) 1.0 T-GDi Hybrid 48V | G3LF | 11.2020-04.2023 |
| HYUNDAI | KONA (SX2) 1.0 T-GDi Hybrid 48V | G3LE | 04.2023- |
| HYUNDAI | KONA (SX2) 1.0 T-GDi Hybrid 48V | G3LF | 04.2023- |
| KIA | CEED (CD) 1.0 T-GDI 100 Eco-Dynamics+ | G3LF | 01.2021- |
| KIA | CEED (CD) 1.0 T-GDI MHEV | G3LE | 10.2021- |
| KIA | CEED Sportswagon (CD) 1.0 T-GDI 100 Eco-Dynamics+ | G3LF | 04.2022- |
| KIA | CEED Sportswagon (CD) 1.0 T-GDI Eco-Dynamics+ | G3LF | 07.2021- |
| KIA | RIO IV (YB, SC, FB) 1.0 T-GDI 100 Eco-Dynamics+ | G3LE | 02.2017- |
| KIA | RIO IV (YB, SC, FB) 1.0 T-GDI 100 Eco-Dynamics+ | G3LF | 02.2017- |
| KIA | RIO IV (YB, SC, FB) 1.0 T-GDI 120 Eco-Dynamics+ | G3LF | 02.2017- |
| KIA | STONIC (YB) 1.0 T-GDi Eco-Dynamics+ | G3LF | 01.2021- |
| KIA | STONIC (YB) 1.0 T-GDi Eco-Dynamics+ | G3LF | 07.2020- |
| KIA | XCEED (CD) 1.0 T-GDI MHEV | G3LF | 08.2021- |
Reference Information
| 031888 | DA SILVA |
| 115521 | FARCOM |
| 157.503.230.500 | WAI |
| 2029300HOE | REAL |
| 21032H00OV | ITAB AUTOMOTIVE |
| 2726652 | VALEO |
| 3032H00.1 | SANDO |
| 36300-07000 | HYUNDAI / KIA |
| 36300-07100 | HYUNDAI / KIA |
| 41069 | CEVAM |
| 9092266 | FRIESEN |
| A0002726652 | VALEO |
| A150.501 | WAI |
| ANM100381 | ANDEL |
| CAS32H00GS | CASCO |
| STS34H000 | SIOM |
