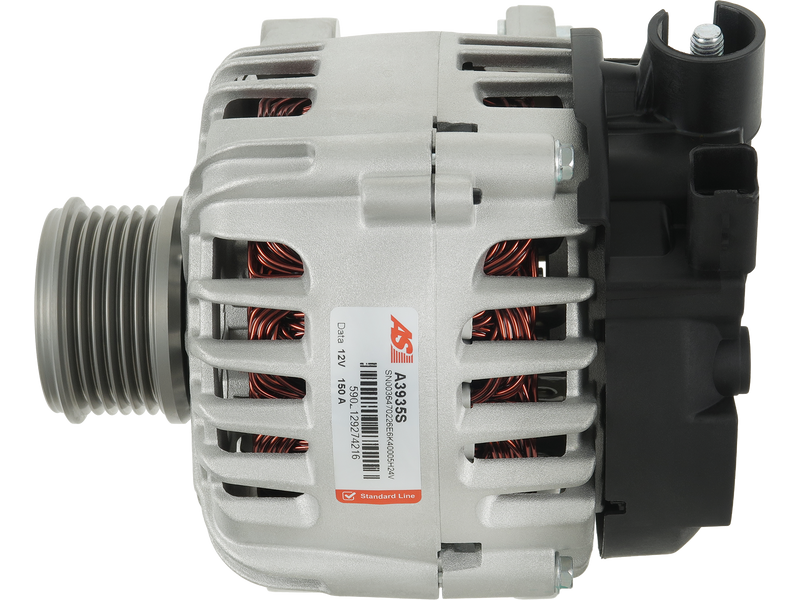

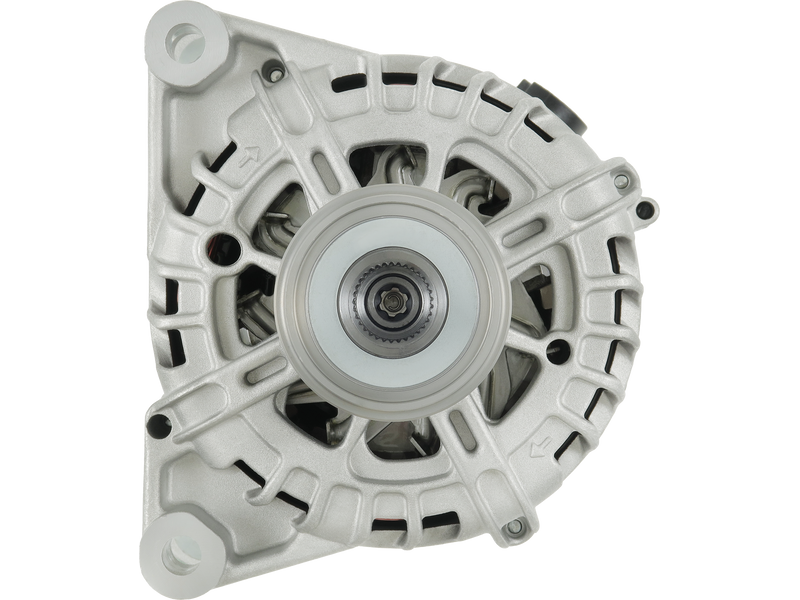

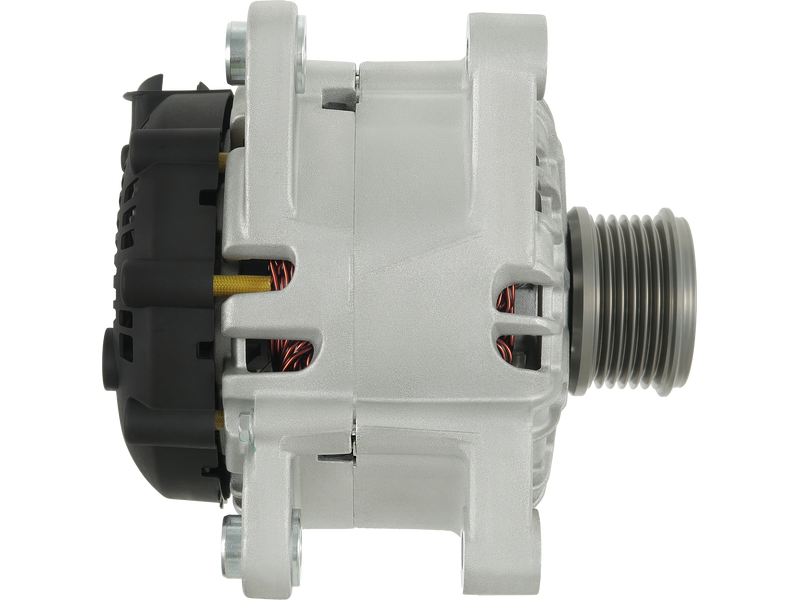

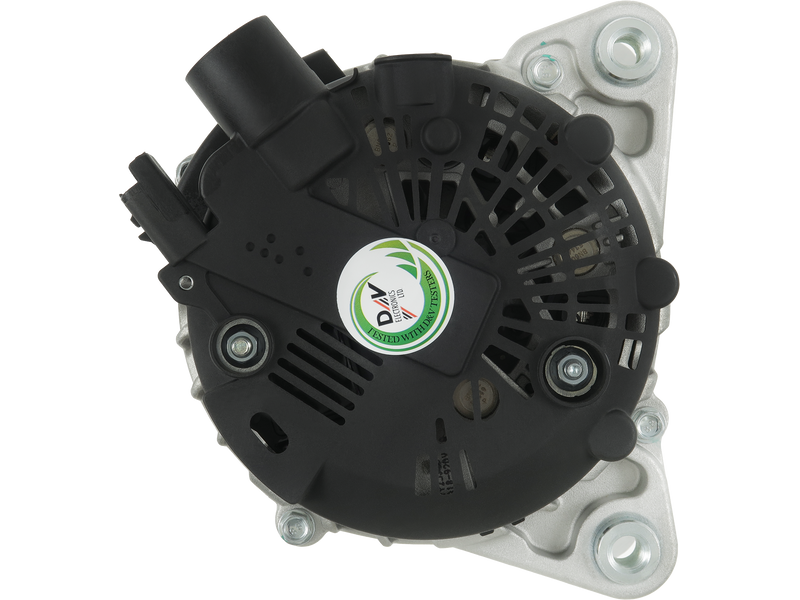

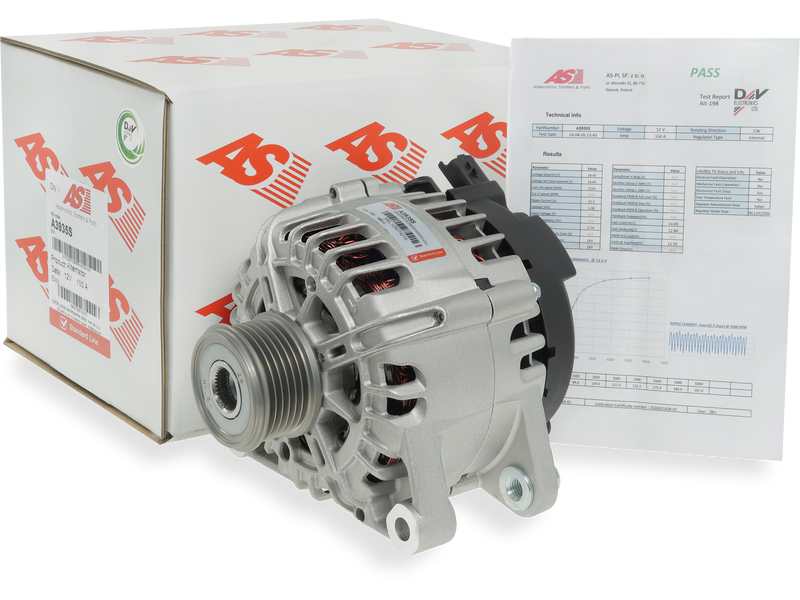

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 722.57 including GST
NZ$ 628.32 excluding GST
or four payments of $180.64
with
Learn More
Product Code:
A3935S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 21.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 182.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 45.50 mm |
| Plug Code | PL_2402 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 54.00 mm |
| Pulley to Mount Distance (A) | 41.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROËN | BERLINGO Box Body/MPV (K9) PureTech 110 | HNP(EB2ADT) | 06.2018- |
| CITROËN | BERLINGO Box Body/MPV (K9) PureTech 130 | HNS(EB2ADTS) | 10.2019- |
| CITROËN | BERLINGO (ER_, EC_) 1.2 PureTech 110 | HNP(EB2ADT) | 06.2018- |
| CITROËN | BERLINGO (ER_, EC_) 1.2 PureTech 130 | HNS(EB2ADTS) | 07.2019- |
| CITROËN | C3 AIRCROSS II (2R_, 2C_) 1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ) | HNP(EB2ADT) | 06.2017- |
| CITROËN | C3 AIRCROSS II (2R_, 2C_) 1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ) | HNV(EB2DTM) | 06.2017- |
| CITROËN | C3 AIRCROSS II (2R_, 2C_) 1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ) | HNZ(EB2DT) | 06.2017- |
| CITROËN | C3 III (SX) 1.2 PureTech 82 | HMR(EB2FA) | 05.2018- |
| CITROËN | C3 III (SX) 1.2 THP 110 (SXHNPS, SXHNZT, SXHNZ6) | HNP(EB2ADT) | 07.2016- |
| CITROËN | C3 III (SX) 1.2 THP 110 (SXHNPS, SXHNZT, SXHNZ6) | HNV(EB2DTM) | 07.2016- |
| CITROËN | C3 III (SX) 1.2 THP 110 (SXHNPS, SXHNZT, SXHNZ6) | HNZ(EB2DT) | 07.2016- |
| CITROËN | C3 III Van (SX_, SY_) PureTech 110 | HNZ(EB2DT) | 03.2019- |
| CITROËN | C3 III Van (SX_, SY_) PureTech 82 | HMR(EB2FA) | 03.2019- |
| CITROËN | C4 CACTUS 1.2 THP 110 | HNP(EB2ADT) | 09.2014- |
| CITROËN | C4 CACTUS 1.2 THP 110 | HNV(EB2DTM) | 09.2014- |
| CITROËN | C4 CACTUS 1.2 THP 110 | HNZ(EB2DT) | 09.2014- |
| CITROËN | C4 CACTUS Van (0B_, 0P_) PureTech 110 | HNP(EB2ADT) | 05.2019- |
| CITROËN | C4 CACTUS Van (0B_, 0P_) PureTech 110 | HNZ(EB2DT) | 05.2019- |
| CITROËN | C4 CACTUS Van (0B_, 0P_) PureTech 130 | HNY(EB2DTS) | 05.2019- |
| CITROËN | C4 CACTUS Van (0B_, 0P_) PureTech 82 | HMZ(EB2) | 05.2019- |
| OPEL | CORSA F (P2JO) 1.2 (68) | F12XHL(EB2ADTD) | 07.2019- |
| OPEL | CORSA F (P2JO) 1.2 (68) | F12XHT(EB2ADTS) | 07.2019- |
| OPEL | CORSA F (P2JO) 1.2 (68) | HNL(EB2ADTSM) | 07.2019- |
| OPEL | CORSA F (P2JO) 1.5 (68) | D15DT(DV5RD) | 07.2019- |
| OPEL | CORSA F (P2JO) 1.5 (68) | YHY(DV5RCF) | 07.2019- |
| OPEL | CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 (75) | B12XHL(EB2DT) | 03.2017- |
| OPEL | CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 (75) | B12XHT(EB2DTS) | 03.2017- |
| OPEL | CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 (75) | D12XHL(EB2ADT) | 03.2017- |
| OPEL | CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 (75) | D12XHT(EB2ADTS) | 03.2017- |
| OPEL | CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 (75) | F12XHL(EB2ADT) | 03.2017- |
| OPEL | CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 (75) | F12XHT(EB2ADTS) | 03.2017- |
| OPEL | CROSSLAND X Van 1.2 (75) | D12XHL(EB2ADT) | 07.2019- |
| OPEL | CROSSLAND X Van 1.2 (75) | F12XHL(EB2ADT) | 07.2019- |
| PEUGEOT | 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) 1.2 PureTech 100 (USHNK) | HNK(EB2ADTD) | 11.2019- |
| PEUGEOT | 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) 1.2 PureTech 130 (USHNS, URHNS) | HNS(EB2ADTS) | 08.2019- |
| PEUGEOT | 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) 1.2 THP / PureTech 155 (USHNNS, URHNNS, UXHNJP, URHNJP,... | HNJ(EB2ADTXM) | 11.2019- |
| PEUGEOT | 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) 1.2 THP / PureTech 155 (USHNNS, URHNNS, UXHNJP, URHNJP,... | HNN(EB2ADTX) | 11.2019- |
| PEUGEOT | 2008 II (UD_, US_, UY_, UJ_, UR_, UC_) 1.2 THP / PureTech 155 (USHNNS, URHNNS, UXHNJP, URHNJP,... | HNR(EB2ADTXM) | 11.2019- |
| PEUGEOT | 2008 I Van (CU_) PureTech 130 (CUHNYM, CUHNSS) | HNS(EB2ADTS) | 01.2018-11.2019 |
| PEUGEOT | 2008 I Van (CU_) PureTech 130 (CUHNYM, CUHNSS) | HNY(EB2DTS) | 01.2018-11.2019 |
| PEUGEOT | 208 II (UB_, UP_, UW_, UJ_) 1.2 PureTech 100 | HNE(EB2ADTD_B) | 06.2019- |
| PEUGEOT | 208 II (UB_, UP_, UW_, UJ_) 1.2 PureTech 100 | HNK(EB2ADT) | 06.2019- |
| PEUGEOT | 208 II (UB_, UP_, UW_, UJ_) 1.2 PureTech 100 | HNK(EB2ADTD) | 06.2019- |
| PEUGEOT | 208 II (UB_, UP_, UW_, UJ_) 1.2 PureTech 130 | HNS(EB2ADTS) | 06.2019- |
| PEUGEOT | 208 II (UB_, UP_, UW_, UJ_) 1.2 PureTech 130 | HNY(EB2DTS) | 06.2019- |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.2 THP 110 | HNP(EB2ADT) | 11.2013-06.2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.2 THP 110 | HNV(EB2DTM) | 11.2013-06.2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.2 THP 110 | HNZ(EB2DT) | 11.2013-06.2021 |
| PEUGEOT | 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.2 THP 110 | HNP(EB2ADT) | 03.2014-06.2021 |
| PEUGEOT | 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.2 THP 110 | HNV(EB2DTM) | 03.2014-06.2021 |
| PEUGEOT | 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.2 THP 110 | HNZ(EB2DT) | 03.2014-06.2021 |
| PEUGEOT | 5008 II (MC_, MJ_, MR_, M4_) 1.2 THP (MRHNYH, MRHNYW, MRHNSJ, MRHNSU, MRHNSM) | HNS(EB2ADTS) | 12.2016- |
| PEUGEOT | 5008 II (MC_, MJ_, MR_, M4_) 1.2 THP (MRHNYH, MRHNYW, MRHNSJ, MRHNSU, MRHNSM) | HNY(EB2DTS) | 12.2016- |
| PEUGEOT | PARTNER Box Body/MPV (K9) 1.2 PureTech 110 | HNP(EB2ADT) | 07.2019- |
| PEUGEOT | PARTNER Box Body/MPV (K9) 1.2 PureTech 130 | HNS(EB2ADTS) | 07.2019- |
| PEUGEOT | RIFTER 1.2 PureTech 110 | HNP(EB2ADT) | 09.2018- |
| PEUGEOT | RIFTER 1.2 PureTech 130 | HNS(EB2ADTS) | 07.2019- |
| TOYOTA | PROACE Bus (MDZ_) 1.5 D4d (MDZ1) | 5WZ-HV(DV5RUC) | 08.2018- |
| TOYOTA | PROACE Bus (MDZ_) 1.5 D4d (MDZ8) | 5WZ-TV(DV5RUCD) | 08.2018- |
| TOYOTA | PROACE CITY Box Body/MPV (BPZ_) 1.2 VVT-i 110 (BPZN) | EB2ADT | 10.2019- |
| TOYOTA | PROACE CITY Box Body/MPV (BPZ_) 1.2 VVT-i 130 (BPZN) | EB2ADTS | 10.2019- |
| TOYOTA | PROACE CITY VERSO MPV (BKY_) 1.2 VVT-i 110 (BKYN) | EB2ADT | 10.2019- |
| TOYOTA | PROACE CITY VERSO MPV (BKY_) 1.2 VVT-i 130 (BKYN) | EB2ADTS | 10.2019- |
| TOYOTA | PROACE Van (MDZ_) 1.5 D4d (MDZ1) | 5WZ-HV(DV5RUC) | 05.2019- |
| TOYOTA | PROACE Van (MDZ_) 1.5 D4d (MDZ8) | 5WZ-TV(DV5RUCD) | 05.2019- |
Reference Information
| 012700 | DA SILVA |
| 031267 | DA SILVA |
| 1637302780 | PEUGEOT |
| 20015A59OV | ITAB AUTOMOTIVE |
| 20-0262 | AIRSTAL |
| 2015A59.1 | SANDO |
| 2017995AOE | REAL |
| 21727N | WAI |
| 225.585.150.000 | WAI |
| 225.585.150.280 | WAI |
| 225.585.150.346 | WAI |
| 225.585.150.440 | WAI |
| 225.585.150.500 | WAI |
| 225.585.150.501 | WAI |
| 2291551502 | DRI |
| 28-8615 | ELSTOCK |
| 28-8615CT | AINDE |
| 3556520 | OPEL |
| 40775 | CEVAM |
| 442348 | LOGISTIK |
| 443311 | VALEO |
| 556384RI | KUHNER |
| 556384RID | KUHNER |
| 556384RIV | KUHNER |
| 57780 | EAI |
| 780ST75 | STARTCAR |
| 831010092 | TRISCAN |
| 8550511664 | MOTRIO |
| 89214412 | POWERMAX |
| 9091041 | FRIESEN |
| 95528547 | OPEL |
| 9826573480 | PEUGEOT |
| A154.503 | WAI |
| AL04386 | TMI |
| ALT17A590 | SIOM |
| ALTJ565 | 3EFFE |
| ANM100099 | ANDEL |
| CAL15A59GS | CASCO |
| DRA2193 | DELCO |
| FG15T151 | VALEO |
| G104205 | BTS TURBO |
| LRA04506 | LUCAS |
| LRA4506 | LUCAS |
| TP8064 | SNRA |
| UD103635A | AS-PL |
| WAL00847 | WALKER |
| WG2471859 | WILMINK GROUP |
