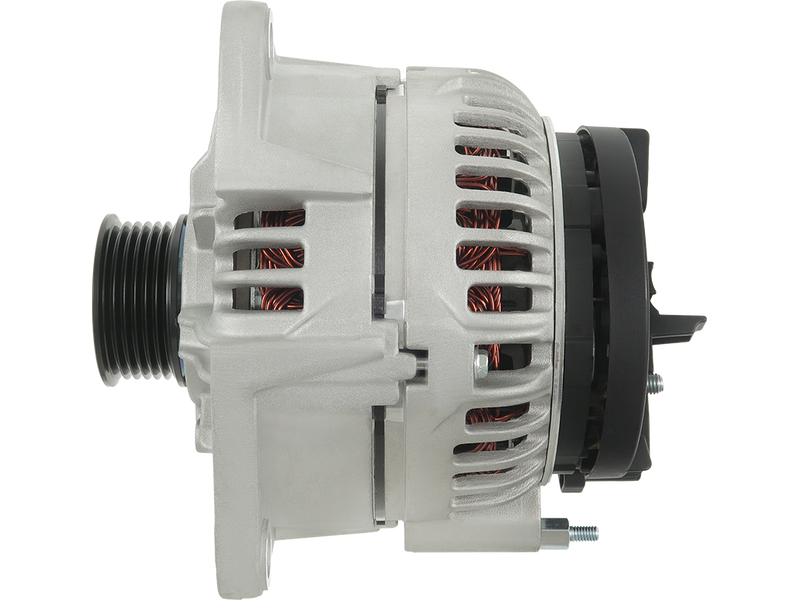

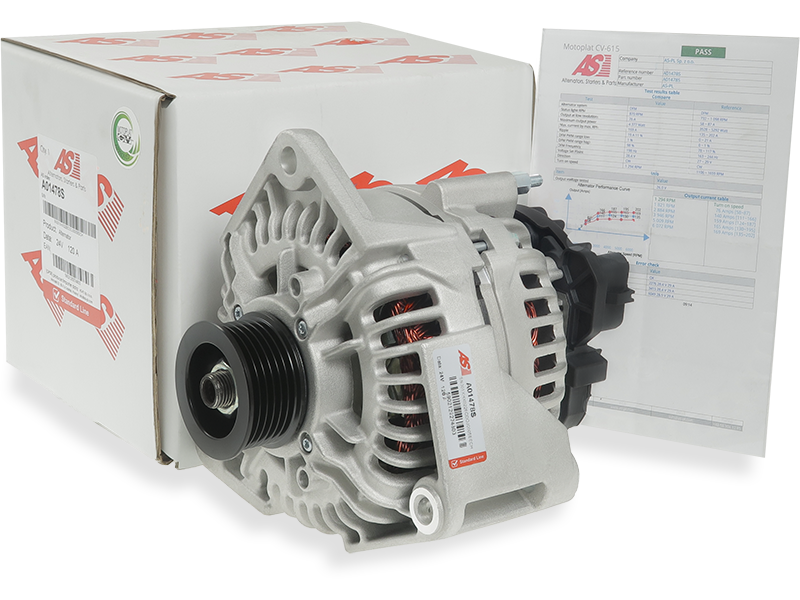

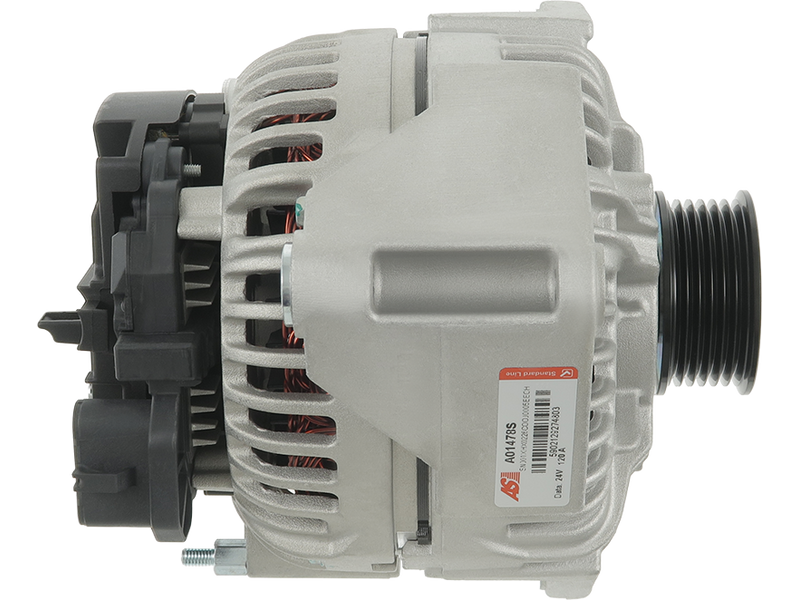

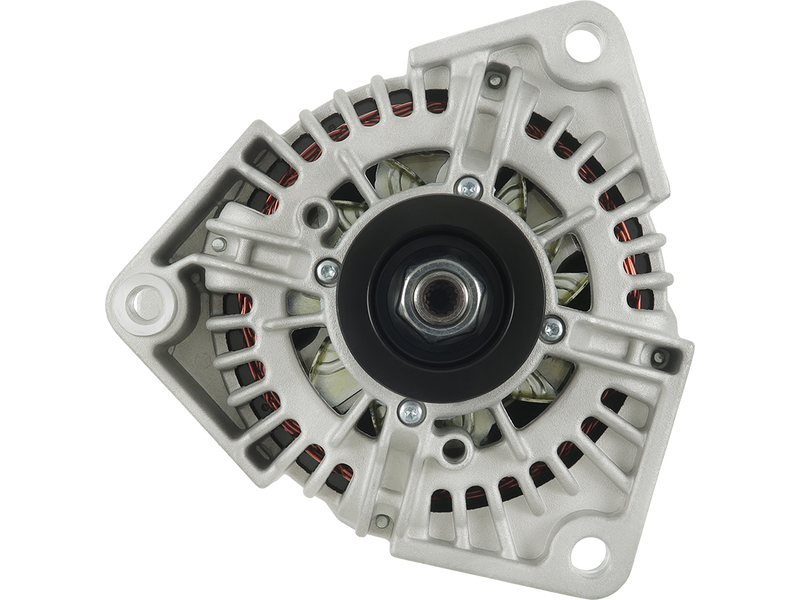

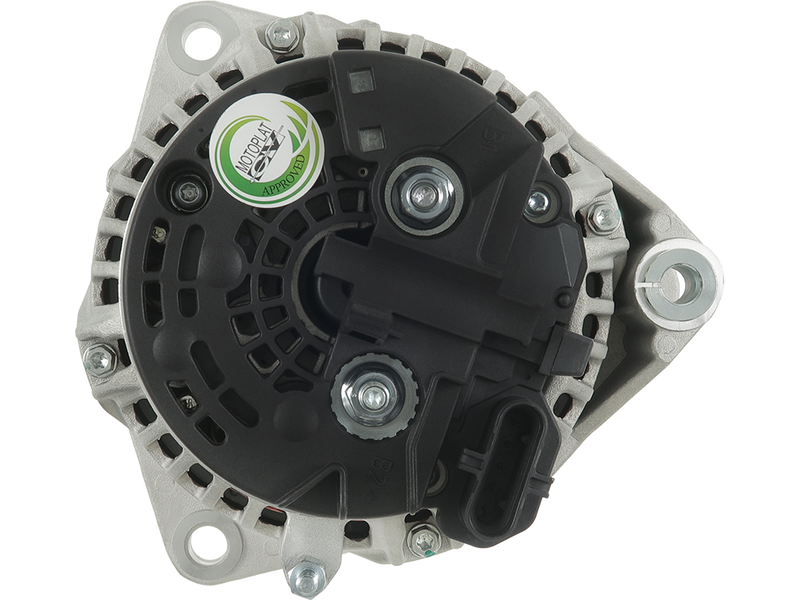

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 674.34 including GST
NZ$ 586.38 excluding GST
or four payments of $168.59
with
Learn More
Product Code:
A01478S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

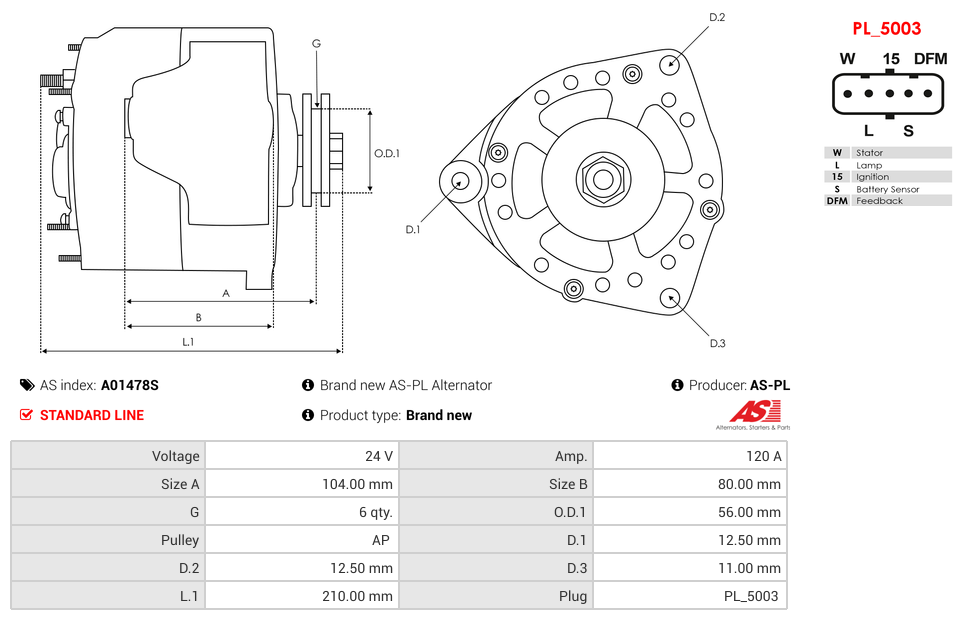

Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 80.00 mm |
| Diameter (D.1) | 12.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 11.00 mm |
| Length (L.1) | 210.00 mm |
| Plug Code | PL_5003 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 56.00 mm |
| Pulley to Mount Distance (A) | 104.00 mm |
| Pulley Type | Solid |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SHACMAN | H-Series H3000 | WP12.400E201 | 01.2023- |
| WEICHAI | WP12 Engine 11.6 | WP12.400E201 | - |
Reference Information
| 0124655137 | BOSCH |
| 612630060790 | WEICHAI |
| 615600090018 | WEICHAI |
| UD17486A | AS-PL |
