Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 763.97 including GST
NZ$ 664.32 excluding GST
or four payments of $190.99
with
Learn More
UOM:
each
Product Code:
A01477S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

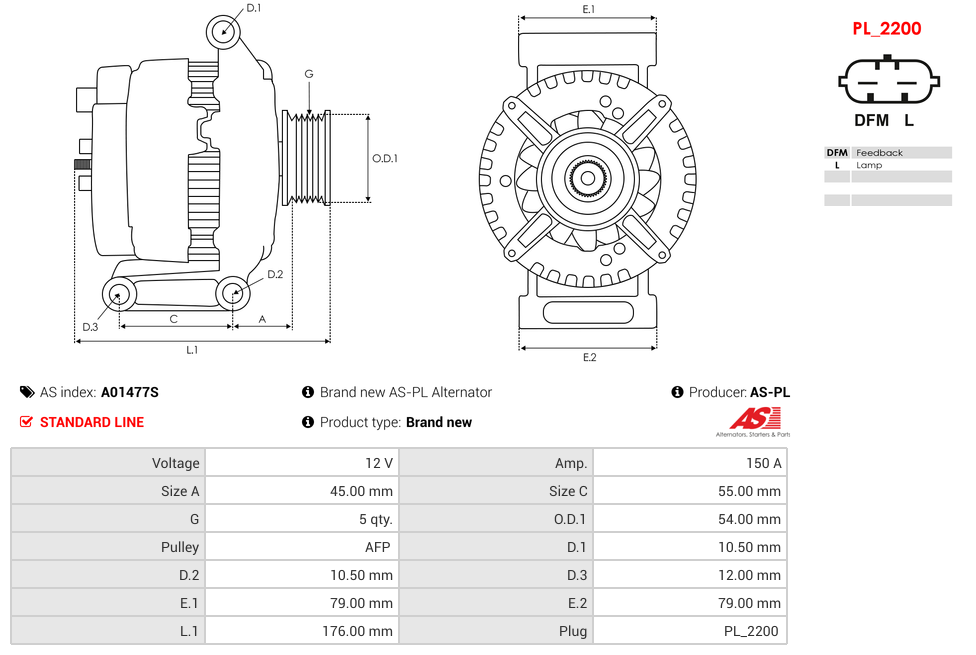

Specifications
| Amp | 150 A |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 12.00 mm |
| Length (L.1) | 176.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54.50 mm |
| Pad mount thickness (E.1) | 79.00 mm |
| Pad mount thickness (E.2) | 79.00 mm |
| Plug Code | PL_2200 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 54.00 mm |
| Pulley to Mount Distance (A) | 43.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | EQUINOX 2.0 | LTG | 03.2017- |
| GMC | TERRAIN 2.0 | LTG | 01.2017- |
Reference Information
| 0126312087 | BOSCH |
| 0126312088 | BOSCH |
| 0126312157 | BOSCH |
| 0126312158 | BOSCH |
| 0126312166 | BOSCH |
| 034245 | DA SILVA |
| 13522660 | GM |
| 13535007 | GM |
| 135.977.150.280 | WAI |
| 21556N | WAI |
| 557355RIS | KUHNER |
| 84118122 | GMC |
| 84335421 | OPEL |
| 90-15-6709 | WILSON |
| BREF0320126312157 | CARWOOD GROUP |
| UD105004A | AS-PL |
| UD17511A | AS-PL |
