Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 276.00 including GST
NZ$ 240.00 excluding GST
or four payments of $69.00
with
Learn More
S01206S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

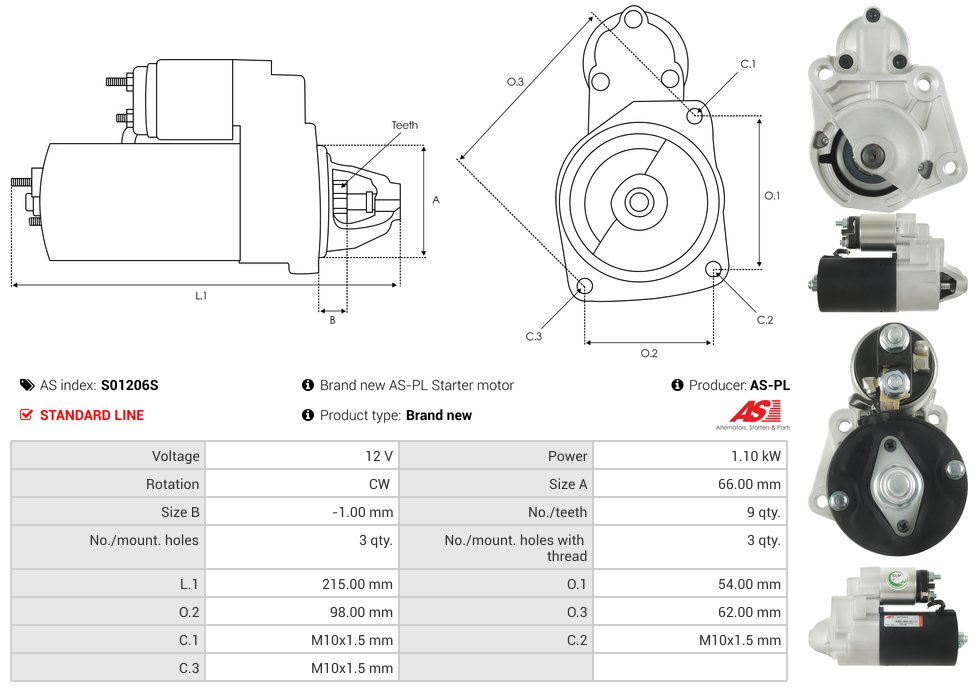

Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 215.00 mm |
| Mount Hole Center - Center (O.1) | 54.00 mm |
| Mount Hole Center - Center (O.2) | 98.00 mm |
| Mount Hole Center - Center (O.3) | 62.00 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | -1.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 66.00 mm |
| Voltage | 12 V |
