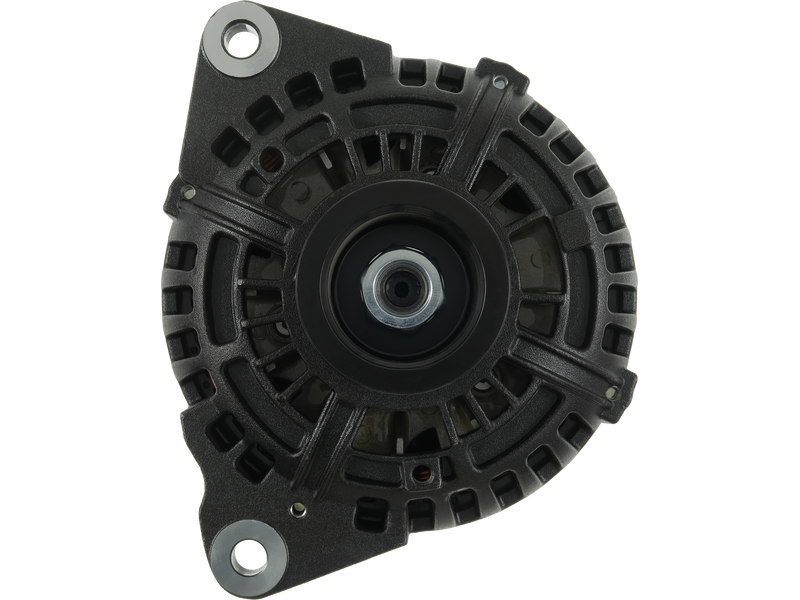

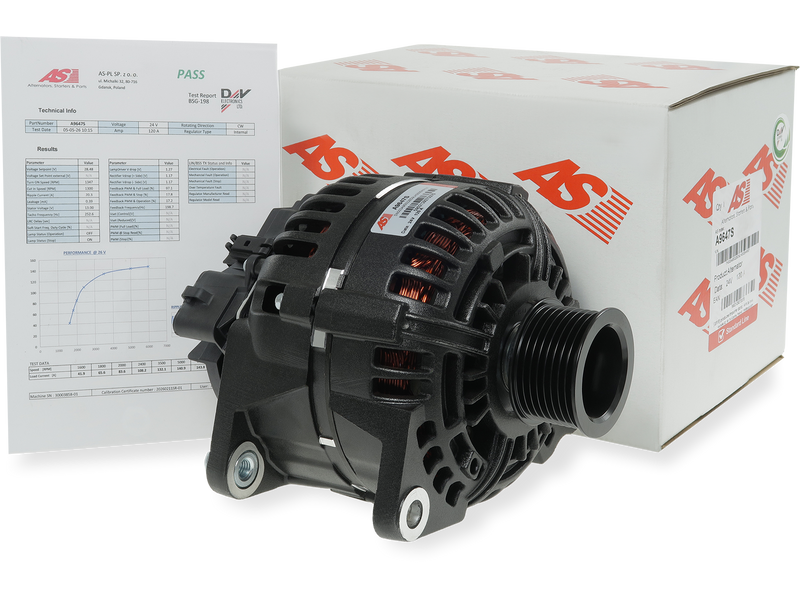

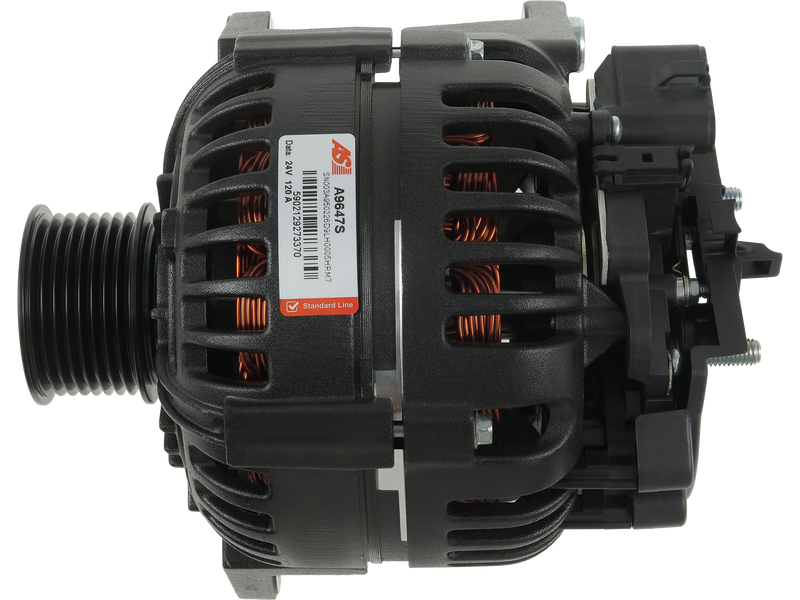

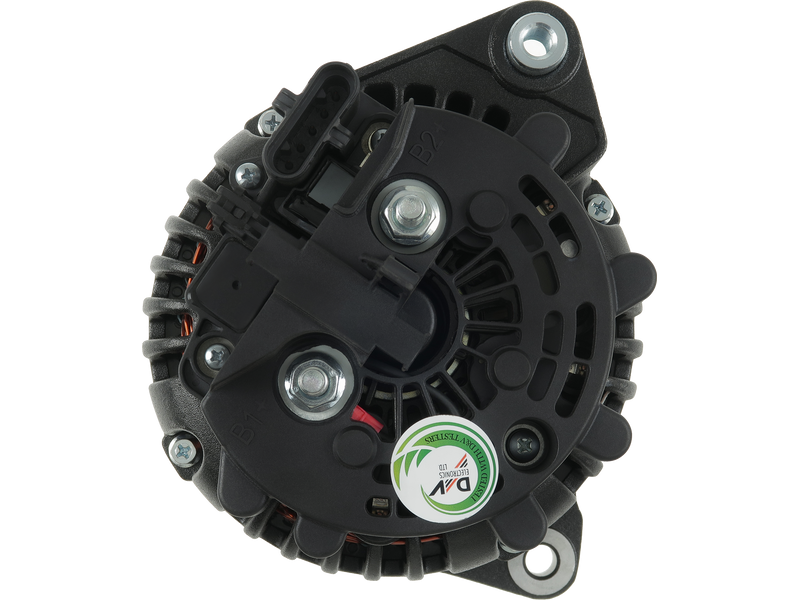

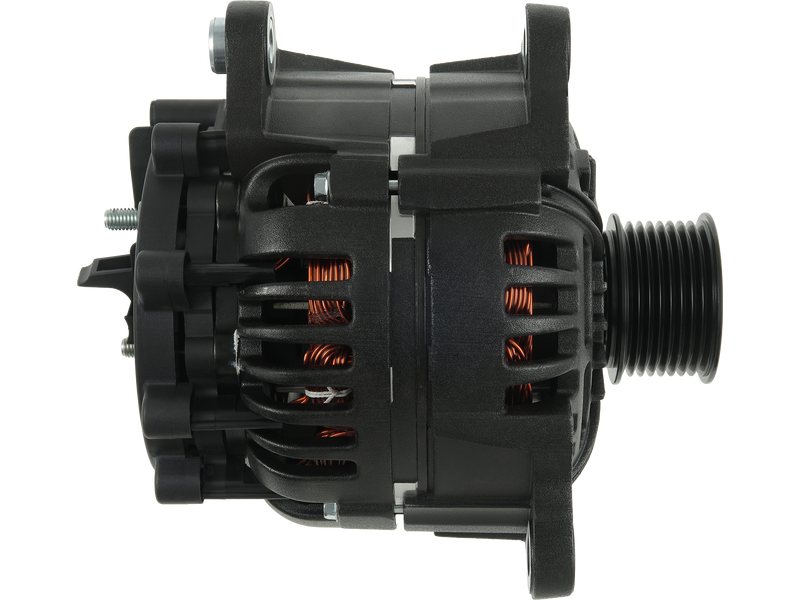

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
PRESTOLITE
Price:
NZ$ 899.42 including GST
NZ$ 782.10 excluding GST
or four payments of $224.86
with
Learn More
Product Code:
A9647S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 11.00 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 220.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81.00 mm |
| Plug Code | PL_5002 |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.2) | 54.50 mm |
| Pulley to Mount Distance (A) | 36.50 mm |
| Pulley Type | Solid |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SOLARIS | URBINO 12 6.7 | ISB6.7E5250B | 01.2010-12.2018 |
| SOLARIS | URBINO 12 6.7 | ISB6.7E6280B | 01.2013-12.2020 |
| SOLARIS | URBINO 12 6.7 | ISB6.7EV225B | 01.2009-12.2016 |
| SOLARIS | URBINO 12 6.7 | PR183 | 01.2005-12.2014 |
| SOLARIS | URBINO 12 6.9 | D0826LOH17 | 01.2004-12.2012 |
| SOLARIS | URBINO 12 6.9 | D0836LOH70 | 01.2012-12.2019 |
| SOLARIS | URBINO 12 9.2 | PR183 | 01.2008-12.2016 |
| SOLARIS | URBINO 12 9.2 | PR183 | 01.2010-12.2018 |
Reference Information
| 0004-019-335 | SOLARIS |
| 11400996 | VAN HOOL |
| 336.501.120.380 | WAI |
| 3701-01497 | YUTONG |
| 556970RIP | KUHNER |
| A147S322 | PRESTOLITE |
| A148.404 | WAI |
| AVI147S3122HD | PRESTOLITE |
| AVI147S3222HD | PRESTOLITE |
| PREAVI147S3122HD | WOODAUTO |
| UD104345A | AS-PL |
