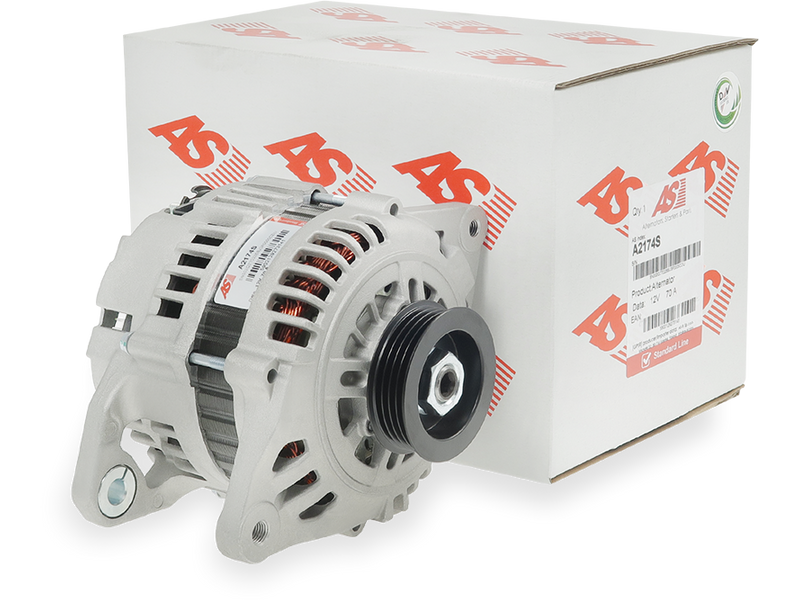

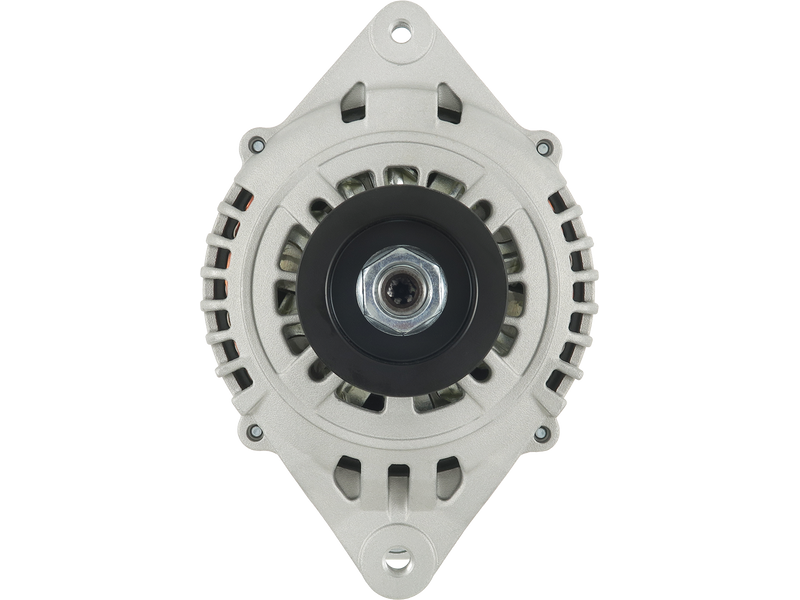

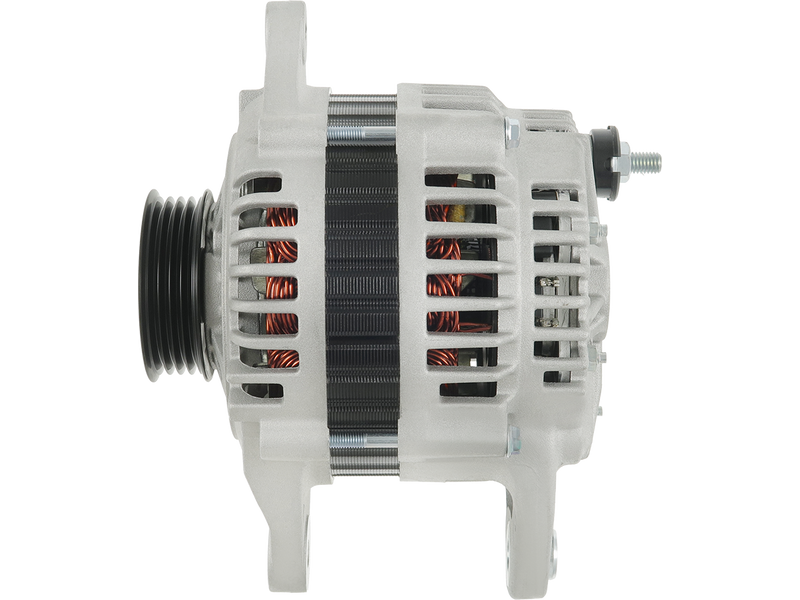

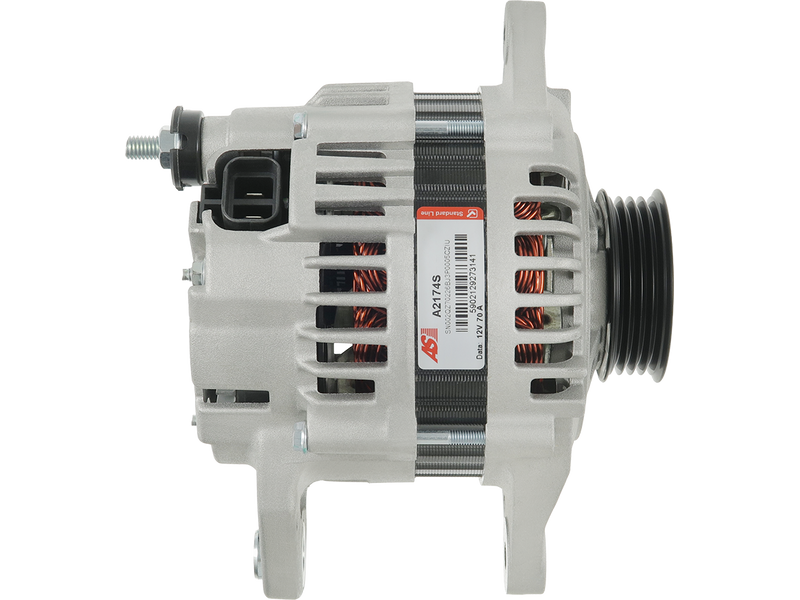

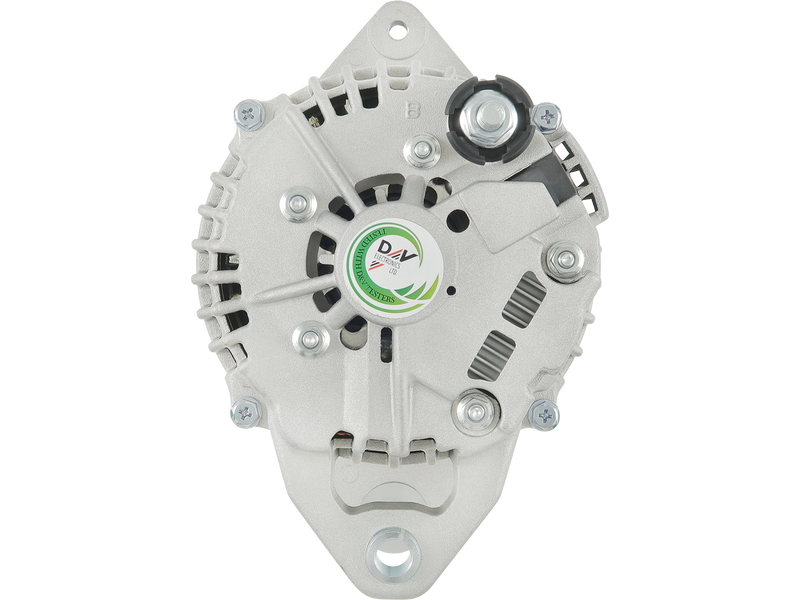

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

HITACHI

Price:

NZ$ 520.12 including GST

NZ$ 452.28 excluding GST

or four payments of $130.03 with
Learn More

Product Code:

A2174S

Quantity In Stock Nationally

No stock in NZ currently

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

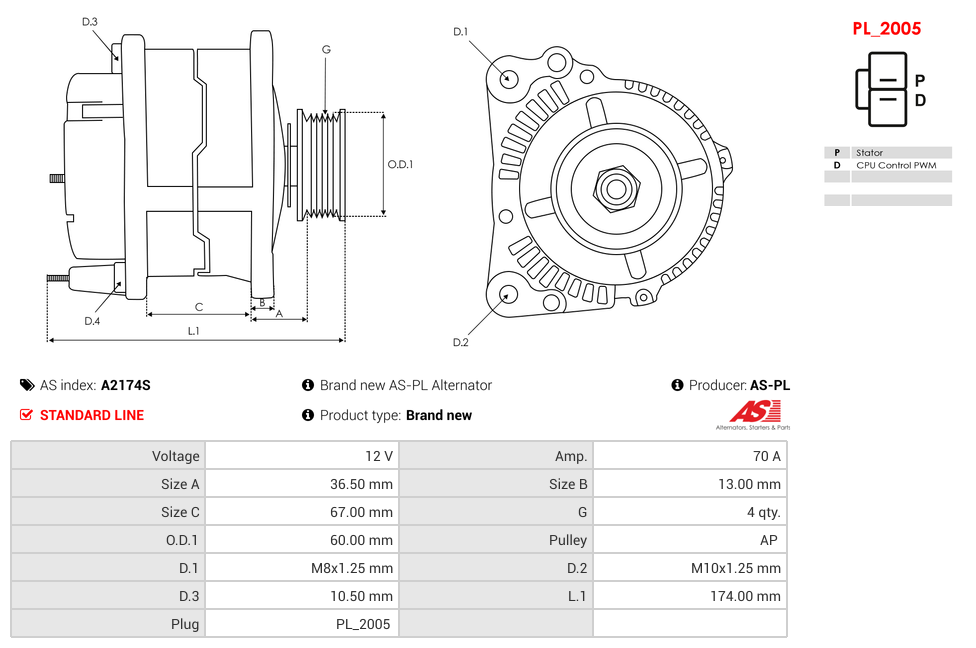

Amp	70 A
Bottom Mounting Foot Width (B)	13.00 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	M10x1.25 mm
Diameter (D.3)	10.50 mm
Length (L.1)	174.00 mm
Mount Inside Length or Pad Mount C-C (C)	67.00 mm
Plug Code	PL_2005
Pulley Grooves	4 qty
Pulley Outside Diameter (O.D.2)	60.00 mm
Pulley to Mount Distance (A)	36.50 mm
Pulley Type	Solid
Voltage	12 V

Make	Model	Type	Year
MAZDA	DEMIO (DW) 1.3 16V (DW3W, DW19)	B33L	08.1998-07.2003
MAZDA	DEMIO (DW) 1.3 16V (DW3W, DW19)	B34P	08.1998-07.2003
MAZDA	DEMIO (DW) 1.3 16V (DW3W, DW19)	B35J	08.1998-07.2003
MAZDA	DEMIO (DW) 1.3 16V (DW3W, DW19)	B3ME	08.1998-07.2003
MAZDA	DEMIO (DW) 1.3 i 16V (DW3W)	B33L	08.1998-04.2000
MAZDA	DEMIO (DW) 1.3 i 16V (DW3W)	B34P	08.1998-04.2000
MAZDA	DEMIO (DW) 1.3 i 16V (DW3W)	B35J	08.1998-04.2000
MAZDA	DEMIO (DW) 1.3 i 16V (DW3W)	B3ME	01.1996-10.2002

A2174S - Brand new AS-PL Alternator
