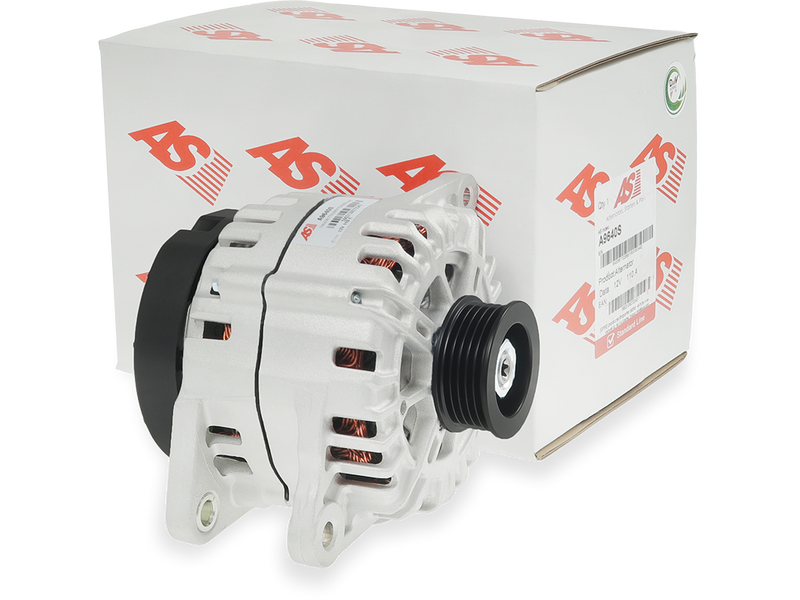

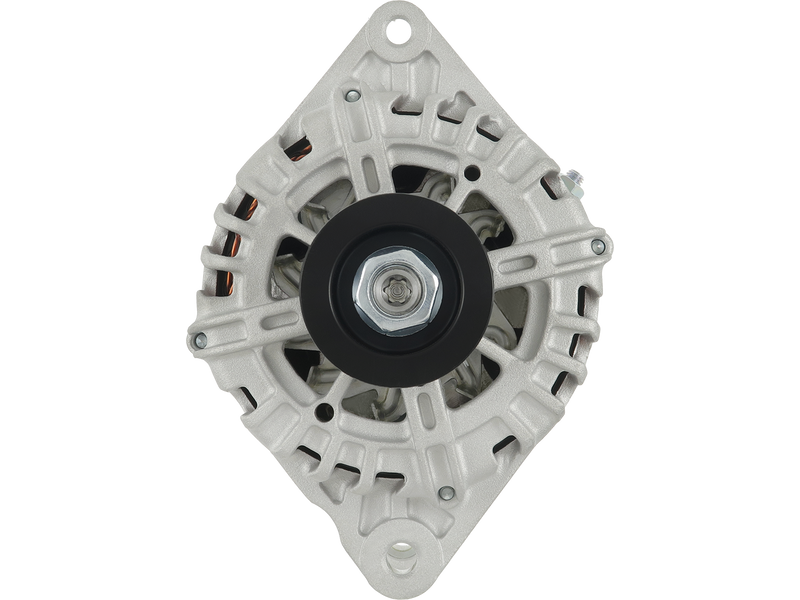

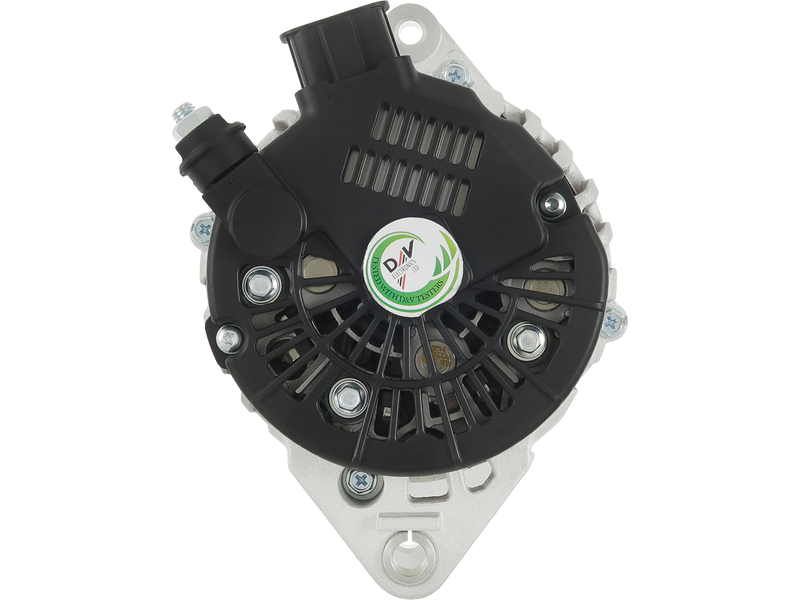

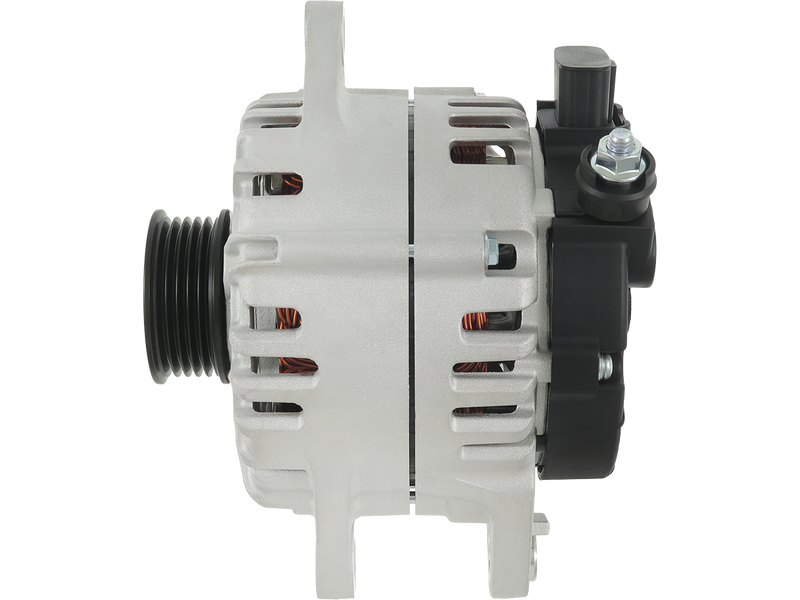

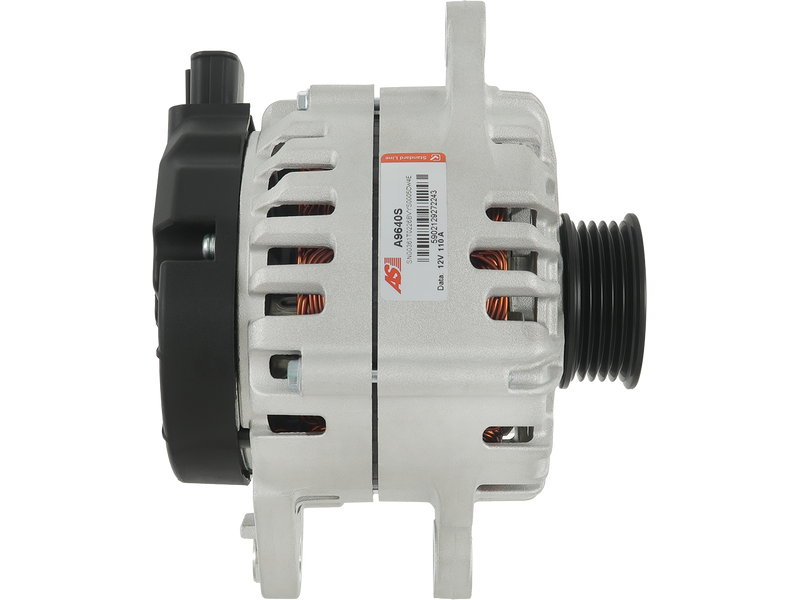

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
UNIVERSAL
Price:
NZ$ 511.04 including GST
NZ$ 444.38 excluding GST
or four payments of $127.76
with
Learn More
UOM:
each
Product Code:
A9640S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 13.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 164.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 46.00 mm |
| Plug Code | PL_4105 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 55.00 mm |
| Pulley to Mount Distance (A) | 47.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAC | J7 1.5T | HFC4GB2.4E | 01.2018- |
| JAC | Refine S3 1.5 | HFC4GB2.3E | 01.2013- |
| JAC | Refine S4 1.5T | HFC4GB2.4E | 01.2018- |
| JAC | Shuailing T6 2.0 | HFC4DB2-1D1 | 01.2015- |
| JAC | Shuailing T8 2.0 | HFC4DB2-1D1 | 01.2018- |
| JAC | Shuailing T8 2.0 | HFC4DB2-2E | 01.2018- |
Reference Information
| 1025100GH055 | JAC |
| 245.303.110.200 | WAI |
| 245.304.110.200 | WAI |
| 556541RIM | KUHNER |
| ADJA1100A | DR |
| ALQ3992 | KRAUF |
| JACL21993 | DR |
| UD103549A | AS-PL |
