Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 1,120.84 including GST
NZ$ 974.64 excluding GST
or four payments of $280.21
with
Learn More
Alternative Item:
A0976S,A0976(SEG)
Product Code:
A01454S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
UD91093A AS-PL 12318571358 BMW 12318635553 4747366 8571358 8635553 0125815003 BOSCH List 0125815004 List 0125B00552 0986082707 DRA1915 DELCO 443451 VALEO L52000 ATL AUTOTECHNIK AEG1393 AUTOELECTRO ABOA15 AUTOTEAM G101195 BTS TURBO CAL10A15AS CASCO CAL10A15GS 40082 CEVAM 2153282502 DRI 58015 EAI ALT10108 ELECTROLOG 28-7834 ELSTOCK 3115563 HENKEL PARTS H55101387G HOFFER 20010A15OV ITAB AUTOMOTIVE ALB3747 KRAUF 555174RIB KUHNER LRA04225 LUCAS LRA4225 55101387G MEAT DORIA 89216475 POWERMAX IR5069 PROTECH 2010151ABN REAL 2010151AOE 2010A15.0 SANDO 2010A15.1 A12BH1374 SIDAT ALT12A150 SIOM ALT12A150A BM8133 SNRA 857135804 STEYR AL03752 TMI V20-13-90567 VEMO 21075N WAI 215.901.250.280 A146.794 90-15-6726 WILSONSpecifications

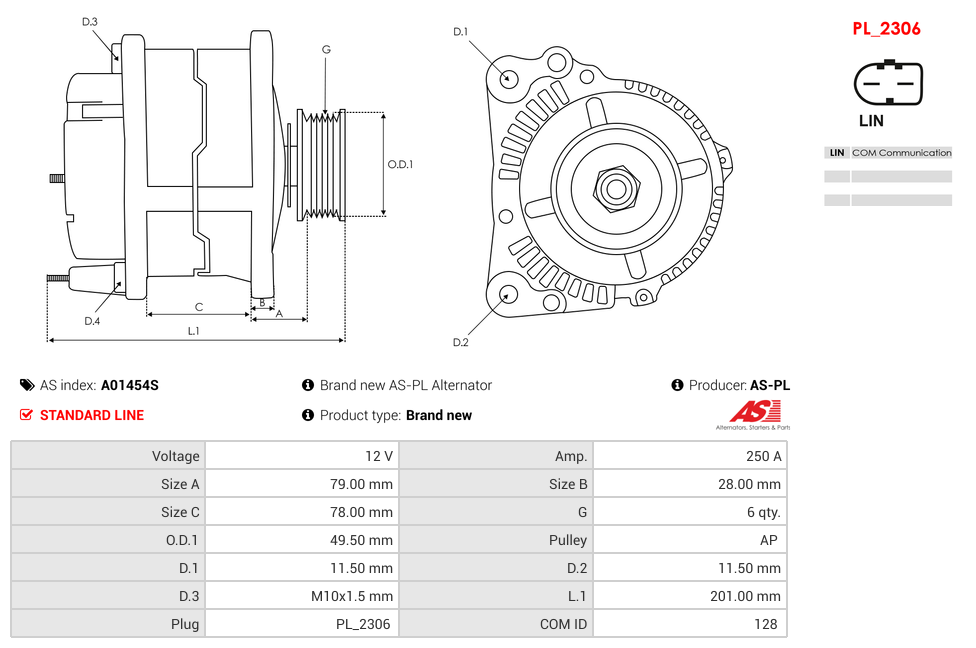

| Amp | 250 A |
| Bottom Mounting Foot Width (B) | 28.00 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 201.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 78.00 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 49.50 mm |
| Pulley to Mount Distance (A) | 79.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 2 Coupe (G42, G87) M2 | S58B30A | 11.2022- |
| BMW | 2 Coupe (G42, G87) M2 CS | S58B30A | 08.2025- |
| BMW | 3 (G20, G80, G28) 320 i 1.6 | B48B16A | 03.2019- |
| BMW | 3 (G20, G80, G28) 330 d | B57D30A | 03.2019- |
| BMW | 3 (G20, G80, G28) 330 d xDrive | B57D30A | 07.2019- |
| BMW | 3 (G20, G80, G28) M3 | S58B30B | 11.2020- |
| BMW | 3 (G20, G80, G28) M3 Competition | S58B30A | 11.2020- |
| BMW | 3 (G20, G80, G28) M3 Competition xDrive | S58B30A | 05.2021- |
| BMW | 3 (G20, G80, G28) M3 Competition xDrive | S58B30A | 07.2024- |
| BMW | 3 (G20, G80, G28) M3 CS xDrive | S58B30A | 03.2023- |
| BMW | 3 Touring (G21, G81) 330 d | B57D30A | 11.2019- |
| BMW | 3 Touring (G21, G81) 330 d xDrive | B57D30A | 07.2019- |
| BMW | 3 Touring (G21, G81) M3 Competition xDrive | S58B30A | 07.2022-07.2024 |
| BMW | 3 Touring (G21, G81) M3 CS xDrive | S58B30A | 03.2025- |
| BMW | 3 Touring Van (G21) 330 d | B57D30A | 11.2019- |
| BMW | 3 Touring Van (G21) 330 d xDrive | B57D30A | 11.2019- |
| BMW | 4 Convertible (G23, G83) M4 Competition M xDrive | S58B30A | 07.2021-02.2024 |
| BMW | 4 Coupe (G22, G82) 420 i 1.6 | B48B16A | 11.2020- |
| BMW | 4 Coupe (G22, G82) M4 | S58B30B | 11.2020- |
| BMW | 4 Coupe (G22, G82) M4 Competition | S58B30A | 11.2020- |
| BMW | 4 Coupe (G22, G82) M4 Competition M xDrive | S58B30A | 05.2021-02.2024 |
| BMW | 4 Coupe (G22, G82) M4 CSL | S58B30A | 05.2022-02.2023 |
| BMW | 5 (G30, F90) 520 i | B46B20B | 07.2017- |
| BMW | 5 (G30, F90) 520 i | B48B16A | 07.2017-06.2023 |
| BMW | 5 (G30, F90) 520 i | B48B20A | 07.2017- |
| BMW | 5 (G30, F90) 520 i | B48B20A | 07.2017-06.2020 |
| BMW | 5 (G30, F90) 520 i | B48B20B | 07.2017- |
| BMW | 5 (G30, F90) 520 i | B48B20B | 07.2017-06.2020 |
| BMW | 5 (G30, F90) 530 d | B57D30A | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 530 d xDrive | B57D30A | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B46B20B | 03.2017-06.2020 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B46B20B | 07.2020-06.2023 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B48B20A | 03.2017-06.2020 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B48B20A | 07.2020-06.2023 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | GC1 | 03.2017-06.2020 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | GC1 | 07.2020-06.2023 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B46B20B | 03.2017-06.2023 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B46B20B | 07.2020-06.2023 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B48B20A | 03.2017-06.2023 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B48B20A | 07.2020-06.2023 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | GC1 | 03.2017-06.2023 |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | GC1 | 07.2020-06.2023 |
| BMW | 5 (G30, F90) 530 i | B46B20B | 05.2022-06.2023 |
| BMW | 5 (G30, F90) 530 i | B46B20B | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 530 i | B48B20B | 05.2022-06.2023 |
| BMW | 5 (G30, F90) 530 i | B48B20B | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 530 i xDrive | B46B20B | 05.2022-06.2023 |
| BMW | 5 (G30, F90) 530 i xDrive | B46B20B | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 530 i xDrive | B48B20B | 05.2022-06.2023 |
| BMW | 5 (G30, F90) 530 i xDrive | B48B20B | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 530 i xDrive | B48B20B | 09.2016-06.2023 |
| BMW | 5 (G30, F90) 540 d xDrive | B57D30A | 07.2017-06.2020 |
| BMW | 5 (G30, F90) 540 d xDrive | B57D30B | 07.2017-06.2020 |
| BMW | 5 (G30, F90) 540 i | B58B30A | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 540 i | B58B30A | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 540 i | B58B30C | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 540 i xDrive | B58B30A | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 540 i xDrive | B58B30A | 09.2016-06.2020 |
| BMW | 5 (G30, F90) 540 i xDrive | B58B30C | 09.2016-06.2020 |
| BMW | 5 (G30, F90) M 550 d xDrive | B57D30C | 06.2017-06.2020 |
| BMW | 5 Touring (G31) 520 i | B48B20A | 07.2017-06.2020 |
| BMW | 5 Touring (G31) 530 d | B57D30A | 03.2017-06.2020 |
| BMW | 5 Touring (G31) 530 d xDrive | B57D30A | 03.2017-06.2020 |
| BMW | 5 Touring (G31) 530 i | B48B20B | 03.2017-06.2020 |
| BMW | 5 Touring (G31) 530 i | B48B20B | 05.2022- |
| BMW | 5 Touring (G31) 530 i xDrive | B48B20B | 05.2022- |
| BMW | 5 Touring (G31) 530 i xDrive | B48B20B | 07.2017-06.2020 |
| BMW | 5 Touring (G31) 540 d xDrive | B57D30B | 07.2017-06.2020 |
| BMW | 5 Touring (G31) 540 i xDrive | B58B30A | 03.2017-06.2020 |
| BMW | 5 Touring (G31) 540 i xDrive | B58B30A | 03.2017-06.2020 |
| BMW | 5 Touring (G31) M 550 d xDrive | B57D30C | 07.2017- |
| BMW | 5 Touring Van (G31) 530 d | B57D30A | 03.2017- |
| BMW | 5 Touring Van (G31) 530 d xDrive | B57D30A | 03.2017- |
| BMW | 5 Touring Van (G31) 530 i | B48B20B | 03.2017- |
| BMW | 5 Touring Van (G31) 530 i xDrive | B48B20B | 07.2017- |
| BMW | 5 Touring Van (G31) 540 i xDrive | B58B30A | 03.2017- |
| BMW | 6 Gran Turismo (G32) 630 d | B57D30A | 06.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 630 d xDrive | B57D30A | 06.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 630 i | B48B20B | 07.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 640 d xDrive | B57D30B | 11.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 640 i | B58B30A | 06.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 640 i | B58B30A | 06.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 640 i | B58B30C | 06.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 640 i | B58B30C | 06.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 640 i xDrive | B58B30A | 06.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 640 i xDrive | B58B30A | 06.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 640 i xDrive | B58B30C | 06.2017-06.2020 |
| BMW | 6 Gran Turismo (G32) 640 i xDrive | B58B30C | 06.2017-06.2020 |
| BMW | 7 (G11, G12) 730 d | B57D30A | 07.2015-06.2020 |
| BMW | 7 (G11, G12) 730 d, Ld | B57D30A | 09.2015-06.2020 |
| BMW | 7 (G11, G12) 730 d, Ld xDrive | B57D30A | 09.2015-06.2020 |
| BMW | 7 (G11, G12) 730 d xDrive | B57D30A | 09.2015-06.2020 |
| BMW | 7 (G11, G12) 730 i, Li | B48B20B | 11.2015-02.2019 |
| BMW | 7 (G11, G12) 740 d, Ld xDrive | B57D30B | 11.2015-06.2020 |
| BMW | 7 (G11, G12) 740 e, Le | B48B20B | 07.2016-02.2019 |
| BMW | 7 (G11, G12) 740 i, Li | B58B30A | 07.2015-02.2019 |
| BMW | 7 (G11, G12) 740 Le xDrive | B48B20B | 07.2016-02.2019 |
| BMW | 7 (G11, G12) 740 Li xDrive | B58B30A | 03.2016-02.2019 |
| BMW | 7 (G11, G12) 750 d, Ld xDrive | B57D30C | 07.2016-10.2020 |
| BMW | 8 Convertible (G14, F91) 840 d xDrive | B57D30B | 11.2018-10.2020 |
| BMW | 8 Coupe (G15, F92) 840 d xDrive | B57D30B | 07.2018-10.2020 |
| BMW | 8 Gran Coupe (G16, F93) 840 d xDrive | B57D30B | 07.2019-10.2020 |
| BMW | X3 (G01, F97, G08) M | S58B30A | 03.2019- |
| BMW | X3 (G01, F97, G08) M Competition | S58B30A | 03.2019- |
| BMW | X3 (G01, F97, G08) sDrive 20 i | B48B20A | 12.2017- |
| BMW | X3 (G01, F97, G08) sDrive 20 i 1.6 | B48B16A | 12.2017- |
| BMW | X3 (G01, F97, G08) xDrive 20 i | B48B20A | 12.2017- |
| BMW | X3 (G01, F97, G08) xDrive 20 i | B48B20B | 12.2017- |
| BMW | X3 (G01, F97, G08) xDrive 30 d | B57D30A | 08.2017-06.2020 |
| BMW | X3 (G01, F97, G08) xDrive 30 d | B57D30A | 12.2017-06.2020 |
| BMW | X3 (G01, F97, G08) xDrive 30 i | B46B20B | 08.2017- |
| BMW | X3 (G01, F97, G08) xDrive 30 i | B48B20B | 08.2017- |
| BMW | X3 (G01, F97, G08) xDrive 30 i | B48B20B | 08.2017- |
| BMW | X3 (G01, F97, G08) xDrive M40 d | B57D30B | 08.2018-06.2020 |
| BMW | X3 (G01, F97, G08) xDrive M40 i | B58B30A | 08.2017- |
| BMW | X3 (G01, F97, G08) xDrive M40 i | B58B30A | 09.2018-08.2019 |
| BMW | X3 Van (G01) xDrive M40 i | B58B30A | 08.2017-08.2019 |
| BMW | X4 (G02, F98) M | S58B30A | 03.2019- |
| BMW | X4 (G02, F98) M Competition | S58B30A | 03.2019- |
| BMW | X4 (G02, F98) xDrive 20 i | B48B20A | 04.2018- |
| BMW | X4 (G02, F98) xDrive 30 d | B57D30A | 04.2018-06.2020 |
| BMW | X4 (G02, F98) xDrive 30 d | B57D30A | 09.2018-06.2020 |
| BMW | X4 (G02, F98) xDrive 30 i | B46B20B | 04.2018- |
| BMW | X4 (G02, F98) xDrive 30 i | B48B20B | 04.2018- |
| BMW | X4 (G02, F98) xDrive M40 d | B57D30B | 04.2018-06.2020 |
| BMW | X4 (G02, F98) xDrive M40 i | B58B30A | 04.2018- |
| BMW | X4 (G02, F98) xDrive M40 i | B58B30A | 04.2018-08.2019 |
| BMW | X5 (G05, F95) xDrive 30 d | B57D30A | 08.2018-07.2020 |
| BMW | X5 (G05, F95) xDrive 30 d | B57D30A | 08.2018-07.2020 |
| BMW | X5 (G05, F95) xDrive M 50 d | B57D30C | 08.2018-03.2023 |
| BMW | X5 Van (G05) xDrive 30 d | B57D30A | 11.2019-03.2023 |
| BMW | X6 (G06, F96) xDrive 30 d | B57D30A | 08.2019-07.2020 |
| BMW | X6 (G06, F96) xDrive 30 d | B57D30A | 08.2019-07.2020 |
| BMW | X6 (G06, F96) xDrive 30 d | B57D30A | 08.2019-07.2020 |
| BMW | X6 (G06, F96) xDrive M 50 d | B57D30C | 08.2019-03.2023 |
| BMW | X7 (G07) xDrive 30 d | B57D30A | 03.2019- |
| BMW | X7 (G07) xDrive 30 d | B57D30A | 03.2019- |
| BMW | X7 (G07) xDrive 30 d | B57D30A | 03.2019-08.2020 |
| BMW | X7 (G07) xDrive M 50 d | B57D30C | 03.2019- |
Reference Information
| 0125815003 | BOSCH |
| 0125815004 | BOSCH |
| 0125B00552 | BOSCH |
| 0986082707 | BOSCH |
| 12318571358 | BMW |
| 12318635553 | BMW |
| 20010A15OV | ITAB AUTOMOTIVE |
| 2010151ABN | REAL |
| 2010151AOE | REAL |
| 2010A15.0 | SANDO |
| 2010A15.1 | SANDO |
| 21075N | WAI |
| 2153282502 | DRI |
| 215.901.250.280 | WAI |
| 28-7834 | ELSTOCK |
| 3115563 | HENKEL PARTS |
| 40082 | CEVAM |
| 443451 | VALEO |
| 4747366 | BMW |
| 55101387G | MEAT & DORIA |
| 555174RIB | KUHNER |
| 58015 | EAI |
| 8571358 | BMW |
| 857135804 | STEYR |
| 8635553 | BMW |
| 89216475 | POWERMAX |
| 90-15-6726 | WILSON |
| A12BH1374 | SIDAT |
| A146.794 | WAI |
| ABOA15 | AUTOTEAM |
| AEG1393 | AUTOELECTRO |
| AL03752 | TMI |
| ALB3747 | KRAUF |
| ALT10108 | ELECTROLOG |
| ALT12A150 | SIOM |
| ALT12A150A | SIOM |
| BM8133 | SNRA |
| CAL10A15AS | CASCO |
| CAL10A15GS | CASCO |
| DRA1915 | DELCO |
| G101195 | BTS TURBO |
| H55101387G | HOFFER |
| IR5069 | PROTECH |
| L52000 | ATL AUTOTECHNIK |
| LRA04225 | LUCAS |
| LRA4225 | LUCAS |
| UD91093A | AS-PL |
| V20-13-90567 | VEMO |
