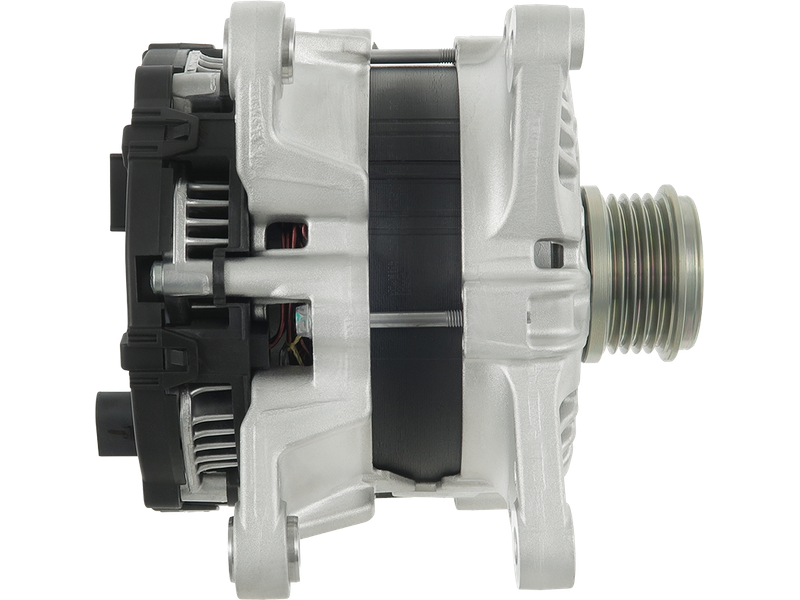

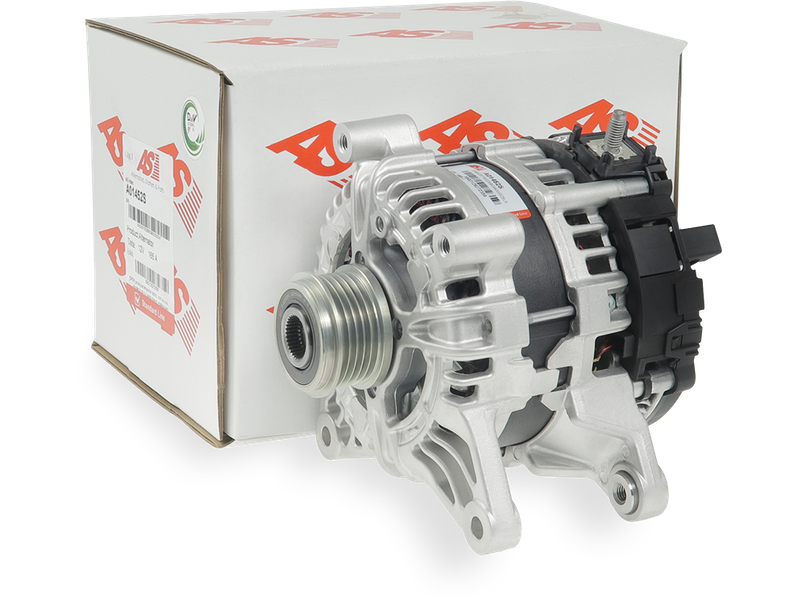

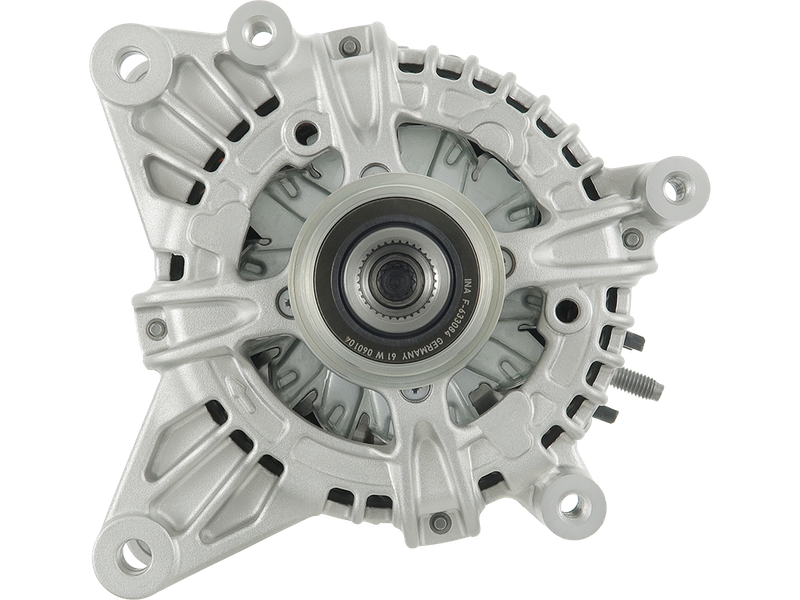

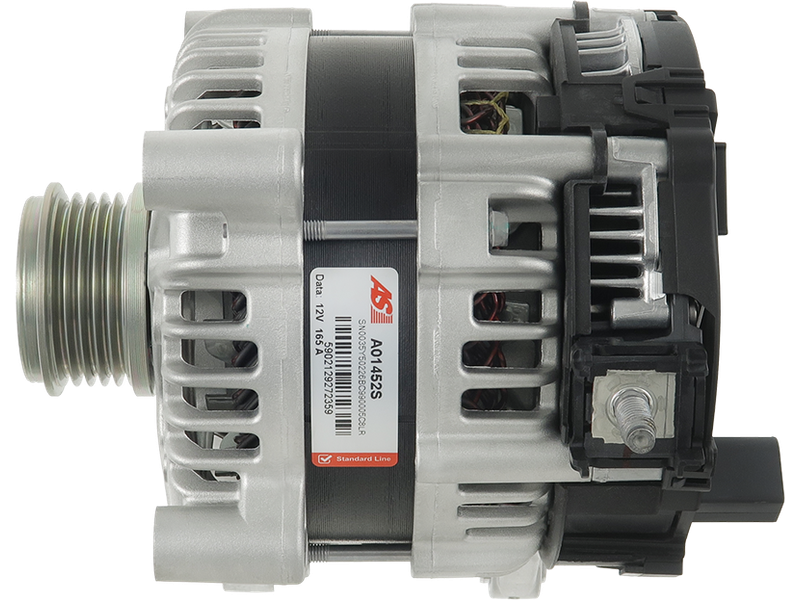

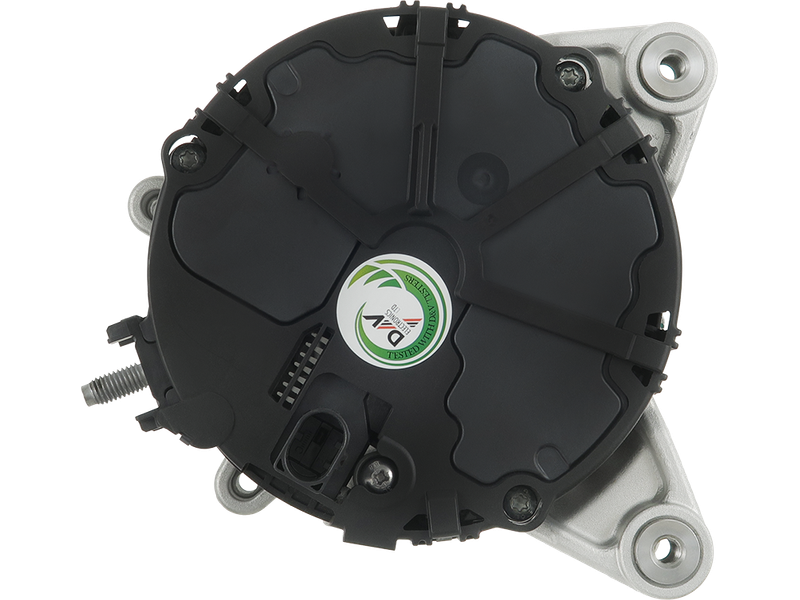

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 4,809.71 including GST
NZ$ 4,182.36 excluding GST
or four payments of $1202.43
with
Learn More
UOM:
each
Product Code:
A01452S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

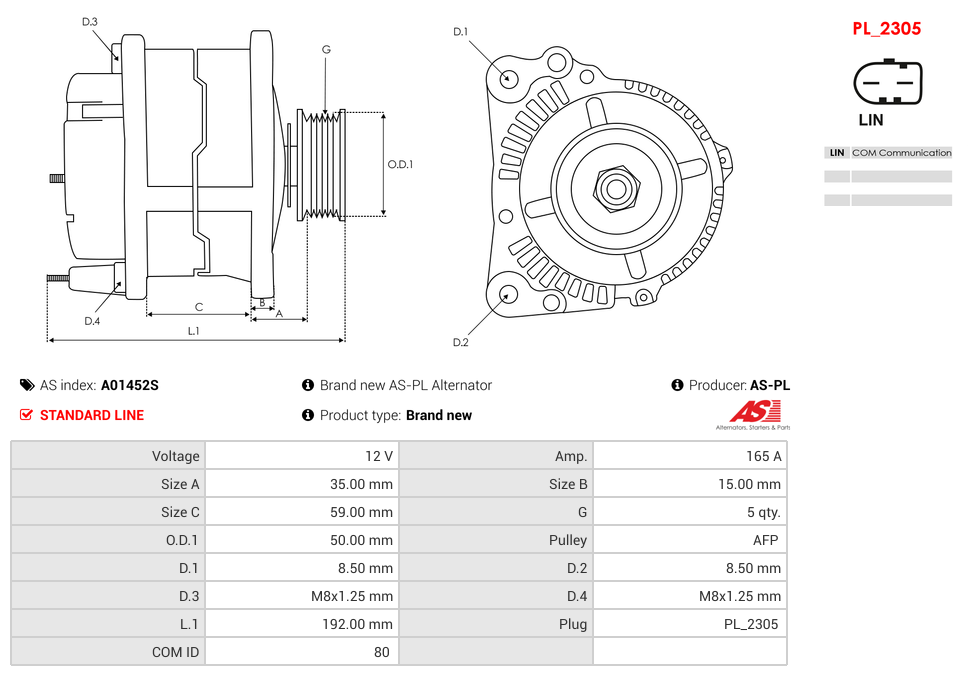

Specifications
| Amp | 165 A |
| Bottom Mounting Foot Width (B) | 15.00 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 192.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 59.00 mm |
| Plug Code | PL_2305 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 50.00 mm |
| Pulley to Mount Distance (A) | 35.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES-BENZ | A-CLASS Saloon (V177) A 180 (177.184) | M282.914 | 04.2019- |
| MERCEDES-BENZ | A-CLASS Saloon (V177) A 200 (177.187) | M282.914 | 09.2018- |
| MERCEDES-BENZ | A-CLASS Saloon (V177) A 200 (177.187) | M282.914 | 09.2018- |
| MERCEDES-BENZ | A-CLASS Saloon (V177) A 200 4-matic (177.188) | M282.914 | 10.2020- |
| MERCEDES-BENZ | A-CLASS (W177) A 160 (177.082) | M282.914 | 06.2018- |
| MERCEDES-BENZ | A-CLASS (W177) A 180 (177.084) | M282.914 | 06.2018- |
| MERCEDES-BENZ | A-CLASS (W177) A 200 (177.087) | M282.914 | 03.2018- |
| MERCEDES-BENZ | A-CLASS (W177) A 200 (177.087) | M282.914 | 06.2018- |
| MERCEDES-BENZ | A-CLASS (W177) A 200 4-matic (177.088) | M282.914 | 10.2020- |
| MERCEDES-BENZ | A-CLASS (W177) A 250 e (177.086) | M282.914 | 08.2019- |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) B 160 (247.082) | M282.914 | 04.2019- |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) B 180 (247.084) | M282.914 | 12.2018- |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) B 200 (247.087) | M282.914 | 01.2019- |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) B 200 (247.087) | M282.914 | 12.2018- |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) B 200 4-matic (247.088) | M282.914 | 10.2020- |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) B 200 Mild Hybrid (247.087) | 282.814 | 11.2022- |
| MERCEDES-BENZ | CLA (C118) CLA 180 (118.384) | M282.914 | 03.2019- |
| MERCEDES-BENZ | CLA (C118) CLA 200 (118.387) | 282.814 | 03.2019- |
| MERCEDES-BENZ | CLA (C118) CLA 200 (118.387) | M282.914 | 03.2019- |
| MERCEDES-BENZ | CLA (C118) CLA 200 (118.387) | M282.914 | 03.2019- |
| MERCEDES-BENZ | CLA (C118) CLA 200 4-matic (118.388) | M282.914 | 10.2020- |
| MERCEDES-BENZ | CLA Shooting Brake (X118) CLA 180 (118.684) | M282.914 | 06.2019- |
| MERCEDES-BENZ | CLA Shooting Brake (X118) CLA 200 (118.687) | 282.814 | 06.2019- |
| MERCEDES-BENZ | CLA Shooting Brake (X118) CLA 200 (118.687) | M282.914 | 06.2019- |
| MERCEDES-BENZ | CLA Shooting Brake (X118) CLA 200 (118.687) | M282.914 | 06.2019- |
| MERCEDES-BENZ | GLA (H247) GLA 180 (247.784) | M282.914 | 07.2020- |
| MERCEDES-BENZ | GLA (H247) GLA 200 (247.787) | M282.914 | 02.2020- |
| MERCEDES-BENZ | GLA (H247) GLA 200 4-matic (247.788) | M282.914 | 10.2020- |
| MERCEDES-BENZ | GLB (X247) GLB 180 (247.684) | M282.914 | 04.2020- |
| MERCEDES-BENZ | GLB (X247) GLB 180 Mild-Hybrid (247.684) | 282.814 | 03.2023- |
| MERCEDES-BENZ | GLB (X247) GLB 200 (247.687) | M282.914 | 08.2019- |
| MERCEDES-BENZ | GLB (X247) GLB 200 4-matic (247.688) | M282.914 | 10.2020- |
| MERCEDES-BENZ | GLB (X247) GLB 200 Mild-Hybrid (247.687) | 282.814 | 03.2023- |
Reference Information
| 0009061604 | MERCEDES |
| 0009062209 | MERCEDES |
| 0009063809 | MERCEDES |
| 0126314043 | BOSCH |
| 0126314044 | BOSCH |
| 0126314044-R | BOSCH |
| 031782 | DA SILVA |
| 1986A01233 | BOSCH |
| 2010102AOE | REAL |
| 2010A20.1 | SANDO |
| 21724N | WAI |
| 2253491652 | DRI |
| 241ST58 | STARTCAR |
| 28-8603 | ELSTOCK |
| 40765 | CEVAM |
| 442798 | LOGISTIK |
| 555.981.165.280 | WAI |
| 556780RIB | KUHNER |
| 556780RIS | KUHNER |
| 58241 | EAI |
| 9091702 | FRIESEN |
| A0009061604 | MERCEDES |
| A0009062209 | MERCEDES |
| A0009063809 | MERCEDES |
| ALB4556 | KRAUF |
| ALT12A200 | SIOM |
| CAL10A20GS | CASCO |
| L55230 | ATL AUTOTECHNIK |
| LRA04494 | LUCAS |
| LRA4494 | LUCAS |
| ME8172 | SNRA |
| UD103417A | AS-PL |
| WG2656494 | WILMINK GROUP |
