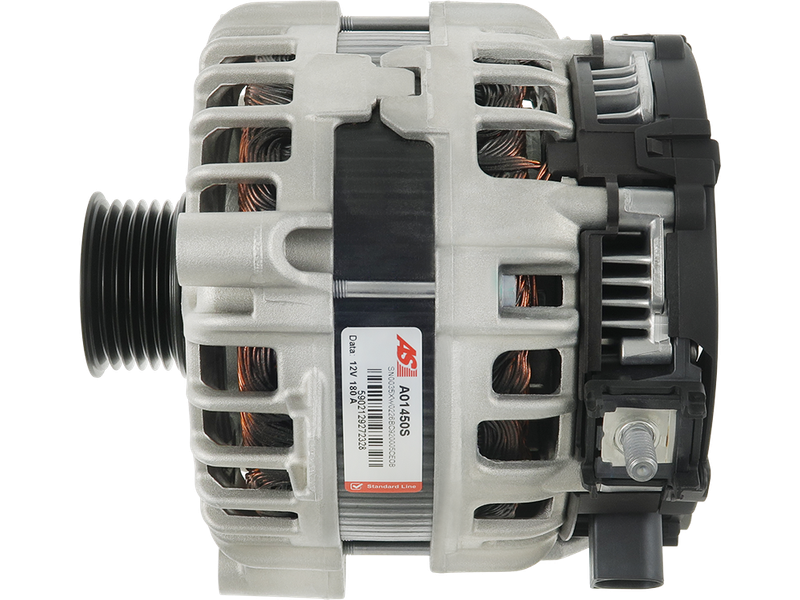

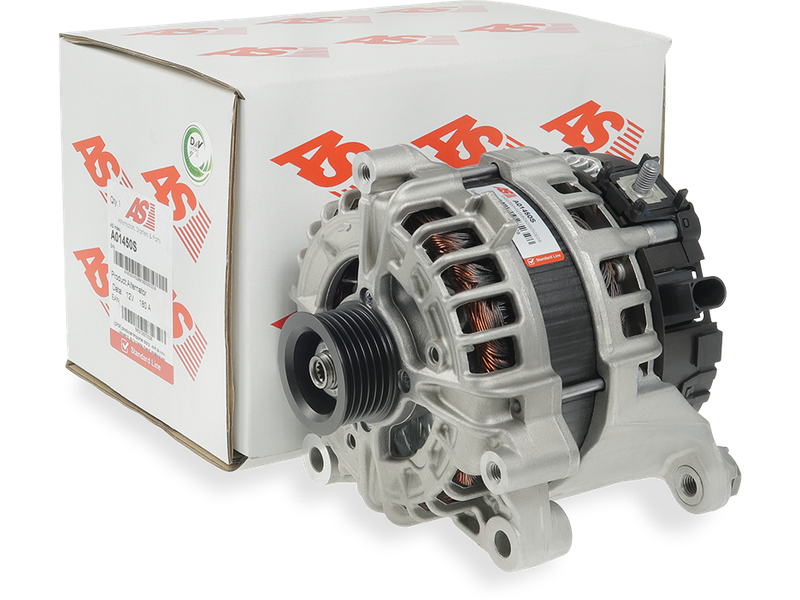

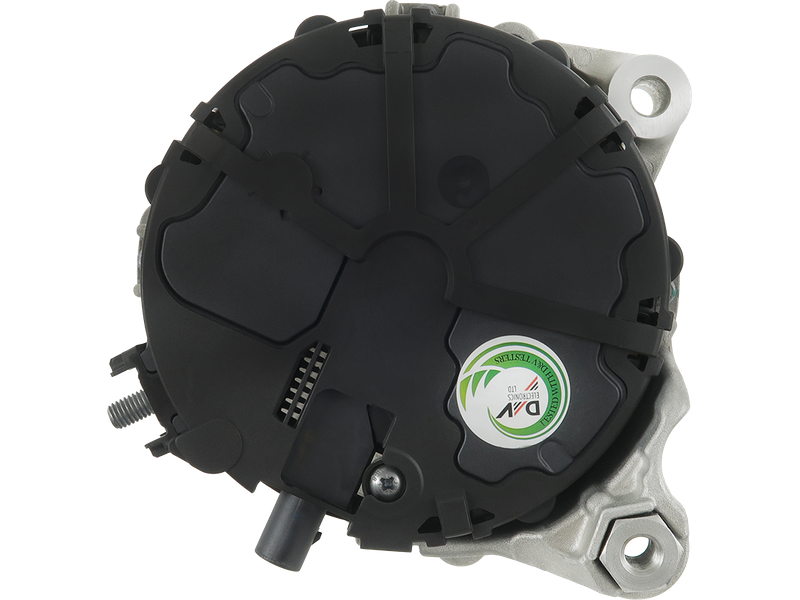

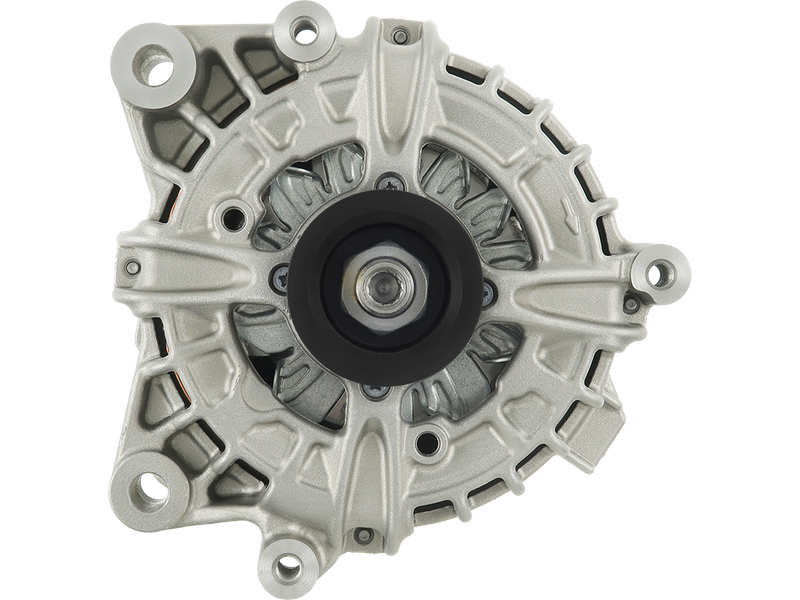

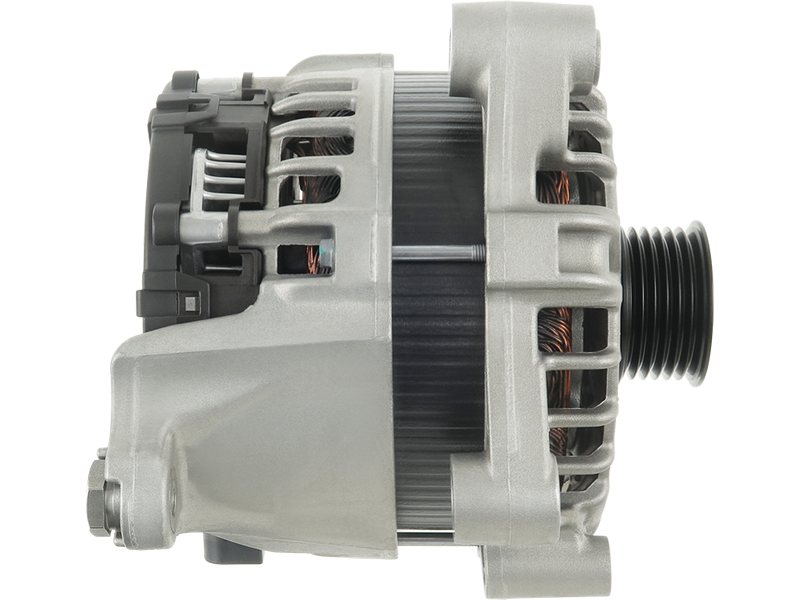

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 1,337.57 including GST
NZ$ 1,163.10 excluding GST
or four payments of $334.39
with
Learn More
Product Code:
A01450S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

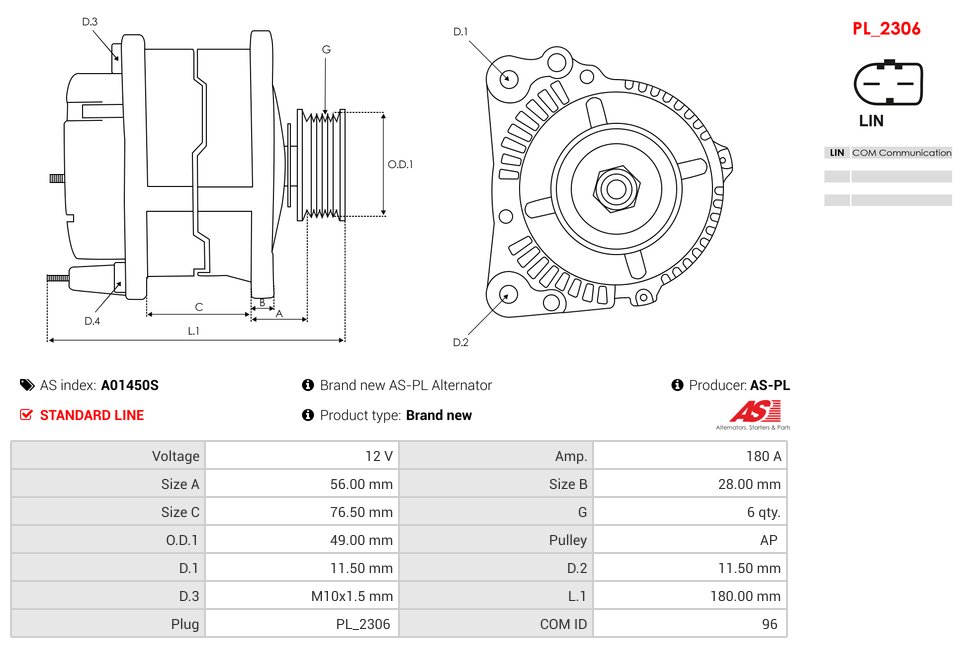

Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 28.00 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 180.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 76.50 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 49.00 mm |
| Pulley to Mount Distance (A) | 56.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 5 (G30, F90) 520 d | B47D20A | 09.2016-06.2023 |
| BMW | 5 (G30, F90) 520 d | B47D20A | 09.2016-06.2023 |
| BMW | 5 (G30, F90) 520 d | B47D20B | 09.2016-06.2023 |
| BMW | 5 (G30, F90) 520 d | B47D20B | 09.2016-06.2023 |
| BMW | 5 (G30, F90) 520 d xDrive | B47D20A | 09.2016-06.2023 |
| BMW | 5 (G30, F90) 520 d xDrive | B47D20A | 09.2016-06.2023 |
| BMW | 5 (G30, F90) 520 d xDrive | B47D20B | 09.2016-06.2023 |
| BMW | 5 (G30, F90) 520 d xDrive | B47D20B | 09.2016-06.2023 |
| BMW | 5 (G30, F90) 525 d | B47D20B | 07.2017-06.2019 |
| BMW | 5 Touring (G31) 520 d | B47D20A | 03.2017- |
| BMW | 5 Touring (G31) 520 d | B47D20A | 03.2017- |
| BMW | 5 Touring (G31) 520 d | B47D20B | 03.2017- |
| BMW | 5 Touring (G31) 520 d | B47D20B | 03.2017- |
| BMW | 5 Touring (G31) 520 d xDrive | B47D20A | 07.2017- |
| BMW | 5 Touring (G31) 520 d xDrive | B47D20A | 07.2017- |
| BMW | 5 Touring (G31) 520 d xDrive | B47D20B | 07.2017- |
| BMW | 5 Touring (G31) 520 d xDrive | B47D20B | 07.2017- |
| BMW | 5 Touring (G31) 525 d | B47D20B | 07.2017-06.2019 |
| BMW | 5 Touring Van (G31) 520 d | B47D20A | 03.2017-06.2018 |
| BMW | 5 Touring Van (G31) 520 d | B47D20B | 03.2017-06.2018 |
| BMW | 5 Touring Van (G31) 520 d xDrive | B47D20A | 07.2017-06.2018 |
| BMW | 5 Touring Van (G31) 520 d xDrive | B47D20B | 07.2017-06.2018 |
| BMW | 7 (G11, G12) 725 d, Ld | B47D20B | 07.2016-02.2019 |
| BMW | 7 (G11, G12) 725 d, Ld | B47D20B | 07.2016-02.2019 |
| BMW | X3 (G01, F97, G08) sDrive 18 d | B47D20A | 04.2018-06.2020 |
| BMW | X3 (G01, F97, G08) sDrive 18 d | B47D20A | 04.2018-06.2020 |
| BMW | X3 (G01, F97, G08) sDrive 18 d | B47D20B | 04.2018-06.2020 |
| BMW | X3 (G01, F97, G08) sDrive 18 d | B47D20B | 04.2018-06.2020 |
| BMW | X3 (G01, F97, G08) xDrive 20 d | B47D20A | 08.2017-03.2020 |
| BMW | X3 (G01, F97, G08) xDrive 20 d | B47D20A | 08.2017-03.2020 |
| BMW | X3 (G01, F97, G08) xDrive 20 d | B47D20B | 08.2017-03.2020 |
| BMW | X3 (G01, F97, G08) xDrive 20 d | B47D20B | 08.2017-03.2020 |
| BMW | X3 (G01, F97, G08) xDrive 25 d | B47D20B | 04.2018- |
| BMW | X3 (G01, F97, G08) xDrive 25 d | B47D20B | 04.2018- |
| BMW | X3 Van (G01) sDrive 18 d | B47D20A | 04.2018- |
| BMW | X3 Van (G01) sDrive 18 d | B47D20B | 04.2018- |
| BMW | X4 (G02, F98) xDrive 20 d | B47D20A | 04.2018-03.2020 |
| BMW | X4 (G02, F98) xDrive 20 d | B47D20A | 04.2018-03.2020 |
| BMW | X4 (G02, F98) xDrive 20 d | B47D20B | 04.2018-03.2020 |
| BMW | X4 (G02, F98) xDrive 20 d | B47D20B | 04.2018-03.2020 |
| BMW | X4 (G02, F98) xDrive 25 d | B47D20B | 04.2018- |
| BMW | X4 (G02, F98) xDrive 25 d | B47D20B | 04.2018- |
Reference Information
| 0125814007 | BOSCH |
| 0125814008 | BOSCH |
| 0125814008-R | BOSCH |
| 021ST58 | STARTCAR |
| 115340 | FARCOM |
| 12318575059 | BMW |
| 12318587940 | BMW |
| 20010073OV | ITAB AUTOMOTIVE |
| 2010073.1 | SANDO |
| 20101370OE | REAL |
| 2153291802 | DRI |
| 215.935.180.280 | WAI |
| 22237N | WAI |
| 28-7835 | ELSTOCK |
| 40083 | CEVAM |
| 55101352G | MEAT & DORIA |
| 555176RIB | KUHNER |
| 555176RIS | KUHNER |
| 58021 | EAI |
| 8575059 | BMW |
| 8587940 | BMW |
| 89216485 | POWERMAX |
| 9091186 | FRIESEN |
| A12BH1357 | SIDAT |
| AL03753 | TMI |
| ALB4561 | KRAUF |
| ALT120730 | SIOM |
| ALTJ505 | 3EFFE |
| ANM98838 | ANDEL |
| BM8139 | SNRA |
| BR5A75789 | ENCORY |
| CAL10073GS | CASCO |
| DRA1648 | DELCO |
| LRA04226 | LUCAS |
| LRA4226 | LUCAS |
| UD103408A | AS-PL |
