Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 1,634.82 including GST
NZ$ 1,421.58 excluding GST
or four payments of $408.71
with
Learn More
A01449S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
UD103413A AS-PL 0125815029 BOSCH List 0125815050 0125815060 1986A01225 057903025B VW 057903025BX ABOA33 AUTOTEAM CAL10A33GS CASCO 20010A33OV ITAB AUTOMOTIVE 556268RIS KUHNER 2010133AOE REAL 2010A33.1 SANDO ALT12A330 SIOM 305.330.250.280 WAI A148.326 WG2443596 WILMINK GROUP WG2443597Specifications

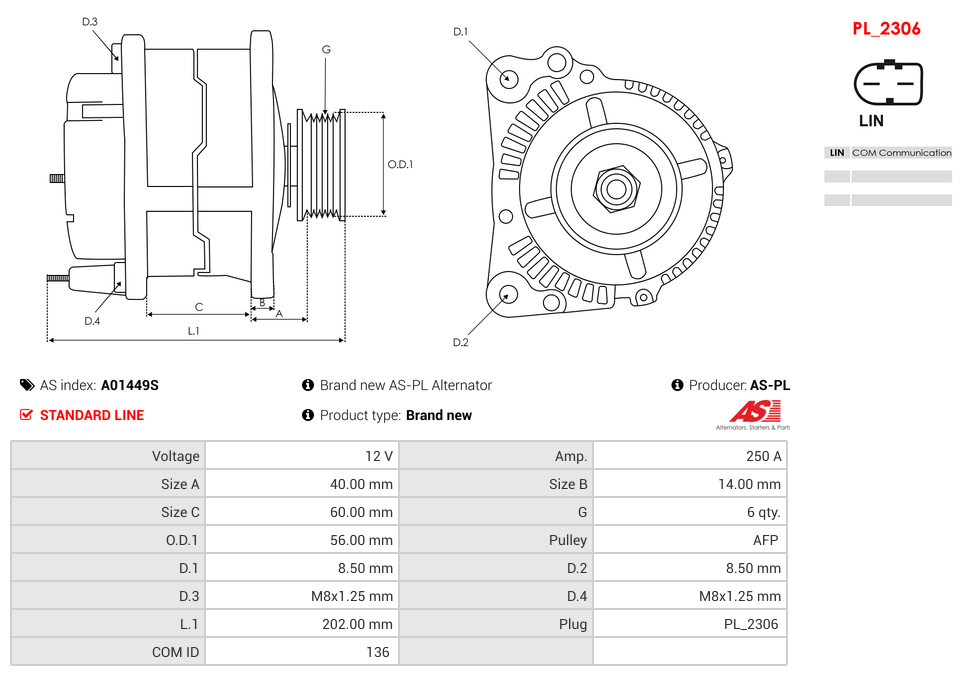

| Amp | 250 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 202.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.00 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56.00 mm |
| Pulley to Mount Distance (A) | 40.00 mm |
| Voltage | 12 V |
