Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 455.75 including GST
NZ$ 396.30 excluding GST
or four payments of $113.94
with
Learn More
Product Code:
A01446S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

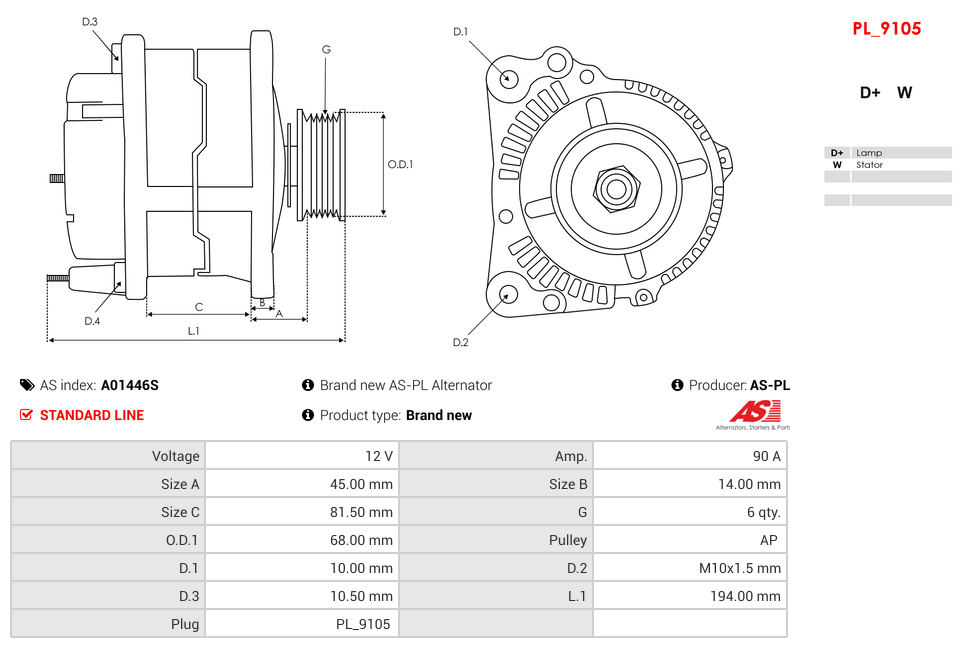

Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 10.00 mm |
| Diameter (D.2) | M10x1.5 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 194.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81.50 mm |
| Plug Code | PL_9105 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 68.00 mm |
| Pulley to Mount Distance (A) | 45.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | DAILY II Bus A 40-10 (95719111, 95719131, 95719311, 95719315,... | 8140.23 | 09.1996-05.1999 |
| IVECO | DAILY II Bus A 40-12 (95819311, 95819315, 95819317, 95819331) | 8140.43. | 05.1996-05.1999 |
| IVECO | DAILY II Bus A 45-10 (95739111, 95739131, 95739311, 95739317,... | 8140.23 | 05.1996-05.1999 |
| IVECO | DAILY II Bus A 45-12 (95839211, 95839231, 95839311, 95839317,... | 8140.43. | 05.1996-05.1999 |
| IVECO | DAILY II Platform/Chassis 30-10 (15011131, 15011231) | 8140.23 | 01.1998-05.1999 |
| IVECO | DAILY II Platform/Chassis 30-8 (10011131, 10011132, 10011231, 10011232, 10011237,... | 8140.63 | 09.1998-05.1999 |
| IVECO | DAILY II Platform/Chassis 30-8 (10011131, 10011132, 10011231, 10011232, 10011237,... | 8140.67F. | 01.1992-08.1998 |
| IVECO | DAILY II Platform/Chassis 30-8 (12910211, 12911111, 12911112, 12911117, 12911131,... | 8140.67F. | 01.1992-08.1998 |
| IVECO | DAILY II Platform/Chassis 30-8 (14911111, 14911117, 14911211, 14911215, 14911217,... | 8140.63 | 09.1998-05.1999 |
| IVECO | DAILY II Platform/Chassis 35-10 (12971112, 12971212, 12971312, 12971317, 12976112,... | 8140.97 | 01.1989-12.1996 |
| IVECO | DAILY II Platform/Chassis 35-10 (15030111, 15030211, 15030311, 15031111, 15031117,... | 8140.23 | 01.1996-05.1999 |
| IVECO | DAILY II Platform/Chassis 35-12 (15130311, 15130411, 15131111, 15131204, 15131211,... | 8140.43. | 05.1996-05.1999 |
| IVECO | DAILY II Platform/Chassis 35-12 K (15130311, 15130411, 15131111, 15131204,... | 8140.43. | 09.1996-08.1998 |
| IVECO | DAILY II Platform/Chassis 35-8 (12931102, 12931104, 12931111, 12931112, 12931117,... | 8140.67F. | 01.1989-08.1998 |
| IVECO | DAILY II Platform/Chassis 35-8 (14930304, 14931104, 14931111, 14931115, 14931204,... | 8140.63 | 09.1998-05.1999 |
| IVECO | DAILY II Platform/Chassis 40-10 W 4x4 (15211104, 15211105, 15211111, 15211115,... | 8140.23 | 01.1997-05.1999 |
| IVECO | DAILY II Platform/Chassis 49-10 (15050304, 15050404, 15050411, 15051204, 15051211,... | 8140.23 | 05.1996-05.1999 |
| IVECO | DAILY II Platform/Chassis 49-12 (15150211, 15150311, 15150404, 15150411, 15151204,... | 8140.43. | 05.1996-05.1999 |
| IVECO | DAILY II Platform/Chassis 59-12 (15170211, 15170304, 15170311, 15170504, 15170511,... | 8140.43. | 05.1996-05.1999 |
| IVECO | DAILY II Van 30-10 | 8140.23 | 01.1997-05.1999 |
| IVECO | DAILY II Van 30-10 C | 8140.23 | 01.1997-05.1999 |
| IVECO | DAILY II Van 30-8 (12914111, 12914112, 12914117, 12914131, 12914137,... | 8140.67F. | 01.1989-08.1998 |
| IVECO | DAILY II Van 30-8 (14914111, 14914117, 14914211, 14914217, 14915111,... | 8140.63 | 09.1998-05.1999 |
| IVECO | DAILY II Van 30-8 (14914111, 14914117, 14914211, 14914217, 14915111,... | 8140.67F. | 01.1989-08.1998 |
| IVECO | DAILY II Van 30-8 V (14914111, 14914117, 14914211, 14914217, 14915111... | 8140.63 | 09.1998-05.1999 |
| IVECO | DAILY II Van 35-10 (15034111, 15034204, 15034211, 15034215, 15034217,... | 8140.23 | 01.1996-05.1999 |
| IVECO | DAILY II Van 35-12 | 8140.43. | 02.1995-05.1999 |
| IVECO | DAILY II Van 35-8 (14934104, 14934111, 14934204, 14934205, 14934211,... | 8140.63 | 09.1998-05.1999 |
| IVECO | DAILY II Van 40-10 4x4 (15214104, 15214111, 15214117, 15215111) | 8140.23 | 01.1997-05.1999 |
| IVECO | DAILY II Van 49-12 V (15154204, 15154211, 15154215, 15154217,... | 8140.43. | 05.1996-05.1999 |
| IVECO | DAILY II Van 59-12 V (15174404, 15174411, 15174415, 15174417) | 8140.43. | 05.1996-05.1999 |
| SANTANA | PS10/ANIBAL 2.8 D 4x4 | 8140.43P | 03.2003- |
| SANTANA | PS10/ANIBAL 2.8 D 4x4 | 8140.43P | 03.2003- |
| SANTANA | PS10/ANIBAL 2.8 TD | 8140.43P | 12.2002- |
| SANTANA | PS10/ANIBAL Open Off-Road Vehicle 2.8 TD All-wheel Drive | 8140.43P | 09.2004-12.2008 |
Reference Information
| 0123320066 | BOSCH |
| 0124325054 | BOSCH |
| 20-1912 | AIRSTAL |
| 22469N | WAI |
| 301556RI | KUHNER |
| 40429 | CEVAM |
| 500358338 | IVECO |
| 504011575 | IVECO |
| 505.551.090.010 | WAI |
| 505.551.090.281 | WAI |
| 89216706 | POWERMAX |
| 9091907 | FRIESEN |
| A12BH1488A2 | SIDAT |
| A133.063 | WAI |
| A147.692 | WAI |
| ALB0031 | KRAUF |
| ALT10855 | WOODAUTO |
| DRA1135 | DELCO |
| G100283 | BTS TURBO |
| G100977 | BTS TURBO |
| UD30442A | AS-PL |
| WOOALT10855 | WOODAUTO |
