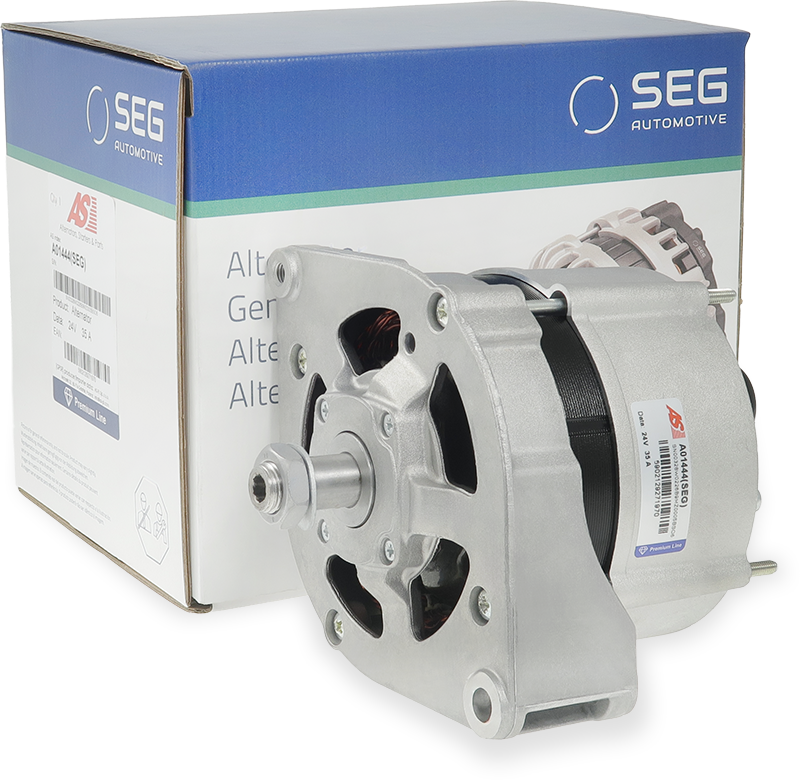

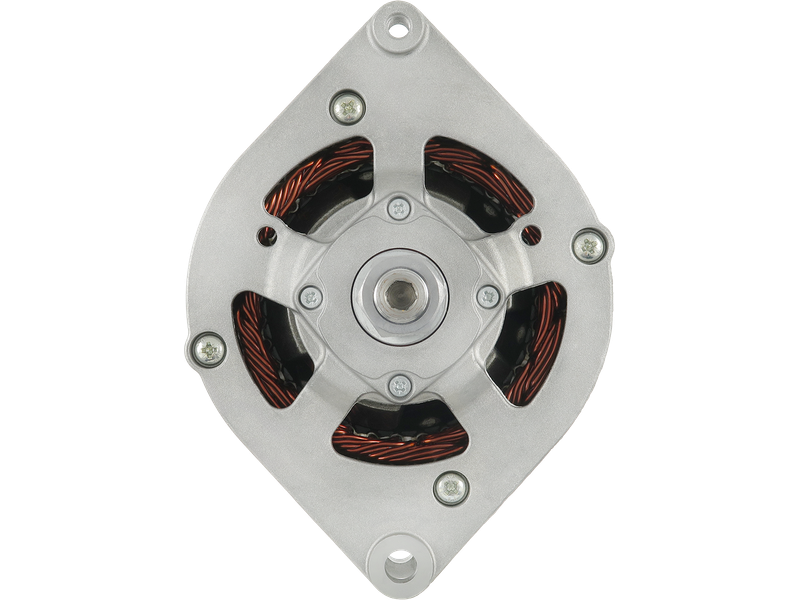

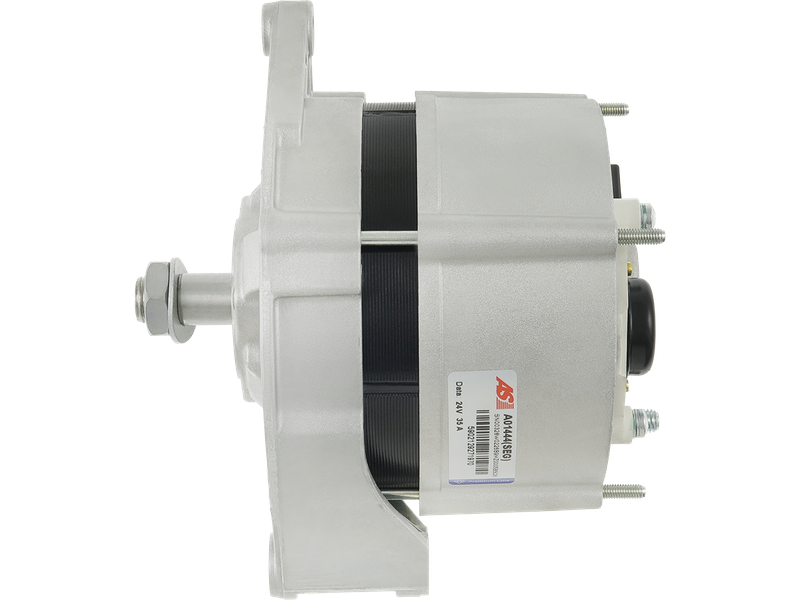

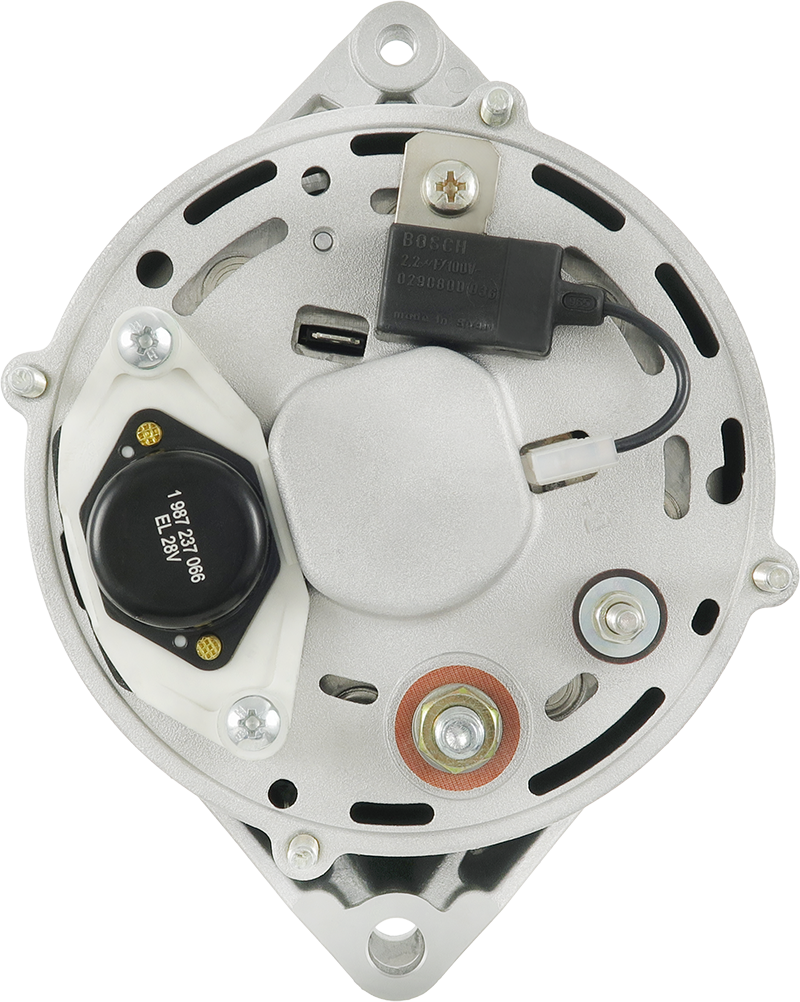

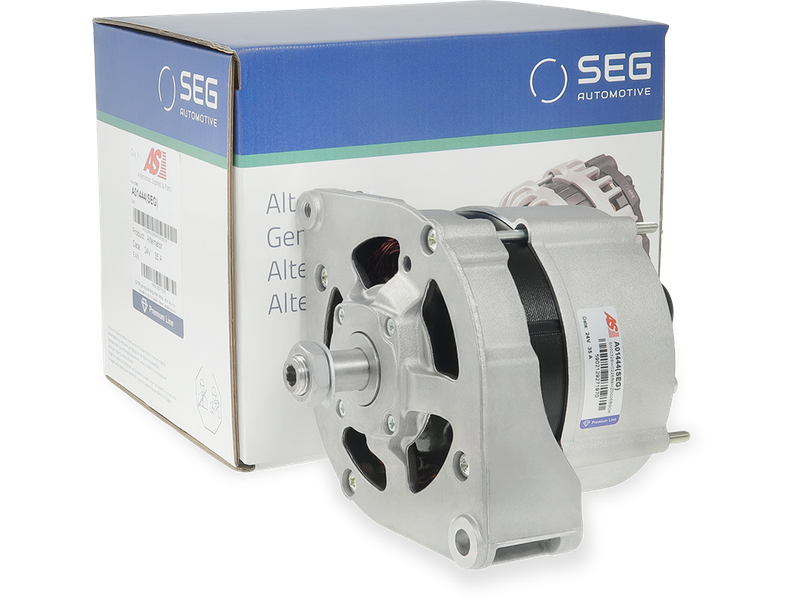

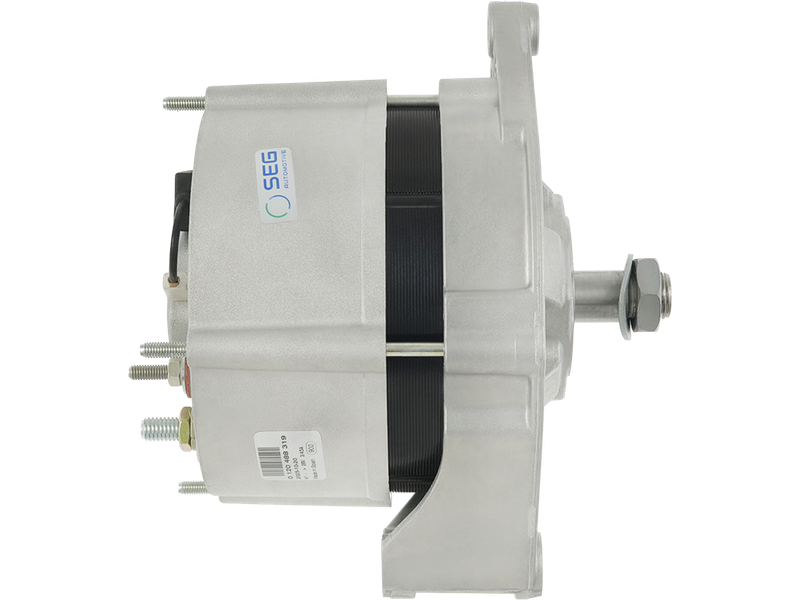

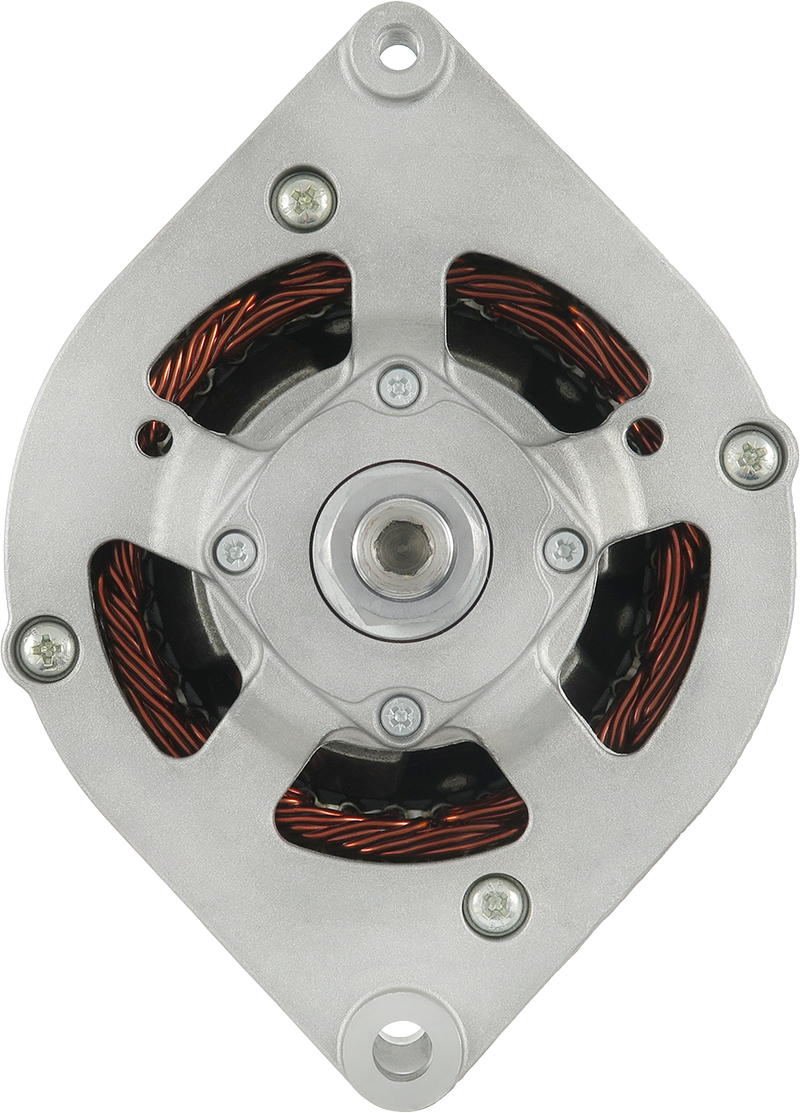

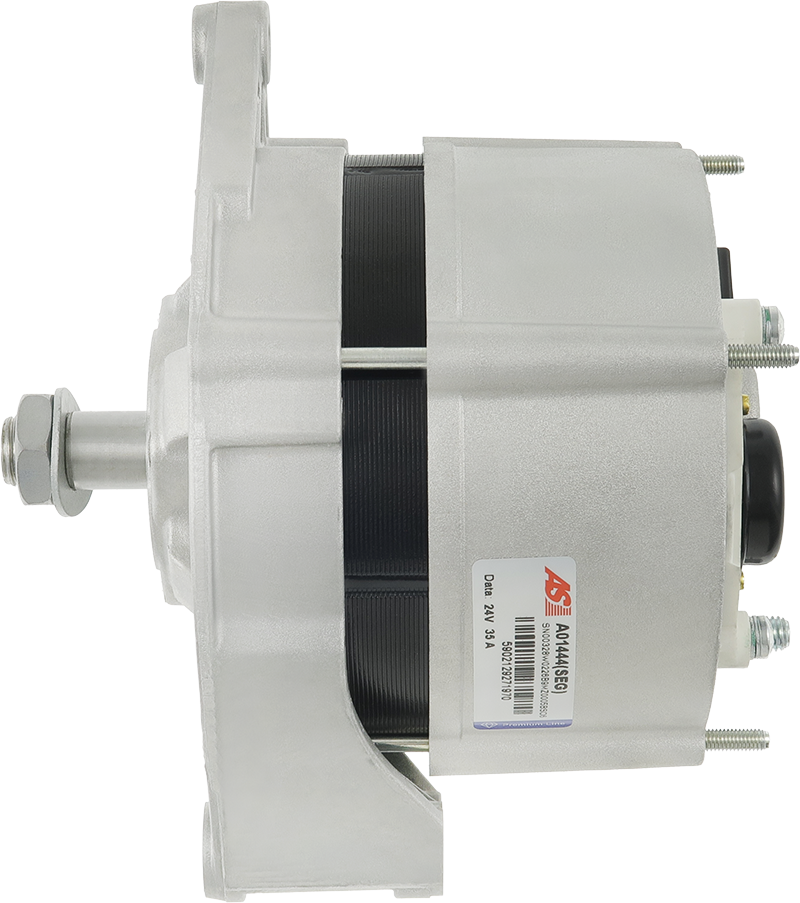

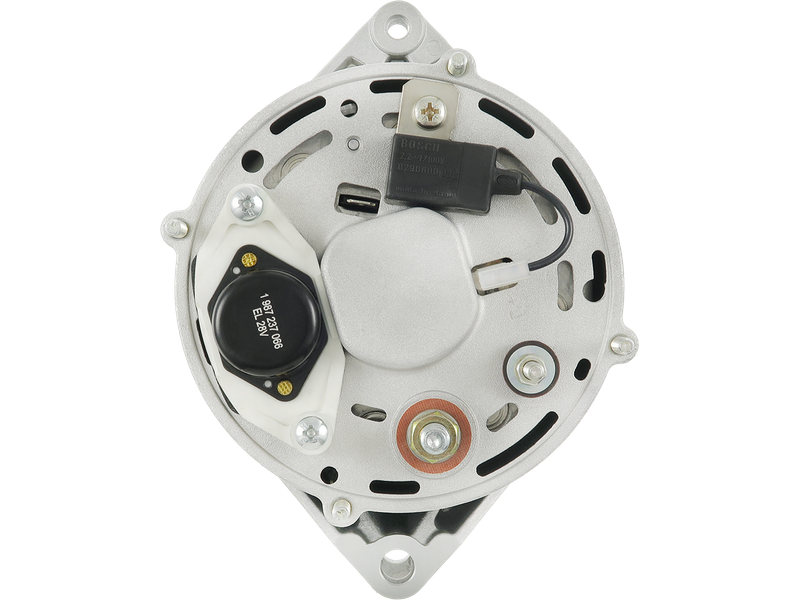

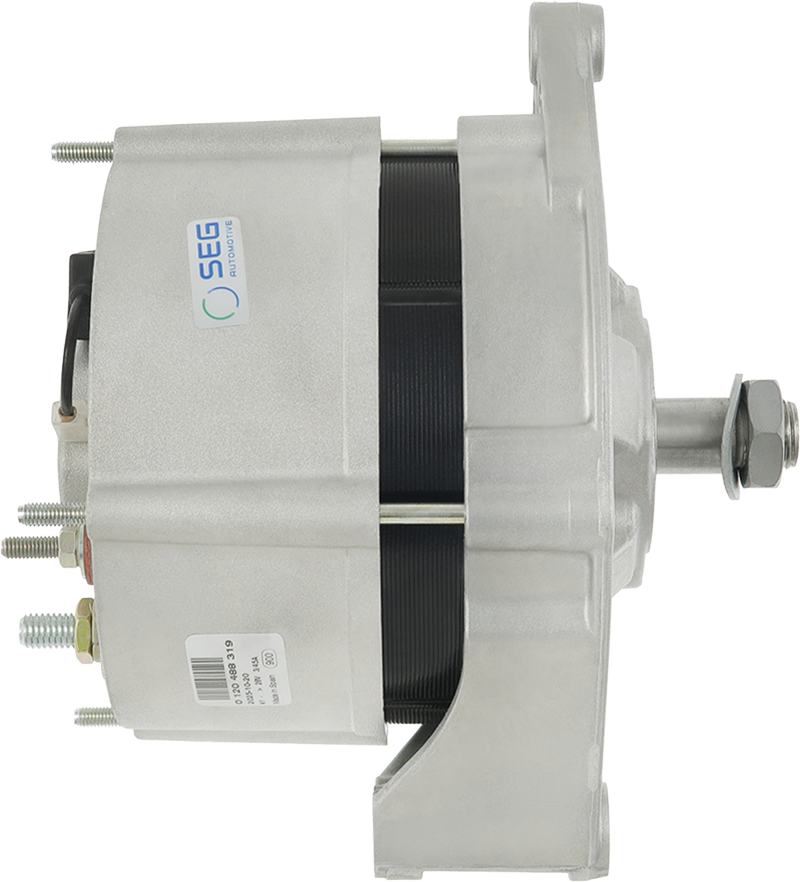

Brand new AS-PL Alternator
PREMIUM LINE
SEG Automotive
BOSCH
Price:
NZ$ 1,851.74 including GST
NZ$ 1,610.21 excluding GST
or four payments of $462.94
with
Learn More
UOM:
each
Product Code:
A01444(SEG)
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 45 A |
| Bottom Mounting Foot Width (B) | 51.00 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 168.00 mm |
| Plug Code | PL_9105 |
| Pulley Type | No Pulley |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BELL | 670CH 6.8 | 6068H | 01.1997-12.2007 |
| BELL | 770CH 8.1 | 6081H | 01.1997-12.2007 |
| CASE IH | 1085B 5.9 | 6T-590 | 01.1983-12.1990 |
| CASE IH | 1085C 5.9 | 6T-590 | 01.1990-12.1994 |
| CASE IH | 1086B 5.9 | 6T-590 | 01.1985-12.1994 |
| CASE IH | 1150E 5.9 | 6-590 | 01.1985-12.1989 |
| CASE IH | 1150E 8.3 | 6-830 | 01.1990-12.1996 |
| CASE IH | 1150G 5.9 | 6-590 | 01.1996-12.2000 |
| CASE IH | 1155E 5.9 | 6-590 | 01.1990-12.1994 |
| CASE IH | 1155E 8.3 | 6-830 | 01.1985-12.1989 |
| CASE IH | 1187C 8.3 | 6T-830 | 01.1989-12.1992 |
| CASE IH | 1187C 8.3 | 6T-830 | 01.1989-12.1992 |
| CASE IH | 170C 9.6 | BF6L513R | 01.1988-12.1991 |
| CASE IH | 455C 3.9 | 4-390 | 01.1983-12.1994 |
| CASE IH | 455C 3.9 | 4T-390 | 01.1983-12.1994 |
| CASE IH | 521D 3.9 | 4TA-390 | 01.2000-12.2002 |
| CASE IH | 621 5.9 | 6T-590 | 01.1987-12.1993 |
| CASE IH | 688 3.9 | 4T-390 | 01.1985-12.1993 |
| CASE IH | 721 8.3 | 6T-830 | 01.1989-12.1993 |
| CASE IH | 821 8.3 | 6T-830 | 01.1989-12.1993 |
| CASE IH | 850D 5.9 | 6-590 | 01.1984-12.1994 |
| CASE IH | 850E 5.9 | 6-590 | 01.1992-12.1994 |
| CASE IH | 850G 5.9 | 6-590 | 01.1994-12.2000 |
| CASE IH | 855D 5.9 | 6-590 | 01.1984-12.1994 |
| CASE IH | 855D 8.3 | 6-504 | 01.1987-12.1992 |
| CASE IH | 855E 5.9 | 6-590 | 01.1992-12.1996 |
| CASE IH | 888 5.9 | 6T-590 | 01.1987-12.1992 |
| CASE IH | 9010 3.9 | 4T-390 | 01.1993-12.1994 |
| CASE IH | 9010B 3.9 | 4TA-390 | 01.1995-12.2000 |
| CASE IH | 9020 3.9 | 4TA-390 | 01.1993-12.1994 |
| CASE IH | 9020B 3.9 | 4TA-390 | 01.1995-12.2000 |
| CASE IH | 9030 5.9 | 6T-590 | 01.1993-12.1994 |
| CASE IH | 9030B 5.9 | 6T-590 | 01.1995-12.2000 |
| CASE IH | 988 5.9 | 6T-590 | 01.1996-12.2006 |
| CASE IH | CX130 3.9 | 4TA-390 | 01.2000-12.2008 |
| CASE IH | CX160 3.9 | 4TA-390 | 01.2000-12.2006 |
| CASE IH | CX210 5.9 | 6TAA-5904 | 01.2000-12.2006 |
| CASE IH | CX210LR 5.9 | 6TAA-5904 | 01.2000-12.2006 |
| CASE IH | W11B 3.9 | 4-390 | 01.1984-12.1993 |
| CASE IH | W11B 3.9 | 4T-390 | 01.1984-12.1993 |
| CASE IH | W14B 5.9 | 6-590 | 01.1985-12.1989 |
| CASE IH | W14C 5.9 | 6-590 | 01.1989-12.1994 |
| CASE IH | W36 8.3 | A504BDTI | 01.1987-12.1988 |
| JOHN DEERE | 110 4.5 | 4045 | 01.1998-12.2003 |
| JOHN DEERE | 120 4.5 | 4045 | 01.1998-12.2003 |
| JOHN DEERE | 120C 4.5 | 4045 | 01.2002-12.2009 |
| JOHN DEERE | 160C LC 4.5 | 4045 | 01.2002-12.2008 |
| JOHN DEERE | 160LC 4.5 | 4045 | 01.1997-12.2003 |
| JOHN DEERE | 190E 3.9 | 4039 | 01.1993-12.1999 |
| JOHN DEERE | 200C LC 6.8 | 6068 | 01.2002-12.2008 |
| JOHN DEERE | 200LC 6.8 | 6068 | 01.1996-12.2002 |
| JOHN DEERE | 2054 6.8 | 6068 | 01.2002-12.2010 |
| JOHN DEERE | 230C LC 6.8 | 6068 | 01.2002-12.2007 |
| JOHN DEERE | 230C LC 6.8 | 6068 | 01.2002-12.2007 |
| JOHN DEERE | 230LC 6.8 | 6068 | 01.1997-12.2002 |
| JOHN DEERE | 230LCR 4.5 | 4045 | 01.1999-12.2003 |
| JOHN DEERE | 230LCR 6.8 | 6068 | 01.1999-12.2003 |
| JOHN DEERE | 230LCRD 4.5 | 4045 | 01.1999-12.2003 |
| JOHN DEERE | 230LCRD 6.8 | 6068 | 01.1999-12.2003 |
| JOHN DEERE | 2554 6.8 | 6068 | 01.2002-12.2009 |
| JOHN DEERE | 270C LC 6.8 | 6068 | 01.2002-12.2007 |
| JOHN DEERE | 270LC 6.8 | 6068 | 01.1997-12.2003 |
| JOHN DEERE | 330C LC 8.1 | 6081 | 01.2002-12.2007 |
| JOHN DEERE | 330LC 8.1 | 6081 | 01.1998-12.2002 |
| JOHN DEERE | 330LCR 8.1 | 6081 | 01.1993-12.2003 |
| JOHN DEERE | 344G 4.5 | 4045 | 01.1994-12.1998 |
| JOHN DEERE | 344H 4.5 | 4045 | 01.1998-12.2005 |
| JOHN DEERE | 3554 8.1 | 6081 | 01.2003-12.2009 |
| JOHN DEERE | 370 8.1 | 6081 | 01.1998-12.2002 |
| JOHN DEERE | 370C 8.1 | 6081 | 01.2002-12.2007 |
| JOHN DEERE | 444G 4.5 | 4045 | 01.1994-12.1997 |
| JOHN DEERE | 444H 4.5 | 4045 | 01.1997-12.2004 |
| JOHN DEERE | 450C LC 12.5 | 6125 | 01.2001-12.2007 |
| JOHN DEERE | 450LC 10.1 | 6101 | 01.1997-12.2002 |
| JOHN DEERE | 490E 4.5 | 4045 | 01.1992-12.1998 |
| JOHN DEERE | 570B 5.9 | 6059 | 01.1990-12.1998 |
| JOHN DEERE | 570B 5.9 | 6-359 | 01.1987-12.1990 |
| JOHN DEERE | 605C 4.5 | 4045 | 01.2006-12.2013 |
| JOHN DEERE | 643H 6.8 | 6068 | 01.2000-12.2006 |
| JOHN DEERE | 655B 6.8 | 6068 | 01.1990-12.1995 |
| JOHN DEERE | 655B 6.8 | 6-414 | 01.1985-12.1990 |
| JOHN DEERE | 670B 6.8 | 6068 | 01.1990-12.1997 |
| JOHN DEERE | 670B 6.8 | 6-414 | 01.1986-12.1990 |
| JOHN DEERE | 670C 6.8 | 6068 | 01.1997-12.2002 |
| JOHN DEERE | 670CH 6.8 | 6068 | 01.1997-12.2002 |
| JOHN DEERE | 670CH Series II 6.8 | 6068 | 01.2002-12.2006 |
| JOHN DEERE | 670C Series II 6.8 | 6068 | 01.2002-12.2006 |
| JOHN DEERE | 672B 6.8 | 6068 | 01.1990-12.1998 |
| JOHN DEERE | 672B 6.8 | 6-414 | 01.1986-12.1990 |
| JOHN DEERE | 672CH 6.8 | 6068 | 01.1997-12.2002 |
| JOHN DEERE | 672CH Series II 6.8 | 6068 | 01.2002-12.2006 |
| JOHN DEERE | 690E LC 6.8 | 6068 | 01.1991-12.1999 |
| JOHN DEERE | 750B 6.8 | 6068 | 01.1990-12.1996 |
| JOHN DEERE | 750B 6.8 | 6-414 | 01.1985-12.1990 |
| JOHN DEERE | 750C 6.8 | 6068 | 01.1995-12.2007 |
| JOHN DEERE | 750C-II 6.8 | 6068 | 01.2000-12.2006 |
| JOHN DEERE | 755B 6.8 | 6068 | 01.1990-12.1996 |
| JOHN DEERE | 755B 6.8 | 6-414 | 01.1985-12.1990 |
| JOHN DEERE | 770B 7.6 | 6076 | 01.1990-12.1997 |
| JOHN DEERE | 770B 7.6 | 6-466 | 01.1986-12.1990 |
| JOHN DEERE | 770BH 7.6 | 6076 | 01.1990-12.1997 |
| JOHN DEERE | 770BH 7.6 | 6-466 | 01.1986-12.1990 |
| JOHN DEERE | 770C 8.1 | 6081 | 01.1996-12.2002 |
| JOHN DEERE | 770CH 8.1 | 6081 | 01.1996-12.2002 |
| JOHN DEERE | 770CH Series II 8.1 | 6081 | 01.2002-12.2006 |
| JOHN DEERE | 770C Series II 8.1 | 6081 | 01.2002-12.2006 |
| JOHN DEERE | 772B 7.6 | 6076 | 01.1990-12.1997 |
| JOHN DEERE | 772B 7.6 | 6-466 | 01.1986-12.1990 |
| JOHN DEERE | 772BH 7.6 | 6076 | 01.1990-12.1997 |
| JOHN DEERE | 772BH 7.6 | 6-466 | 01.1986-12.1990 |
| JOHN DEERE | 772CH 8.1 | 6081 | 01.1997-12.2002 |
| JOHN DEERE | 772CH Series II 8.1 | 6081 | 01.2002-12.2006 |
| JOHN DEERE | 790D 7.6 | 6-466 | 01.1987-12.1993 |
| JOHN DEERE | 790E LC 6.8 | 6068 | 01.1992-12.1998 |
| JOHN DEERE | 792 7.6 | 6-466 | 01.1984-12.1988 |
| JOHN DEERE | 792D LC 7.6 | 6076 | 01.1995-12.1998 |
| JOHN DEERE | 843H 6.8 | 6068 | 01.2000-12.2006 |
| JOHN DEERE | 844 10.1 | 6101 | 01.1978-12.1990 |
| JOHN DEERE | 850B 7.6 | 6076 | 01.1990-12.1996 |
| JOHN DEERE | 850C 7.6 | 6076 | 01.1995-12.2006 |
| JOHN DEERE | 850C 8.1 | 6081 | 01.1995-12.2006 |
| JOHN DEERE | 850C-II 8.1 | 6081 | 01.2000-12.2006 |
| JOHN DEERE | 892E LC 7.6 | 6076 | 01.1993-12.1999 |
| JOHN DEERE | 990 10.1 | 6101 | 01.1981-12.1988 |
| JOHN DEERE | 992E LC 10.1 | 6101 | 01.1994-12.1998 |
| KOMATSU | D41A 5.9 | 6D102 | 09.1995-12.2005 |
| KOMATSU | D41A-6 5.9 | 6D102 | 01.1996-12.2001 |
| KOMATSU | D41E 5.9 | 6D102 | 01.1995-12.2005 |
| KOMATSU | D41E-6 5.9 | S6D102E | 01.1996-12.2001 |
| KOMATSU | D41E-6T 5.9 | S6D102E | 01.2001-12.2007 |
| KOMATSU | D41P 5.9 | 6D102 | 01.1995-12.2005 |
| KOMATSU | D41P-6 5.9 | S6D102E | 01.1996-12.2009 |
| KOMATSU | D61E-12 8.3 | S6D114E | 01.2000-12.2002 |
| KOMATSU | D61P-12 8.3 | S6D114E | 01.2000-12.2002 |
| KOMATSU | D61PX-12 8.3 | S6D114E | 01.2003-12.2007 |
| KOMATSU | PC150-6K 3.9 | SA4D102E | 01.1999-12.2004 |
| KOMATSU | PC150LC-6K 3.9 | SA4D102E | 01.1999-12.2004 |
| KOMATSU | PC160-6K 3.9 | SA4D102E | 01.1997-12.2004 |
| KOMATSU | PC180LC-6K 3.9 | SAA4D102E | 01.1999-12.2004 |
| KOMATSU | PC200-6B 5.9 | S6D102E | 01.1994-12.2004 |
| KOMATSU | PC200LC-6B 5.9 | S6D102E | 01.1994-12.2004 |
| KOMATSU | PC210-6K 5.9 | S6D102E | 01.1997-12.2004 |
| KOMATSU | PC210LC-6K 5.9 | S6D102E | 01.1997-12.2004 |
| KOMATSU | PC240LC-6K 5.9 | SA6D102E | 01.1997-12.2004 |
| KOMATSU | PC290LC-6K 5.9 | SA6D102E | 01.1997-12.2004 |
| KOMATSU | PC340LC-6K 8.3 | SA6D114E | 01.1996-12.2002 |
| KOMATSU | PC450LC-6K 10.8 | MTA11 | 01.1997-12.2004 |
| KOMATSU | PW160-7 3.9 | SAA4D102E | 01.2004-12.2013 |
| KOMATSU | PW170ES-6K 3.9 | SA4D102E | 01.1997-12.2004 |
| KOMATSU | PW170ES-6K 3.9 | SAA4D102E | 01.1997-12.2004 |
| KOMATSU | PW180-7K 5.9 | SAA6D102E | 01.2004-12.2012 |
| KOMATSU | PW200-7 5.9 | SAA6D102E | 01.2004-12.2012 |
| KOMATSU | PW200-7K 5.9 | SAA6D102E | 01.2004-12.2012 |
| KOMATSU | PW220-7K 5.9 | SAA6D102E | 01.2004-12.2012 |
| TIMBERJACK | 740 6.8 | 6068 | 01.2000-12.2007 |
Reference Information
| 0120488294 | BOSCH |
| 0120488319 | BOSCH |
| 0120488323 | BOSCH |
| 063534882060 | MAGNETI MARELLI |
| 0986043257 | BOSCH |
| 112170 | CARGO |
| 119323 | FARCOM |
| 12148N | WAI |
| 12148R | WAI |
| 1-2518-41BO | WAI |
| 20010642AV | ITAB AUTOMOTIVE |
| 20010642OV | ITAB AUTOMOTIVE |
| 20101246BN | REAL |
| 20101246OE | REAL |
| 2010642.0 | SANDO |
| 2010642.1 | SANDO |
| 209020 | ERA |
| 2359 | CEVAM |
| 400-24077 | J&N |
| 48-3684 | ELSTOCK |
| 48-3684CT | AINDE |
| 585104454 | DRI |
| 63534882060 | MAGNETI MARELLI |
| 706.005.045.010 | WAI |
| 706.005.045.281 | WAI |
| 706.005.045.440 | WAI |
| 75887 | EAI |
| 90-15-6237 | WILSON |
| 90-15-6237N | WILSON |
| ABO642 | AUTOTEAM |
| ABO642A | AUTOTEAM |
| AG2057 | GHIBAUDI |
| AG2057RB | GHIBAUDI |
| ALT126420 | SIOM |
| ALT126420A | SIOM |
| ALT1554NP | ELECTROLOG |
| BREF032112170 | CARWOOD GROUP |
| CAL10642AS | CASCO |
| CAL10642GS | CASCO |
| CGB-10536 | AINDE |
| F032112170 | CARGO |
| LEA0081 | LE PART |
| LRA02495 | LUCAS |
| LRA2495 | LUCAS |
| MAN2014 | MAGNETI MARELLI |
| SE501341 | JOHN DEERE |
| UD04517(SEG)A | AS-PL |
