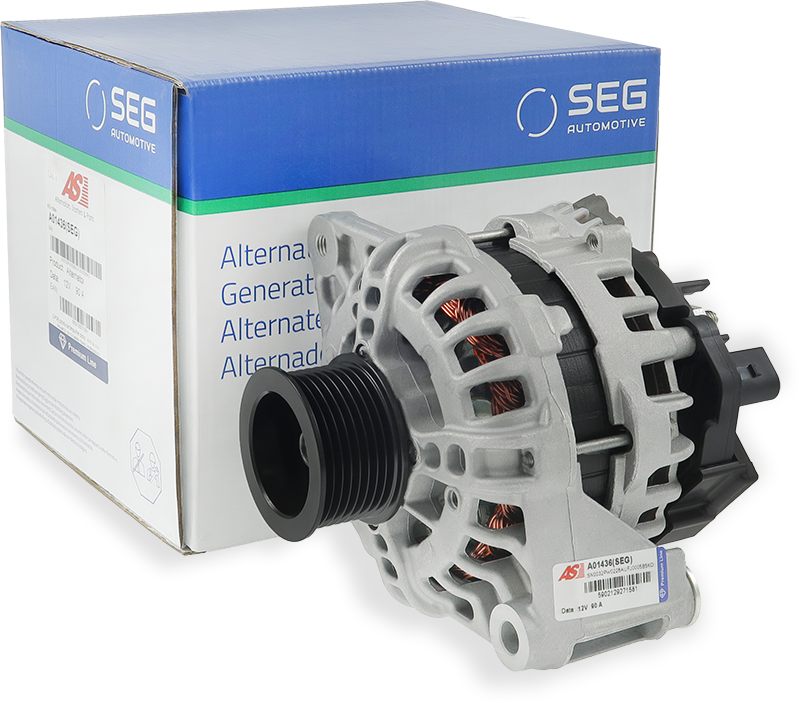

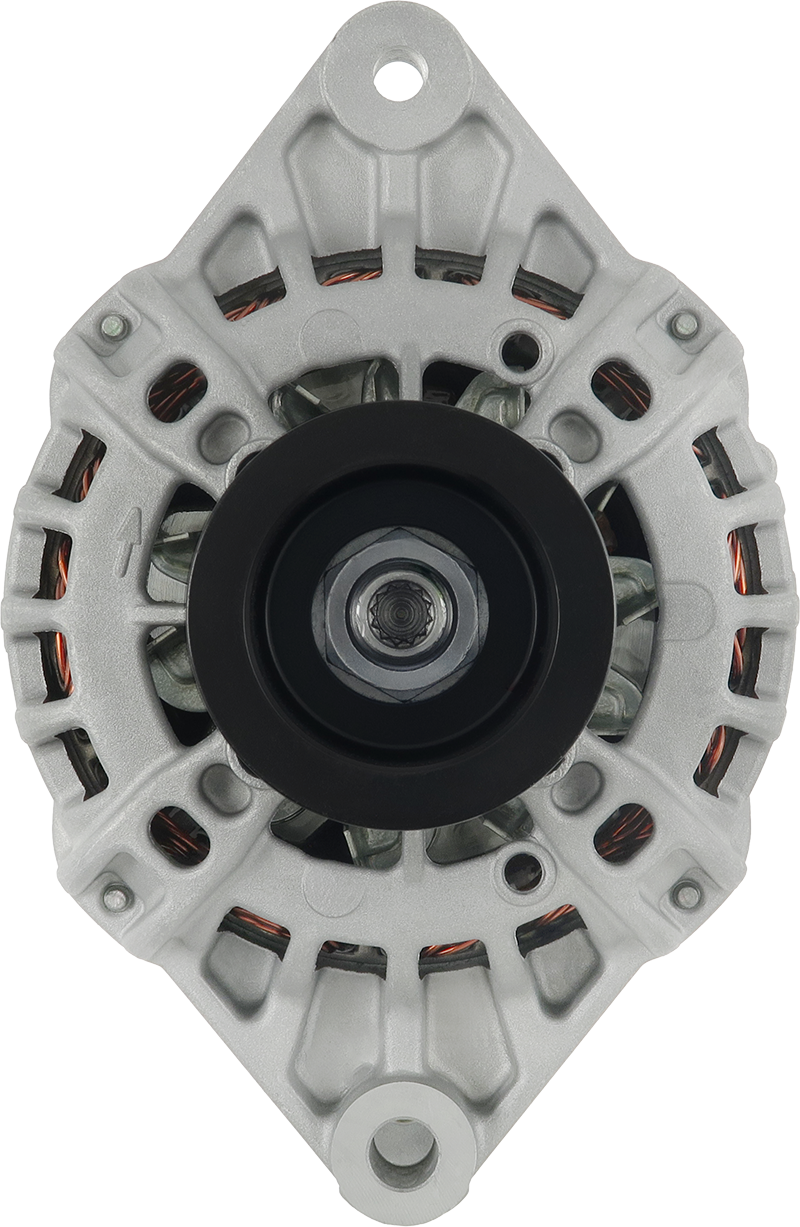

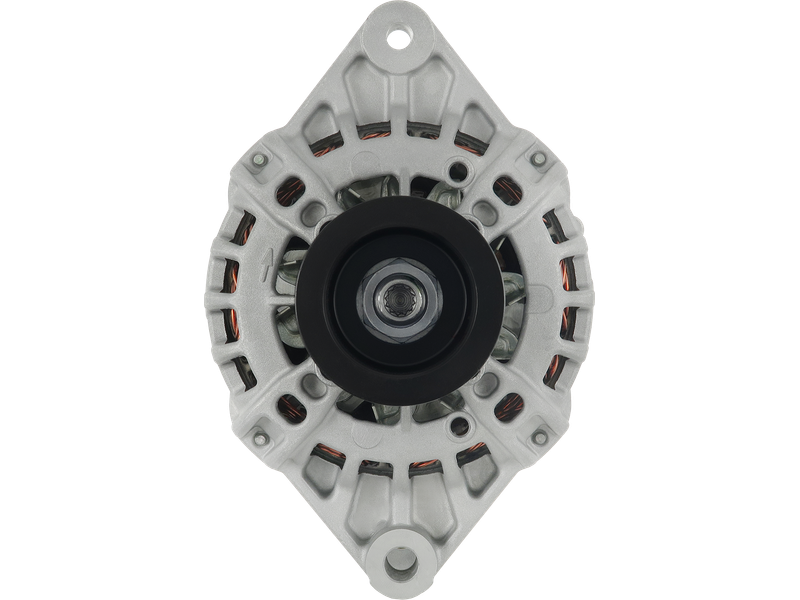

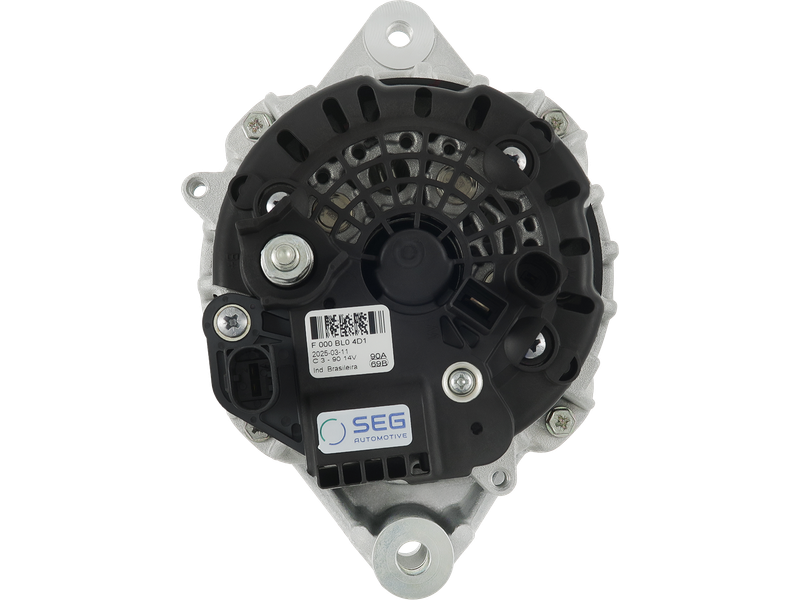

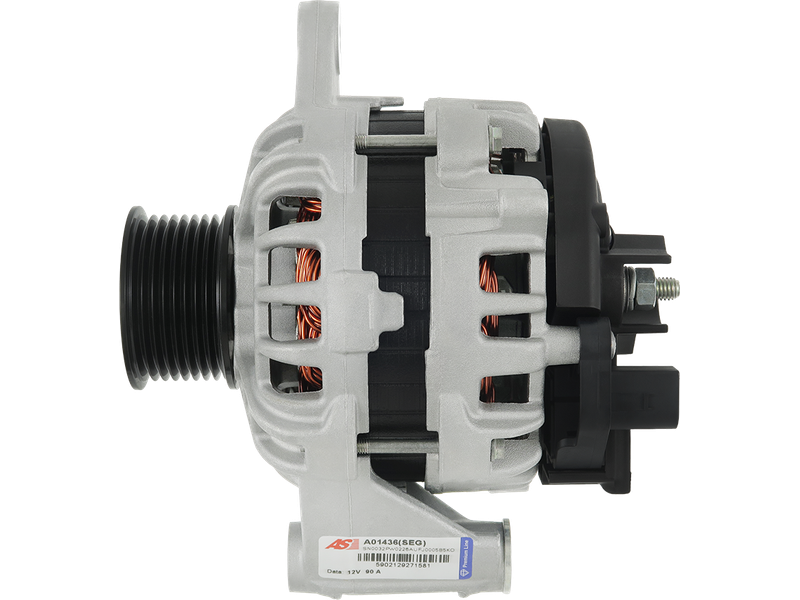

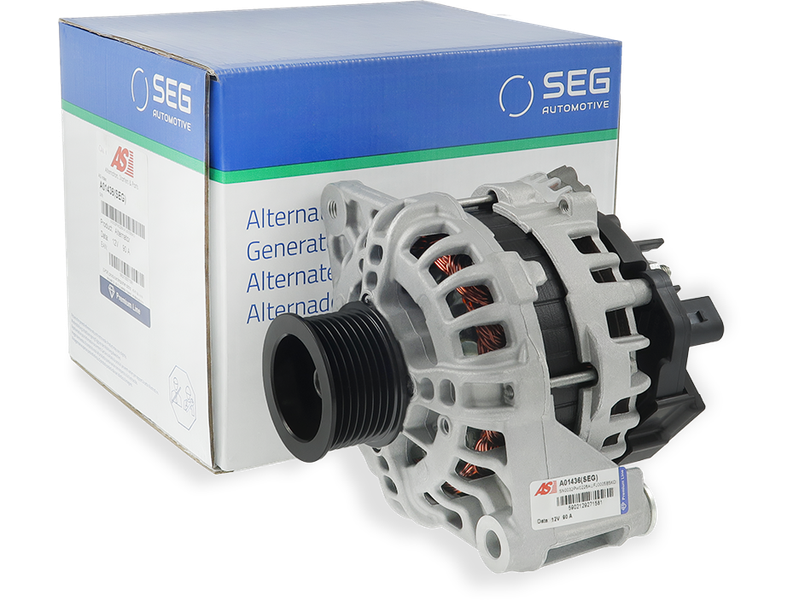

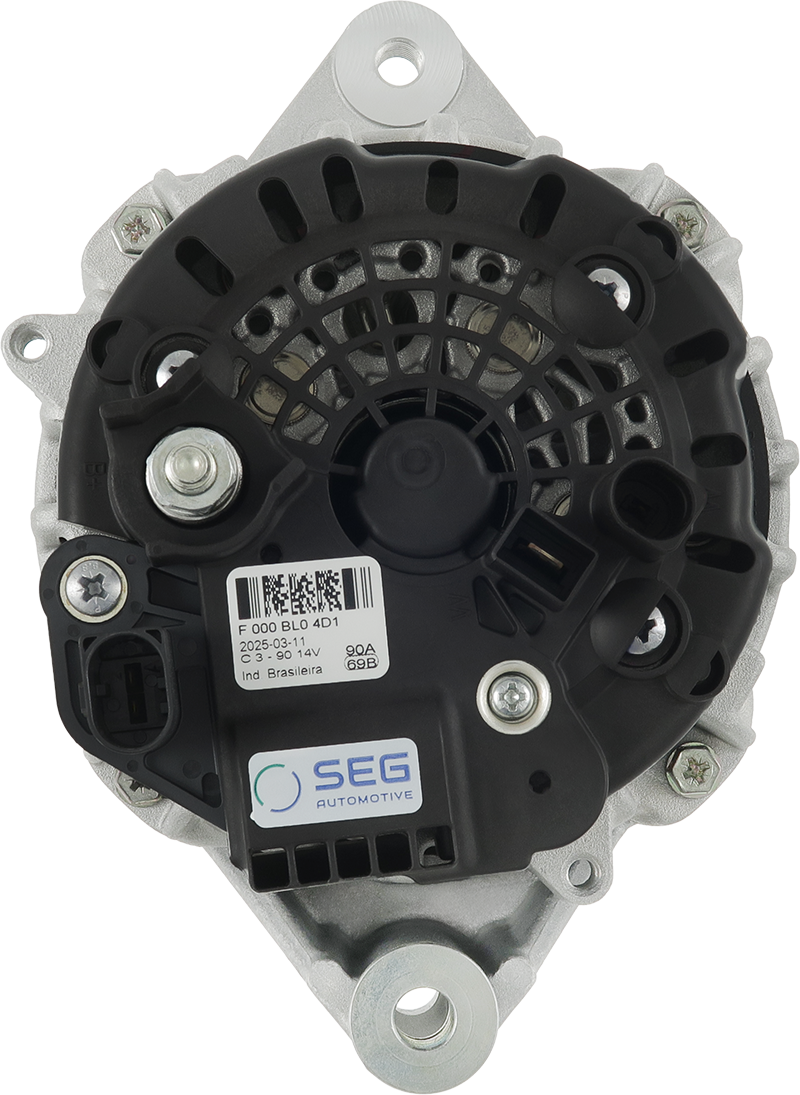

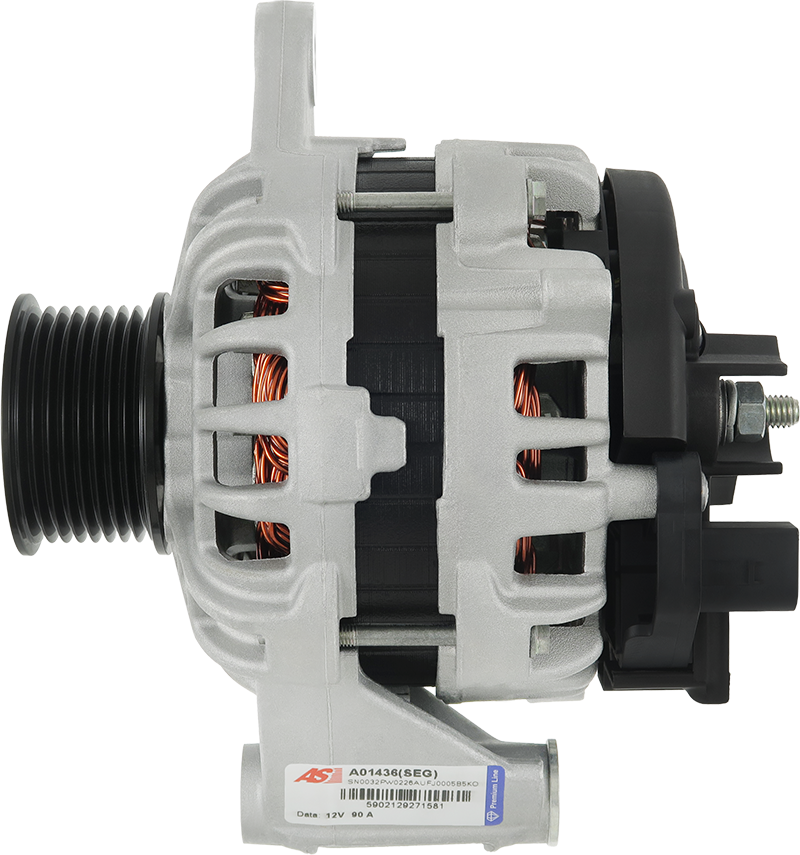

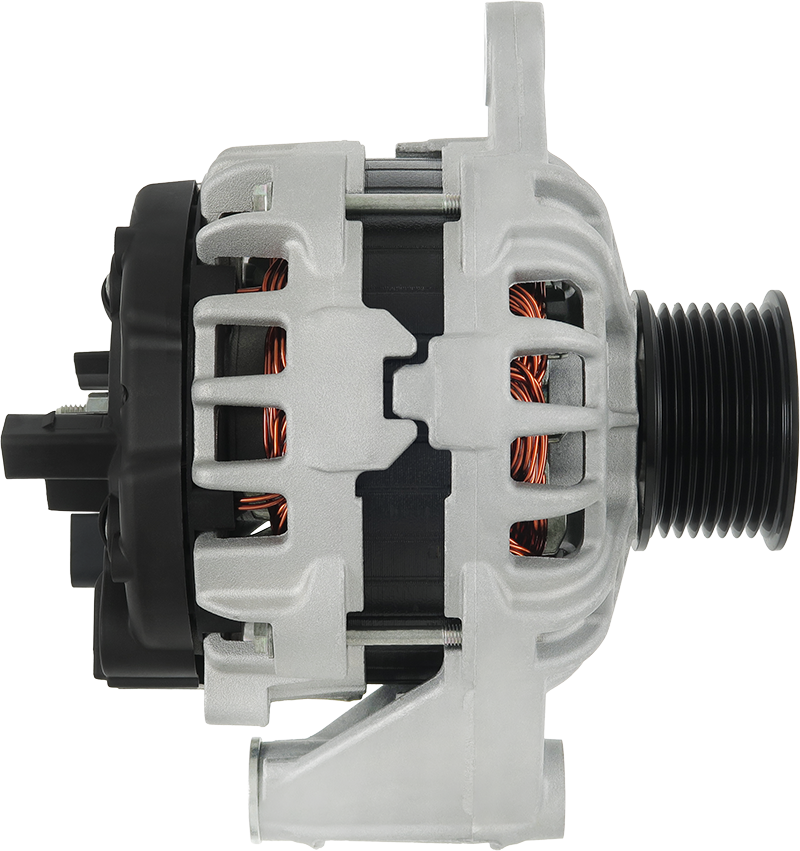

Brand new AS-PL Alternator
PREMIUM LINE
SEG Automotive
BOSCH
Price:
NZ$ 1,086.61 including GST
NZ$ 944.88 excluding GST
or four payments of $271.65
with
Learn More
Product Code:
A01436(SEG)
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 76.00 mm |
| Diameter (D.1) | M10x1.5 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 183.00 mm |
| Plug Code | PL_2300 |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.2) | 58.00 mm |
| Pulley to Mount Distance (A) | 99.50 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | WORKER 13.180 | 6.10TCA | 09.2005- |
| VW | WORKER 15.180 | 6.10TCA | 07.2005-12.2013 |
| VW | WORKER 17.180 | 6.10TCA | 09.2005- |
| VW | WORKER 8.120 | 4.10TCA | 09.2005- |
Reference Information
| 032088 | DA SILVA |
| 305.327.090.280 | WAI |
| 557301RI | KUHNER |
| 7005607C1 | MWM |
| F000BL04D1 | BOSCH |
| F000BL04D2 | BOSCH |
| G103971 | BTS TURBO |
| UD05129(SEG)A | AS-PL |
