Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 802.47 including GST
NZ$ 697.80 excluding GST
or four payments of $200.62
with
Learn More
Product Code:
A01434S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

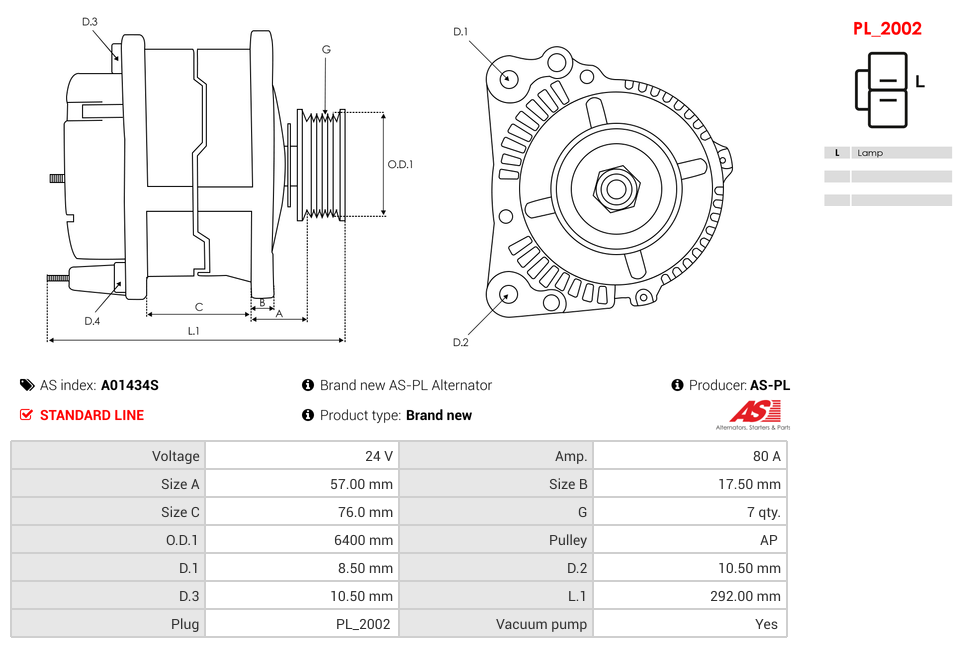

Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 17.50 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 292.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 76.0 mm |
| Plug Code | PL_2002 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.2) | 6400 mm |
| Pulley to Mount Distance (A) | 57.00 mm |
| Pulley Type | Solid |
| Vacuum Pump | Yes |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | NPR75K 5.2 | 4HK1 | - |
| ISUZU | NQR90 5.2 | 4HK1 | - |
Reference Information
| 033522 | DA SILVA |
| 136.516.080.010 | WAI |
| 136.516.080.281 | WAI |
| 20101908OE | REAL |
| 2010809.1 | SANDO |
| 557045RIS | KUHNER |
| 8975129141 | ISUZU |
| ALB4605 | KRAUF |
| ALT128090 | SIOM |
| CAL10809GS | CASCO |
| F000BV0807 | BOSCH |
| F000BV0815 | BOSCH |
| G104112 | BTS TURBO |
| UD104586A | AS-PL |
