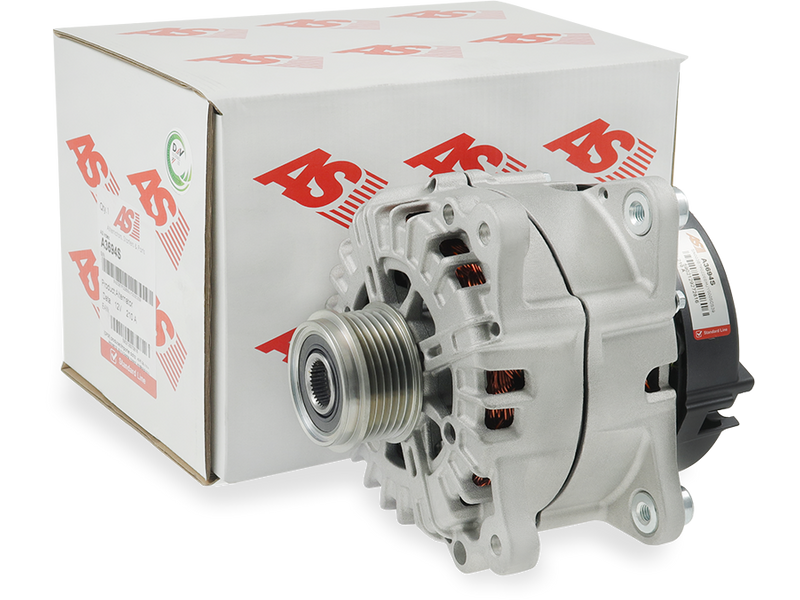

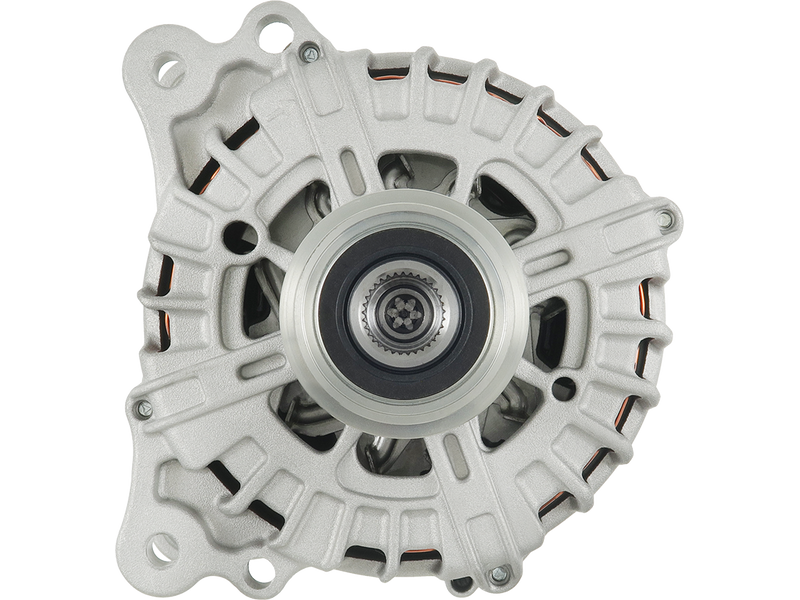

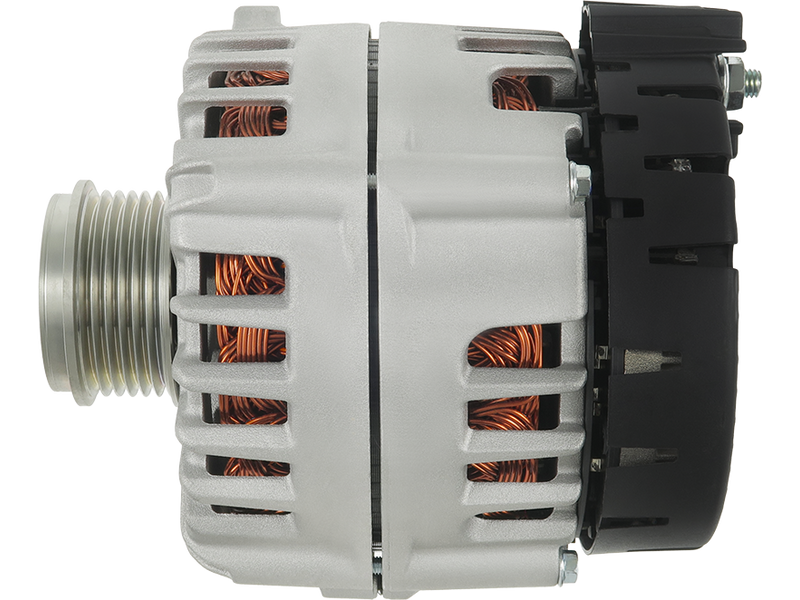

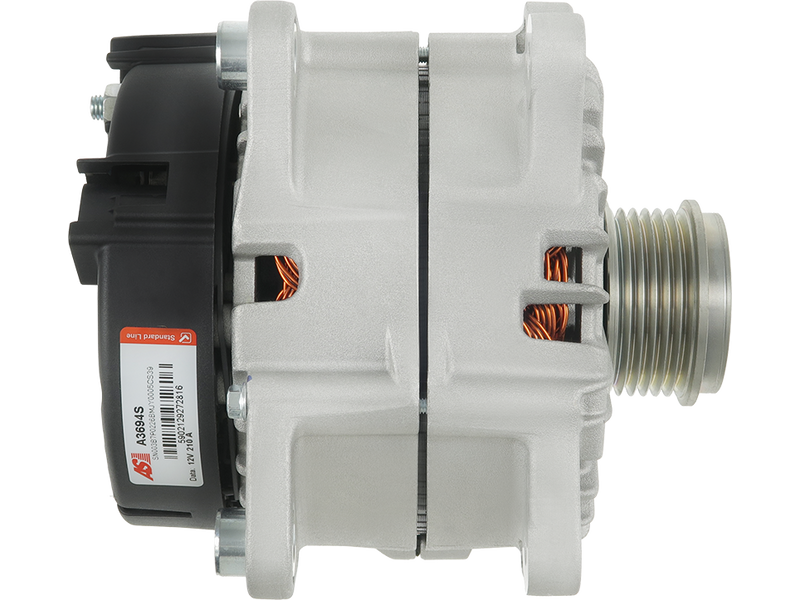

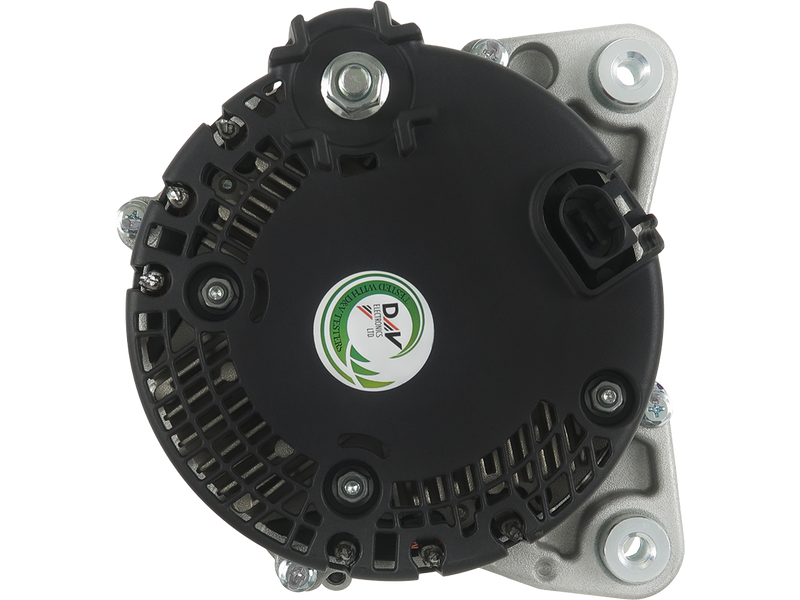

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 1,209.67 including GST
NZ$ 1,051.89 excluding GST
or four payments of $302.42
with
Learn More
UOM:
each
Alternative Item:
A3496(VALEO),AAM-C6291,A61013S
Product Code:
A3694S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
Associated Numbers
059903024B Volkswagen AG 059903024BX 059903024j 20834N WAI 21742N 21742NOE 305941210 PSH 439978 Valeo 440751 619998 DRA1912 Delco Remy EG21S012 LRA04192 Lucas LRA4192 VAL439978 Wood Auto eg21s016 47-640 UD104636A AS-PL 104210-6680 DENSO List 104210-6681 List 2619998A VALEO List EG21S016 VW 059903024E 059903024EX 059903024F 059903024FX 59903024B 59903024BX 20-1000 AIRSTAL ANM100023 ANDEL AEG1452 AUTOELECTRO G103835 BTS TURBO CAL15A52AS CASCO CAL15A52GS 40282 CEVAM 031438 DA SILVA 2115492102 DRI 57926 EAI ALT00987 ELECTROLOG 28-7801 ELSTOCK 12090836 EUROTEC 9091146 FRIESEN 3117679 HENKEL PARTS 3117680 20015A52OV ITAB AUTOMOTIVE 554714RI KUHNER 554714RIV LUCAS IR5263 PROTECH 2017925AOE REAL 2015A52.1 SANDO AU8102 SNRA 926ST75 STARTCAR AL03724 TMI 831029069 TRISCAN 305.941.210.000 305.941.210.004 305.941.210.440 305.941.210.500 305.941.210.505 A146.795 WAL02060 WALKER WG2471751 WILMINK GROUP WOODAUTOSpecifications

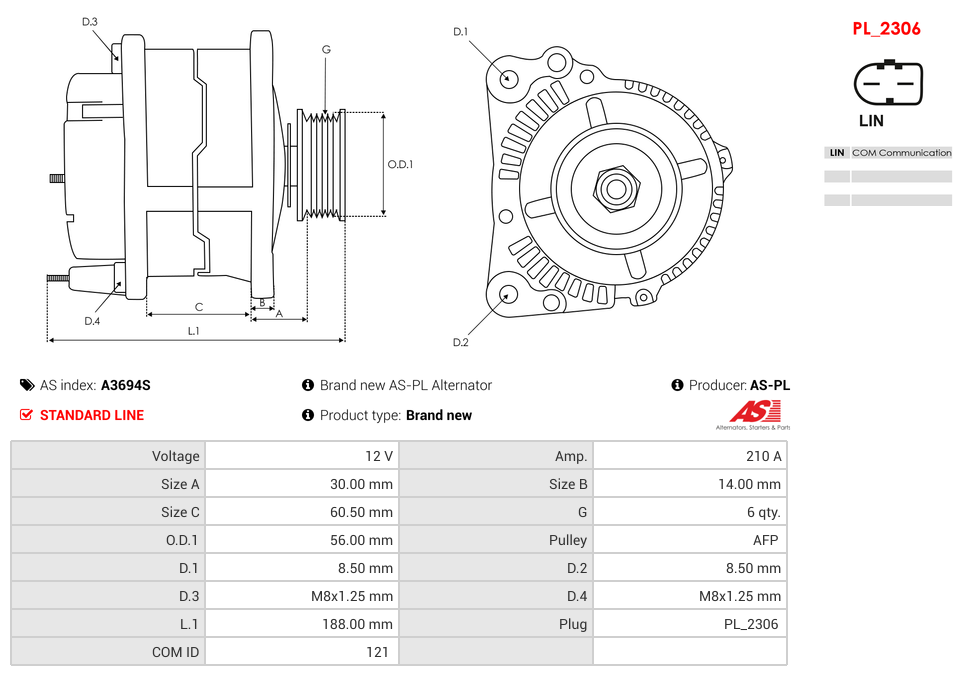

If you are looking to replace an EG21S018 / 443589 you can use this alternator but YOU MUST change the pulley to the AFP0010(INA)
| Amp | 210 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 188.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.50 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 56.00 mm |
| Pulley to Mount Distance (A) | 30.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | Q7 (4MB, 4MG, 4MQ) 3.0 TDI quattro | CRTC | 01.2015-12.2019 |
| AUDI | Q7 (4MB, 4MG, 4MQ) 3.0 TDI quattro | CRTE | 05.2015-12.2019 |
| AUDI | Q7 (4MB, 4MG, 4MQ) 3.0 TDI quattro | CUEA | 08.2015-12.2019 |
| AUDI | Q7 (4MB, 4MG, 4MQ) 3.0 TDI quattro | CVMD | 06.2015-12.2019 |
| AUDI | Q7 (4MB, 4MG, 4MQ) 3.0 TDI quattro | CZZA | 05.2015-12.2019 |
| AUDI | Q7 (4MB, 4MG, 4MQ) 3.0 TDI quattro | CZZB | 08.2015-12.2019 |
| AUDI | Q7 (4MB, 4MG, 4MQ) 45 TDI quattro | CVMD | 07.2019- |
| AUDI | Q7 Van (4MB, 4MG) 3.0 TDI quattro | CRTC | 01.2015-12.2019 |
| AUDI | Q7 Van (4MB, 4MG) 3.0 TDI quattro | CZZA | 08.2015-12.2019 |
| AUDI | Q7 Van (4MB, 4MG) 3.0 TDI quattro | CZZB | 08.2015-12.2019 |
| VW | TOUAREG (CR7, RC8) 3.0 TDI 4motion | CVMD | 01.2018-11.2023 |
| VW | TOUAREG (CR7, RC8) 3.0 TDI 4motion | DENA | 11.2017- |
| VW | TOUAREG (CR7, RC8) 3.0 TDI 4motion | DEND | 05.2018- |
| VW | TOUAREG (CR7, RC8) 3.0 TDI 4motion | DPYC | 05.2018- |
| VW | TOUAREG (CR7, RC8) 3.0 TDI 4motion | DPYD | 11.2017- |
Reference Information
| 031438 | DA SILVA |
| 059903024B | VW |
| 059903024BX | VW |
| 059903024E | VW |
| 059903024EX | VW |
| 059903024F | VW |
| 059903024FX | VW |
| 104210-6680 | DENSO |
| 104210-6681 | DENSO |
| 12090836 | EUROTEC |
| 20015A52OV | ITAB AUTOMOTIVE |
| 20-1000 | AIRSTAL |
| 2015A52.1 | SANDO |
| 2017925AOE | REAL |
| 2115492102 | DRI |
| 2619998A | VALEO |
| 28-7801 | ELSTOCK |
| 305.941.210.000 | WAI |
| 305.941.210.004 | WAI |
| 305.941.210.440 | WAI |
| 305.941.210.500 | WAI |
| 305.941.210.505 | WAI |
| 3117679 | HENKEL PARTS |
| 3117680 | HENKEL PARTS |
| 40282 | CEVAM |
| 439978 | VALEO |
| 440751 | VALEO |
| 554714RI | KUHNER |
| 554714RIV | KUHNER |
| 57926 | EAI |
| 59903024B | VW |
| 59903024BX | VW |
| 619998 | VALEO |
| 831029069 | TRISCAN |
| 9091146 | FRIESEN |
| 926ST75 | STARTCAR |
| A146.795 | WAI |
| AEG1452 | AUTOELECTRO |
| AL03724 | TMI |
| ALT00987 | ELECTROLOG |
| ANM100023 | ANDEL |
| AU8102 | SNRA |
| CAL15A52AS | CASCO |
| CAL15A52GS | CASCO |
| EG21S012 | VALEO |
| EG21S016 | VALEO |
| G103835 | BTS TURBO |
| IR5263 | PROTECH |
| LRA04192 | LUCAS |
| LRA4192 | LUCAS |
| UD104636A | AS-PL |
| VAL439978 | WOODAUTO |
| WAL02060 | WALKER |
| WG2471751 | WILMINK GROUP |
