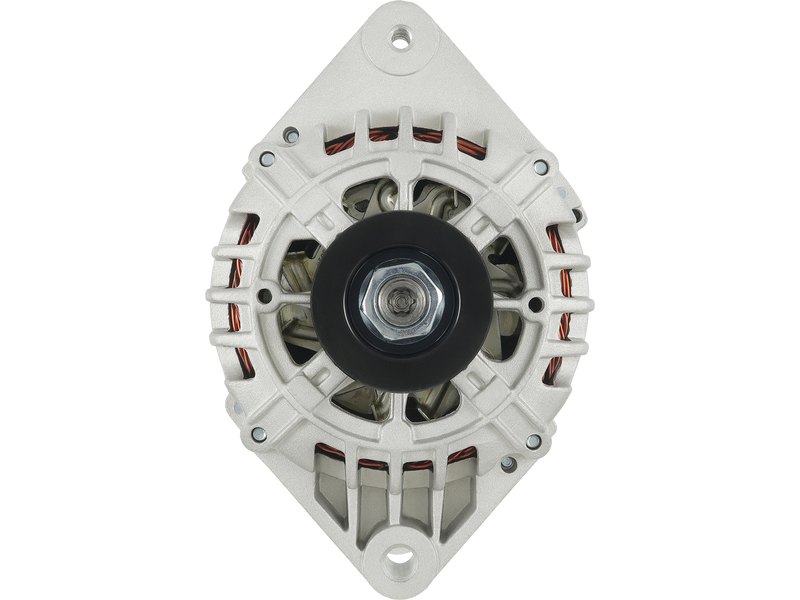

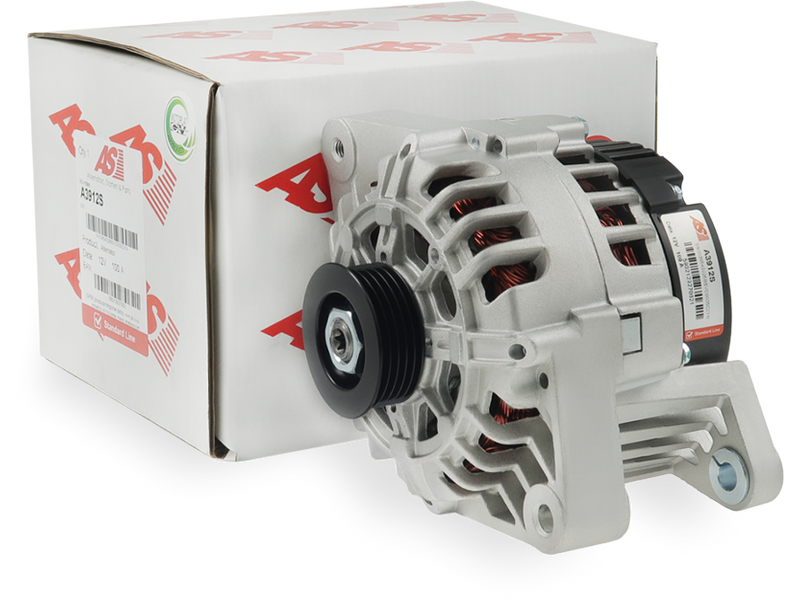

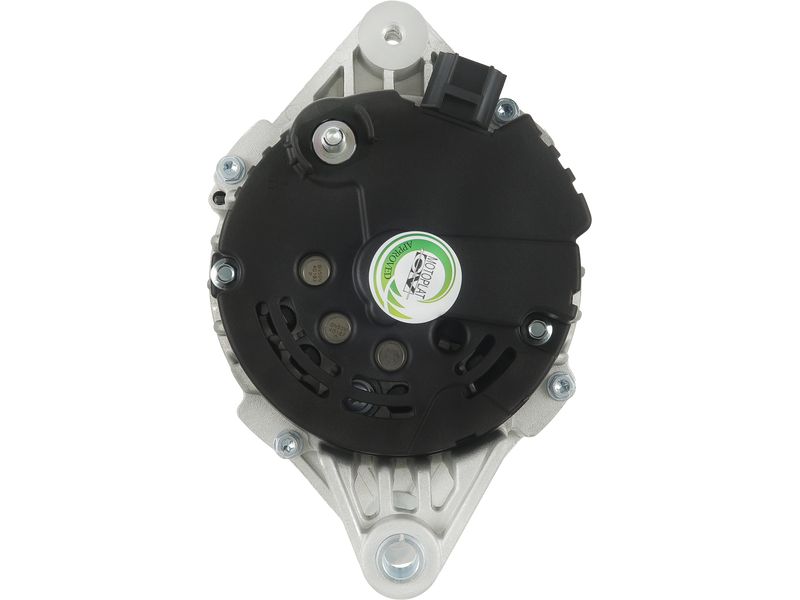

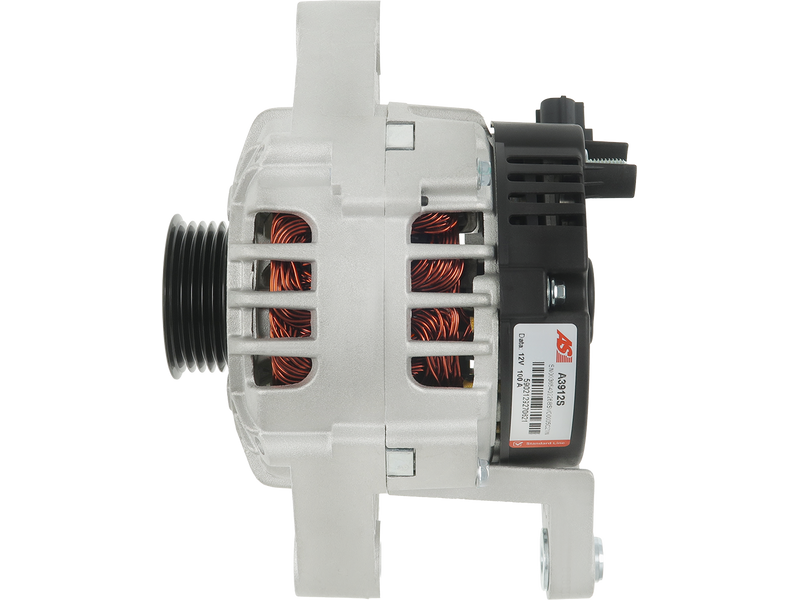

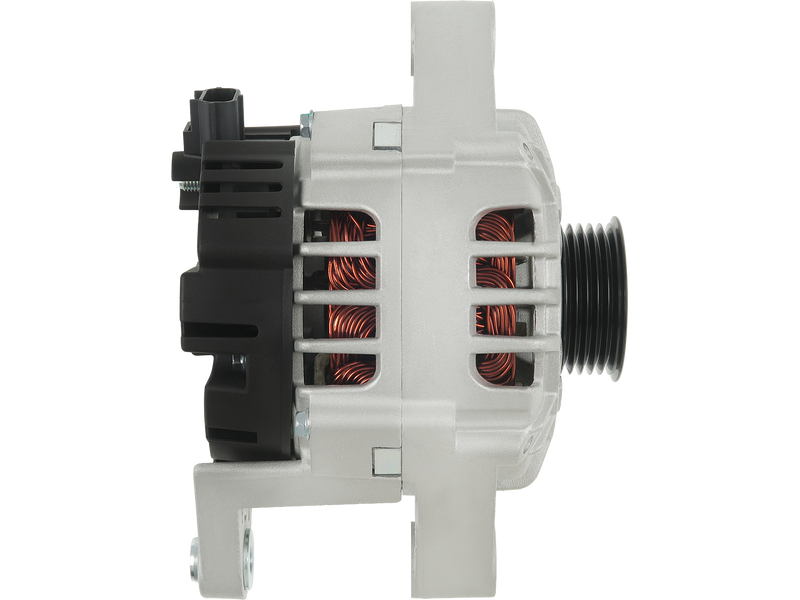

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 558.14 including GST
NZ$ 485.34 excluding GST
or four payments of $139.54
with
Learn More
Product Code:
A3912S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 30.00 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.00 mm |
| Diameter (D.3) | 11.00 mm |
| Length (L.1) | 159.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56.50 mm |
| Plug Code | PL_3417 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 54.00 mm |
| Pulley to Mount Distance (A) | 54.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | MERIVA 1.8 Flex (75) | LMD(110CUL4) | 09.2005-07.2012 |
| CHEVROLET | MONTANA Pickup 1.8 Flexpower (80) | LMD(110CUL4) | 09.2005-09.2010 |
| FIAT | DOBLO MPV (119_, 223_) 1.8 Flex | 93313090-7U | 02.2006-12.2010 |
| FIAT | IDEA (350_) 1.8 Flex | 93313090-7U | 09.2005-07.2010 |
| FIAT | IDEA (350_) 1.8 Flex | 93313090-7U | 09.2005-07.2010 |
| FIAT | PALIO (178_, 171_, 371_) 1.8 Flex | 93313090-7U | 05.2006-07.2010 |
| FIAT | PUNTO (188_) 1.8 Flex | 370A0.011 | 07.2010-07.2012 |
| FIAT | PUNTO (199_) 1.8 Flex | 370A0.011 | 08.2012-12.2017 |
| FIAT | STILO (192_) 1.8 Flex | 93337154-J1 | 10.2005-11.2010 |
| FIAT | STRADA Pickup (178_, 278_) 1.8 Flex | 93313090-H2 | 08.2005-07.2010 |
Reference Information
| 2220240 | VALEO |
| 517608520 | FIAT |
| SG9B083 | VALEO |
| UD103668A | AS-PL |
