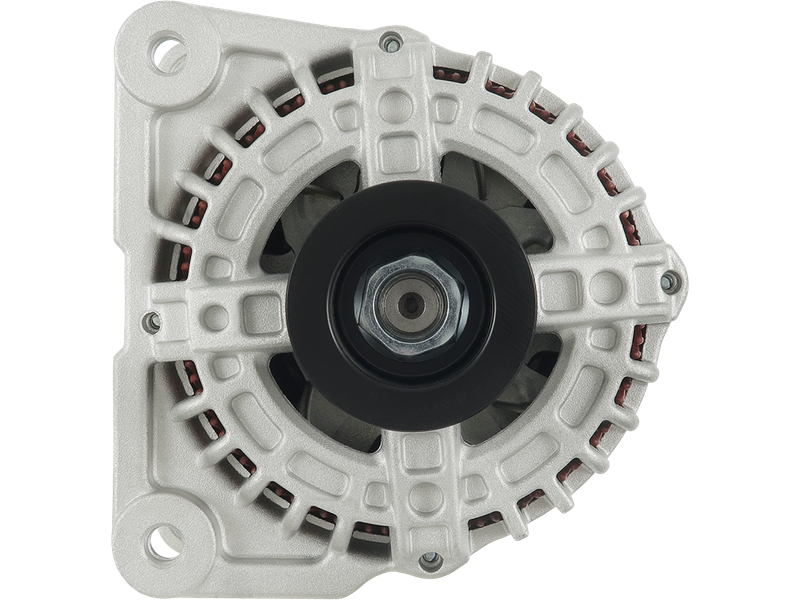

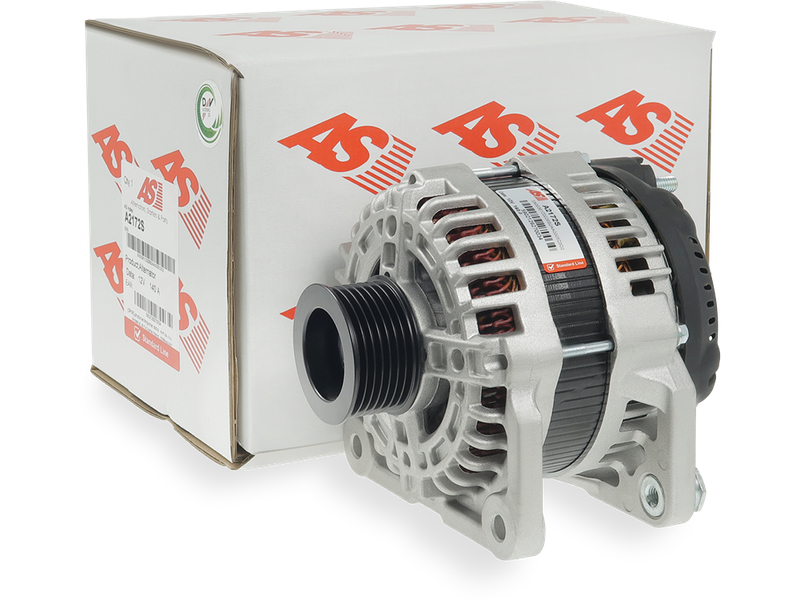

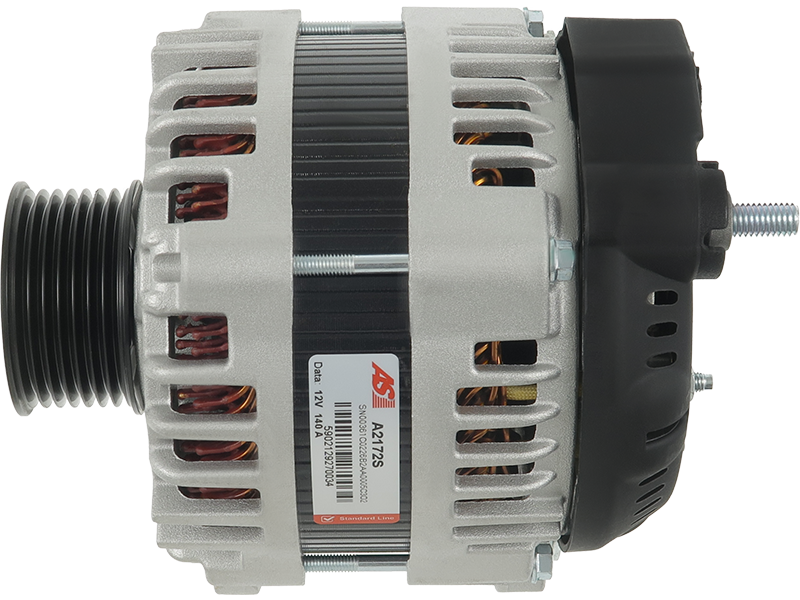

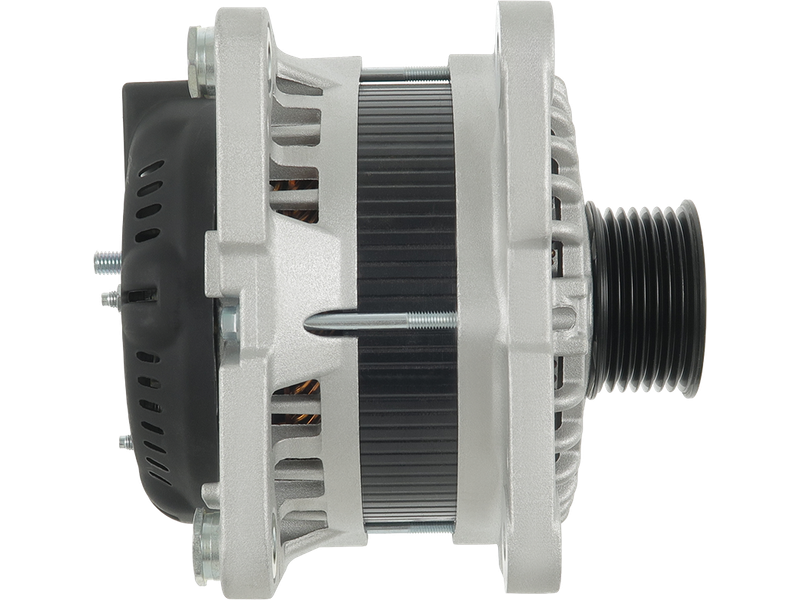

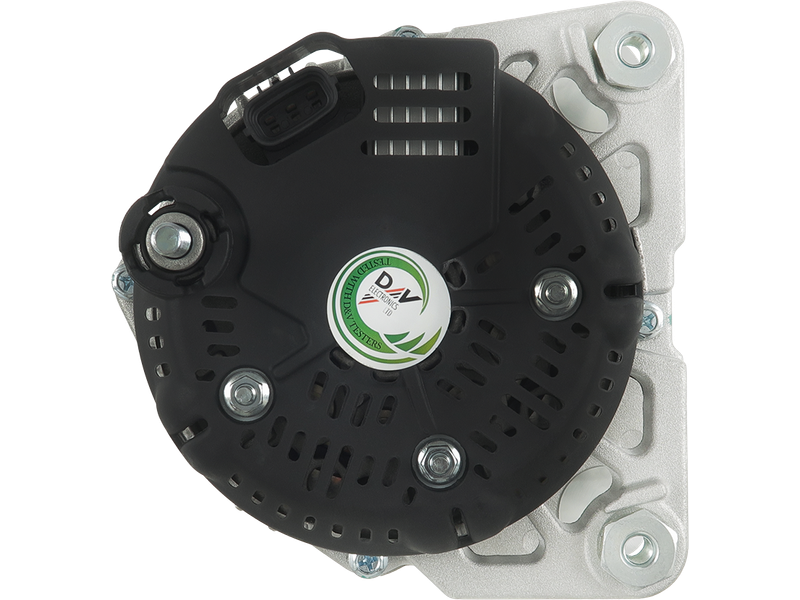

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 606.03 including GST
NZ$ 526.98 excluding GST
or four payments of $151.51
with
Learn More
Alternative Item:
A2142S
Product Code:
A2172S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
Information
SUITS:
Nissan Bluebird Sylphy
Nissan HR15DE
Nissan Juke
Nissan Livina
Nissan March
Nissan Note
Nissan Sunny
Nissan Tiida
Nissan Versa
Nissan Wingroad
Associated Numbers
14781 14-781

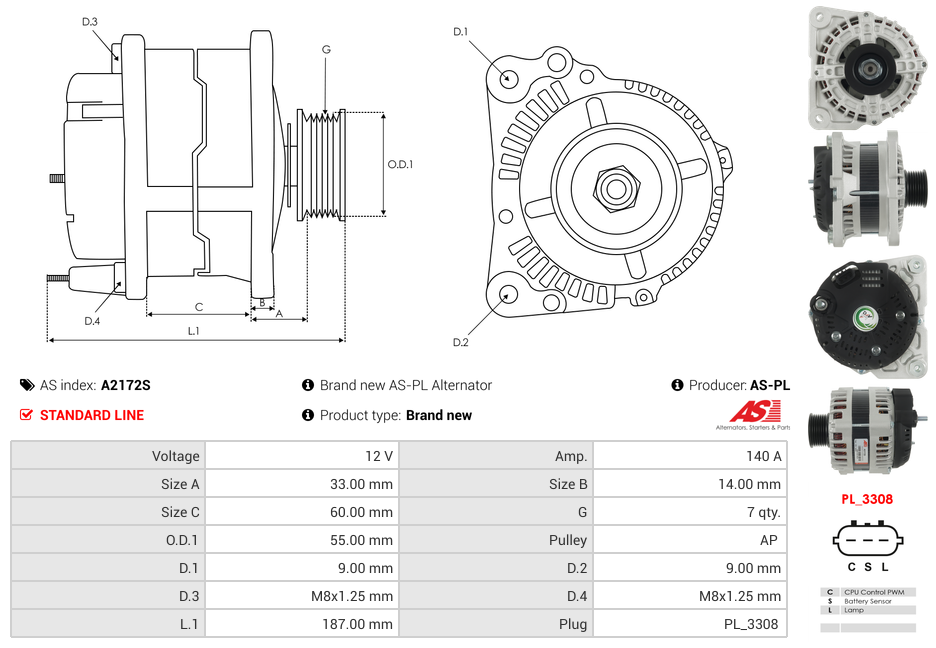

Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 9.00 mm |
| Diameter (D.2) | 9.00 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 187.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.00 mm |
| Plug Code | PL_3308 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.2) | 55.00 mm |
| Pulley to Mount Distance (A) | 33.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | CUBE (Z11) 1.5 | HR15DE | 01.2003-11.2008 |
| NISSAN | CUBE (Z11) 1.5 4x4 | HR15DE | 01.2003-09.2005 |
| NISSAN | NOTE (E11, NE11) 1.5 | HR15DE | 03.2006-12.2010 |
| NISSAN | NOTE (E11, NE11) 1.5 4WD | HR15DE | 01.2006-12.2010 |
| NISSAN | TIIDA Hatchback (C11) 1.5 4x4 (NC11) | HR15DE | 05.2004-02.2007 |
| NISSAN | TIIDA Hatchback (C11) 1.5 (C11) | HR15DE | 05.2004-08.2012 |
| NISSAN | TIIDA Saloon (SC11) 1.5 4WD (SNC11) | HR15DE | 03.2007-06.2013 |
| NISSAN | TIIDA Saloon (SC11) 1.5 (SC11) | HR15DE | 10.2004-10.2012 |
| NISSAN | WINGROAD / AD Wagon (_Y12) 1.5 4WD (NY12) | HR15DE | 11.2005- |
| NISSAN | WINGROAD / AD Wagon (_Y12) 1.5 (Y12) | HR15DE | 11.2005- |
Reference Information
| 031899 | DA SILVA |
| 0986JR0816 | BOSCH |
| 165.588.140.080 | WAI |
| 165.588.140.400 | WAI |
| 165.588.140.415 | WAI |
| 20020232RV | ITAB AUTOMOTIVE |
| 20145232RC | REAL |
| 2020232.2 | SANDO |
| 2273281402 | DRI |
| 23100-ED000 | NISSAN |
| 23100-ED00B | NISSAN |
| 28-5697 | ELSTOCK |
| 3113246 | HENKEL PARTS |
| 3113247 | HENKEL PARTS |
| 554895RI | KUHNER |
| A143.734 | WAI |
| AL02736 | TMI |
| ALH4736 | KRAUF |
| ALT222320R | SIOM |
| ALT3180 | ELECTROLOG |
| ALT32230 | WOODAUTO |
| CAL20232RS | CASCO |
| LR1140-801 | HITACHI |
| LR1140-801B | HITACHI |
| LR1140-801E | HITACHI |
| LR1140-801F | HITACHI |
| LRA03085 | LUCAS |
| LRA3085 | LUCAS |
| UD103532A | AS-PL |
| WOOALT32230 | WOODAUTO |
