Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 486.54 including GST
NZ$ 423.08 excluding GST
or four payments of $121.64
with
Learn More
UOM:
each
Product Code:
A1154S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

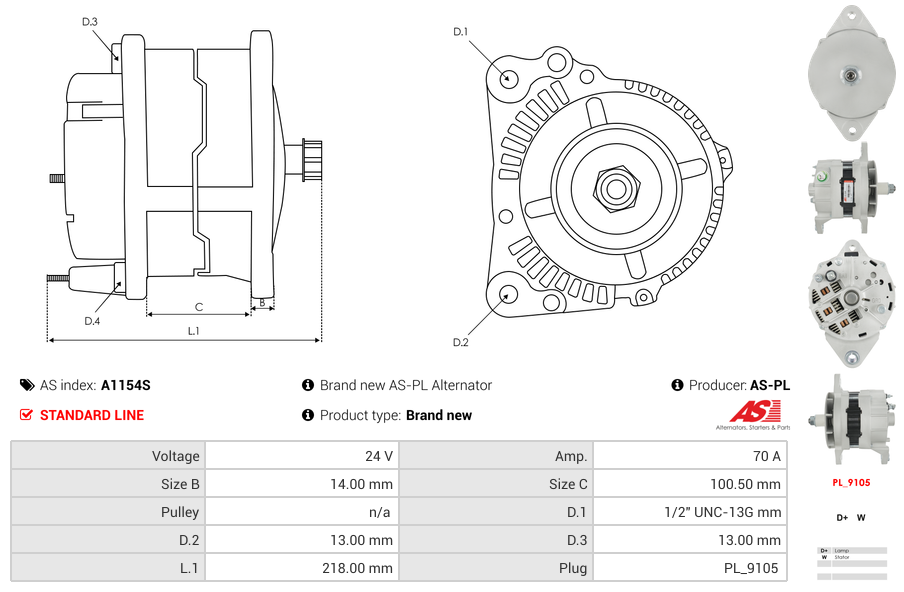

Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 1/2" UNC-13G mm |
| Diameter (D.2) | 13.00 mm |
| Diameter (D.3) | 13.00 mm |
| Length (L.1) | 218.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 100.50 mm |
| Plug Code | PL_9105 |
| Pulley Type | No Pulley |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 845 5.9 | 6BTA | 01.2002-12.2007 |
| CASE | 845 Tier 2 5.9 | 6BTA | 01.2003-12.2010 |
| CASE | 865 5.9 | 6BTA | 01.2002-12.2007 |
| CASE | 865 Tier 2 5.9 | 6BTA | 01.2002-12.2007 |
| CASE | 885 8.3 | 6CT | 01.2002-12.2007 |
| CASE | 9050B 11.1 | 6D22-T | 01.1994-12.2001 |
| CATERPILLAR | 816B 10.5 | CAT 3306 | 01.1988-12.1996 |
| CHAMPION | 710A 5.9 | 6BTA | 01.1994-12.1998 |
| CHAMPION | 716A 5.9 | 6BTA | 01.1994-12.1998 |
| CUMMINS | K Series 18.9 | KTA19 | 01.1991-12.1992 |
| INTERNATIONAL HARV. | CM-Series 1455 A | DT-402 | 01.1979-12.1996 |
| JCB | 456 8.3 | 6CTAA | 01.1996-12.2002 |
| JOHN DEERE | 753G 8.1 | 6081 | 01.2000-12.2005 |
| JOHN DEERE | 753G 8.3 | 6CTA | 01.2000-12.2004 |
| JOHN DEERE | 753GL 8.3 | 6CTA | 01.2000-12.2004 |
| KOBELCO | SK300 8.3 | 6CTA | 01.1995-12.2000 |
| KOBELCO | SK300LC 8.3 | 6CTA | 01.1995-12.1996 |
| KOMATSU | PC400HD-6LC 10.8 | M11 | 01.1996-12.1999 |
| KOMATSU | PC400LC-6LC 10.8 | M11 | 01.1996-12.1999 |
| KOMATSU | PC600LC-6 14.0 | N14 | 01.2000-12.2005 |
| KOMATSU | WA500-3L 14.0 | N14 | 01.1997-12.2006 |
| NEW HOLLAND | RG140 5.9 | 6BTA | 01.1999-12.2005 |
| NEW HOLLAND | RG140B 5.9 | 6BTA | 01.2005-12.2011 |
| NEW HOLLAND | RG170 5.9 | 6BTA | 01.1999-12.2005 |
| NEW HOLLAND | RG170B 8.3 | 6BTA | 01.1998-12.2011 |
| NEW HOLLAND | RG200 5.9 | 6BTA | 01.1999-12.2005 |
| NEW HOLLAND | RG200B 8.3 | 6CT | 01.1999-12.2006 |
| SAMSUNG | SE170 5.9 | 6BTA | 01.1992-12.1998 |
| SAMSUNG | SE210 5.9 | 6BTA | 01.1992-12.1998 |
| SAMSUNG | SE240 8.3 | 6CT | 01.1992-12.1998 |
| SAMSUNG | SE280 8.3 | 6CT | 01.1992-12.1998 |
| SAMSUNG | SE350 10.8 | M11 | 01.1994-12.1998 |
| SAMSUNG | SE450 10.8 | M11 | 01.1992-12.1998 |
| TIMBERJACK | 2618 8.3 | 6CTA | 01.1992-12.2000 |
| TIMBERJACK | 2628 8.3 | 6CTA | 01.1992-12.2000 |
| TIMBERJACK | 608 5.9 | 6BTA | 01.1995-12.2000 |
| TIMBERJACK | 608B 5.9 | 6BTA | 01.1997-12.2004 |
| TIMBERJACK | 608L 8.3 | 6CTA | 01.2000-12.2004 |
| TIMBERJACK | 608S 8.1 | 6081 | 01.2000-12.2005 |
| TIMBERJACK | 608S 8.3 | 6CTA | 01.2000-12.2004 |
| TIMBERJACK | 618 8.3 | 6CTA | 01.1989-12.2000 |
| TIMBERJACK | 628 8.3 | 6CTA | 01.1989-12.2000 |
| VOLVO | EC140 3.9 | B3.9C | 01.1998-12.2008 |
| VOLVO | EC210 5.9 | B5.9C | 01.1998-12.2008 |
| VOLVO | EC240 8.3 | C8.3C | 01.1998-12.2008 |
| VOLVO | EC290 8.3 | C8.3C | 01.1998-12.2008 |
| VOLVO | EC360 10.8 | M11C | 01.2000-12.2002 |
| VOLVO | EC460 10.8 | M11C | 01.2000-12.2002 |
Reference Information
| 10459306 | DELCO |
| 112160 | CARGO |
| 1-2291-00DR | WAI |
| 132-2156 | CATERPILLAR |
| 19020307 | DELCO |
| 19020346 | DELCO |
| 19020382 | DELCO |
| 20-0956 | AIRSTAL |
| 20109706BN | REAL |
| 20109706OE | REAL |
| 2060607.0 | SANDO |
| 2060607.1 | SANDO |
| 209280A | ERA |
| 3920618 | CUMMINS |
| 3920618RX | CUMMINS |
| 3935530 | CUMMINS |
| 3935538 | CUMMINS |
| 501620RI | KUHNER |
| 501620RID | KUHNER |
| 501620RIP | KUHNER |
| 646.004.070.030 | WAI |
| 646.004.070.395 | WAI |
| 646.004.070.440 | WAI |
| 646.004.070.555 | WAI |
| 646.004.070.967 | WAI |
| 6742015175 | KOMATSU |
| 82536 | OSSCA |
| 90-01-4152 | WILSON |
| AC-UBA1620 | ACAUTO |
| AG0278 | GHIBAUDI |
| AG0280 | GHIBAUDI |
| ALT626070 | SIOM |
| ALT626070A | SIOM |
| CAL60607AS | CASCO |
| CAL60607GS | CASCO |
| CH11087 | PERKINS |
| F032112160 | CARGO |
| GA117900-A | GPARTS |
| R6742015175 | KOMATSU |
| SA117900-A | GPARTS |
| UD103722A | AS-PL |
