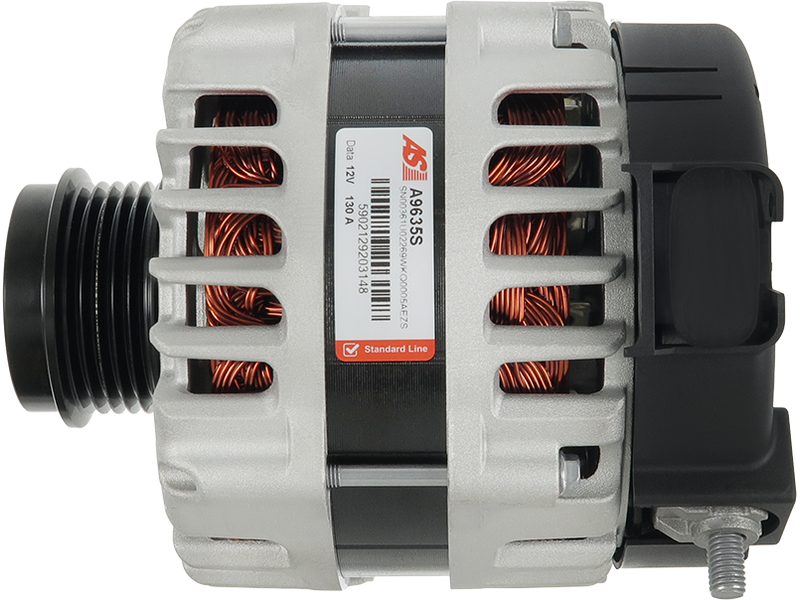

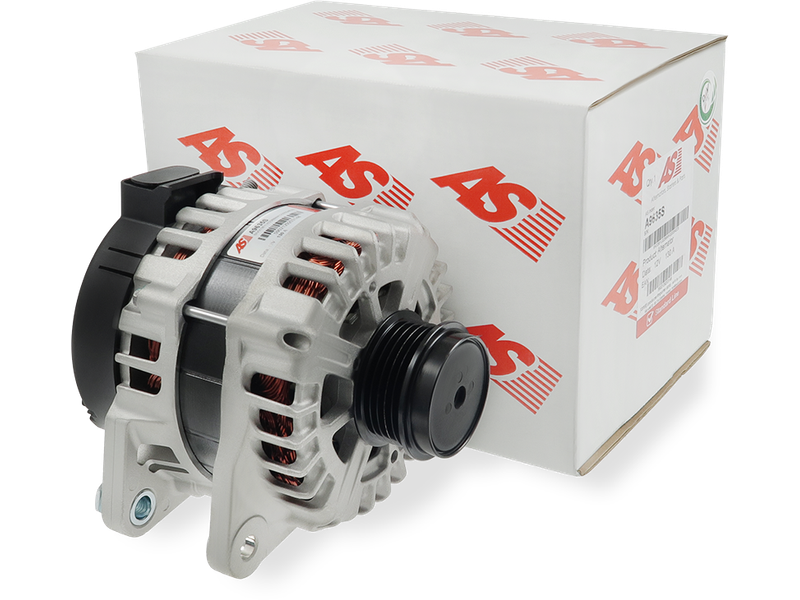

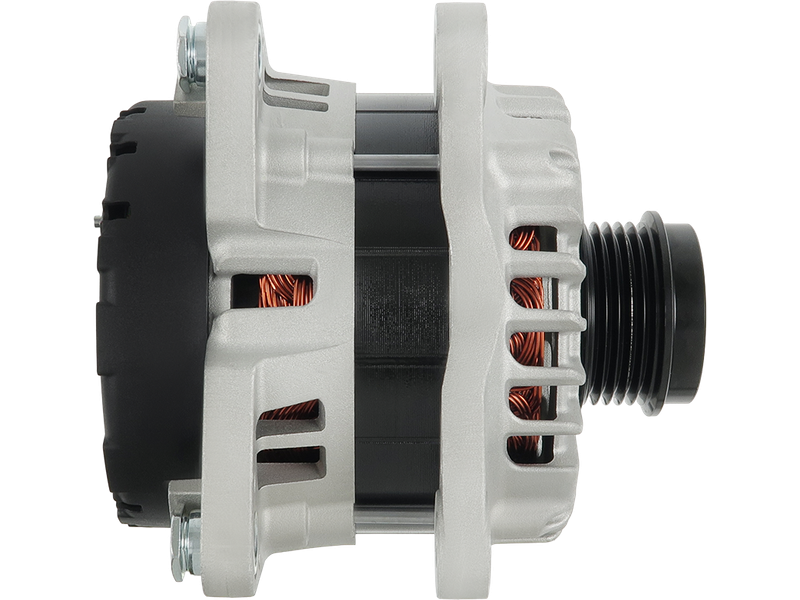

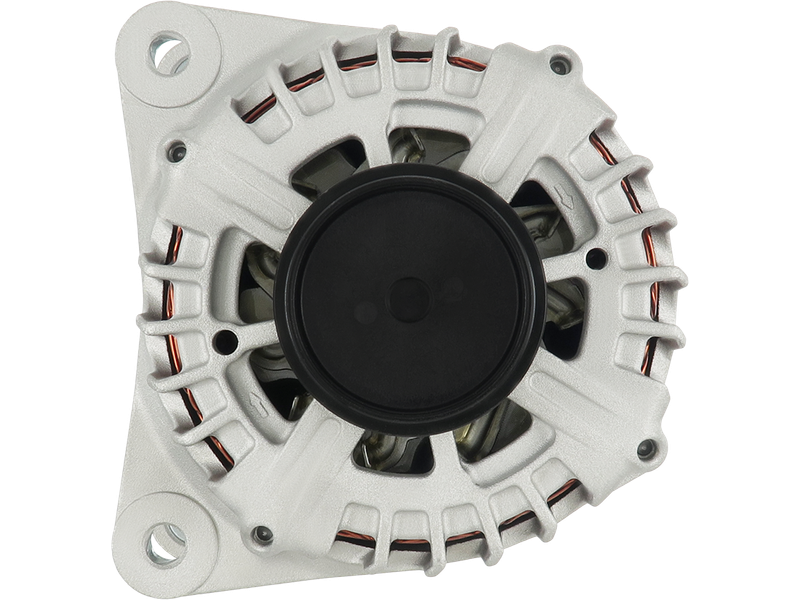

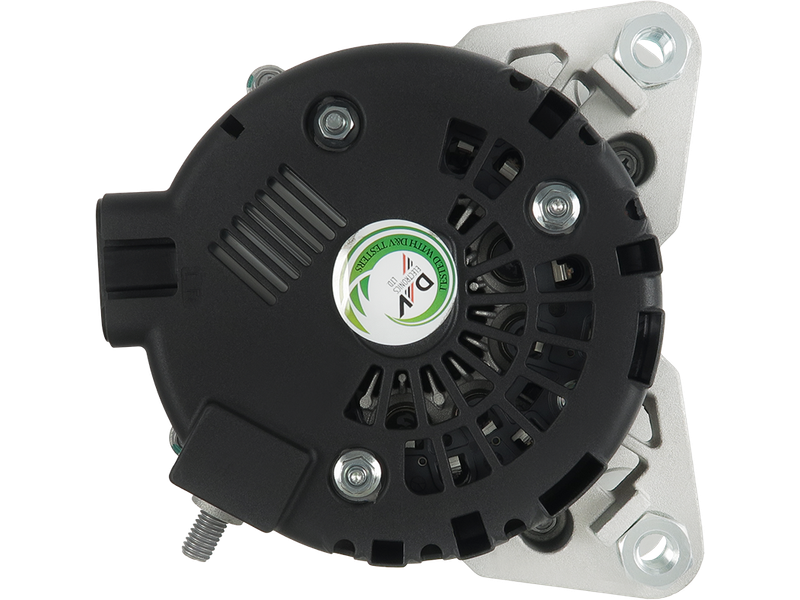

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
UNIVERSAL
Price:
NZ$ 863.04 including GST
NZ$ 750.47 excluding GST
or four payments of $215.76
with
Learn More
UOM:
each
Product Code:
A9635S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

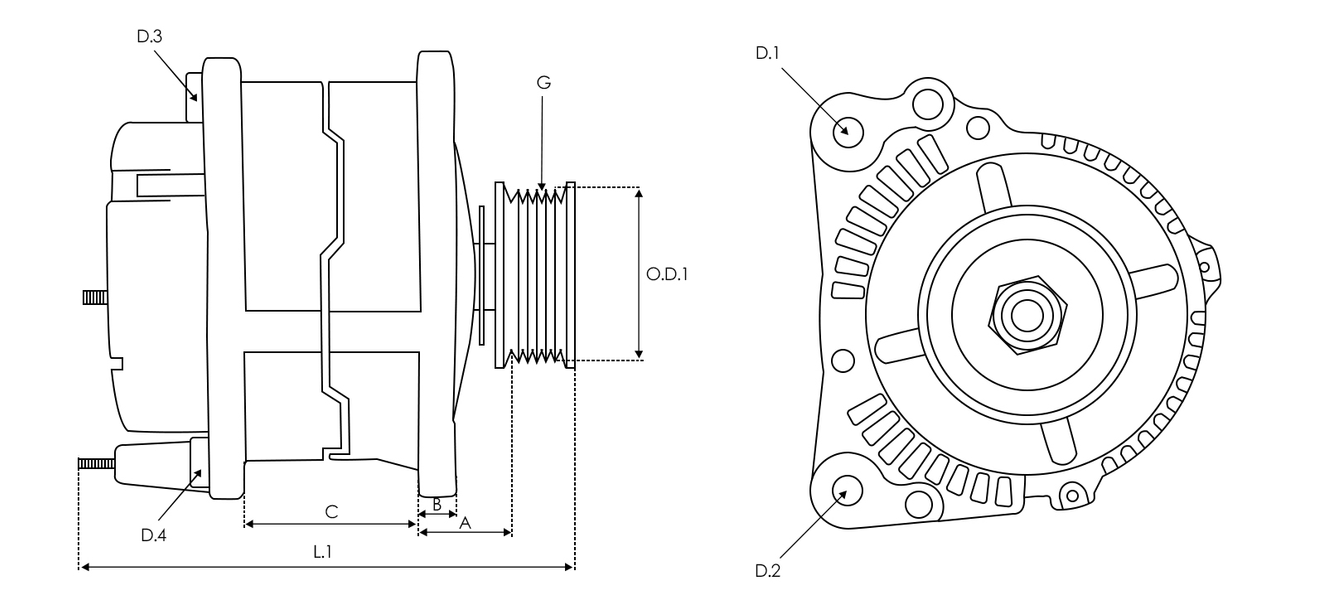

Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 13.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 172.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 46.00 mm |
| Plug Code | PL_4101 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 55.00 mm |
| Pulley to Mount Distance (A) | 48.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAC | Refine M3 1.5 | HFC4GB2-4E | 12.2020- |
| JAC | Refine X6 1.5 | HFC4GB2-4E | 12.2020- |
| MOSKVICH | 3 1.5 | HFC4GB24D | 12.2022- |
| MOSKVICH | 6 1.5 | HFC4GB2 | 09.2023- |
| SOLLERS | SF 1 1.5 | HFC4GB2.4E | 04.2025- |
Reference Information
| 1025100GH510 | JAC |
| ALQ4008 | KRAUF |
| UD103550A | AS-PL |
