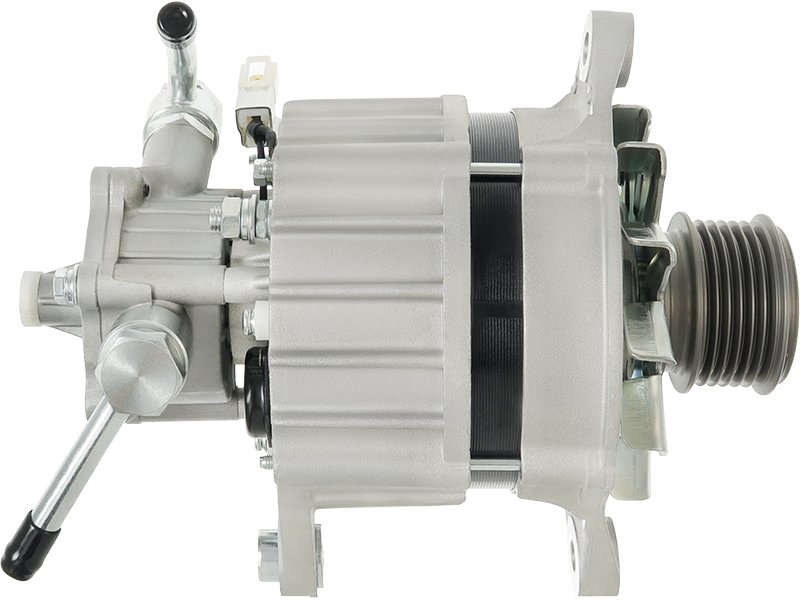

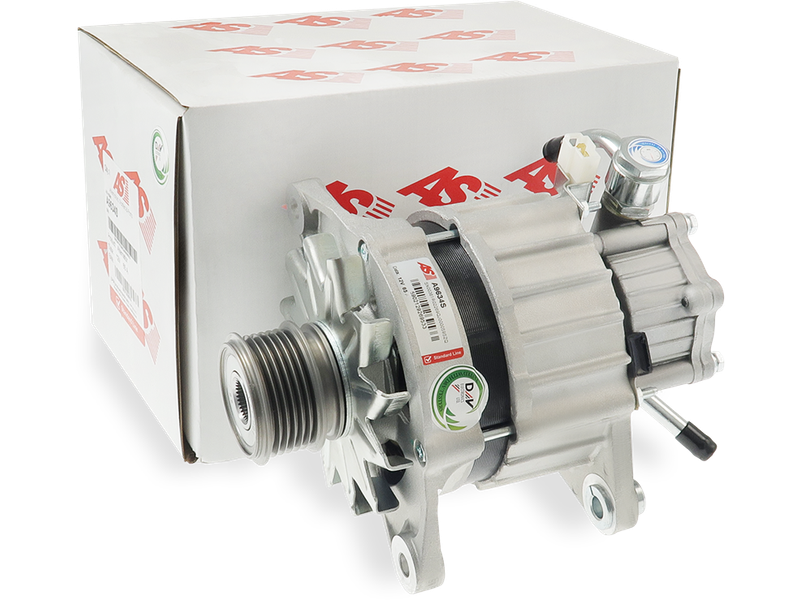

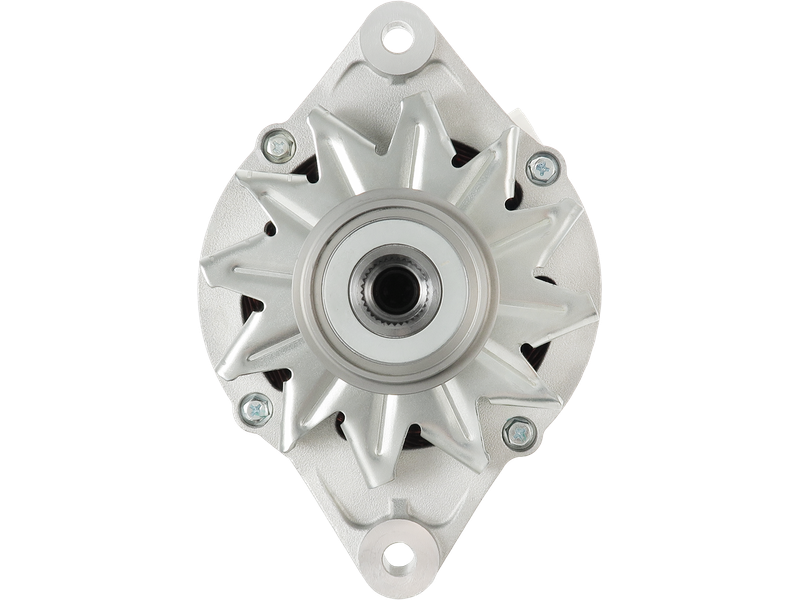

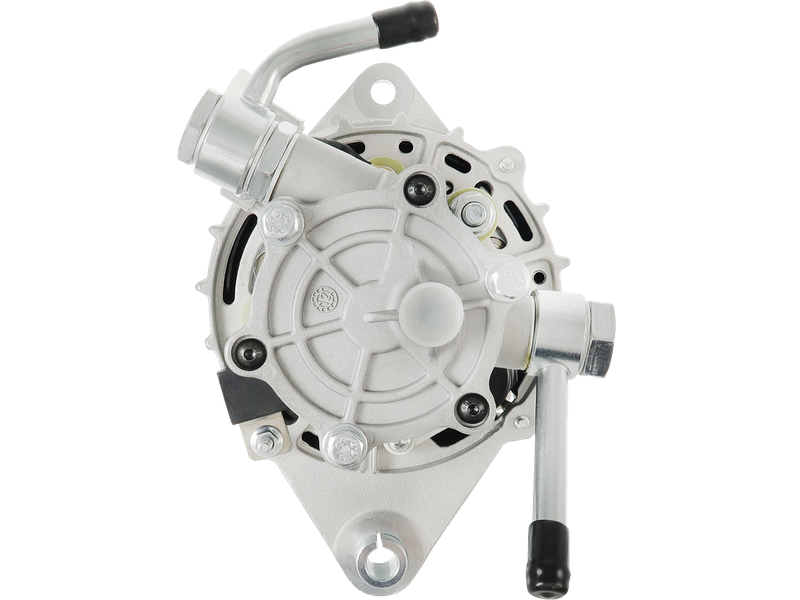

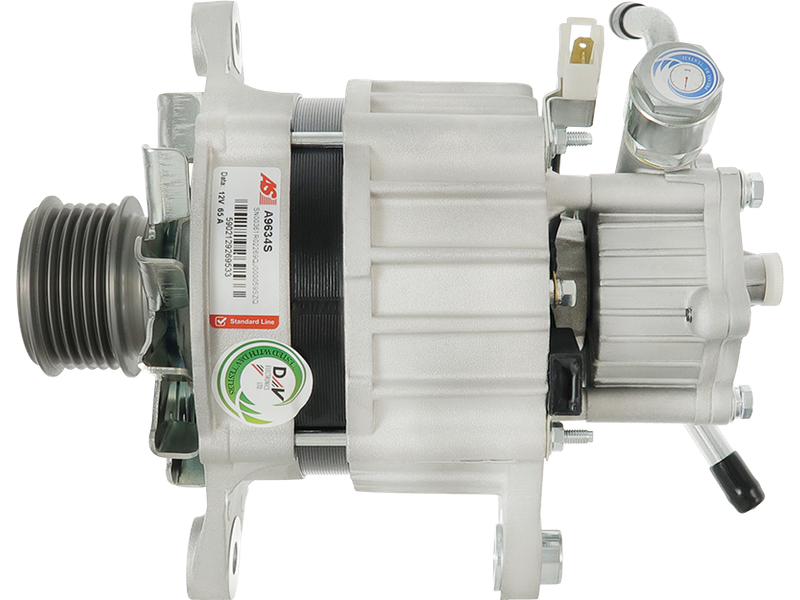

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 353.43 including GST
NZ$ 307.33 excluding GST
or four payments of $88.36
with
Learn More
UOM:
each
Product Code:
A9634S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

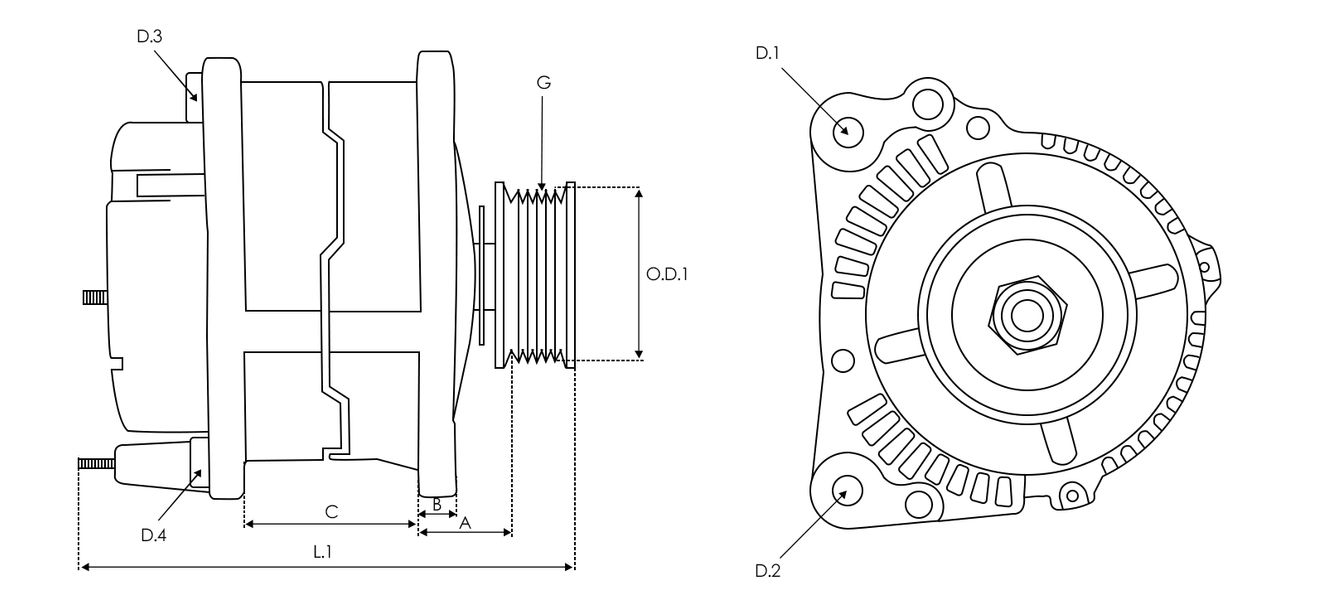

Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 253 mm |
| Mount Inside Length or Pad Mount C-C (C) | 86.00 mm |
| Plug Code | PL_2504 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 56.00 mm |
| Pulley to Mount Distance (A) | 39.00 mm |
| Pulley Type | Clutch |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GAZ | GAZELLE Bus 2.1 TD | GAZ-560 | 01.2007-03.2013 |
| GAZ | GAZELLE Van 2.1 TD | GAZ-560 | 01.2007-03.2013 |
| GAZ | SOBOL (2217) Bus 2.1 TD | GAZ-560 | 09.1997-04.2013 |
| GAZ | SOBOL (2310) Platform/Chassis 2.1 TD | GAZ-560 | 09.1997-04.2013 |
| GAZ | SOBOL (2752) Van 2.1 TD | GAZ-560 | 09.1997-04.2013 |
| GAZ | VOLGA 2.1 | GAZ-560 | 04.2004-12.2010 |
| GAZ | VOLGA 2.1 TDi | GAZ-560 | 02.1997-12.2004 |
Reference Information
| 11.201.849 | ISKRA / LETRIKA |
| AAK3110 | ISKRA / LETRIKA |
| IA0849 | ISKRA / LETRIKA |
| UD103547A | AS-PL |
