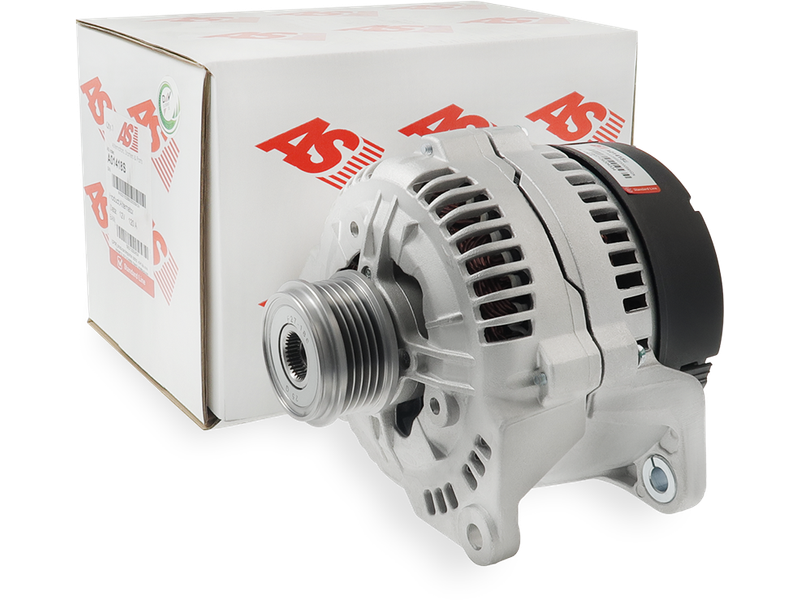

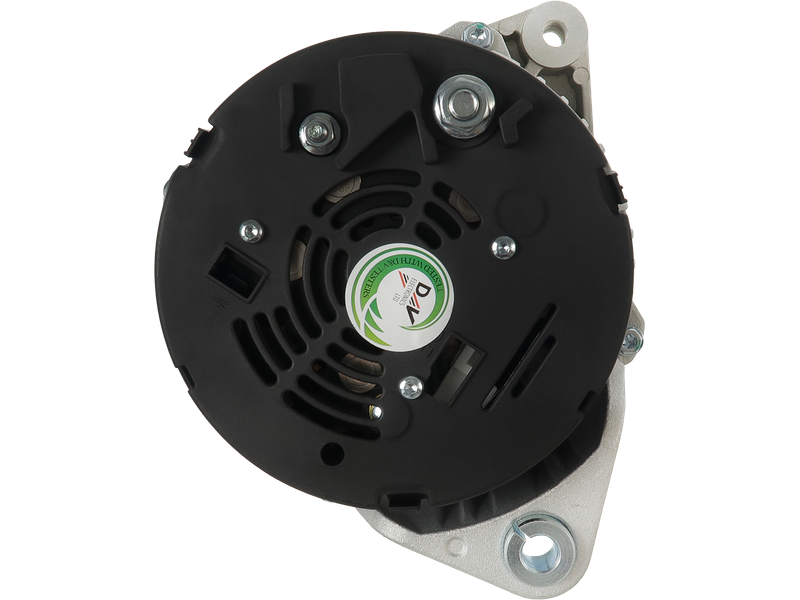

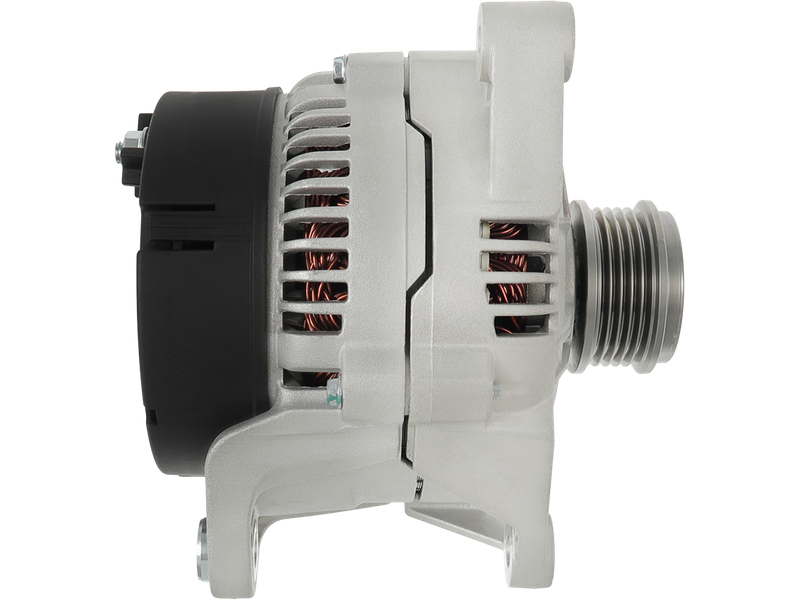

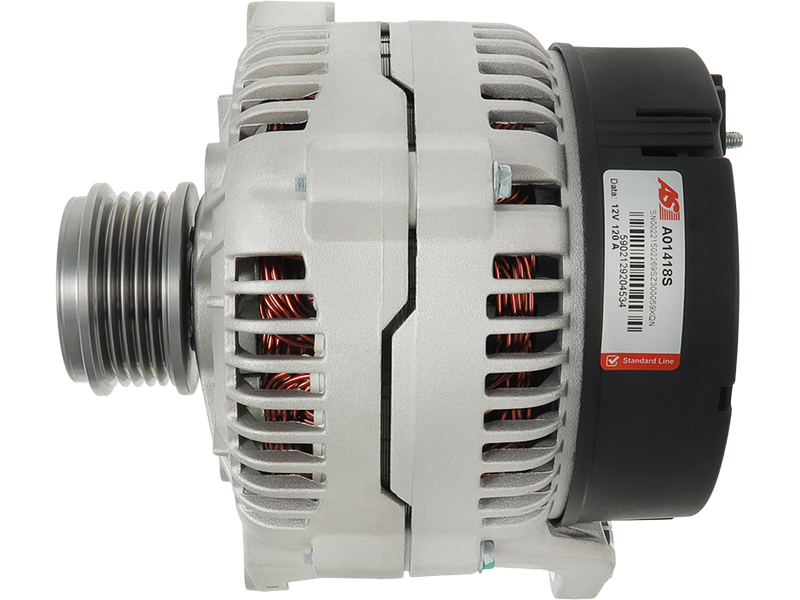

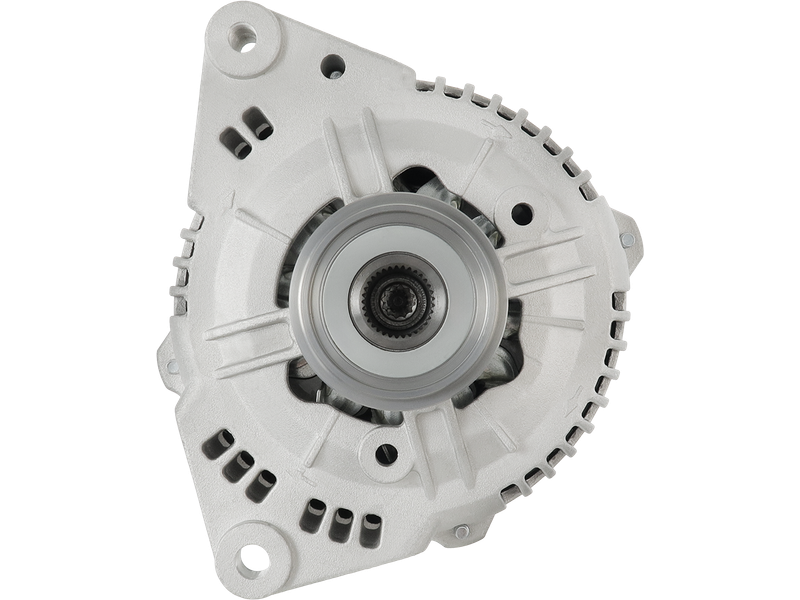

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 598.99 including GST
NZ$ 520.86 excluding GST
or four payments of $149.75
with
Learn More
Product Code:
A01418S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

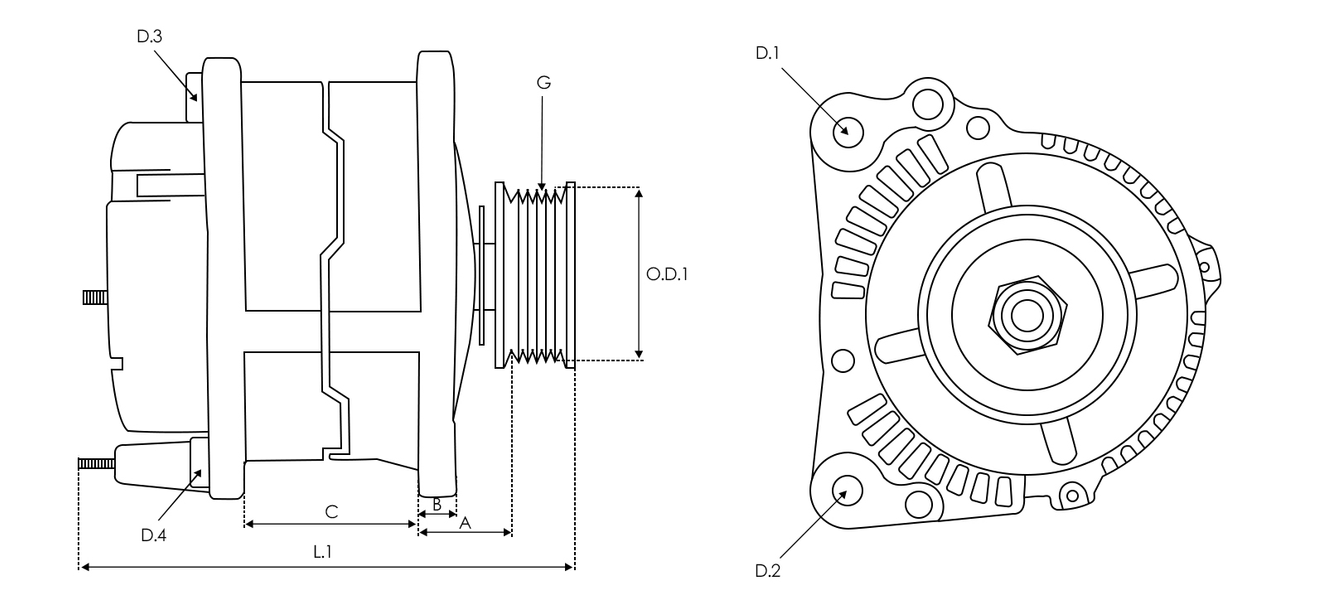

Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | M10x1.5 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 185.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82.00 mm |
| Plug Code | PL_9104 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 56.00 mm |
| Pulley to Mount Distance (A) | 33.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 C5 (4B2, 4B4) 1.8 | AJP | 07.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 | AQE | 07.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 | ARH | 07.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | AEB | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | AJL | 12.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | ANB | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | APU | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | ARK | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | AWT | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T quattro | AEB | 02.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T quattro | AJL | 12.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T quattro | ANB | 02.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T quattro | APU | 02.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T quattro | ARK | 02.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T quattro | AWT | 02.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 | AJP | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 | AQE | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 | ARH | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | AEB | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | AJL | 04.1999-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | ANB | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | APU | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | ARK | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | AWT | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | AEB | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | AJL | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | ANB | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | APU | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | ARK | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | AWT | 12.1997-01.2005 |
Reference Information
| 0123510045 | BOSCH |
| 058903016D | VW |
| 0986044550 | BOSCH |
| 111275 | FARCOM |
| 12044550 | EUROTEC |
| 20-1610 | AIRSTAL |
| 205.518.120.010 | WAI |
| 2111731202 | DRI |
| 28-4712 | ELSTOCK |
| 28-4712CT | AINDE |
| 301321RI | KUHNER |
| 301321RIB | KUHNER |
| 4593 | CEVAM |
| 89213626 | POWERMAX |
| 9041200 | FRIESEN |
| 9213626 | POWERMAX |
| 944390445500 | MAGNETI MARELLI |
| AL02329 | TMI |
| ALB1321 | KRAUF |
| ALT10248 | WOODAUTO |
| ANM46770 | ANDEL |
| CA1321IR | HC PARTS |
| DRB4550 | DELCO |
| L44550 | ATL AUTOTECHNIK |
| LRA02237 | LUCAS |
| LRA2237 | LUCAS |
| UD90854A | AS-PL |
| WAL02471 | WALKER |
| WOOALT10248 | WOODAUTO |
