Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 501.84 including GST
NZ$ 436.38 excluding GST
or four payments of $125.46
with
Learn More
Product Code:
A6959S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

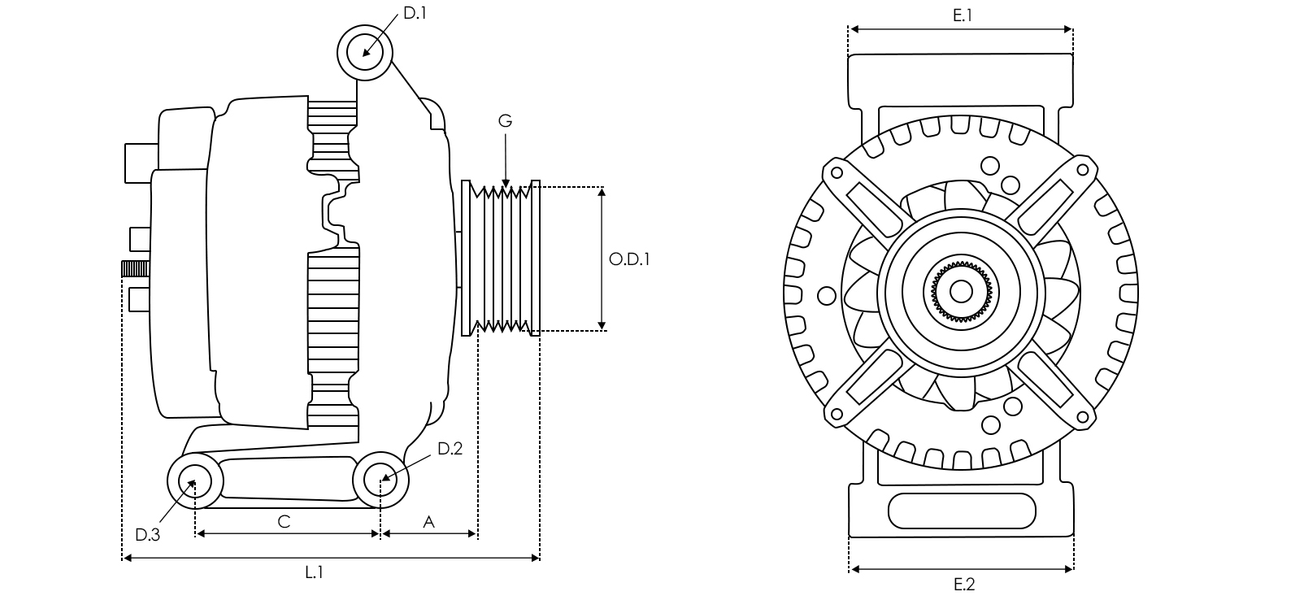

Specifications
| Amp | 105 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.00 mm |
| Diameter (D.3) | 9.00 mm |
| Length (L.1) | 185.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54.00 mm |
| Pad mount thickness (E.1) | 64.00 mm |
| Pad mount thickness (E.2) | 64.00 mm |
| Plug Code | PL_2305 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 54.00 mm |
| Pulley to Mount Distance (A) | 41.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500 (312_) 1.3 D Multijet (312AXE1A) | 199B1.000 | 12.2009- |
| FIAT | 500 (312_) 1.3 D Multijet (312AXE1A) | 312B1.000 | 12.2009- |
| FIAT | 500 C (312_) 1.3 D Multijet (312CXE1A, 312AXE1A) | 199B1.000 | 09.2009- |
| FIAT | 500 C (312_) 1.3 D Multijet (312CXE1A, 312AXE1A) | 312B1.000 | 09.2009- |
| FIAT | DOBLO Bus (263_) 1.3 D Multijet (263AXC1A) | 199A3.000 | 02.2010- |
| FIAT | DOBLO Bus (263_) 1.3 D Multijet (263AXC1A) | 263A2.000 | 02.2010- |
| FIAT | DOBLO Bus (263_) 1.3 D Multijet (263AXU1A, 263AYB1A) | 330A1.000 | 03.2016- |
| FIAT | DOBLO Bus (263_) 1.3 D Multijet (263AXU1A, 263AYB1A) | 55283775 | 03.2016- |
| FIAT | DOBLO Cargo (263_) 1.3 D Multijet (263WXU1A, 263ZXU1A, 263WYB1A, 263ZYB1A) | 330A1.000 | 03.2016- |
| FIAT | DOBLO Cargo (263_) 1.3 D Multijet (263WXU1A, 263ZXU1A, 263WYB1A, 263ZYB1A) | 55283775 | 03.2016- |
| FIAT | DOBLO Cargo (263_) 1.3 D Multijet (263ZXT1A, 263WXT1A, 263ZYA1A, 263WYA1A) | 225A2.000 | 03.2016- |
| FIAT | DOBLO Cargo (263_) 1.3 D Multijet (263ZXT1A, 263WXT1A, 263ZYA1A, 263WYA1A) | 55283775 | 03.2016- |
| FIAT | DOBLO Platform/Chassis (263_) 1.3 D Multijet (263HXT1A, 263YXT1A, 263YYA1A, 263HYA1A) | 225A2.000 | 03.2016- |
| FIAT | DOBLO Platform/Chassis (263_) 1.3 D Multijet (263HXT1A, 263YXT1A, 263YYA1A, 263HYA1A) | 55283775 | 03.2016- |
| FIAT | DOBLO Platform/Chassis (263_) 1.3 D Multijet (263HXU1A, 263YXU1A, 263HYB1A, 263YYB1A) | 330A1.000 | 03.2016- |
| FIAT | DOBLO Platform/Chassis (263_) 1.3 D Multijet (263HXU1A, 263YXU1A, 263HYB1A, 263YYB1A) | 55283775 | 03.2016- |
| FIAT | FIORINO Box Body/MPV (225_) 1.3 D Multijet | 199B1.000 | 07.2009- |
| FIAT | FIORINO Box Body/MPV (225_) 1.3 D Multijet | 225A2.000 | 03.2015- |
| FIAT | FIORINO Box Body/MPV (225_) 1.3 D Multijet | 330A1.000 | 07.2009- |
| FIAT | FIORINO Box Body/MPV (225_) 1.3 D Multijet | 46345266 | 03.2015- |
| FIAT | FIORINO Box Body/MPV (225_) 1.3 D Multijet | 46345266 | 07.2009- |
| FIAT | FIORINO Box Body/MPV (225_) 1.3 D Multijet | 55283775 | 03.2015- |
| FIAT | FIORINO MPV (225_) 1.3 JTD Multijet | 199B1.000 | 01.2011- |
| FIAT | FIORINO MPV (225_) 1.3 JTD Multijet | 225A2.000 | 03.2016- |
| FIAT | FIORINO MPV (225_) 1.3 JTD Multijet | 330A1.000 | 01.2011- |
| FIAT | FIORINO MPV (225_) 1.3 JTD Multijet | 46345266 | 01.2011- |
| FIAT | FIORINO MPV (225_) 1.3 JTD Multijet | 46345266 | 03.2016- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet (312PXL1A) | 199A1.000 | 02.2012- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet (312PXL1A) | 199A9.000 | 02.2012- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet (312PXU1A, 312PXW1A) | 199B1.000 | 04.2015- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet (312PXU1A, 312PXW1A) | 312B1.000 | 04.2015- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet (312PXU1A, 312PXW1A) | 330A1.000 | 04.2015- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet 4x4 (312PXL1A) | 199A1.000 | 06.2012- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet 4x4 (312PXL1A) | 199A9.000 | 06.2012- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet 4x4 (312PXS2A) | 199A9.000 | 06.2014- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet 4x4 (312PXS2A) | 225A2.000 | 06.2014- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet 4x4 (312PXS2A) | 312A8.000 | 06.2014- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet 4x4 (312PXS2A) | 312B2.000 | 06.2014- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet 4x4 (312PXU1A) | 199B1.000 | 04.2015- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet 4x4 (312PXU1A) | 312B1.000 | 04.2015- |
| FIAT | PANDA (312_, 319_) 1.3 D Multijet 4x4 (312PXU1A) | 330A1.000 | 04.2015- |
| FIAT | PANDA VAN (312_, 519_) 1.3 D Multijet (312CXL1A, 312DXL1A) | 199A9.000 | 02.2012- |
| FIAT | PANDA VAN (312_, 519_) 1.3 D Multijet (312PXS2A) | 225A2.000 | 12.2015- |
| FIAT | PANDA VAN (312_, 519_) 1.3 D Multijet (312PXS2A) | 312A8.000 | 12.2015- |
| FIAT | PANDA VAN (312_, 519_) 1.3 D Multijet (312PXS2A) | 312B2.000 | 12.2015- |
| FIAT | PANDA VAN (312_, 519_) 1.3 D Multijet 4x4 (312CXL2A) | 199A9.000 | 06.2012- |
| FIAT | PANDA VAN (312_, 519_) 1.3 D Multijet 4x4 (312PXS2A) | 225A2.000 | 06.2014- |
| FIAT | QUBO (225_) 1.3 D Multijet (225AXG1A, 225CXG1A, 225AXG11, 225CXG11) | 225A2.000 | 03.2015- |
| LANCIA | YPSILON (312_) 1.3 D Multijet (312.YXE1A, 312.YXU1A) | 199B1.000 | 05.2011-08.2018 |
| LANCIA | YPSILON (312_) 1.3 D Multijet (312.YXE1A, 312.YXU1A) | 312B1.000 | 05.2011-08.2018 |
| LANCIA | YPSILON (843_) 1.3 D Multijet (843.AXF11, 843.AXF1A, 843.AXM11,... | 199A2.000 | 09.2006-12.2011 |
| LANCIA | YPSILON (843_) 1.3 D Multijet (843.AXF11, 843.AXF1A, 843.AXM11,... | 199A9.000 | 09.2006-12.2011 |
Reference Information
| 031361 | DA SILVA |
| 064ST58 | STARTCAR |
| 101210-1690 | DENSO |
| 20-1375 | AIRSTAL |
| 2183461052 | DRI |
| 28-7812 | ELSTOCK |
| 40653 | CEVAM |
| 505.929.105.050 | WAI |
| 51880172 | FIAT |
| 58064 | EAI |
| 9091348 | FRIESEN |
| A133.554 | WAI |
| AL03734 | TMI |
| ANM98898 | ANDEL |
| DRA2152 | DELCO |
| FI8147 | SNRA |
| G101438 | BTS TURBO |
| LRA04203 | LUCAS |
| LRA4203 | LUCAS |
| UD103465A | AS-PL |
| WAL01796 | WALKER |
