Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

MAGNETI MARELLI

Price:

NZ$ 544.13 including GST

NZ$ 473.16 excluding GST

or four payments of $136.03 with
Learn More

Product Code:

A4166S

Quantity In Stock Nationally

No stock in NZ currently

Availability:

No stock in NZ currently

Amp	120 A

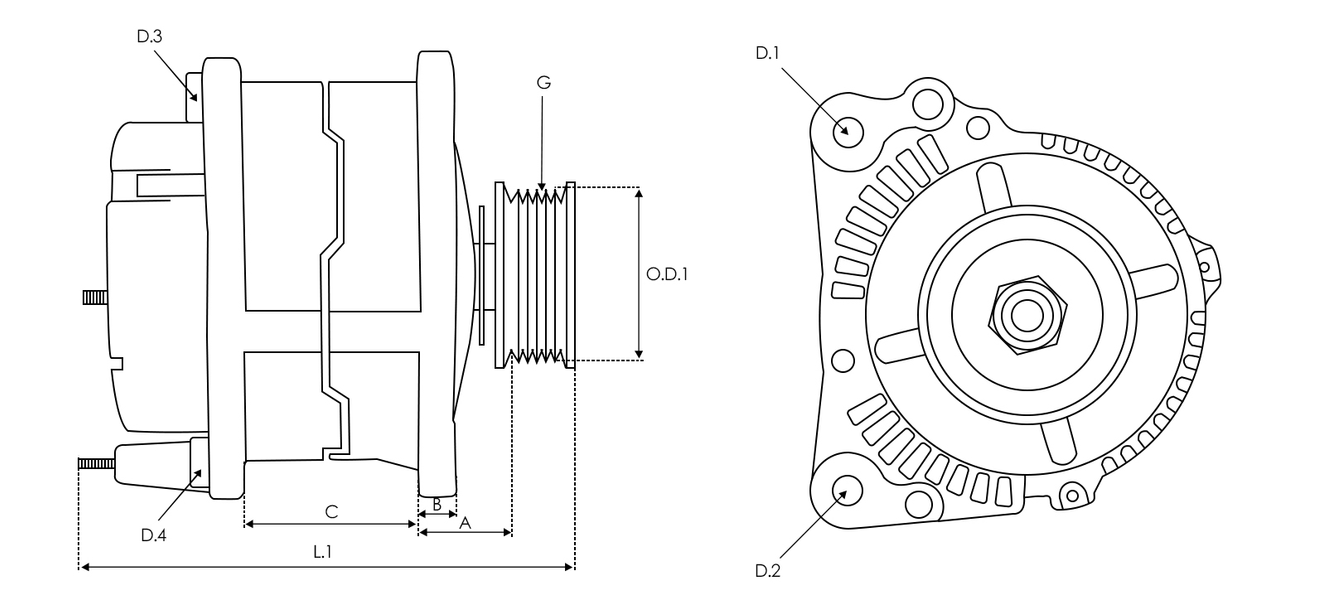

Bottom Mounting Foot Width (B)	13.50 mm
Diameter (D.1)	8.00 mm
Diameter (D.2)	8.00 mm
Diameter (D.3)	8.50 mm
Length (L.1)	192.00 mm
Mount Inside Length or Pad Mount C-C (C)	83.00 mm
Plug Code	PL_9109
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.2)	56.00 mm
Pulley to Mount Distance (A)	32.00 mm
Pulley Type	Clutch
Voltage	12 V

Make	Model	Type	Year
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.3 16V RWD (F_B_, F_C_, F_A_)	E5FA	08.2000-05.2006
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.3 16V RWD (F_B_, F_C_, F_A_)	E5FC	08.2000-05.2006
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.3 16V (F_A_, F_B_, F_C_, F_D_)	E5FA	04.2001-05.2006
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.3 16V (F_A_, F_B_, F_C_, F_D_)	E5FC	04.2001-05.2006
FORD	TRANSIT Van (FA_ _) 2.3	E5FC	03.2001-03.2006
FORD	TRANSIT Van (FA_ _) 2.3 16V RWD (FAA_, FAB_, FAC_)	E5FA	04.2001-05.2006
FORD	TRANSIT Van (FA_ _) 2.3 16V RWD (FAA_, FAB_, FAC_)	E5FC	04.2001-05.2006
FORD	TRANSIT Van (FA_ _) 2.3 BiFuel	E5FC	03.2001-03.2006

A4166S - Brand new AS-PL Alternator
