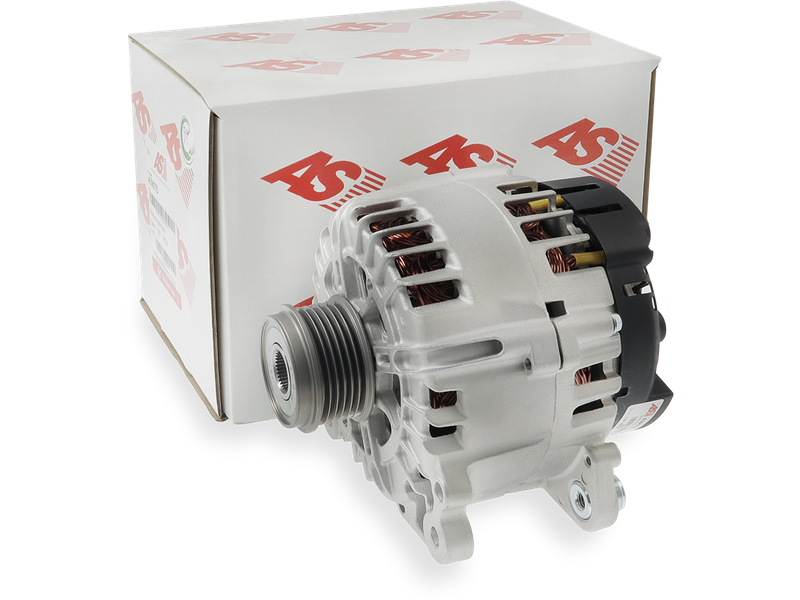

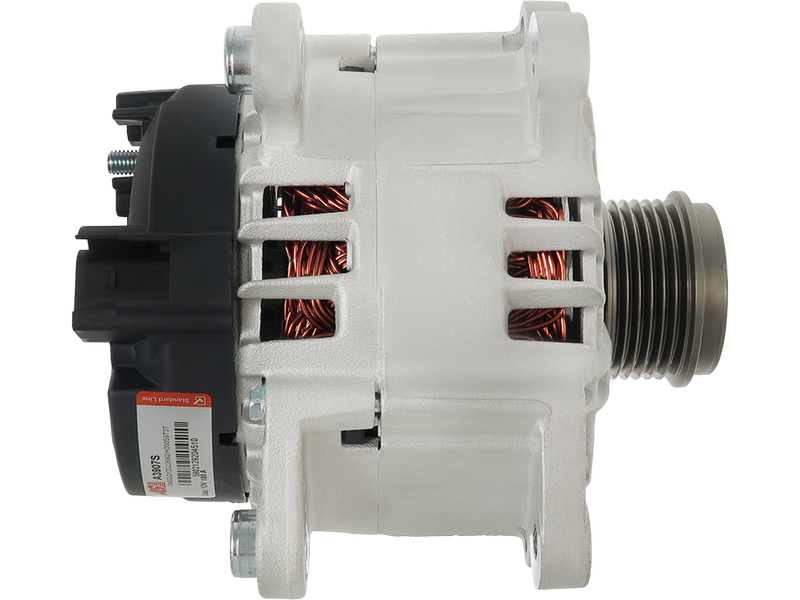

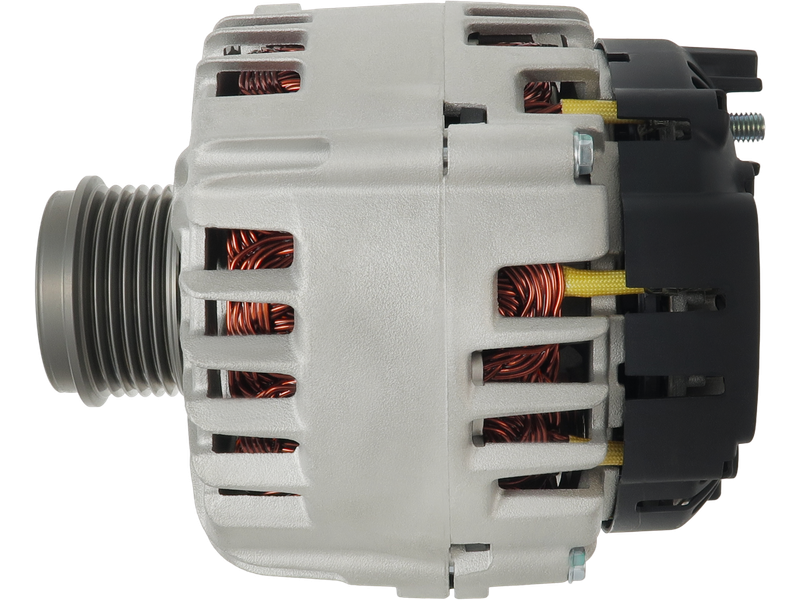

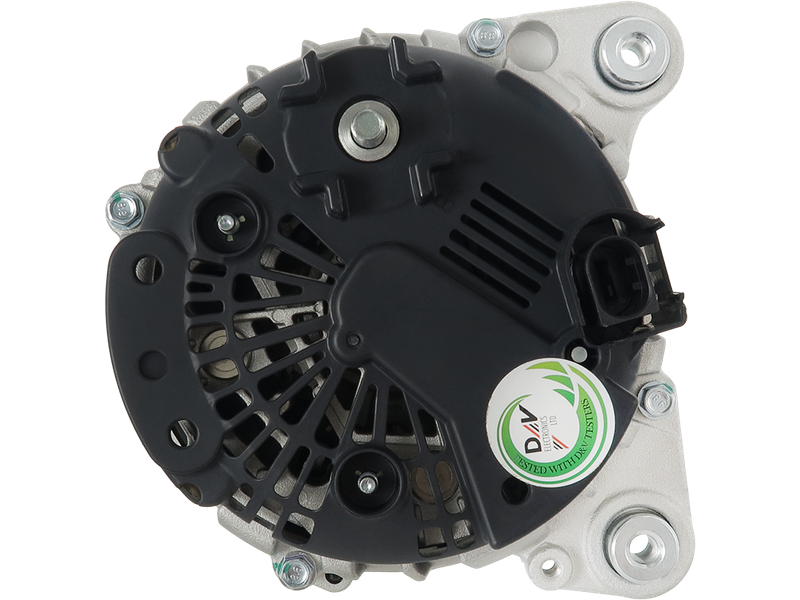

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 852.08 including GST
NZ$ 740.94 excluding GST
or four payments of $213.02
with
Learn More
AAM-C6098,AGV-C6098,A3792S
A3907S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
059903023S Volkswagen AG 059903023SX 059903023T 059903023TX 116718 HC-Cargo 14201459 AES 20829N WAI 20829OS 22438N 2714247B Valeo 2714247C 305308180 PSH 443013 443018 DA3166 Delco Remy DRA2056 DRA2057 F032116718 FG18T163 FG18T180 FGN18T180 LRA04157 Lucas LRA04290 LRA4157 LRA4290 VAL443018 Wood Auto VALFG18T163 UD91095A AS-PL CARGO DELCO VALEO 2718361A 440826 List List VW ANM100063 ANDEL ANM98872 AAL2124 APEC L51220 ATL AUTOTECHNIK AVA092 AUTOTEAM G104353 BTS TURBO G104361 CAL15026GS CASCO CAL15092AS CAL15092GS 40192 CEVAM 40193 031116 DA SILVA 2.12E+09 DRI 2.12E+10 58451 EAI 58452 ALT00649 ELECTROLOG ALT01015 28-7766 ELSTOCK 28-7899 12090831 EUROTEC 115047 FARCOM 3117719 HENKEL PARTS 20015026OV ITAB AUTOMOTIVE 20015092OV 8620589 KAMOKA ALV9018 KRAUF 554567RI KUHNER 554567RIV 556123RI 556123RIV 442705 LOGISTIK LUCAS NPANAL2124 NAPA IR5339 PROTECH IR5888 305.308.180.000 305.308.180.001 305.308.180.500 305.308.180.502 A132.312 A148.124 2015092 REAL 20179290BN 20179290OE 20179620OE 2015026 SANDO ALT170260 SIOM ALT170920 VW8156 SNRA VW8157 451ST58 STARTCAR 452ST58 AL03690 TMI AL04158 8310 29102 TRISCAN / TRANSPO WAL01615 WALKER WG2471785 WILMINK GROUP WOODAUTOSpecifications

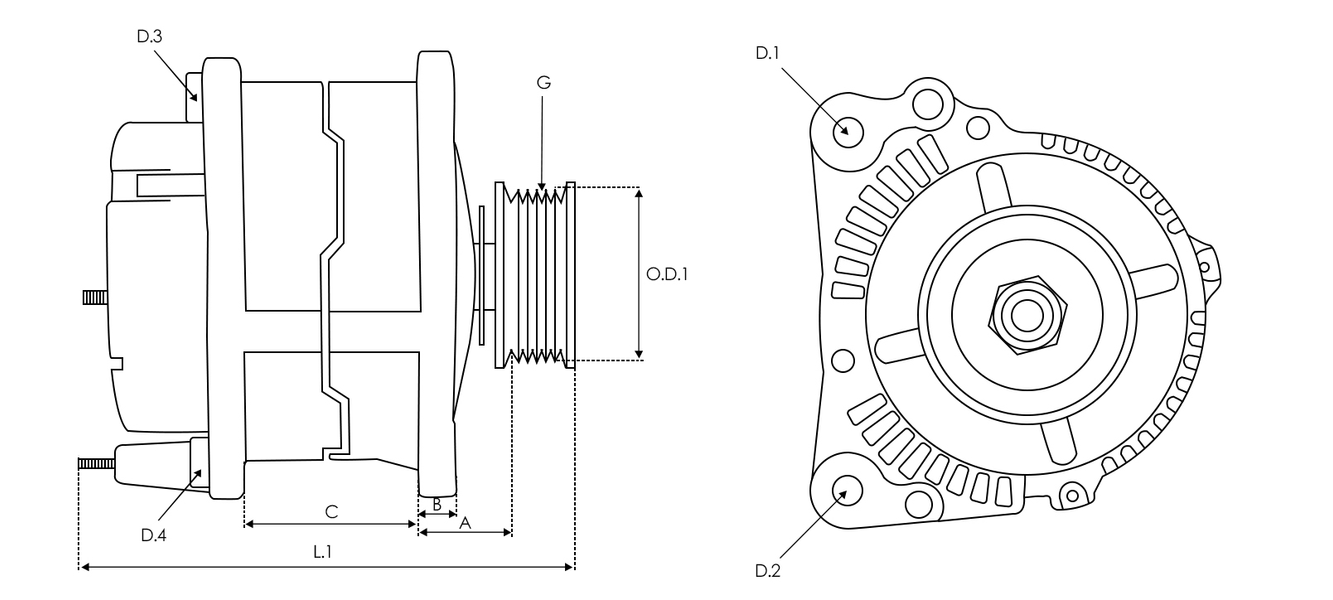

| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | 9.00 mm |
| Diameter (D.2) | 9.00 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 182.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.50 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56.00 mm |
| Pulley to Mount Distance (A) | 30.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
