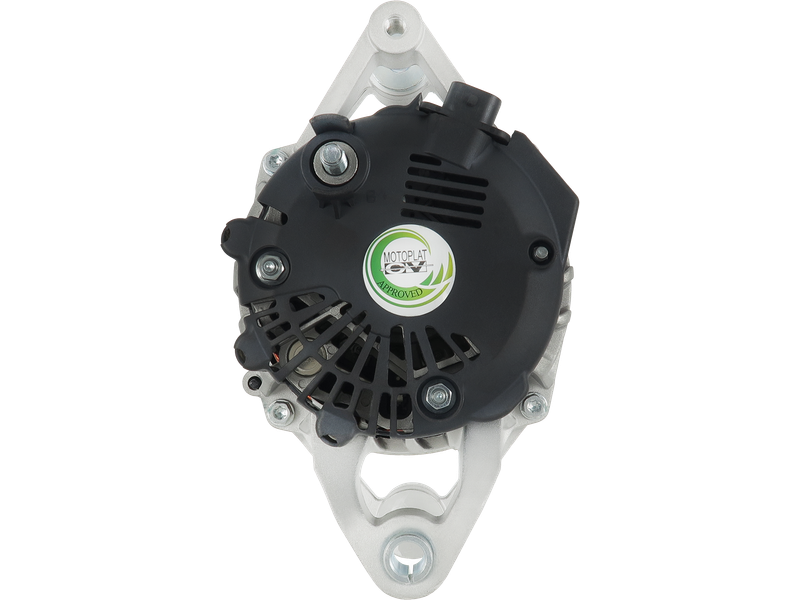

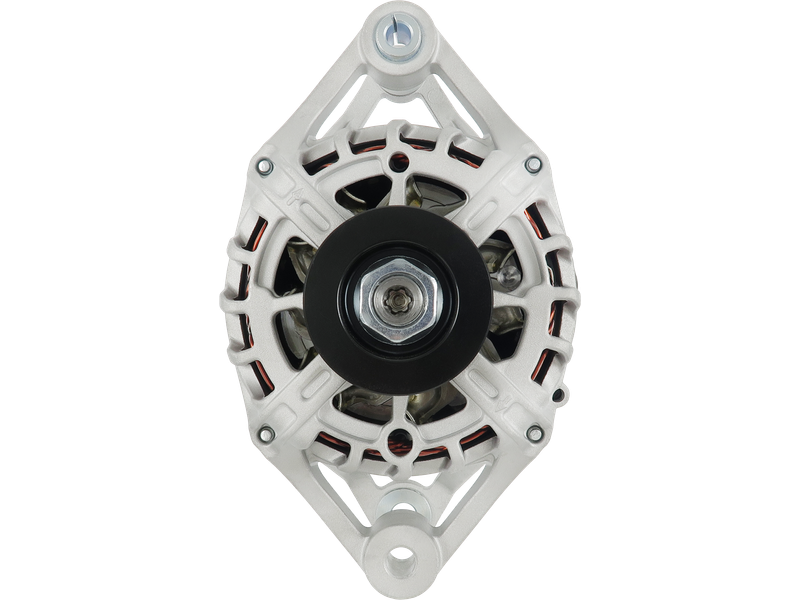

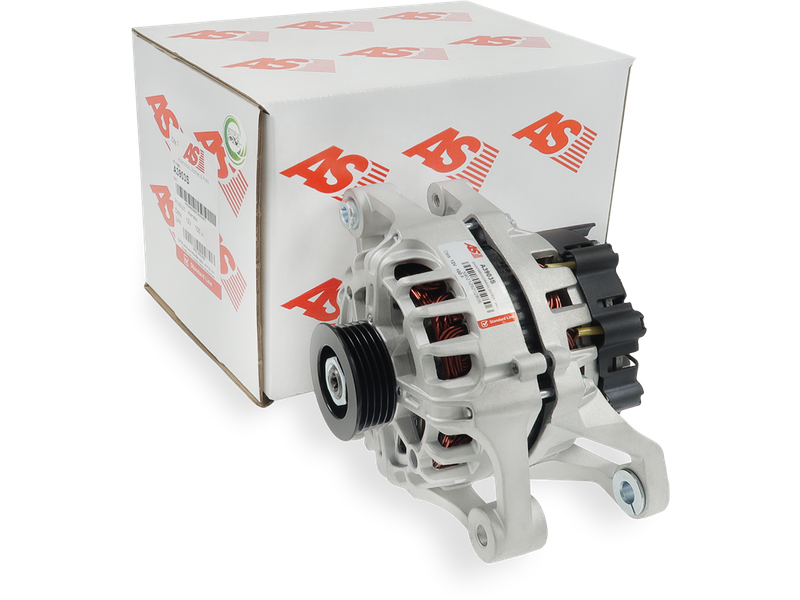

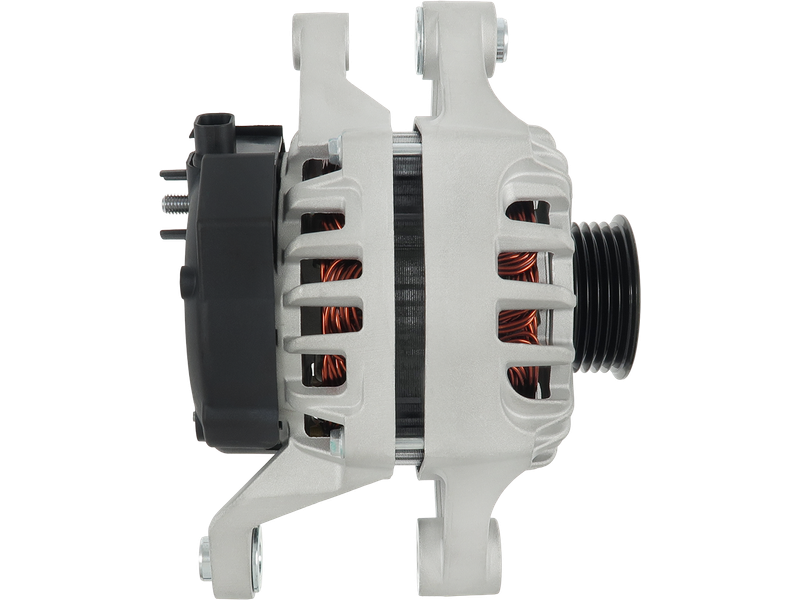

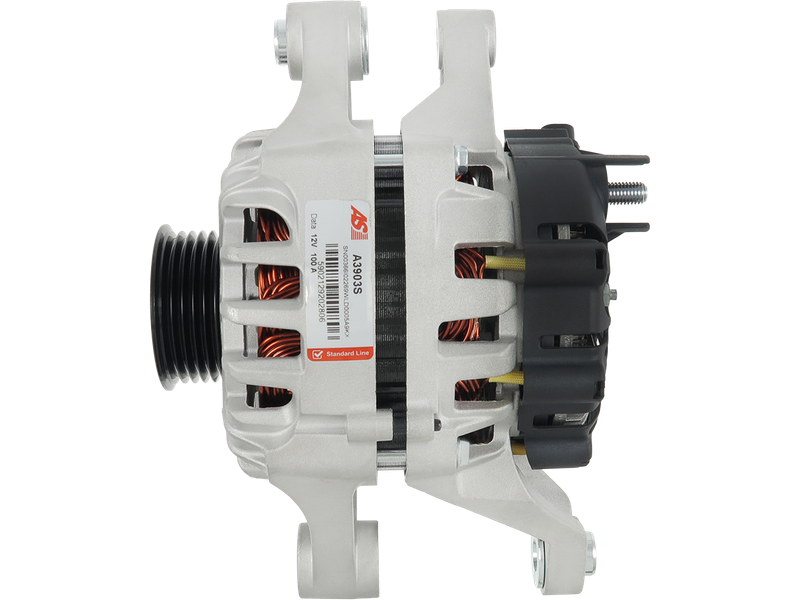

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 522.95 including GST
NZ$ 454.74 excluding GST
or four payments of $130.74
with
Learn More
UOM:
each
Product Code:
A3903S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

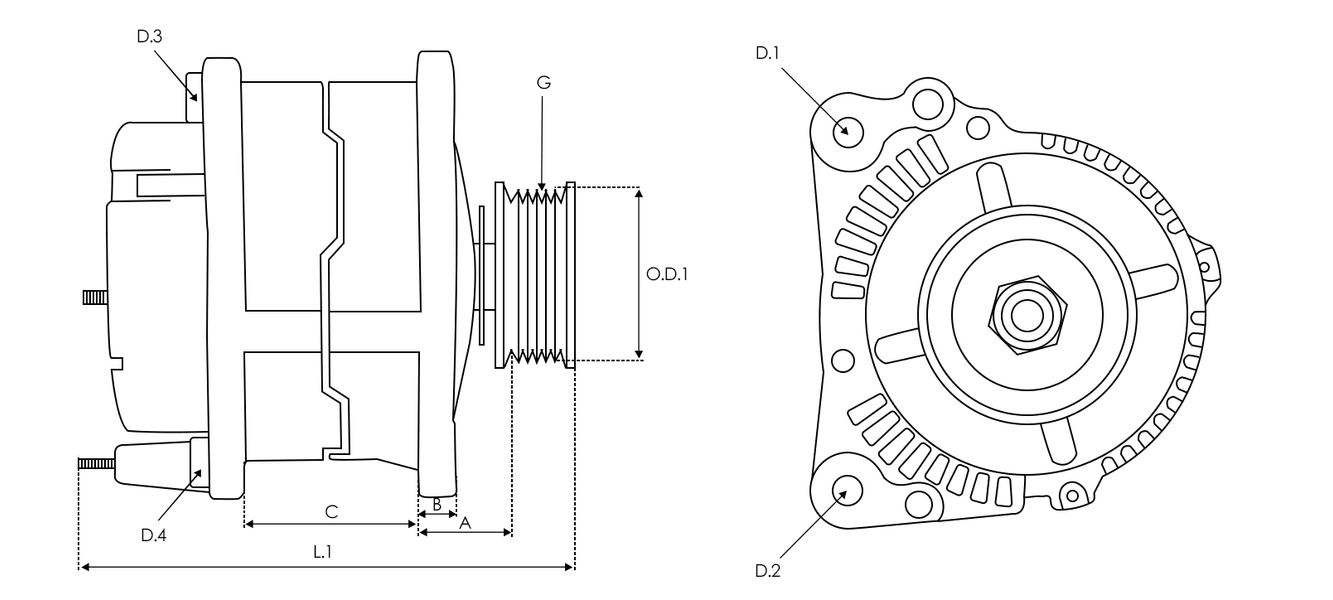

Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 28.50 mm |
| Diameter (D.1) | 10.00 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | 10.50 mm |
| Length (L.1) | 167.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56.00 mm |
| Plug Code | PL_2201 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 54.00 mm |
| Pulley to Mount Distance (A) | 53.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | CELTA 1.0 i 16V | 01.2014- | |
| CHEVROLET | CLASSIC 1.0 | 01.2014- | |
| CHEVROLET | CORSA 1.0 | 01.2014- | |
| CHEVROLET | CORSA 1.4 | 01.2014- | |
| CHEVROLET | MERIVA 1.4 | 01.2014- | |
| CHEVROLET | MERIVA 1.8 | 01.2014- | |
| CHEVROLET | PRISMA 1.0 | 01.2014- | |
| CHEVROLET | PRISMA 1.4 | 01.2014- |
Reference Information
| 033502 | DA SILVA |
| 135.915.100.008 | WAI |
| 208-2069 | LESTER |
| 494707 | VALEO |
| 94741187 | GM |
| ALV3546 | KRAUF |
| G107385 | BTS TURBO |
| RNLTG9S114 | RNL |
| TG9S114 | VALEO |
| UD103718A | AS-PL |
